Ubiquiti UCG-Fiber (30W) gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

74 IN STOCK

SKU: UCG-FIBER

Manufacturer: Ubiquiti Ubiquiti

RRP Price €322.77

Specifications

Design

Product colour
White
Enclosure material
Polycarbonate (PC)
LED indicators
Status

Performance

Control display unit
Yes
Display type
LCM
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor frequency
2200 MHz
Number of processors installed
1
Internal memory
3000 MB

Protocols

Routing protocols
OSPF

Network

Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Bluetooth
Yes
Load balancing
Yes

Security

Security algorithms
802.1x RADIUS, IPSec, TLS
Firewall security
Yes
VLAN support
Yes

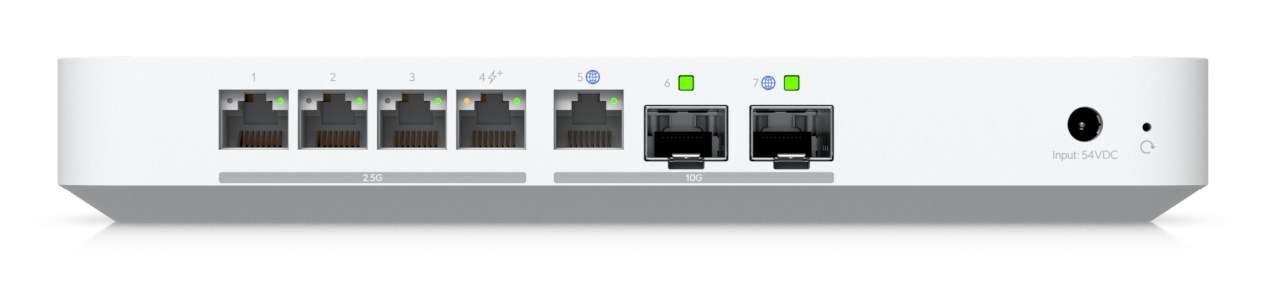

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
WAN connection
Ethernet (RJ-45), SFP
DC-in jack
Yes
SFP+ ports quantity
2

Management features

Quality of Service (QoS) support
Yes
Reset button
Yes
Multicast support
Yes

Power

Power consumption (max)
29.4 W
Input voltage
100 - 240 V
Input current
1.1 A
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet (PoE)
Yes
DC input voltage
54 V
Electromagnetic (EMP) protection
Yes
Electromagnetic (EMP) protection (air)
8 kV
Electromagnetic (EMP) protection (contact)
4 kV

Weight & dimensions

Width
212.8 mm
Depth
127.6 mm
Height
30 mm
Weight
675 g

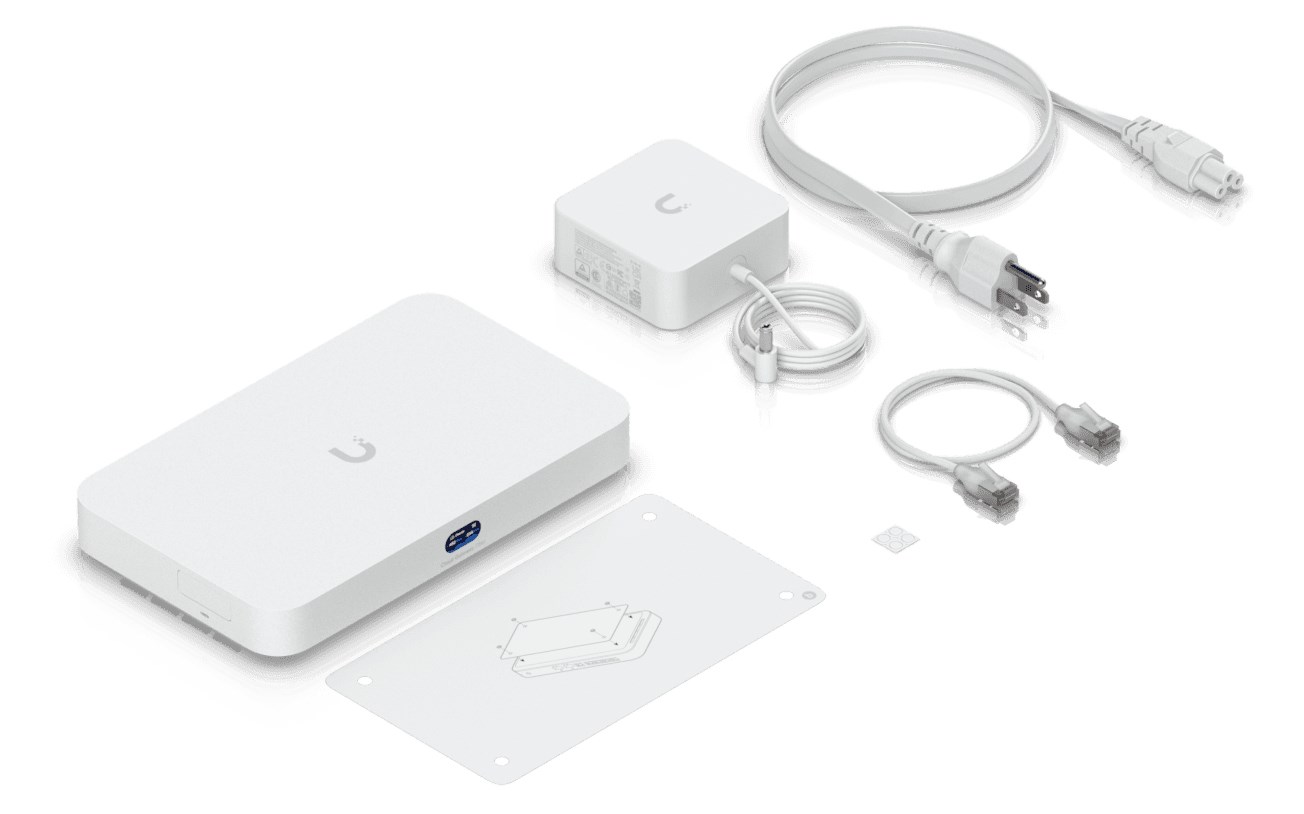

Packaging content

AC adapter included
Yes
Cables included
LAN (RJ-45), Power

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)

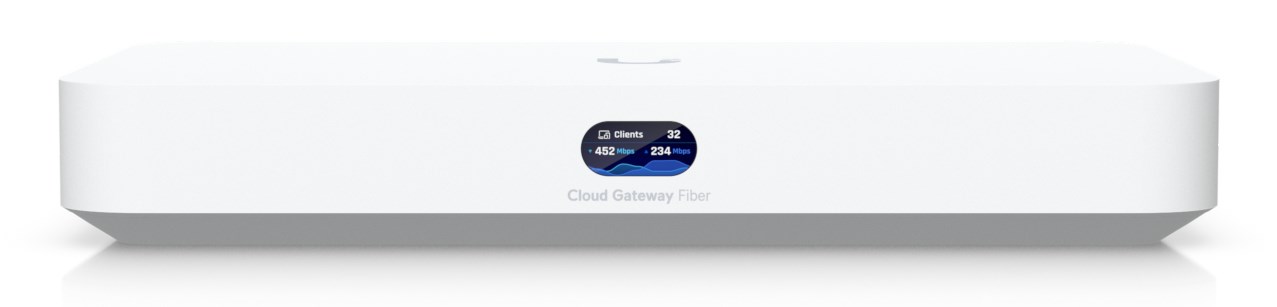

Display

Display diagonal
2.44 cm (0.96")

Accessories

License
