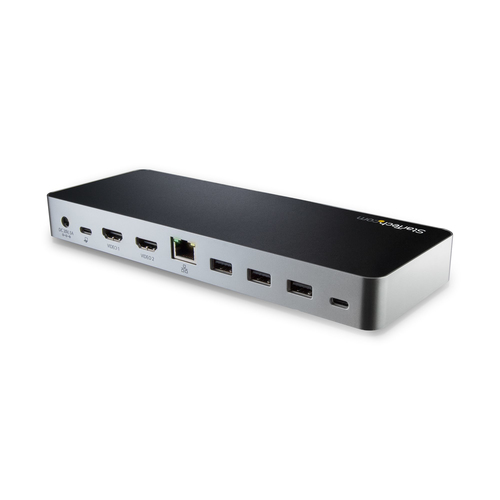

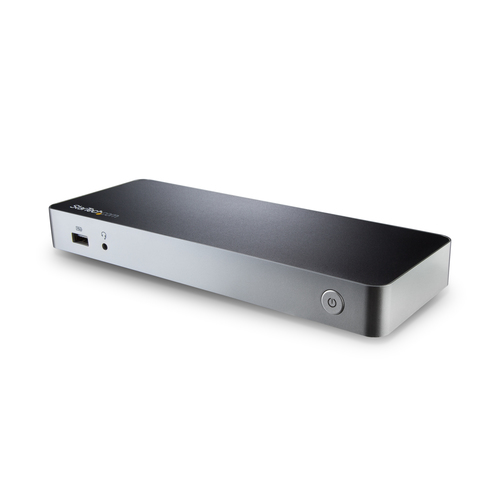

StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible

StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible

Name: StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/...
Brand: StarTech.com
SKU: MST30C2HHPDU
Price: 254.39 EUR
Availability: InStock

Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup

Enhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required, right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.

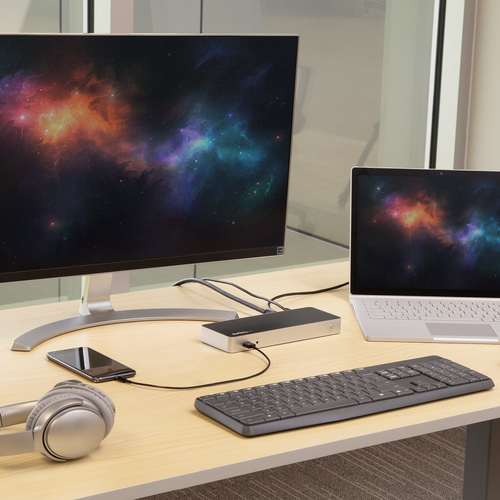

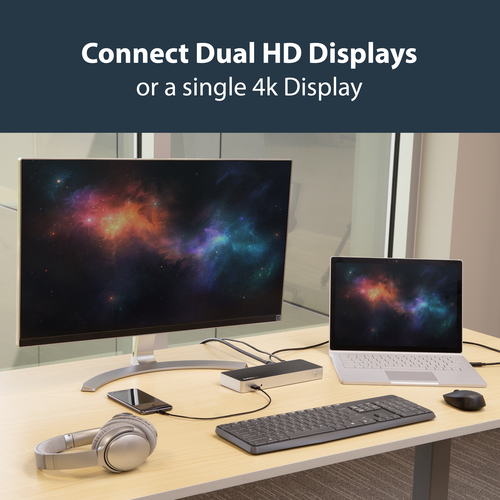

Create a Dual-Monitor Workstation

The USB-C dock lets you connect dual monitors with flexible options. Connect to:

• 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz
• 1x HDMI + 1x DVI display

You can also connect a single 4K HDMI display.

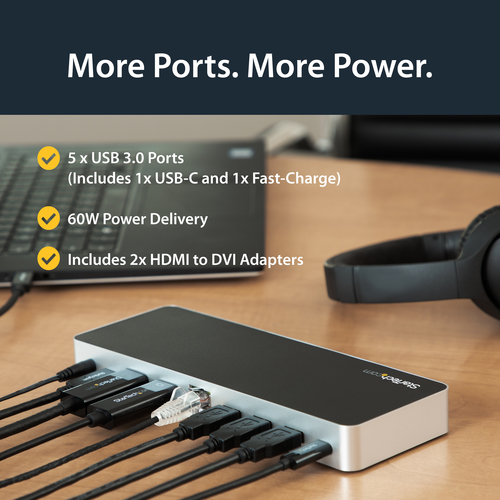

Connect More Devices

Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.

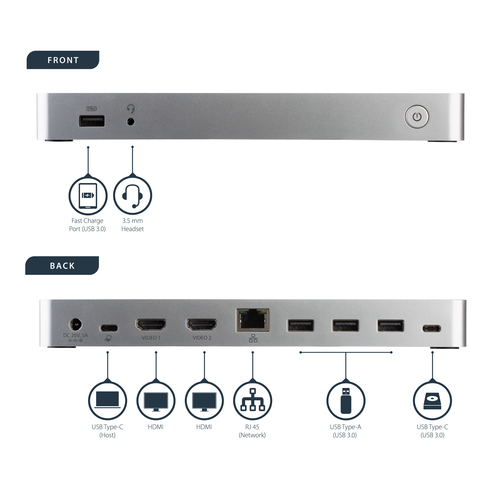

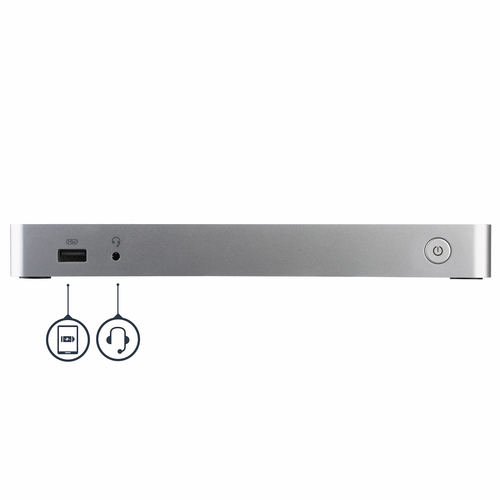

This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.

60W Charging Power

The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.

Fast, Easy Setup

The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The MST30C2HHPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Notes:

• Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.
• Video output capabilities depend on the video card and hardware specifications of the connected laptop.
• Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
• Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.

The StarTech.com Advantage

7 IN STOCK

SKU: MST30C2HHPDU

Manufacturer: StarTech.com

RRP Price €254.39

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

2.0

USB Power Delivery up to

60 W

HDMI ports quantity

Combo headphone/mic port

Yes

Headphone outputs

Headphone connectivity

3.5 mm

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Yes

Full duplex

Yes

Performance

Card reader integrated

Data transfer rate

5 Gbit/s

Maximum digital resolution

4096 x 2160 pixels

Product colour

Black, Silver

Plug and Play

Yes

UASP support

Yes

Housing material

Plastic

Power

Power source type

AC input voltage

100 - 240 V

Input current

1.5 A

Output voltage

20 V

Output current

4.5 A

Power consumption (typical)

100 W

Power plug type

Type N

Compatible power plug types

EU, UK

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Sustainability

Sustainability compliance

Yes

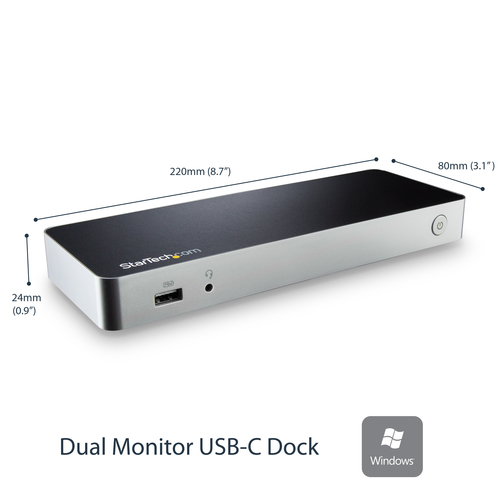

Weight & dimensions

Width

80 mm

Depth

220 mm

Height

24 mm

Weight

259 g

Packaging data

Package width

157 mm

Package depth

267 mm

Package height

90 mm

Package weight

1.5 kg

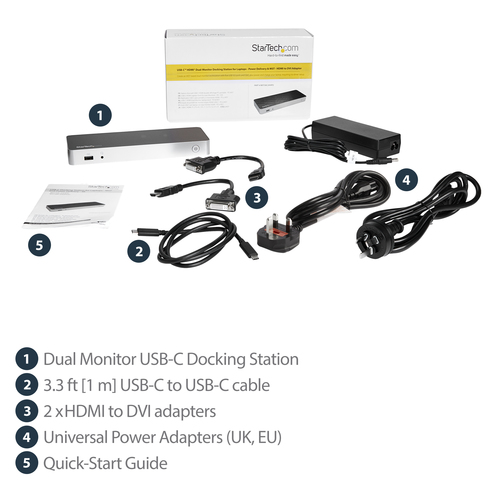

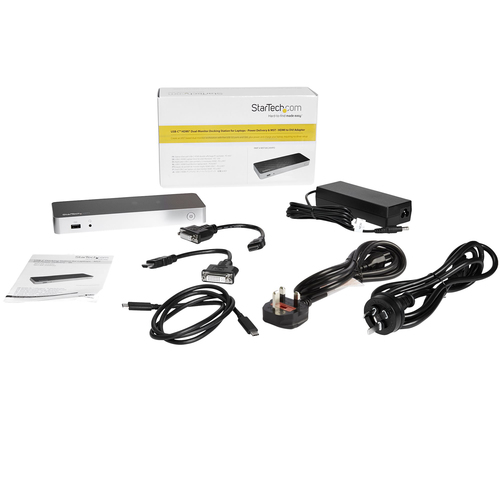

Packaging content

Cables included

USB Type-C

AC adapter included

Yes

Quick start guide

Yes

Technical details

Compliance certificates

CE, RoHS

Logistics data

Products per master (outer) case

6 pc(s)

Master (outer) case width

287 mm

Master (outer) case length

337 mm

Master (outer) case height

304 mm

Harmonized System (HS) code

84733020

Other features

Chipset

VIA/VLI - VL813, MegaChips - STDP4320, Realtek - RTL8153, C-Media - CM6533, Texas Instruments - TPS65983

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.259 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

CISCO UCS-MAFI-6332 CISCO MICROSOFT AZURE STACK FI 6332/32 QSFP+/8P LIC INCLUDED Accessories

CISCO UCS-MAFI-6332 CISCO MICROSOFT AZURE STACK FI 6332/32 QSFP+/8P LIC INCLUDED

€30,565.18

UCS SP 120GB 2.5 INCH ENTERPRISE VALUE 6G SATA SSD Accessories

UCS SP 120GB 2.5 INCH ENTERPRISE VALUE 6G SATA SSD

€637.10

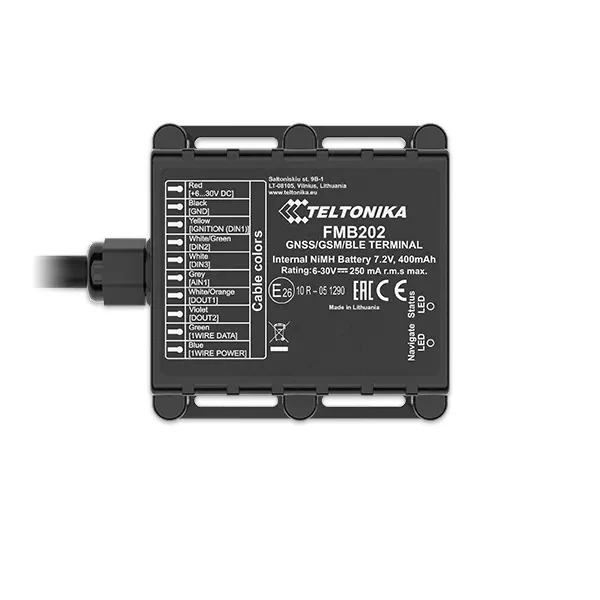

TELTONIKA FMB202BC9L01-FMB202, TRACKER IP67 AND NI-MH BACK UP BATTERY Accessories

TELTONIKA FMB202BC9L01-FMB202, TRACKER IP67 AND NI-MH BACK UP BATTERY

€86.40

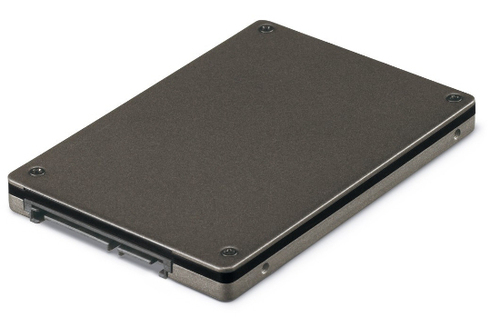

Cisco UCSX-SD480GM1X-EV internal solid state drive 480 GB 2.5" Serial ATA III Accessories
