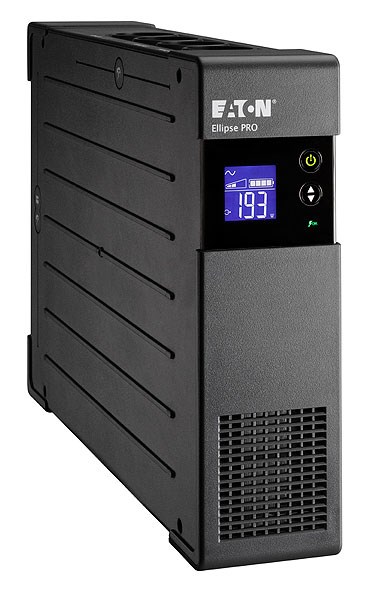

Eaton Ellipse PRO 1200 IEC uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 750 W 8 AC outlet(s) UPS

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.- LCD display for real-time status and measurements.- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.- Up to 8 outlets to connect your PC & peripherals.- Convenient extra-flat design for easy installation in any office environment.- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.- Protects data connections such as Ethernet, internet and telephone lines.

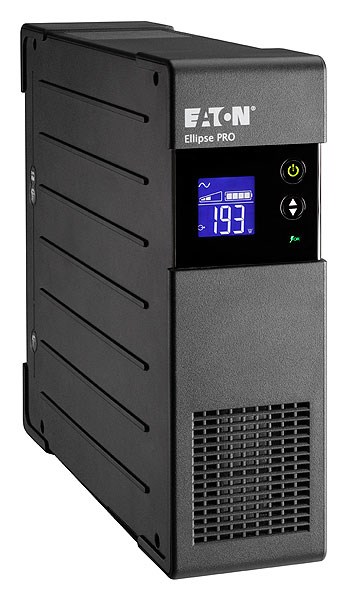

Eaton Ellipse PRO 850 IEC uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 510 W 4 AC outlet(s) UPS

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.- LCD display for real-time status and measurements.- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.- Up to 8 outlets to connect your PC & peripherals.- Convenient extra-flat design for easy installation in any office environment.- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.- Protects data connections such as Ethernet, internet and telephone lines.

Eaton Ellipse PRO 650 IEC uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 400 W 4 AC outlet(s) UPS

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.- LCD display for real-time status and measurements.- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.- Up to 8 outlets to connect your PC & peripherals.- Convenient extra-flat design for easy installation in any office environment.- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.- Protects data connections such as Ethernet, internet and telephone lines.

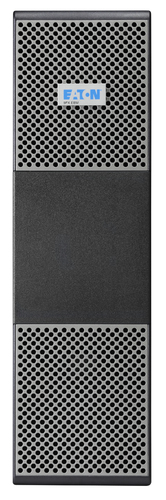

Eaton 9SX EBM UPS battery cabinet Tower UPS

Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s) UPS

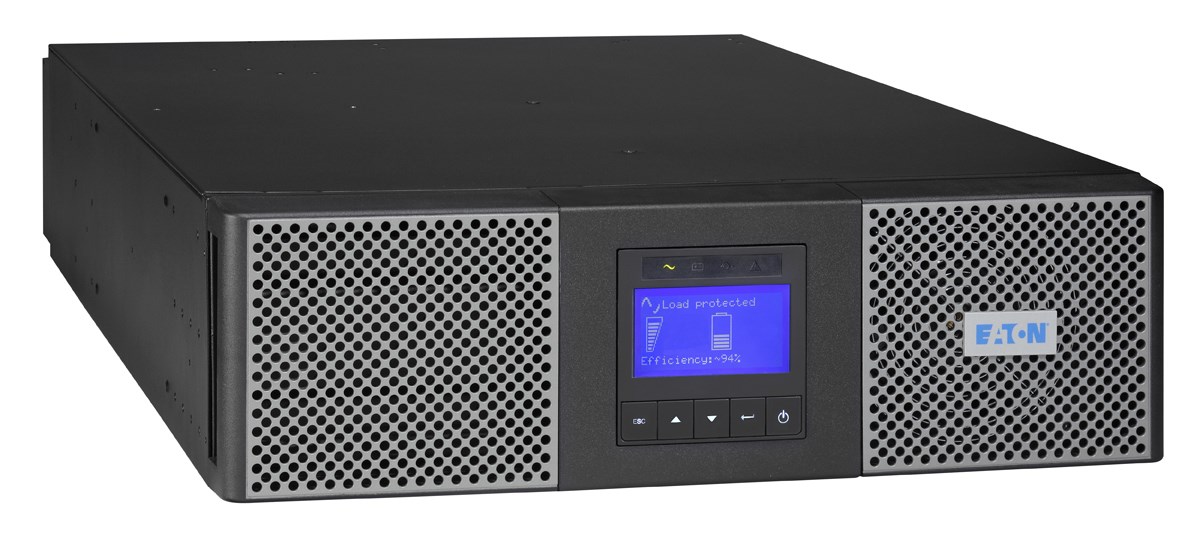

Eaton 9PX5KIRTN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 11 AC outlet(s) UPS

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.- Online double conversion topology- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)- Next-generation graphical LCD display (7 languages)- Provides more real power (watts) to protect more equipment with a 0.9 power factor- Parallel operation using HotSync technology (available in Q2 2013)- Maintenance ByPass available as standard (on HotSwap/BP version)- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

Eaton 9PX 1kVA uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s) UPS

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Eaton 9PX2000RT uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 7 AC outlet(s) UPS

Business continuity for edge computingWhen you need flexible protection for equipment in IT racks, network closets and mission-critical applications, look no further than the Eaton® 9PX UPS. Providing solutions that are reliable,versatile, powerful and efficient, the 9PX integrates seamlesslyinto just about any environment.With double-conversion topology for constant power conditioning and ENERGY STAR qualification, the 9PX supports your overall goal of business continuity. It’s also built for scalable deployment and features a graphical LCD interface that enables local access to configurations and settings, history and diagnostics, energy consumption and load segment control.Take a closer lookAs a stand-alone, online double-conversion UPS, 9PX rack/ tower (RT) models can withstand harsh electrical environments for a variety of critical applications including IT, edge networks, industrial automation, healthcare and K-12. For edge networks and on-premise installations, Eaton focuses on integration within the virtualized environment. This means you can improve your infrastructure performance through virtual machine (VM) centric management, disaster recovery and validated integration capabilities.The right 9PX solution may also include a software client that supports 2N (or N+1) UPS-protected graceful shutdown, a maintenance bypass to keep loads running during UPS replacement, or a rack to organize all of your IT equipment and cabling. It’s all about ensuring seamless integration and compatibility.

Eaton 9PX11KIPM31 uninterruptible power supply (UPS) Double-conversion (Online) 11 kVA 10000 W 1 AC outlet(s) UPS

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.- Online double conversion topology- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)- Next-generation graphical LCD display (7 languages)- Provides more real power (watts) to protect more equipment with a 0.9 power factor- Parallel operation using HotSync technology (available in Q2 2013)- Maintenance ByPass available as standard (on HotSwap/BP version)- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
