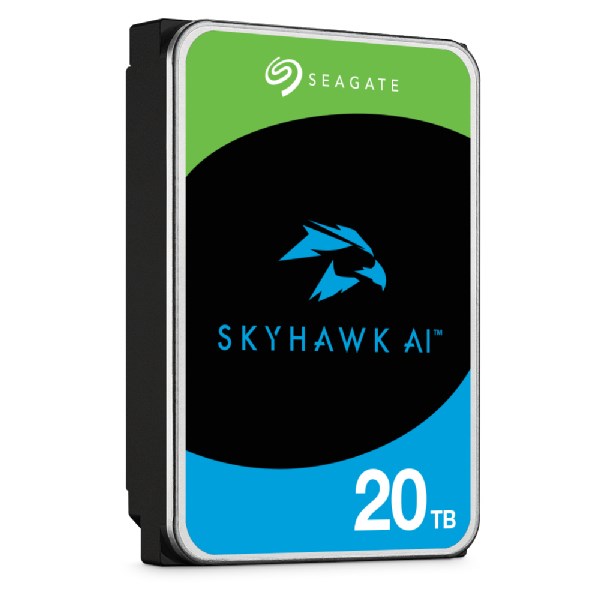

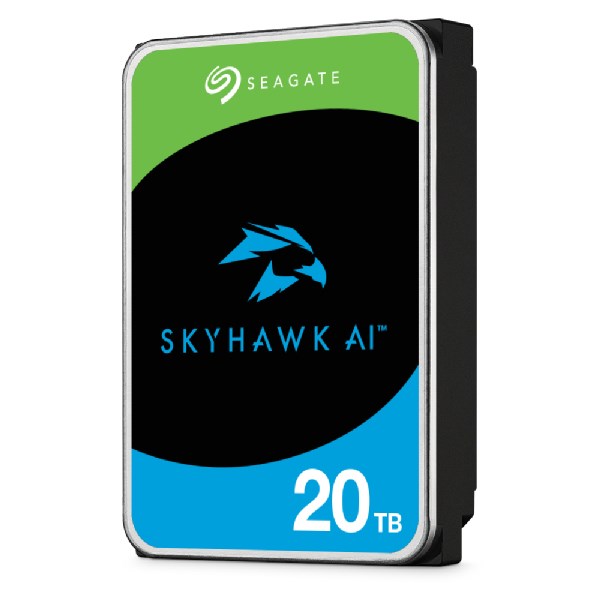

Seagate SkyHawk AI 20 TB internal hard drive 7200 RPM 256 MB 3.5" Serial ATA III

A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.

SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.

Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1

In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.

ON ORDER

SKU: ST20000VE002

Manufacturer: Seagate Seagate

RRP Price €523.30

Specifications

Features

HDD capacity
20 TB
HDD speed
7200 RPM
Storage drive buffer size
256 MB
HDD size
3.5"
Interface
Serial ATA III
Type
HDD
Component for
Surveillance system
HDD interface transfer rate
6 Gbit/s
HDD sustained transfer rate
260 MiB/s
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^15 bits read
Rotational Vibration (RV) sensors
Yes
Number of AI channels
32
Start/stop cycles
600000
Mean time between failures (MTBF)
2000000 h

Power

Power consumption (typical)
7.72 W
Power consumption (standby)
1 W
Power consumption (idle)
3.5 W
Operating voltage
5 / 12 V
Start-up current
2 A

Operational conditions

Operating temperature (T-T)
0 - 65 °C

Weight & dimensions

Width
101.8 mm
Height
26.1 mm
Depth
147 mm
Weight
680 g

Logistics data

Products per pallet layer
8 pc(s)
Harmonized System (HS) code
84717050
Master (outer) cases per pallet
40 pc(s)
Products per master (outer) case
20 pc(s)

Other features

Maximum number of cameras supported
64
