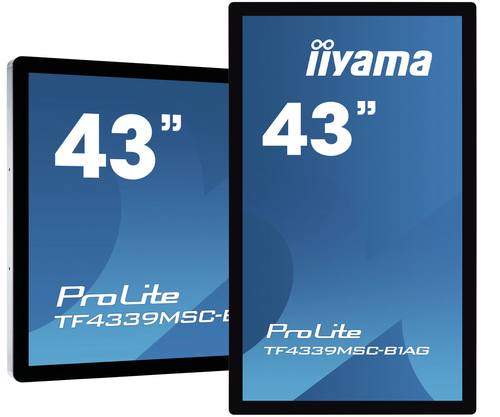

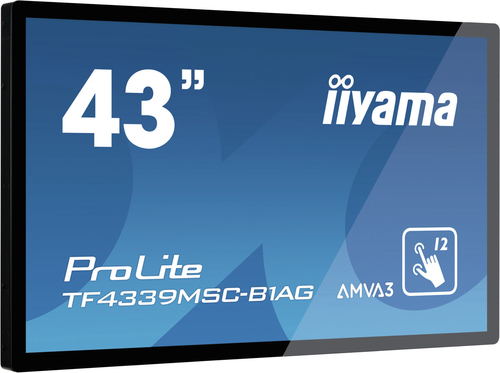

iiyama ProLite 43" 12pt Open Frame PCAP interactive large format display with touch through glass function

Touch-Through-Glass technology, guaranteeing a seamless and accurate touch response for true kiosk integration or behind-glass-retail applications. The vibrant, Full HD (1920x1080) TF4339MSC-B1AG Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets ( OMK4-3 ) making it an ideal solution for kiosk integrators and interactive multimedia.

ON ORDER

SKU: TF4339MSC-B1AG

Manufacturer: iiyama iiyama

RRP Price €1,627.13

Specifications

Display

Display diagonal
109.2 cm (43")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
AMVA3
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
12
Display brightness
400 cd/m²
Response time
8 ms
Screen shape
Flat
Contrast ratio (typical)
4000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Pixel pitch
0.4902 x 0.4902 mm
Horizontal scan range
30 - 83 kHz
Display diagonal (metric)
108 cm
Surface hardness
7H

Performance

NVIDIA G-SYNC
No
AMD FreeSync
No

Multimedia

Number of speakers
2
RMS rated power
16 W
Built-in speaker(s)
Yes
Built-in microphone
No
Built-in camera
No

Design

Product colour
Black
Glass thickness
3 mm

Ports & interfaces

USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
2
DisplayPorts quantity
1
Audio input
1
Audio output
1
HDCP
Yes
RS-232C
Yes

Ergonomics

Panel mounting interface
400 x 200 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages
8

Power

Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
56 kWh
Power consumption (typical)
60 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
401399

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

Weight & dimensions

Width (without stand)
985 mm
Depth (without stand)
68 mm
Height (without stand)
577.5 mm
Weight (without stand)
23 kg

Packaging data

Package width
1070 mm
Package depth
200 mm
Package height
700 mm

Packaging content

Cables included
AC, DisplayPort, HDMI, USB

Sustainability

Sustainability certificates
ErP

Other features

International Protection (IP) code
IP54
Display viewable area (HxV)
529.25 x 940.86 mm
Placement supported
Horizontal/Vertical
Compliance certificates
CE, REACH, RoHS
Ethernet LAN (RJ-45) ports
1
Certification
CE, EAC, RoHS, ErP, WEEE, cULus, REACH, UKCA

Logistics data

Harmonized System (HS) code
85285210

Accessories
