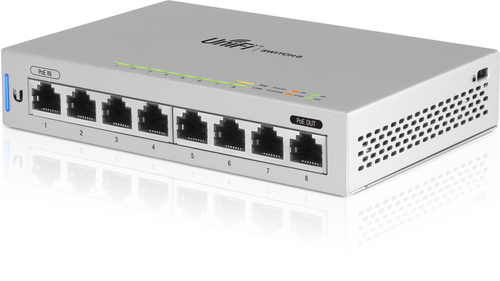

Ubiquiti UniFi 5 x Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

ON ORDER

SKU: US-8-5

Manufacturer: Ubiquiti Ubiquiti

RRP Price €641.11

Specifications

Management features

Switch type
Managed
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1x, IEEE 802.3af
10G support
No
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Auto-sensing
Yes
VLAN support
Yes

Data transmission

Switching capacity
16 Gbit/s
Throughput
8000 Mpps
Jumbo frames support
Yes

Design

Product colour
Grey
Housing material
Steel
Reset button
Yes
LED indicators
Activity, Link, PoE, Speed
Wall mountable
Yes

Performance

Built-in processor
Yes
Processor frequency
400 MHz
Internal memory
256 MB

Power

Power supply included
No
Output voltage
48 V
Output current
1.25 A
Power consumption (max)
12 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
1
Power over Ethernet (PoE) voltage range
57 - 44 V
Power over Ethernet (PoE) power per port
15.4 W
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
148 mm
Depth
99.5 mm
Height
30.7 mm
Weight
432 g

Packaging content

Quick start guide
Yes

Certificates

Certification
ETSI300-019-1.4, CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
