Cisco Catalyst 2960X-48FPS-L Network Switch, 48 Gigabit Ethernet Ports, 740W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48FPS-L)

Cisco Catalyst 2960X-48FPS-L Network Switch, 48 Gigabit Ethernet Ports, 740W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48FPS-L)

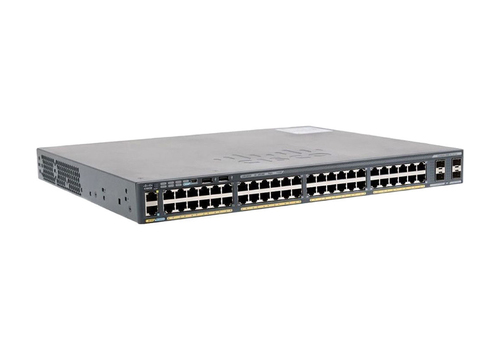

Name: Cisco Catalyst 2960X-48FPS-L Network Switch, 48 Gigabit Ethernet Ports, 740W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty...
Brand: Cisco
SKU: WS-C2960X-48FPS-L
Price: 11847.69 EUR
Availability: OutOfStock

The Cisco Catalyst 2960X-48FPS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.

ON ORDER

SKU: WS-C2960X-48FPS-L

Manufacturer: Cisco Cisco

RRP Price €11,847.69

Specifications

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP module slots quantity

Console port

RJ-45

USB 2.0 ports quantity

Network

Networking standards

IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Full duplex

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

1023

Data transmission

Switching capacity

216 Gbit/s

Throughput

107.1 Mpps

MAC address table

16000 entries

Jumbo frames support

Yes

Security

DHCP features

DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, SSH

SSH/SSL support

Yes

Multicast features

Multicast support

Yes

Protocols

Management protocols

SNMPv3

Design

Rack mounting

Yes

Stackable

Yes

Product colour

Black

LED indicators

Yes

Market segment

Business

Safety

UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1

Performance

Built-in processor

Yes

Processor model

AppliedMicro APM8639

Processor frequency

600 MHz

Memory type

DRAM

Internal memory

512 MB

Flash memory

128 MB

Noise level

39 dB

Mean time between failures (MTBF)

232610 h

Power

Redundant power supply (RPS) support

Yes

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

9 A

Power consumption (typical)

66.6 W

Power plug type

Type C

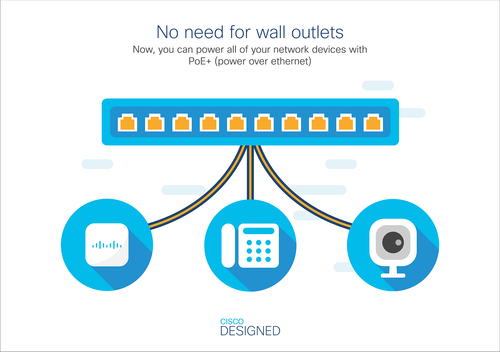

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

740 W

Other features

Power LED

Yes

Packaging content

WS-C2960X-48FPS-L Switch, Accessory Kit, 1 printed document

Operational conditions

Operating temperature (T-T)

-5 - 40 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

10 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 4000 m

Weight & dimensions

Width

445 mm

Depth

368 mm

Height

45 mm

Weight

5.8 kg

Packaging data

Package width

469.9 mm

Package depth

549.4 mm

Package height

147.6 mm

Package weight

7.48 kg

Technical details

Products per shipping (inner) case

1 pc(s)

Logistics data

Quantity per pack

1 pc(s)

Country of origin

China

Harmonized System (HS) code

85176990

Products per master (outer) case

1 pc(s)
