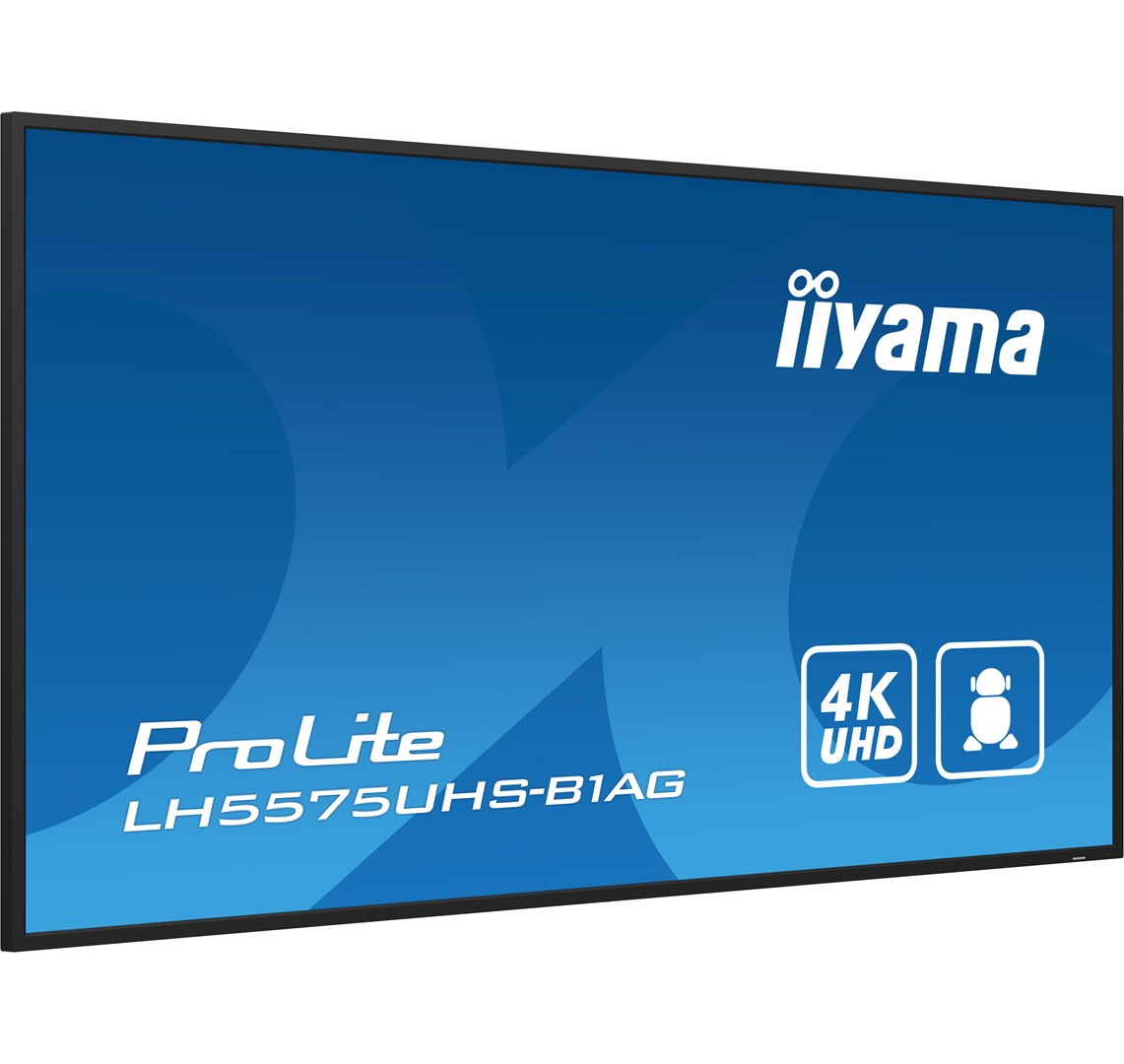

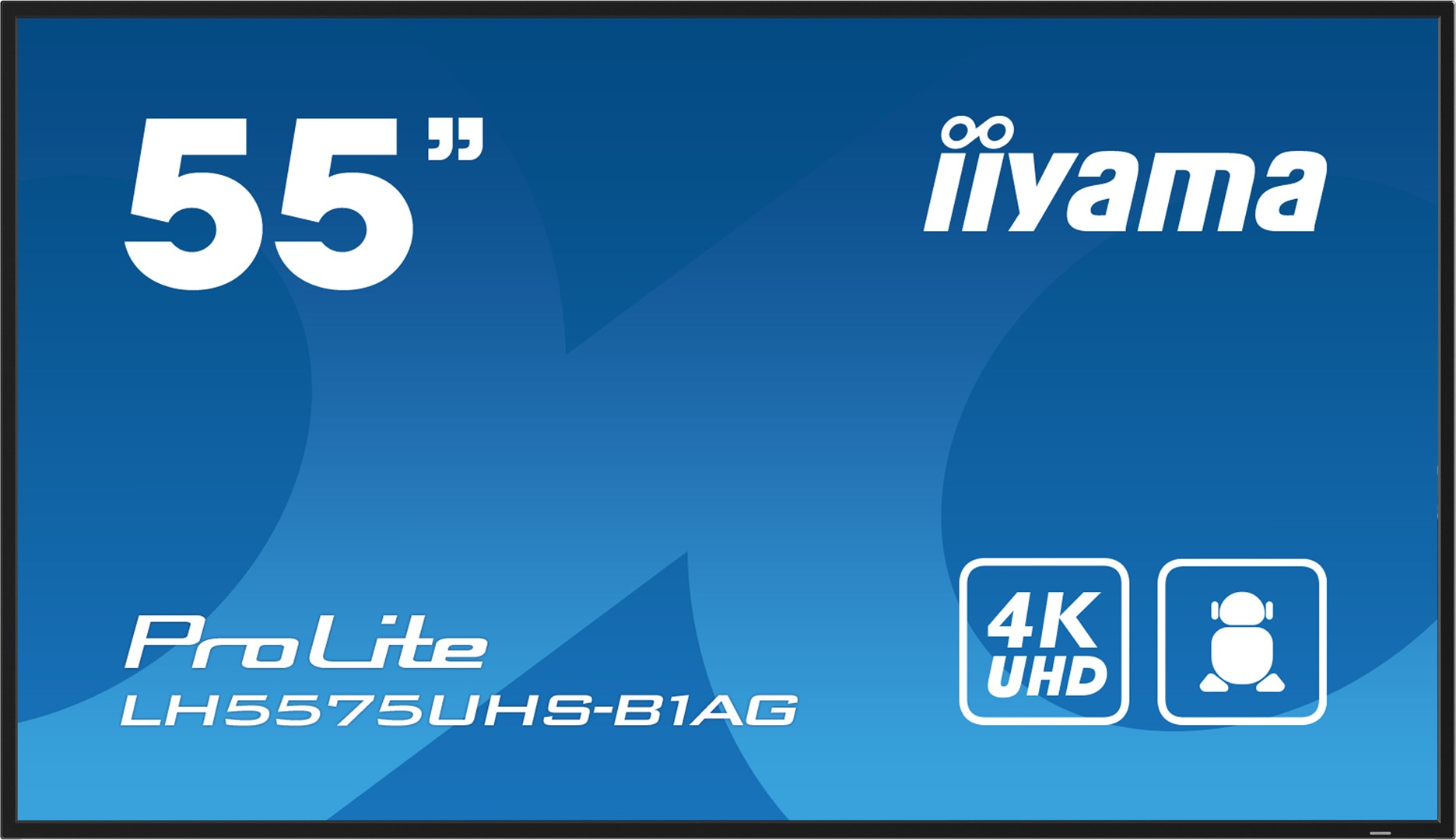

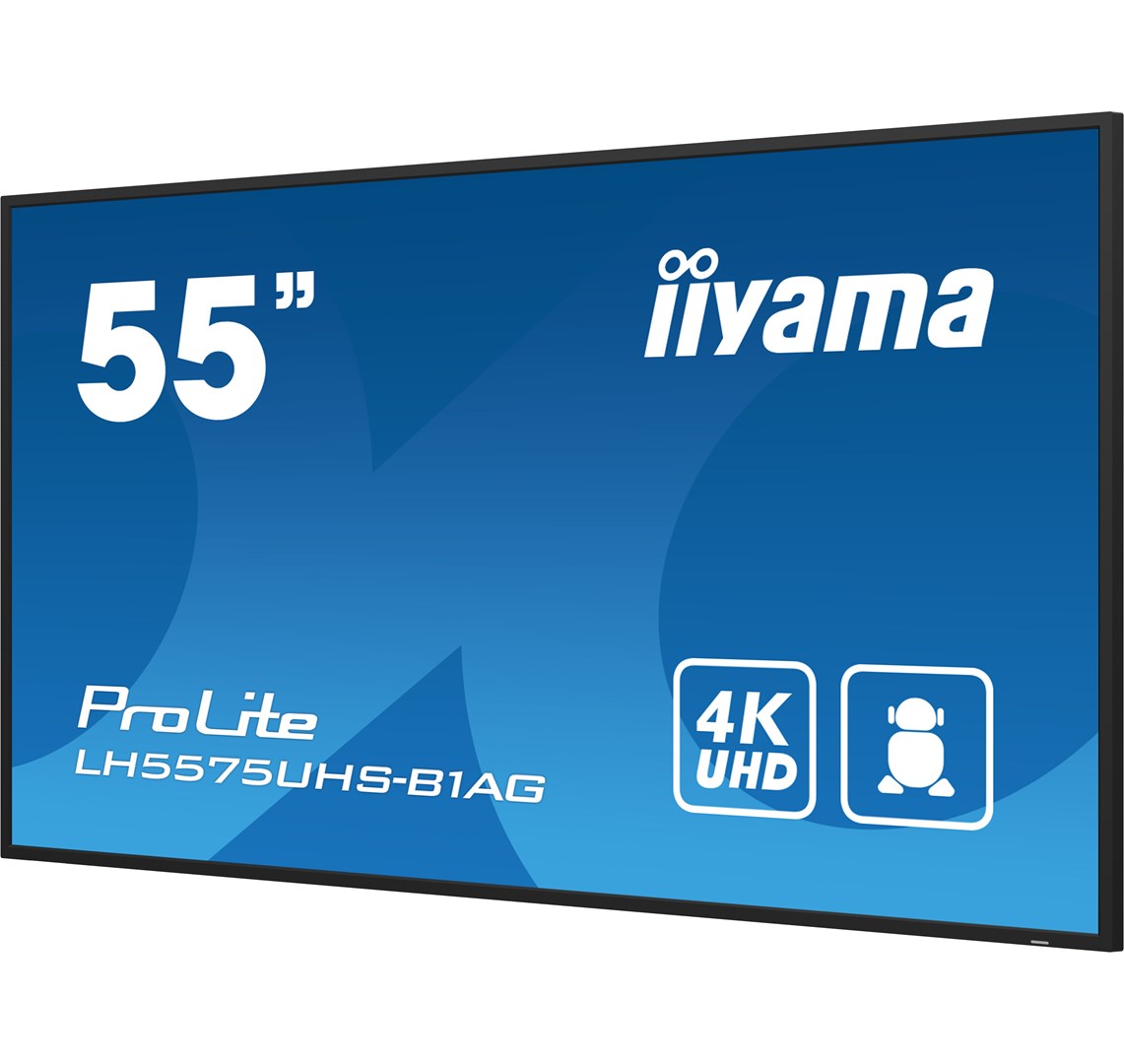

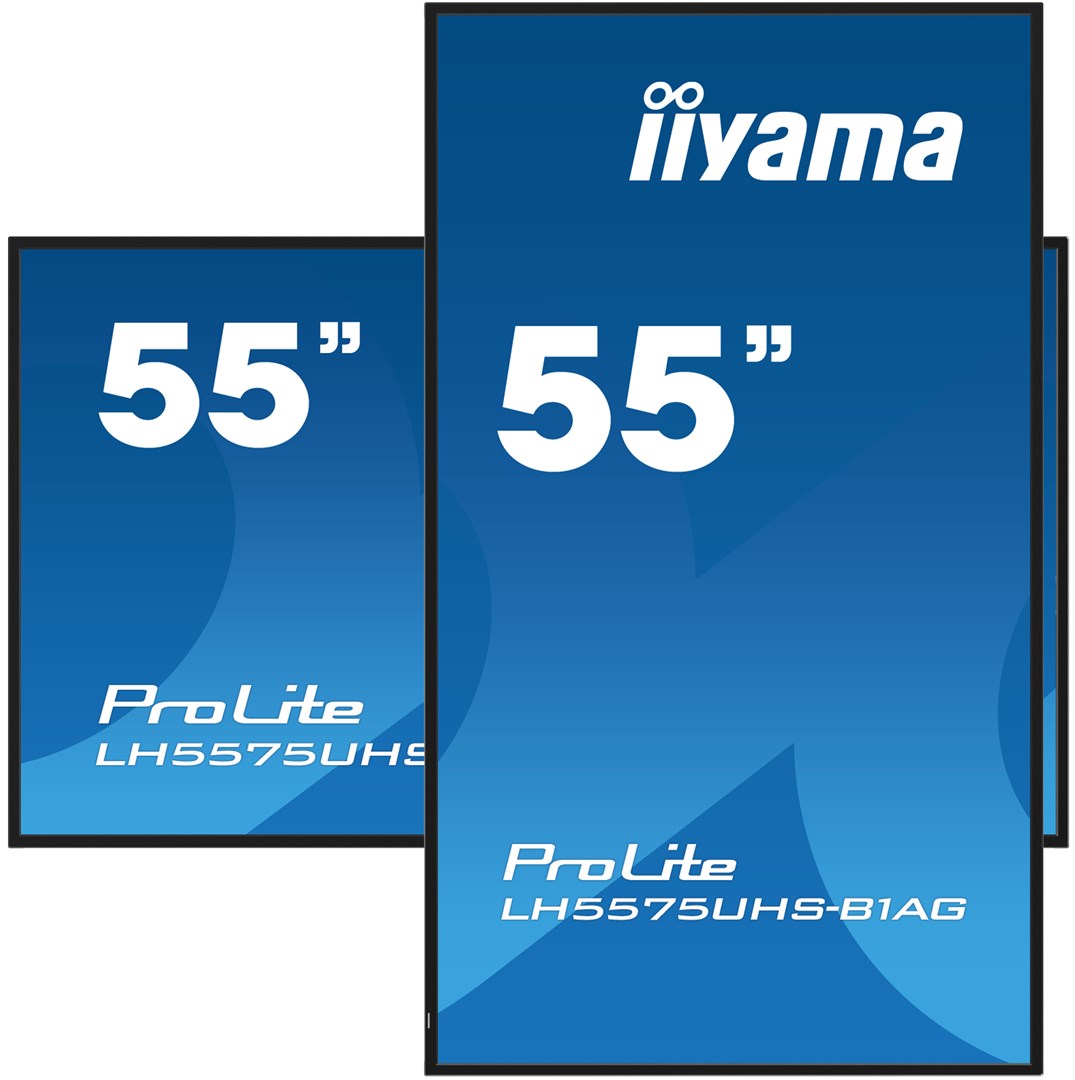

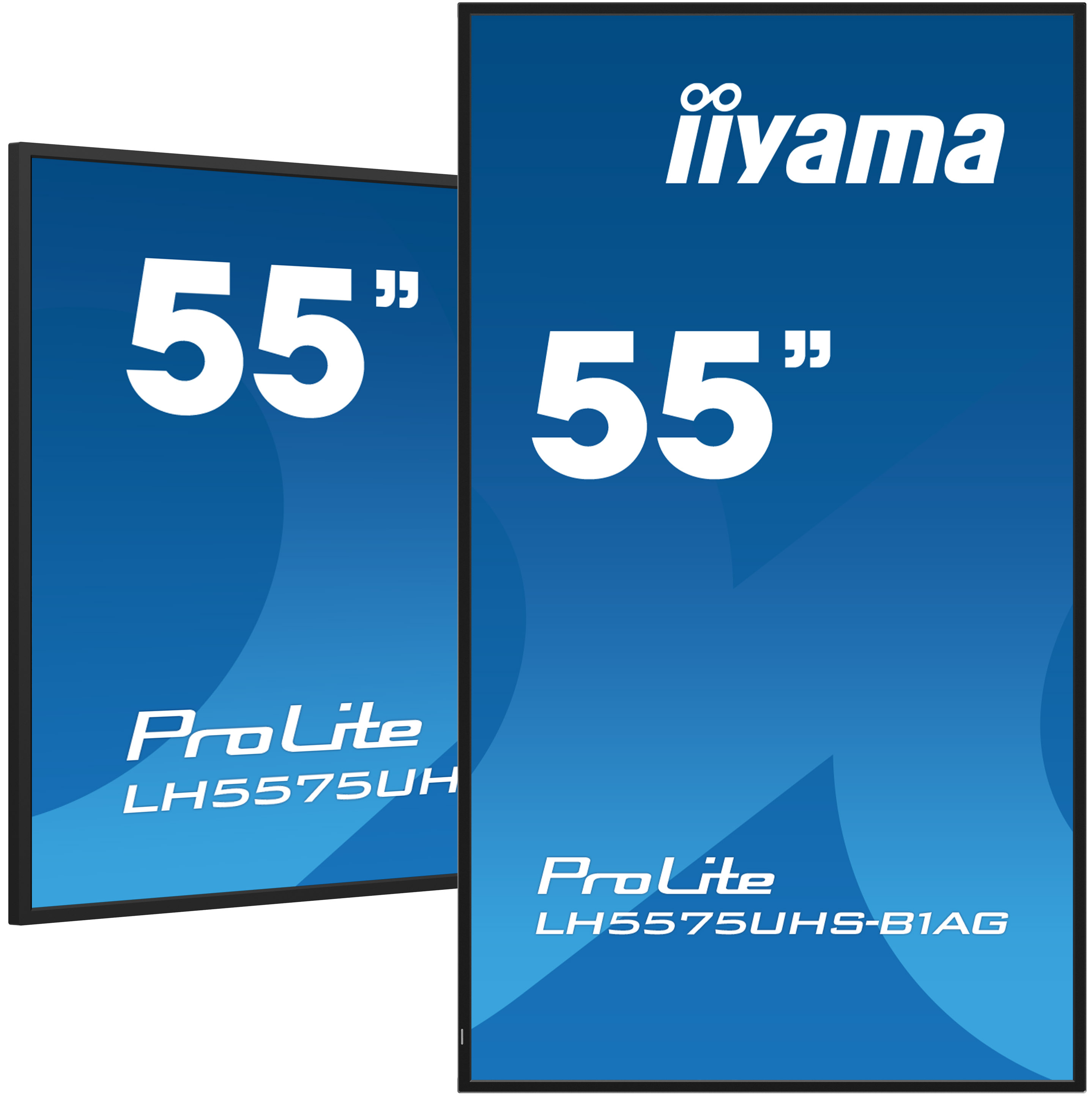

iiyama 55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

5 IN STOCK

SKU: LH5575UHS-B1AG

Manufacturer: iiyama iiyama

RRP Price €1,142.37

Specifications

Display

Panel type
IPS
Display diagonal
138.7 cm (54.6")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.315 x 0.315 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
139 cm
Maximum frame rate
60 fps
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Haze rate
25%
RGB colour space
sRGB

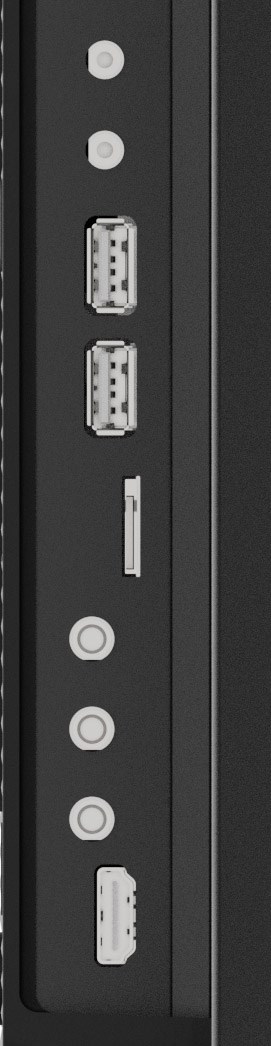

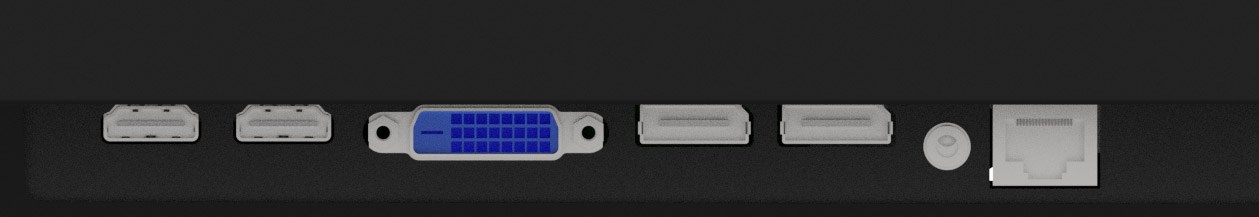

Ports & interfaces

HDMI ports quantity
3
HDMI version
2.0
DisplayPorts quantity
1
DisplayPorts out
1
DisplayPort version
1.2
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
PC Audio in
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Audio Return Channel (ARC)
Yes

Audio

Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W

Design

Product design
Digital signage flat panel
Placement supported
Indoor

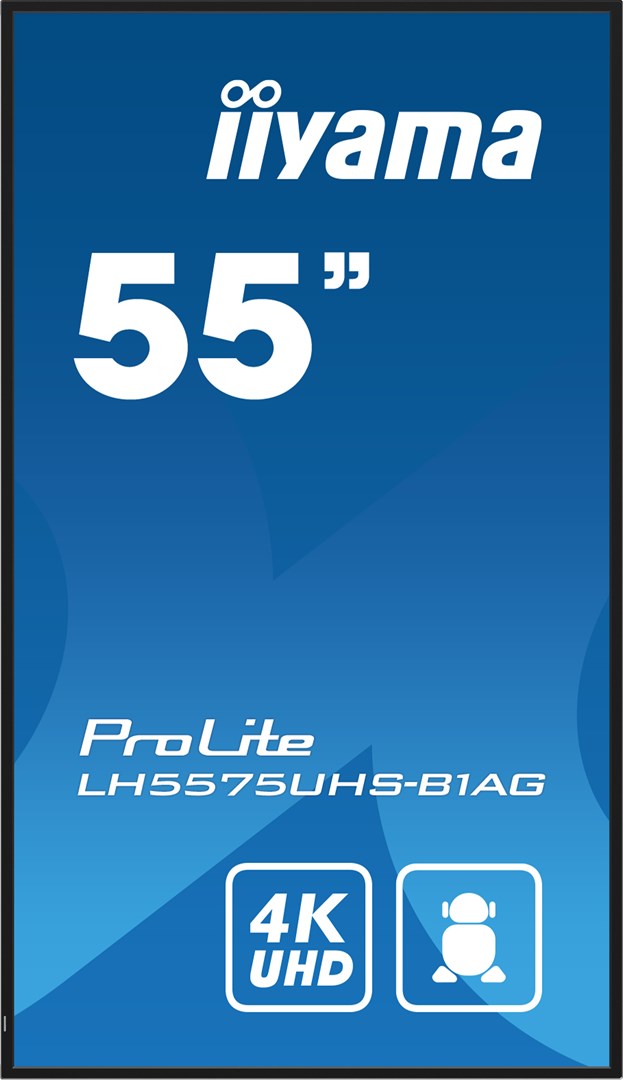

Orientation
Horizontal/Vertical
Product colour
Black
VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Bezel colour
Black
Anti-glare screen
Yes

Performance

Purpose
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
15
On Screen Display (OSD) languages
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Mean time between failures (MTBF)
44000 h

Power

Power consumption (typical)
127 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
127 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G

Computer system

Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A73
Processor cores
4
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11

Weight & dimensions

Display width
1237.5 mm
Display depth
55 mm
Display height
710 mm
Display weight
15.2 kg

Packaging data

Package width
1386 mm
Package depth
1386 mm
Package height
845 mm
Package weight
20.6 kg

Packaging content

Remote control included
Yes
Batteries included
Yes
Cables included

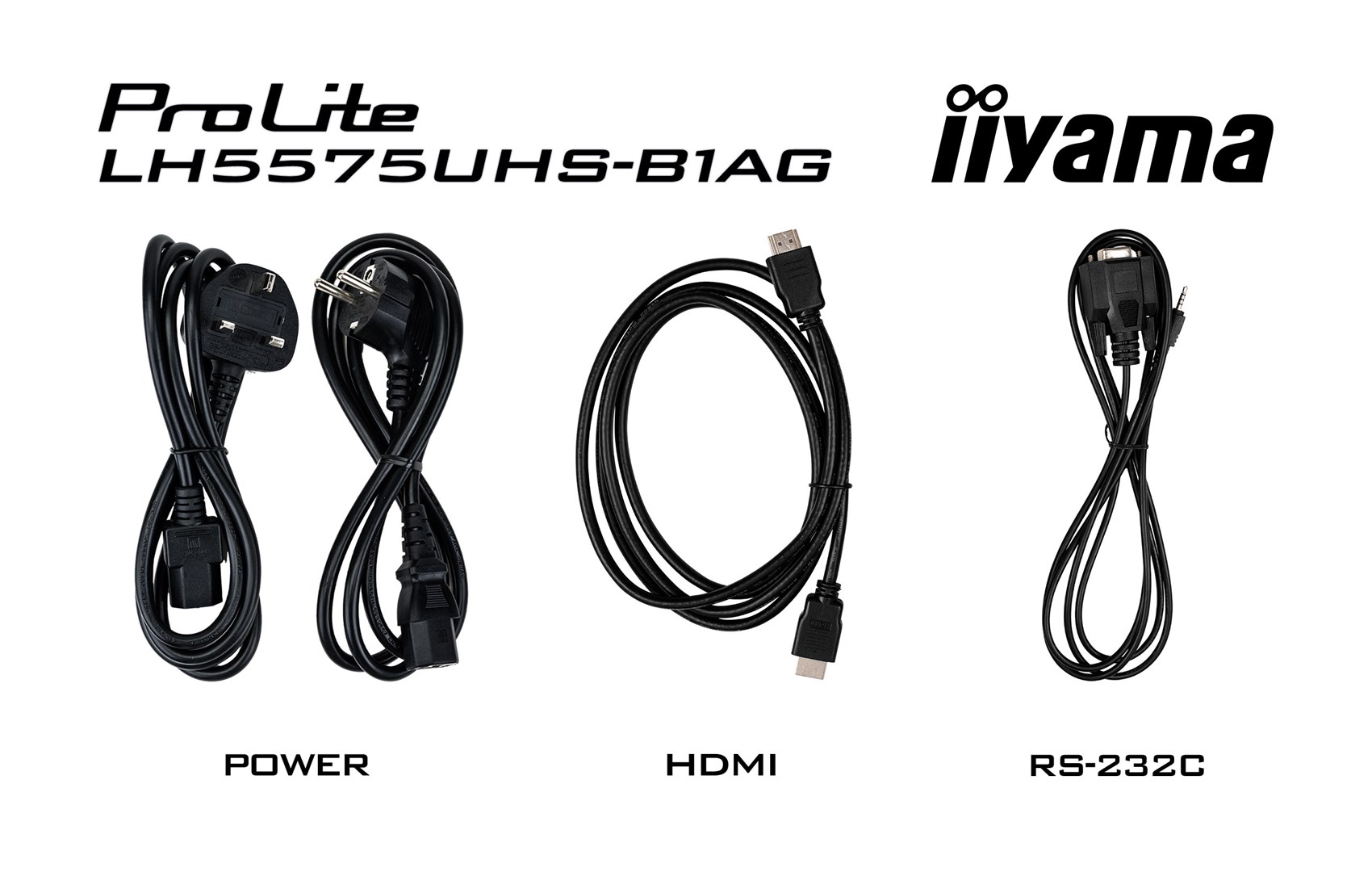

AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

Certificates

Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH

Logistics data

Harmonized System (HS) code
85285210

Technical details

Compliance certificates
RoHS

Other features

Quick start guide
Yes
Housing material
Metal

Accessories

License
