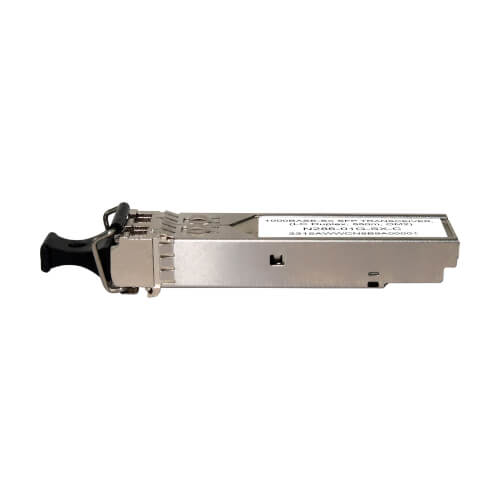

Eaton N286-01G-SX-C network transceiver module Fiber optic 1250 Mbit/s SFP 850 nm

Connects a multimode Gigabit Ethernet fiber optic network cable to a Cisco switch or server’s SFP port.

SFP Transceiver for Connecting to Your Cisco Network Switch or Server
This SFP transceiver allows you to connect a multimode fiber optic cable to a 1.25 Gbps network router, server or switch. It transmits data up to 550 meters (1804 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco GLC-SX-MMD Transceiver Module
The MSA-compliant N286-01G-SX-C functions just like the equivalent Cisco GLC-SX-MMD transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-SX-MMD.

Hot-Swappable for Installation Without Network Interruption

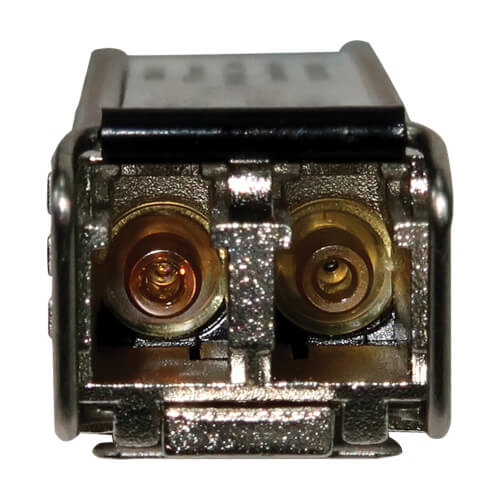

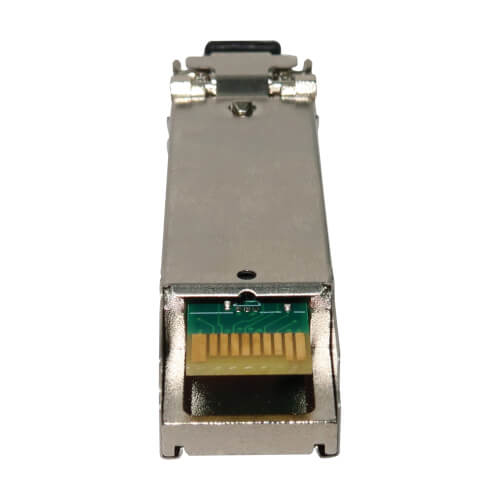

This input/output device is fully hot-swappable, so you can install it without a potentially costly 1.25 Gbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately).

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

ON ORDER

SKU: N286-01G-SX-C

Manufacturer: Eaton Eaton

RRP Price €37.66

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SX
Maximum transfer distance
550 m
Wavelength
850 nm
Ethernet interface type
1.25 Gigabit Ethernet, Gigabit Ethernet
Fiber ethernet cabling technology
1000BASE
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Metallic
Form factor
SFP
Plug and Play
Yes
Easy to install
Yes
Brand compatibility
Cisco

Certificates

Compliance certificates
CE, RoHS, UKCA
Certification
EN 55032; IEC/EN 63000

Sustainability

Sustainability compliance
Yes

Operational conditions

Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Weight
50 g

Logistics data

Warranty period
3 year(s)
