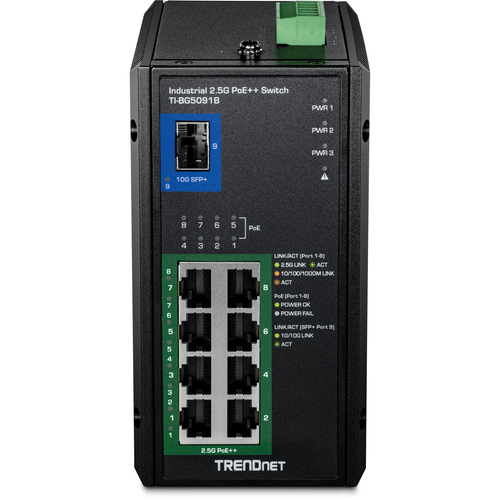

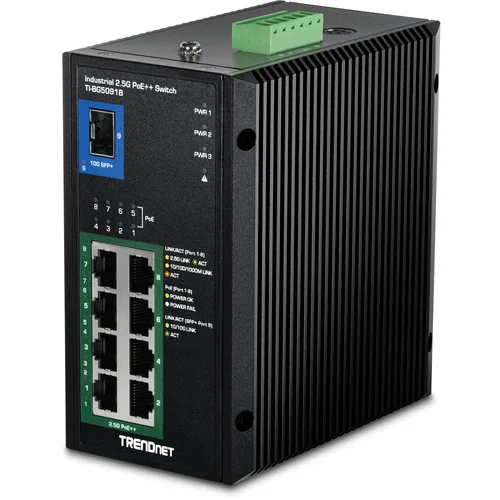

Trendnet TI-BG5091B network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

ON ORDER

SKU: TI-BG5091B

Manufacturer: Trendnet Trendnet

RRP Price €407.20

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
8
SFP+ module slots quantity
1

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
60 Gbit/s
Forwarding rate
44.64 Mpps
MAC address table
4000 entries
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1 MB

Design

Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP50
Wall mountable
Yes

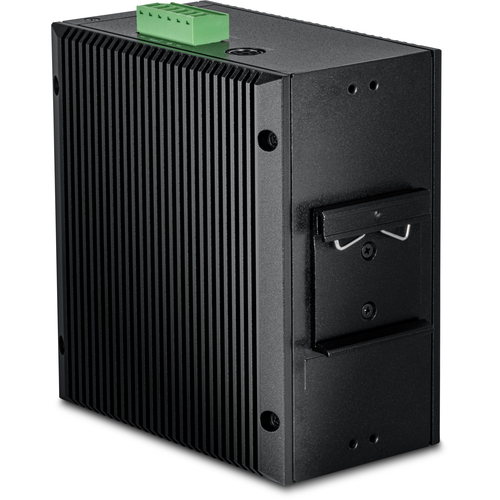

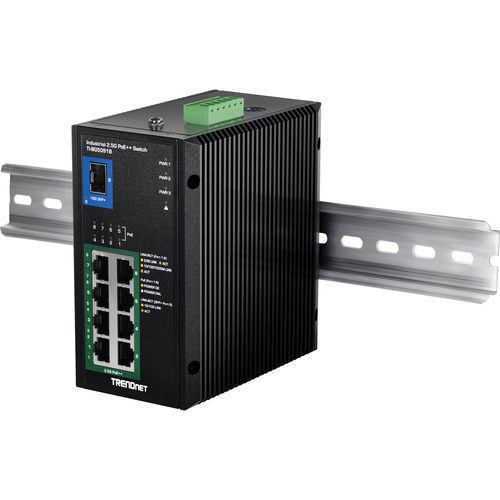

DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
11160603 h

Power

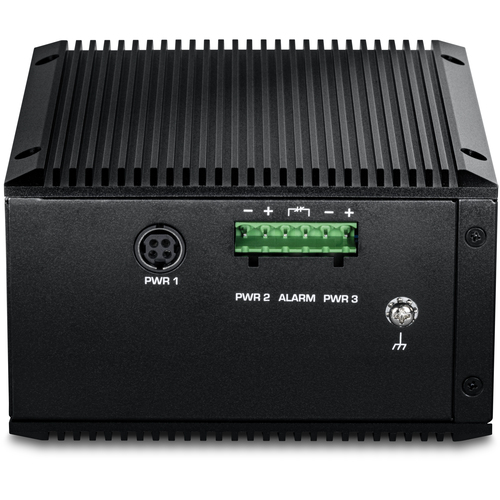

Power source
AC/DC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
24 - 57 V
Power consumption (max)
12.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet (PoE) power per port
95 W
Total Power over Ethernet (PoE) budget
480 W

Weight & dimensions

Width
134 mm
Depth
124 mm
Height
73 mm
Weight
1.4 kg

Certificates

Certification
CE FCC LVD
