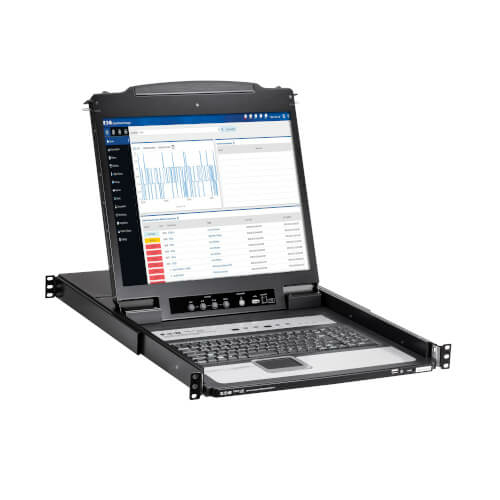

Eaton B020-U16-19-K NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables

Eaton B020-U16-19-K NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables

Name: Eaton B020-U16-19-K NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables
Brand: Eaton
SKU: B020-U16-19-IPG
Price: 2595.66 EUR
Availability: OutOfStock

Connect 16 Computers or Servers to a Single Monitor, Mouse and German Keyboard
This NetDirector® rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or servers at the same time. All 16 devices share one built-in 19-inch LCD, touchpad, mouse, 105-key German keyboard and IP remote access, allowing you to control the devices from the next room, next door or another continent.

Connect up to 264 Computers to One Original Console
You can also cascade up to 31 B020-U16-19-IPG KVM switches, allowing centralized access to as many as 264 computers using a single monitor, German keyboard and mouse.

Access Servers from Anywhere in the World
Built-in IP access allows you to control computers via LAN, WAN or the Ethernet. Just log on to a web browser using the Windows or Java-based browser client and navigate the user-friendly interface in English, Spanish, French, German or Italian. You can also access the KVM switch without a browser. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and other functions necessary for managing a high-density data center.

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. You can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup
The B020-U16-19-IPG supports both PS/2 and USB connections using a P778-Series combo cable kit. One kit is required for each connected computer. Two kits come included with the B020-U16-19-IPG. Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows and Linux operating systems. The firmware is upgradable using the included cable to ensure software remains up to date.

USB Port Lets You Share Peripherals between Computers
The built-in USB port allows you to share a USB-A peripheral, such as a flash drive or card reader, between all connected computers.

Transmits High-Definition Video
The B020-U16-19-IPG supports video resolutions up to 1280 x 1024 (at 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (at 60 Hz) at the remote console.

Built-In Security Keeps Your Data Safe
The B020-U16-19-IPG supports RADIUS and LDAP/S remote authentication. Advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL, keep your important data secure. The B020-U16-19-IPG lets you create up to 64 user accounts with 3 levels of password protection (Admin, User and Select) to prevent unauthorized persons from gaining access to connected servers. IP remote access is further protected with security features, including filtering that only allows designated IP and MAC addresses access to the KVM switch.

Designed for Convenient Mounting with Included Hardware
The heavy-duty steel housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack from 26 to 38 inches deep. The LCD folds down when not in use, and the console locks into place to prevent sliding out of the rack. The detachable six-foot C13-to-C14 power cord connects the KVM switch to an AC power source.

ON ORDER

SKU: B020-U16-19-IPG

Manufacturer: Eaton Eaton

RRP Price €2,595.66

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

Performance

Maximum resolution

1280 x 1024 pixels

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Cable length

1.83 m

Keyboard language

German

Certification

UL, cUL, CE, FCC, RoHS

Display

Built-in display

Yes

Display

LCD

Power

Power consumption (typical)

29.1 W

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

480.1 mm

Depth

689.1 mm

Height

43.9 mm

Weight

14.1 kg

Packaging data

Package width

830.1 mm

Package depth

665.5 mm

Package height

130 mm

Package weight

19.8 kg

Packaging content

Cables included

PS/2, USB

Quick installation guide

Yes

Manual

Yes

Other features

Ports quantity

Weight (imperial)

14.2 kg (31.3 lbs)

Logistics data

Harmonized System (HS) code

8471.80.1000

Master (outer) case width

830.1 mm

Master (outer) case length

665.5 mm

Master (outer) case height

130 mm

Master (outer) case gross weight

19.8 kg

Products per master (outer) case

1 pc(s)

Country of origin

Taiwan

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

14.06 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
