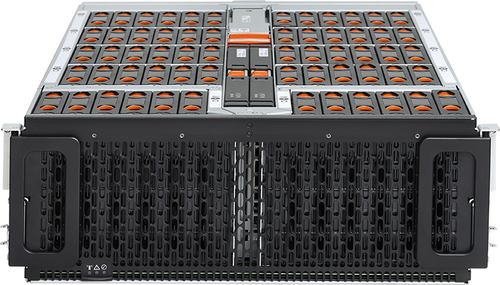

Western Digital Ultrastar Data60 disk array 384 TB Rack (4U) Black, Grey

Name: Western Digital Ultrastar Data60 disk array 384 TB Rack (4U) Black, Grey
Brand: Western Digital
SKU: 1ES1878
Price: 26610.47 EUR
Availability: OutOfStock

Designed for High Density and Flexibility

The Ultrastar Data60 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data60 provides up to 1.2PB1 of raw storage using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology

By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager

A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

ON ORDER

SKU: 1ES1878

Manufacturer: Western Digital

RRP Price €26,610.47

Specifications

Storage

Storage drives installed

Yes

Installed storage drive type

HDD

Total installed storage capacity

384 TB

Supported storage drive types

HDD & SSD

Number of storage drives supported

Storage drive interface

Serial Attached SCSI (SAS)

Storage drive size

3.5"

Supported storage drive interfaces

SAS, Serial ATA III

Storage drive sizes supported

3.5"

Data transfer rate

12 Gbit/s

Hot-swap drive bays

Yes

Ports & interfaces

USB connectivity

Mini-SAS host port

Yes

Number of mini-SAS host ports

Design

Device class

Large Enterprise Business

Chassis type

Rack (4U)

Product colour

Black, Grey

LED indicators

Yes

Cooling

Yes

Number of fans

6 fan(s)

Noise level

72 dB

Redundant fans support

Yes

Built-in display

Power

Power supply unit (PSU) capacity

1600 W

Number of power supply units

Redundant power supply (RPS) support

Yes

AC input voltage

200 - 240 V

AC input frequency

50 / 60 Hz

Weight & dimensions

Width

447 mm

Depth

712 mm

Height

175 mm

Disk enclosure weight

27.3 kg

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-40 - 60 °C

Operating altitude

0 - 915 m

Logistics data

Harmonized System (HS) code

84717020

Description

Manufacturer

Western Digital

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download
