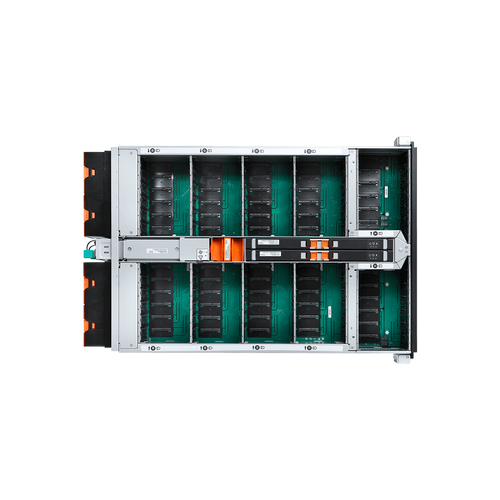

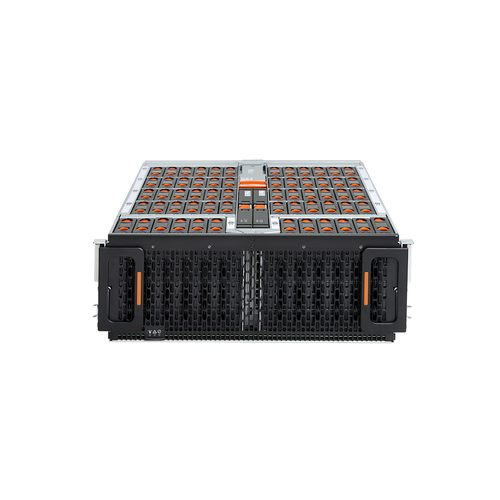

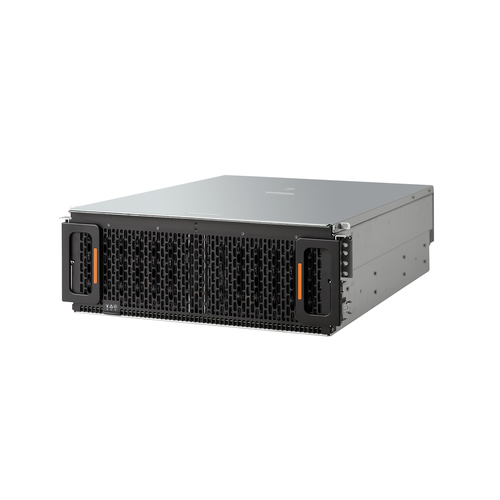

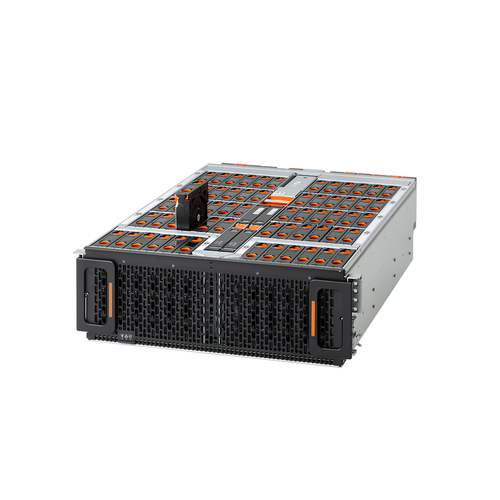

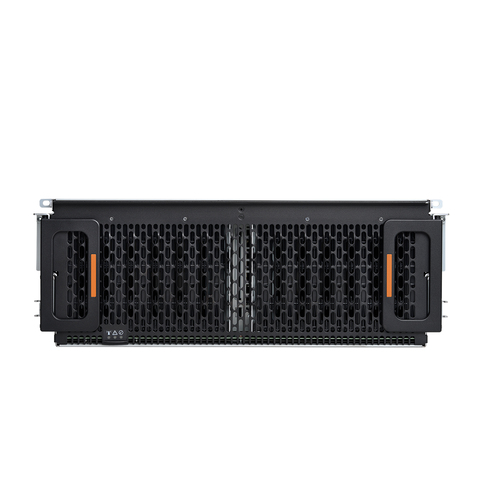

Western Digital Ultrastar Data102 disk array 216 TB Rack (4U) Black

The Ultrastar Data102 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2.2PB1 of raw storage in 4U using our 22TB CMR HDDs in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

ON ORDER

SKU: 1EX2488

Manufacturer: Western Digital Western Digital

RRP Price €7,608.46

Specifications

Storage

Storage drives installed
Yes
Installed storage drive type
HDD
Total installed storage capacity
216 TB
Supported storage drive types
HDD & SSD
Number of storage drives supported
102
Maximum supported storage capacity
22000 TB
Storage drive interface
Serial ATA III
Storage drive size
3.5"
Supported storage drive interfaces
SAS, Serial ATA III
Hot-swap drive bays
Yes

Ports & interfaces

USB connectivity
No
Mini-SAS host port
Yes

Design

Device class
Large Enterprise Business
Chassis type
Rack (4U)
Product colour
Black
LED indicators
Activity, Fault, Power
Number of fans
4 fan(s)
Redundant fans support
Yes

Power

Redundant power supply (RPS) support
Yes
Power consumption (max)
1800 W
AC input voltage
200 - 240 V
AC input frequency
50 / 60 Hz

System requirements

Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019

Weight & dimensions

Width
447 mm
Depth
1047 mm
Height
175 mm
Weight
31.8 kg

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
-300 - 3048 m

Accessories

License
