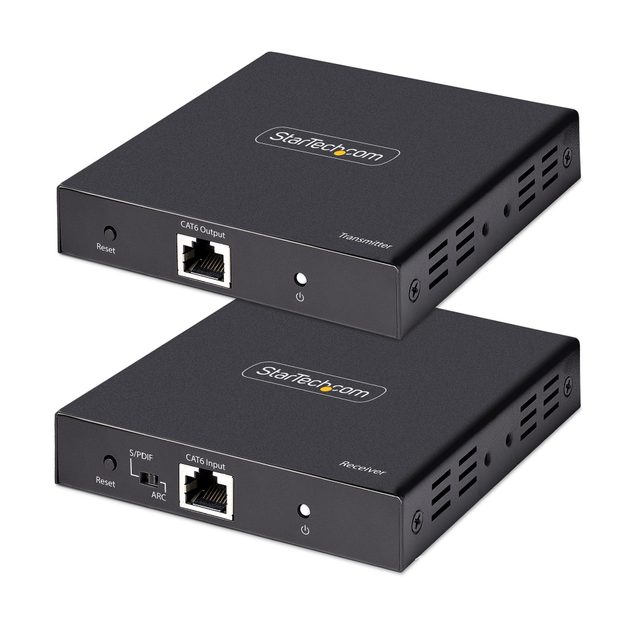

StarTech.com 4K70IC-EXTEND-HDMI AV extender AV transmitter & receiver Black

Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.

4K 60Hz Resolution

This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.

Power-Over-Cable

Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.

Versatile Installation Options

The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.

This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

6 IN STOCK

SKU: 4K70IC-EXTEND-HDMI

Manufacturer: StarTech.com StarTech.com

RRP Price €268.74

Specifications

Features

Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
High Dynamic Range (HDR) supported
Yes
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
8 kV
LED indicators
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
HDCP
Yes
Material
Metal
Rack mounting
No
Plug and Play
Yes
Daisy chain
Yes
Rubber feet
Yes
HDCP version
2.2
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.0
Digital audio optical out
1
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Yes

Power

AC input voltage
100 - 240 V
Input current
0.3 A
Operating voltage (transmitter)
12 V
Output current
1 A
Power consumption (typical)
0.1 W
External power adapter
Yes
Power plug type
Type M

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
99 mm
Depth
106 mm
Height
26 mm
Weight
210 g

Packaging data

Package width
240 mm
Package depth
176 mm
Package height
80 mm
Package weight
900 g

Packaging content

AC adapter included
Yes
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Mounting kit
Yes

Technical details

Sustainability compliance
Yes
Compliance certificates
CE, RoHS

Logistics data

Master (outer) case width
380 mm
Master (outer) case length
270 mm
Master (outer) case height
420 mm
Products per master (outer) case
10 pc(s)
