Lenovo 4XC1Q24434 network card Internal WWAN

Name: Lenovo 4XC1Q24434 network card Internal WWAN
Brand: Lenovo
SKU: 4XC1Q24434
Availability: OutOfStock

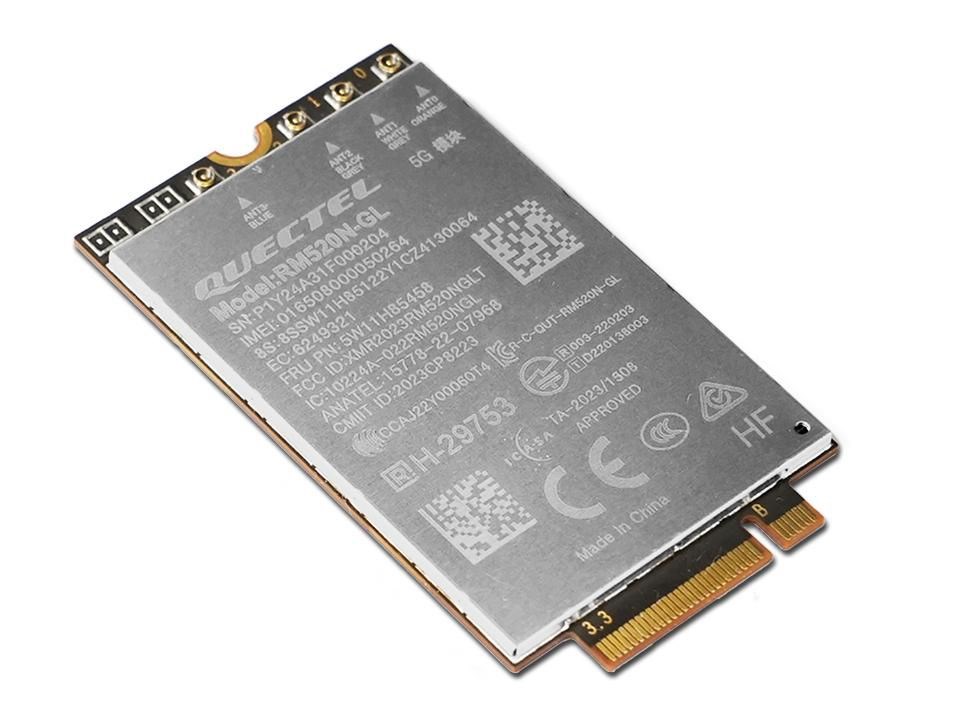

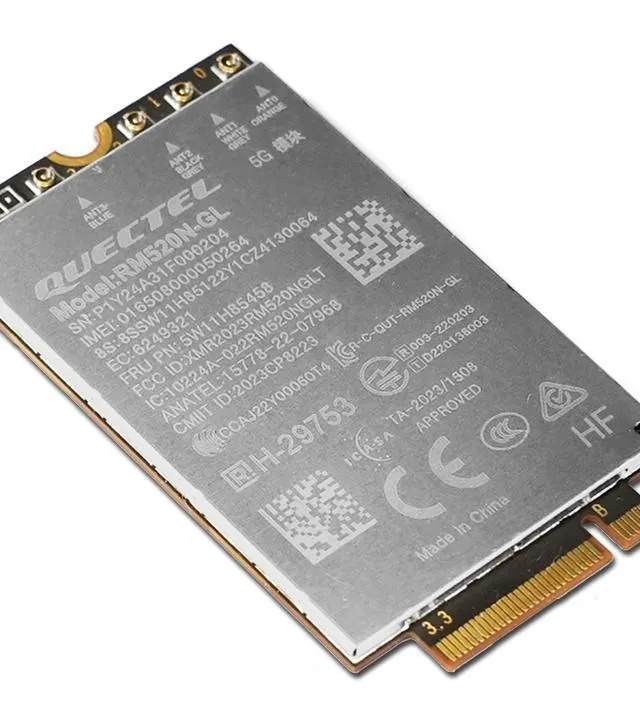

ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module for X1 Carbon Gen 12/T14 Gen 5 is a 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive diversity. It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. RM520N-GL is a standard M.2 Key-B WWAN module.

ON ORDER

SKU: 4XC1Q24434

Manufacturer: Lenovo Lenovo

RRP Price €0.00

Specifications

Ports & interfaces

Connectivity technology

Wireless

Host interface

M.2

Interface

WWAN

Network

Mobile network generation

Design

Component for

Laptop

Internal

Yes

Antenna design

Internal

Certification

NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA

Compatible products

ThinkPad P14 Series-P14s AMD G5 ThinkPad T14 Series-T14 AMD G5 ThinkPad T14 Series-T14 G5 ThinkPad X1 series-X1 Carbon G12

System requirements

Windows operating systems supported

Windows 10, Windows 11

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 90 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

52 mm

Depth

30 mm

Height

2.3 mm

Weight

8.7 g

Packaging data

Package width

53 mm

Package depth

144 mm

Package height

177 mm

Package weight

30 g

Description

Manufacturer

Lenovo

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0087 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
