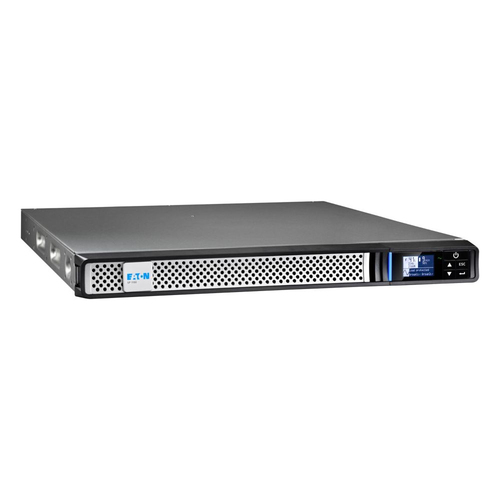

Eaton 5P1150IRNG2 uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 920 W 6 AC outlet(s)

Eaton 5P1150IRNG2 uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 920 W 6 AC outlet(s)

Name: Eaton 5P1150IRNG2 uninterruptible power supply (UPS) Line-Interactive 1.15 kVA 920 W 6 AC outlet(s)
Brand: Eaton
SKU: 5P1150IRNG2
Price: 1317.04 EUR
Availability: InStock

2 IN STOCK

SKU: 5P1150IRNG2

Manufacturer: Eaton Eaton

RRP Price €1,317.04

Specifications

Features

UPS topology

Line-Interactive

Output power capacity

1.15 kVA

Output power

920 W

Waveform

Sine

Input operation voltage (min)

150 V

Input operation voltage (max)

294 V

Input frequency

47/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Heat dissipation

465 BTU/h

Number of input phases

Number of output phases

Efficiency

98.2%

Power factor

0.8

Noise level

35 dB

Ports & interfaces

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

6 AC outlet(s)

USB port

Yes

USB port type

USB Type-B

Serial interface

Yes

Serial interface type

RS-232

Serial ports quantity

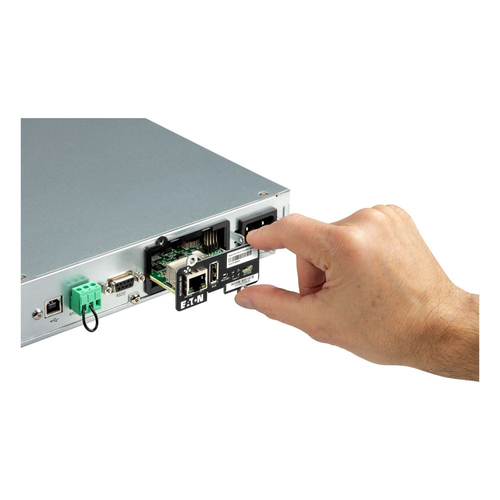

Network card slot

Yes

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Battery voltage

6 V

Number of battery cells

Typical backup time at half load

12.5 min

Hot-swap battery

Yes

Design

Form factor

Rackmount

Rack capacity

Product colour

Black, Silver

Display type

LCD

LED indicators

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Operating altitude

0 - 3000 m

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Compliance certificates

Low Voltage Directive (LVD), RoHS

Certification

EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Packaging content

Rack mount kit

Yes

Cables included

USB cable

Quick installation guide

Yes

Weight & dimensions

Width

438 mm

Depth

509 mm

Height

43.2 mm

Weight

14.3 kg

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

14.28 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
