Eaton 5P850IRNG2 uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 680 W 4 AC outlet(s)

Eaton 5P850IRNG2 uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 680 W 4 AC outlet(s)

Name: Eaton 5P850IRNG2 uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 680 W 4 AC outlet(s)
Brand: Eaton
SKU: 5P850IRNG2
Price: 1038.69 EUR
Availability: InStock

5 IN STOCK

SKU: 5P850IRNG2

Manufacturer: Eaton Eaton

RRP Price €1,038.69

Specifications

Features

UPS topology

Line-Interactive

Output power capacity

0.85 kVA

Output power

680 W

Waveform

Sine

Input operation voltage (min)

150 V

Input operation voltage (max)

294 V

Input frequency

47/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Heat dissipation

307 BTU/h

Number of input phases

Number of output phases

Efficiency

98%

Power factor

0.8

Noise level

35 dB

Ports & interfaces

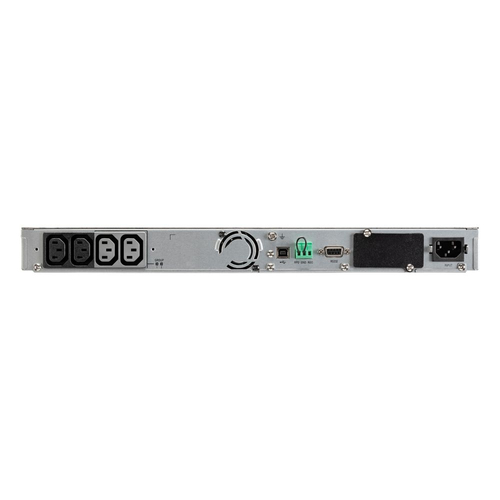

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

4 AC outlet(s)

USB port

Yes

USB port type

USB Type-B

Serial interface

Yes

Serial interface type

RS-232

Serial ports quantity

RS-232 ports

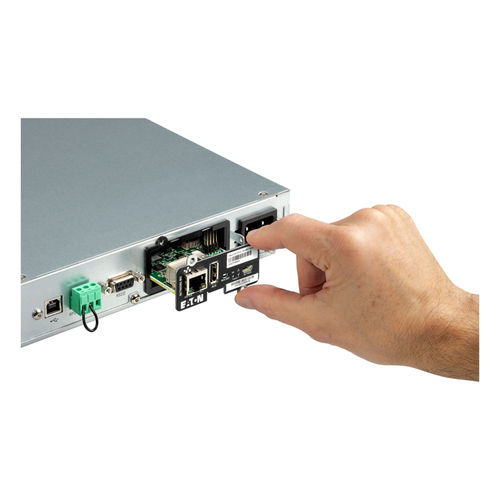

Network card slot

Yes

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

7 Ah

Battery voltage

6 V

Number of battery cells

Typical backup time at half load

13 min

Hot-swap battery

Yes

Design

Form factor

Rackmount

Product colour

Black, Silver

Display type

LCD

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Operating altitude

0 - 3000 m

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Compliance certificates

Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS

Certification

IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Packaging content

Rack mount kit

Yes

Cables included

USB cable

Quick installation guide

Yes

Weight & dimensions

Width

438 mm

Depth

509 mm

Height

43.2 mm

Weight

13.8 kg

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

13.78 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
