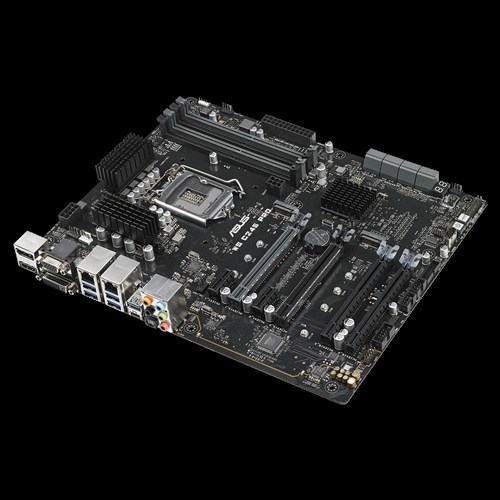

ASUS WS C246 PRO Intel C246 LGA 1151 (Socket H4) ATX

Four PCIe 3.0 x16 slots for flexible expandability with add-on cards
WS C246 PRO features four PCIe x16 slots for flexible system configurability and expandability with add-on cards, such as NVIDIA Quadro graphics, RAID and LAN cards. With support for AMD CrossFireX 3-way configurations, WS C246 PRO harnesses the full power of the latest graphics technologies.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246 PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246 PRO is equipped for total display flexibility with onboard HDMI, DisplayPort, DVI-D and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Dual M.2 for up to 32Gbps performance and data redundancy
WS C246 PRO features dual M.2 slots to unleash maximum data-transfer performance. One M.2 slot supports up to 22110-length M.2 drives via PCIe Gen3 x4 for ultrafast data access, making it the perfect choice for an operating system or application drive. The other M.2 slot is suitable for SATA drives or Intel® Optane memory via PCIe Gen3 x2 support to speed up traditional hard drives.

The latest 10Gb/s USB 3.1 for high transfer speed
WS C246 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices. With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center
WS C246 PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ON ORDER

SKU: 90SW00G0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1151 (Socket H4)
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®
Supported processor sockets
LGA 1151 (Socket H4)

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
Supported memory clock speeds
2133,2400,2666 MHz
Maximum internal memory
64 GB

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
8
S/PDIF out connector
Yes
ATX Power connector (24-pin)
Yes
Number of COM connectors
2
TPM connector
Yes

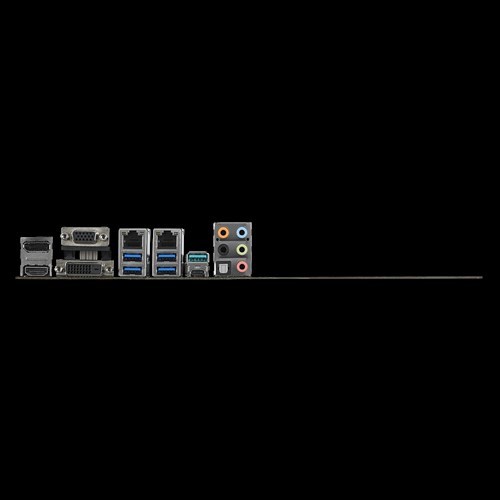

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
2
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
Microphone in
Yes

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I210-AT, Intel I219LM
Wake-on-LAN ready
Yes
Wi-Fi
No

Features

Motherboard chipset
Intel C246
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel

Expansion slots

PCI Express x1 (Gen 2.x) slots
5
PCI Express x16 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
2

Logistics data

Harmonized System (HS) code
84733020

Packaging data

Package width
422 mm
Package depth
365 mm
Package height
302 mm
Package weight
1.8 kg

Weight & dimensions

Width
305 mm
Depth
244 mm
Height
73 mm

Packaging content

Cables included
SATA
Manual
Yes
Drivers included
Yes

Other features

Dual Link DVI
No
Weight
600 g
Quick installation guide
Yes
Back-to-BIOS button
Yes

Accessories

License
