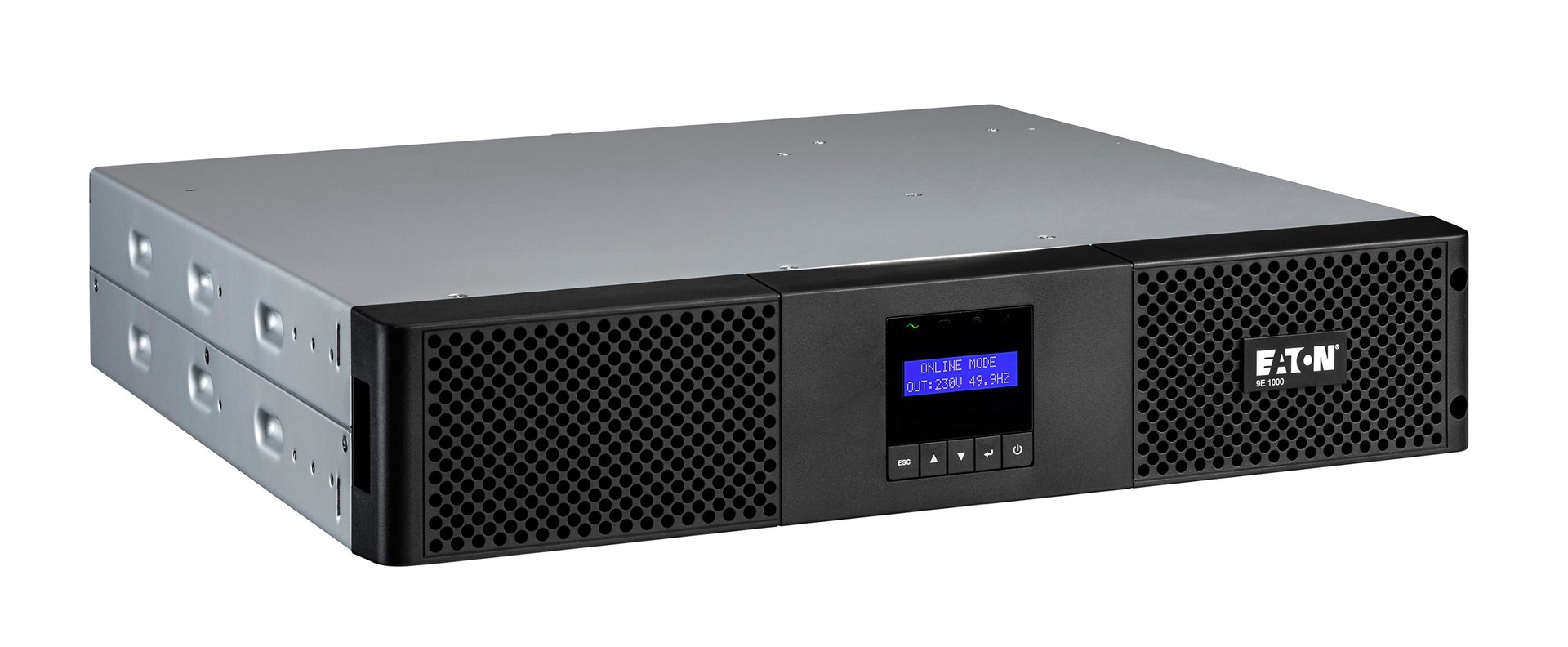

Eaton 9E1000IR uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

ON ORDER

SKU: 9E1000IR

Manufacturer: Eaton Eaton

RRP Price €611.31

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
1 kVA
Output power
900 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Heat dissipation
375 BTU/h
Number of input phases
1
Number of output phases
1
Efficiency
90%
Efficiency (ECO mode)
95.5%
Input power factor
99
Output power factor
0.9
Noise level
41 dB

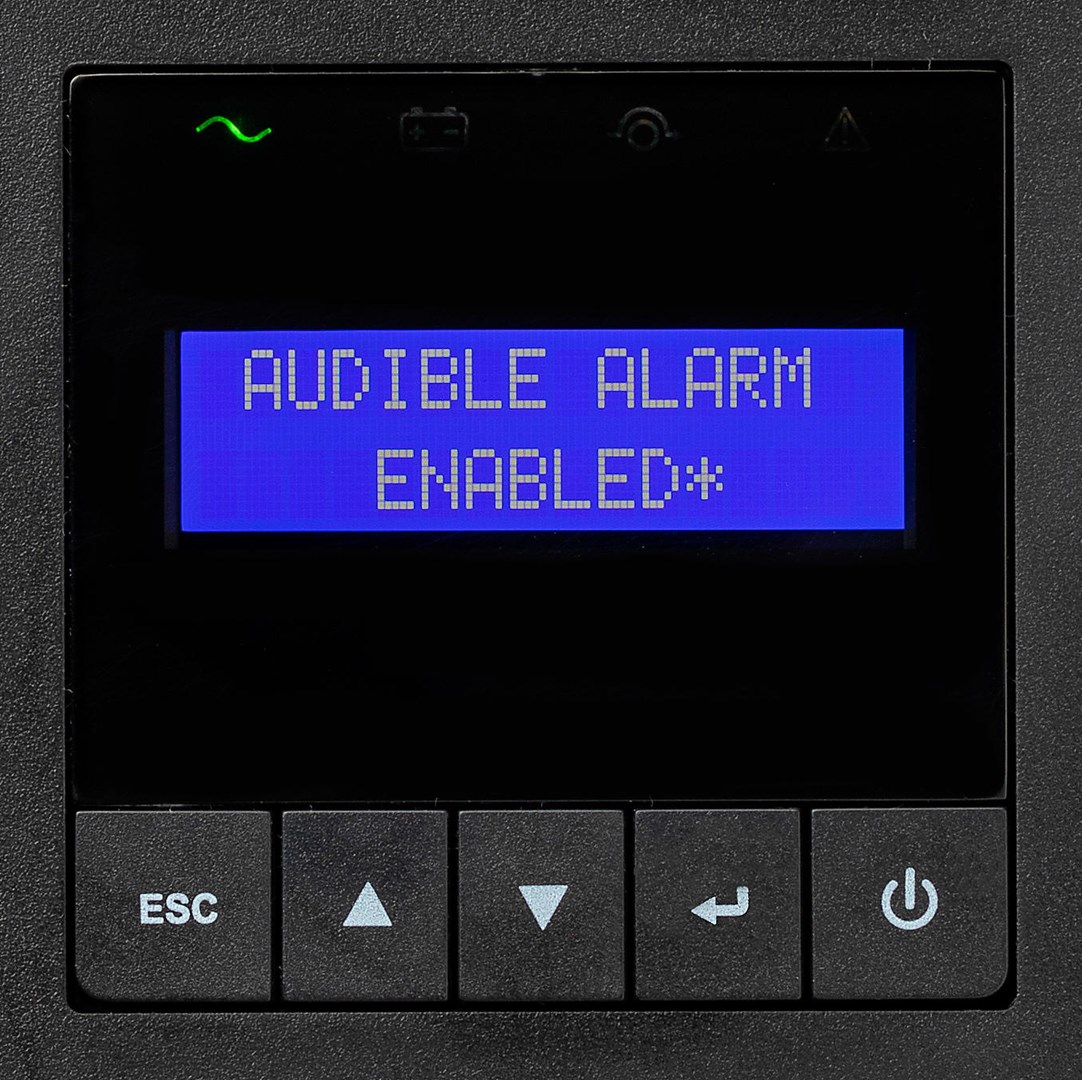

Audible alarm(s)
Yes
Power source type
AC

Ports & interfaces

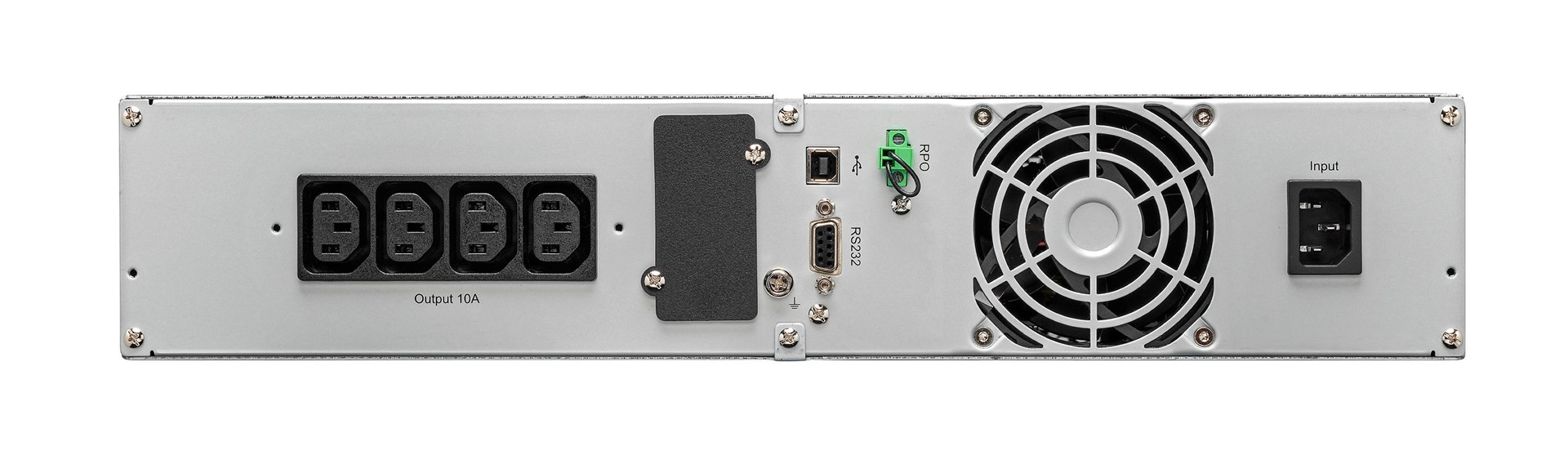

AC outlet types
C13 coupler, C14 coupler
Power plug
C13 coupler
AC outlets quantity
4 AC outlet(s)

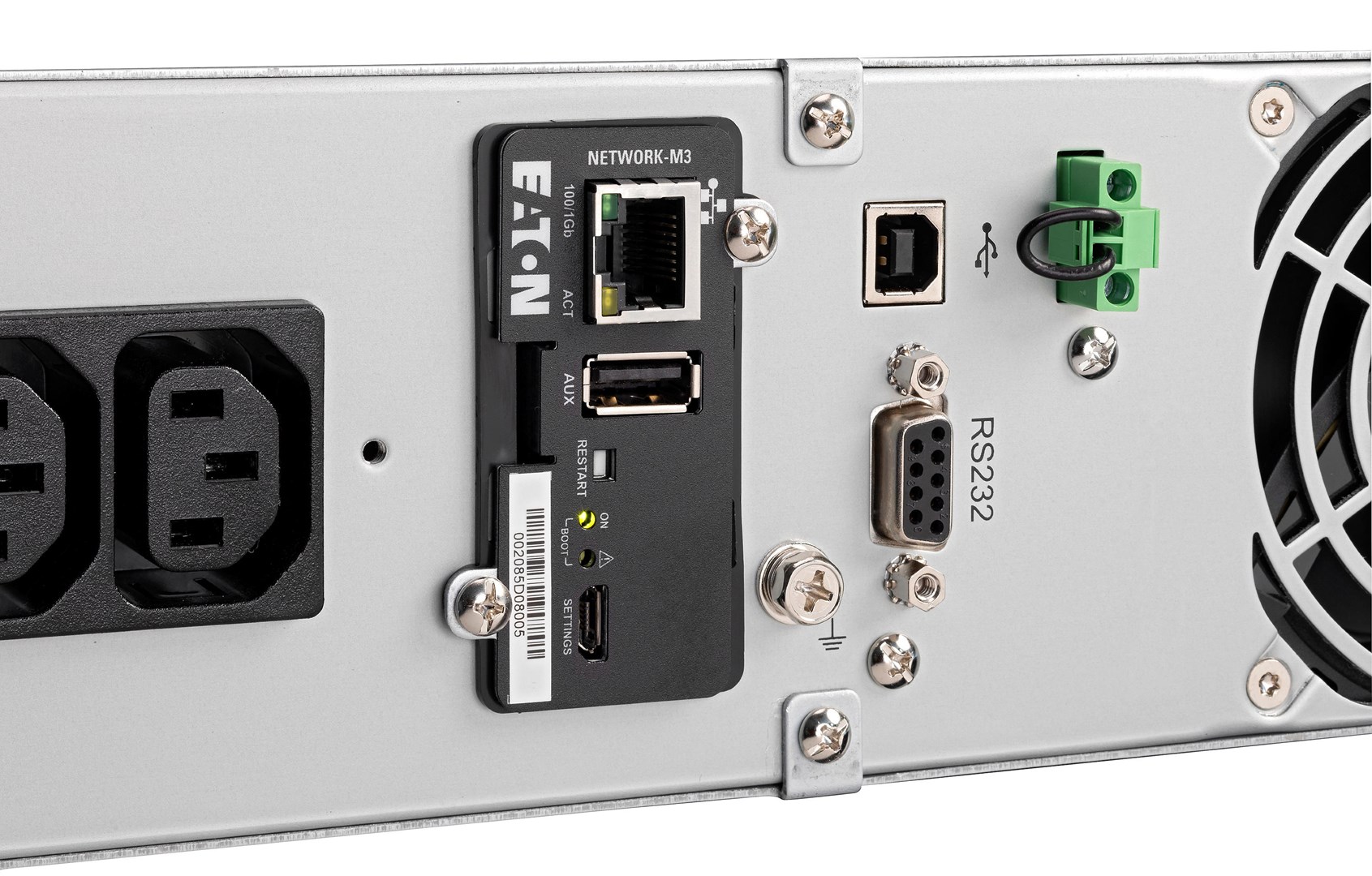

USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
RS-232 ports
1

Battery

Battery technology
Lead-Acid
Battery capacity
7 Ah
Battery voltage
12 V
Number of batteries supported
3
Typical backup time at full load
6 min
Typical backup time at half load
15 min

Design

Form factor
Tower
Rack capacity
2U
Product colour
Black
Control type
Buttons

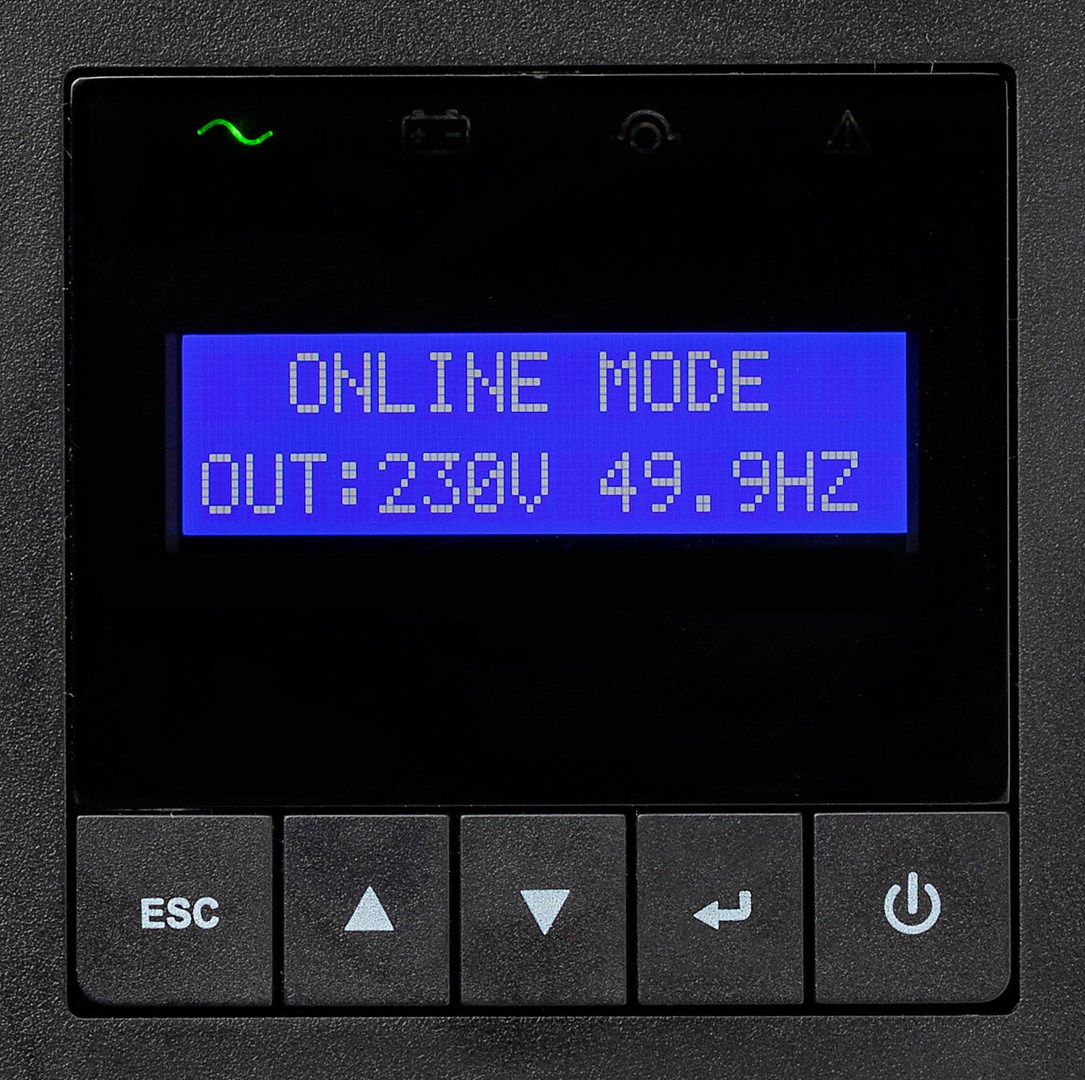

Display type
LCD
LED indicators
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%

Certificates

Compliance certificates
CE
Certification
IEC/EN 62040-1 IEC/EN 62040-2 CE

Packaging content

Rack mount kit
Yes
Cables included
Output power cable, USB cable
Quick installation guide
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
438 mm
Depth
438 mm
Height
86.5 mm
Weight
17.6 kg
