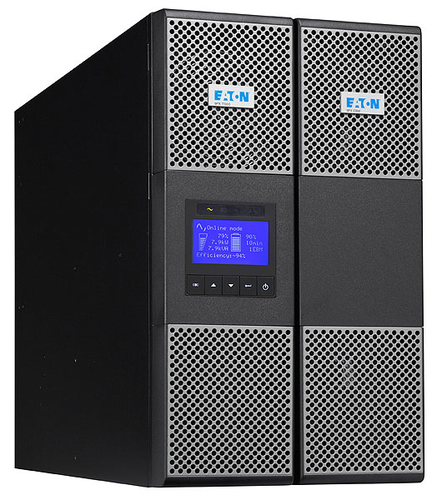

Eaton 9PX uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 5400 W 5 AC outlet(s)

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

ON ORDER

SKU: 9PX6KIBP31

Manufacturer: Eaton Eaton

RRP Price €5,446.64

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
6 kVA
Output power
5400 W
Waveform
Pure sine
Input operation voltage (min)
305 V
Input operation voltage (max)
480 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
3
Efficiency
94%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Noise level
48 dB

Ports & interfaces

AC outlet types
C19 coupler, Terminal
Power plug
Terminal
AC outlets quantity
5 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1

Battery

Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
30 min
Hot-swap battery
Yes
Automatic battery test
Yes

Design

Form factor
Rackmount/Tower
Rack capacity
6U
Cooling type
Active
Built-in fan
Yes
Product colour
Black
Display type
LCD
LED indicators
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Certificates

Certification
IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)

Safety regulation & standards

Safety
IEC/EN 62040-1

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Width
440 mm
Depth
700 mm
Height
260 mm
Weight
88 kg

Packaging data

Management card included
No
Bundled software
Intelligent Power Software suite

Logistics data

Harmonized System (HS) code
85078000

Other features

Nominal output voltage
230 V
Nominal input voltage
400 V
