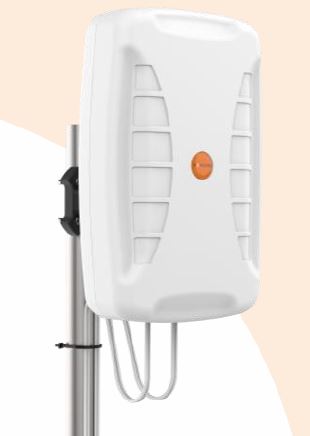

Poynting A-XPOL-0024-V1-02 network antenna Omni-directional antenna N-type 11 dBi

Name: Poynting A-XPOL-0024-V1-02 network antenna Omni-directional antenna N-type 11 dBi
Brand: Poynting
SKU: A-XPOL-0024-V1-02
Price: 379.54 EUR
Availability: OutOfStock

The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is our first ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna.
The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.

ON ORDER

SKU: A-XPOL-0024-V1-02

Manufacturer: Poynting

RRP Price €379.54

Specifications

Performance

Frequency band

0.617 - 4.2 GHz

Impedance

50 Ω

Antenna gain level (max)

11 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Female

Voltage Standing Wave Ratio (VSWR)

2:1

Product colour

White

Protection features

Dust resistant, UV resistant, Water resistant

International Protection (IP) code

IP65

Ultraviolet (UV) resistant

Yes

Survival wind speed

160 km/h

Power handling

10 W

Mounting

Wall/Pole

Purpose

Indoor & outdoor

Certificates

Sustainability compliance

Yes

Compliance certificates

CE, RoHS

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Weight

2.56 kg

Packaging data

Package width

419 mm

Package depth

120 mm

Package height

508 mm

Package weight

3.88 kg

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Country of origin

China

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.565 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
