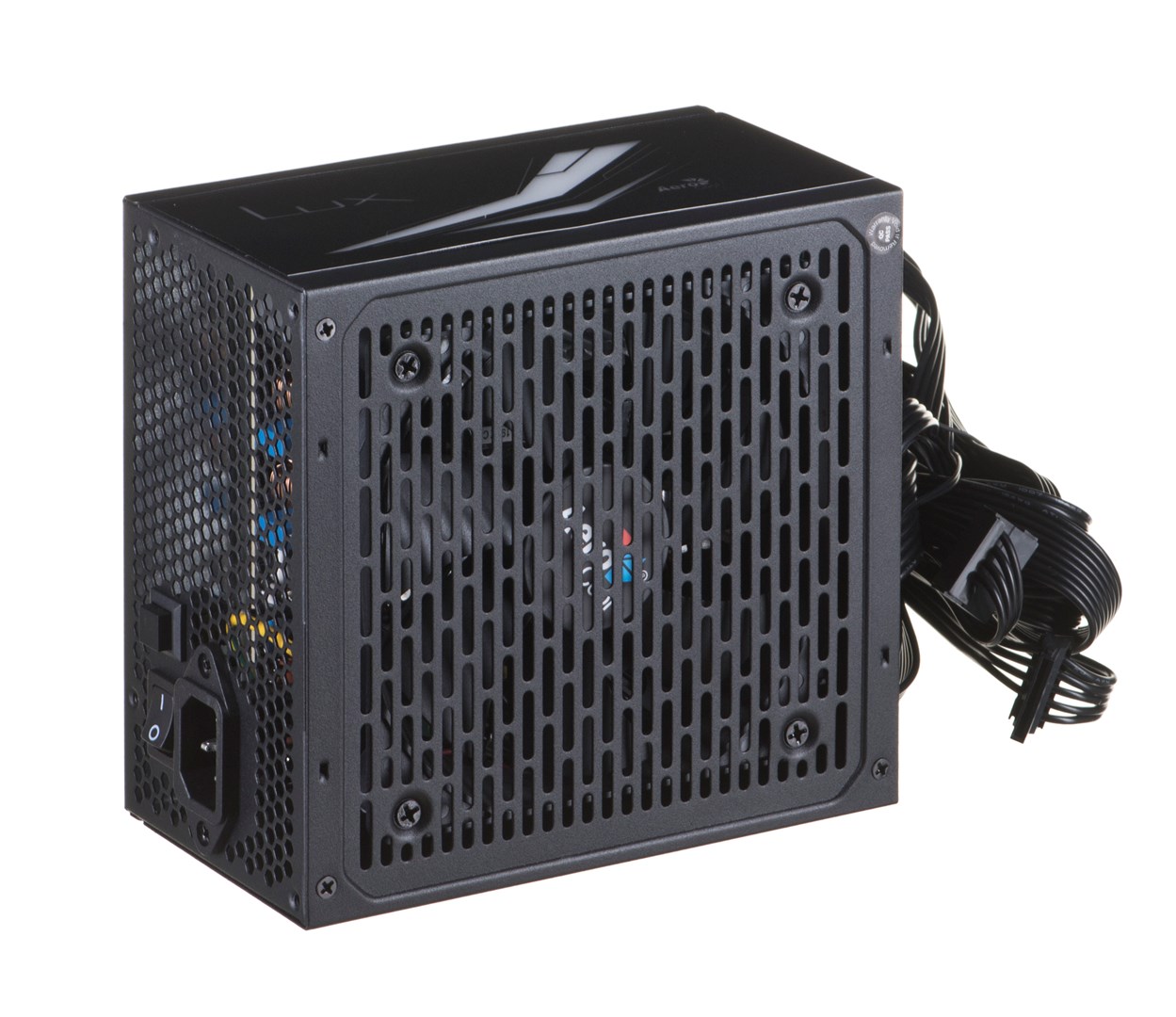

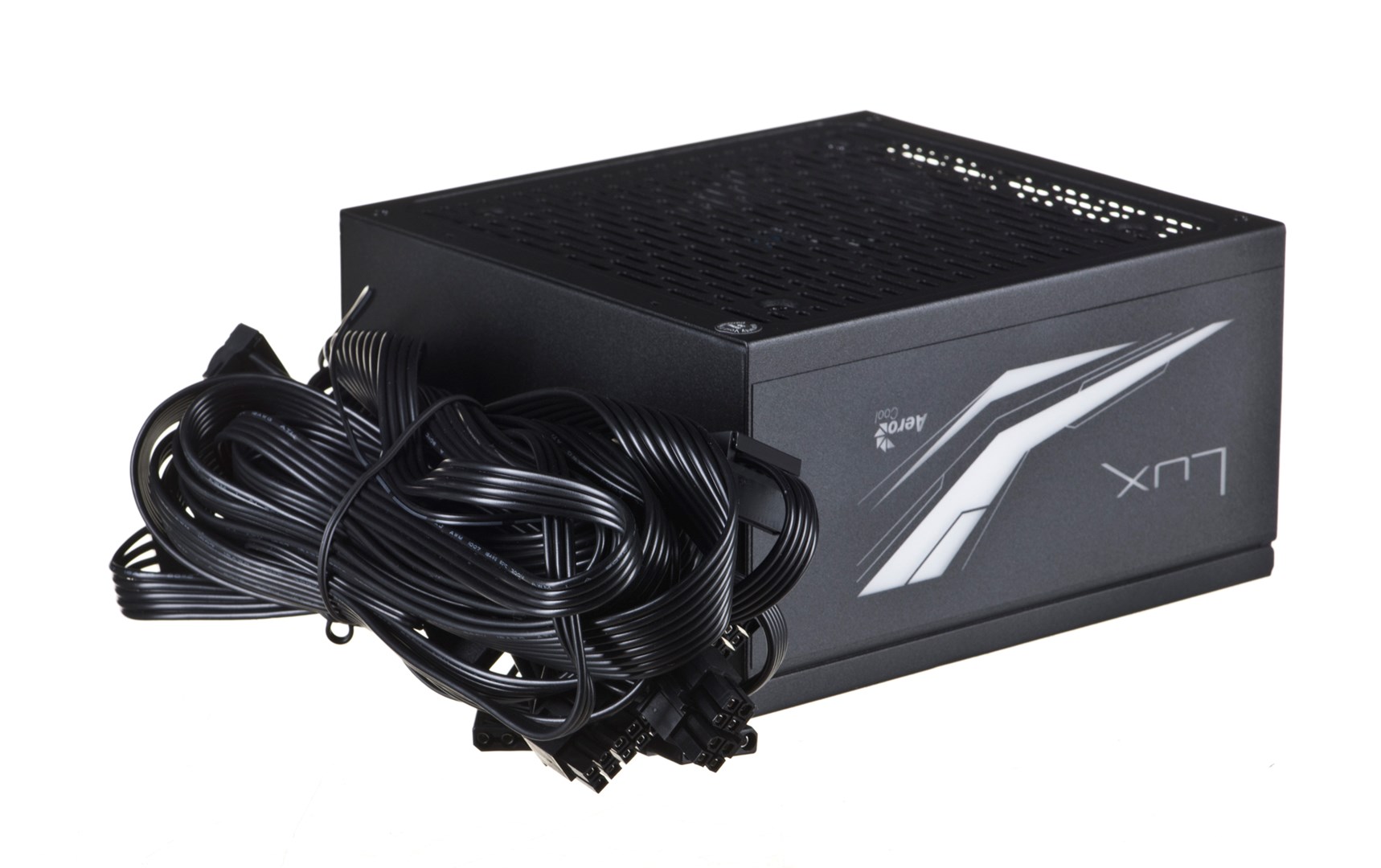

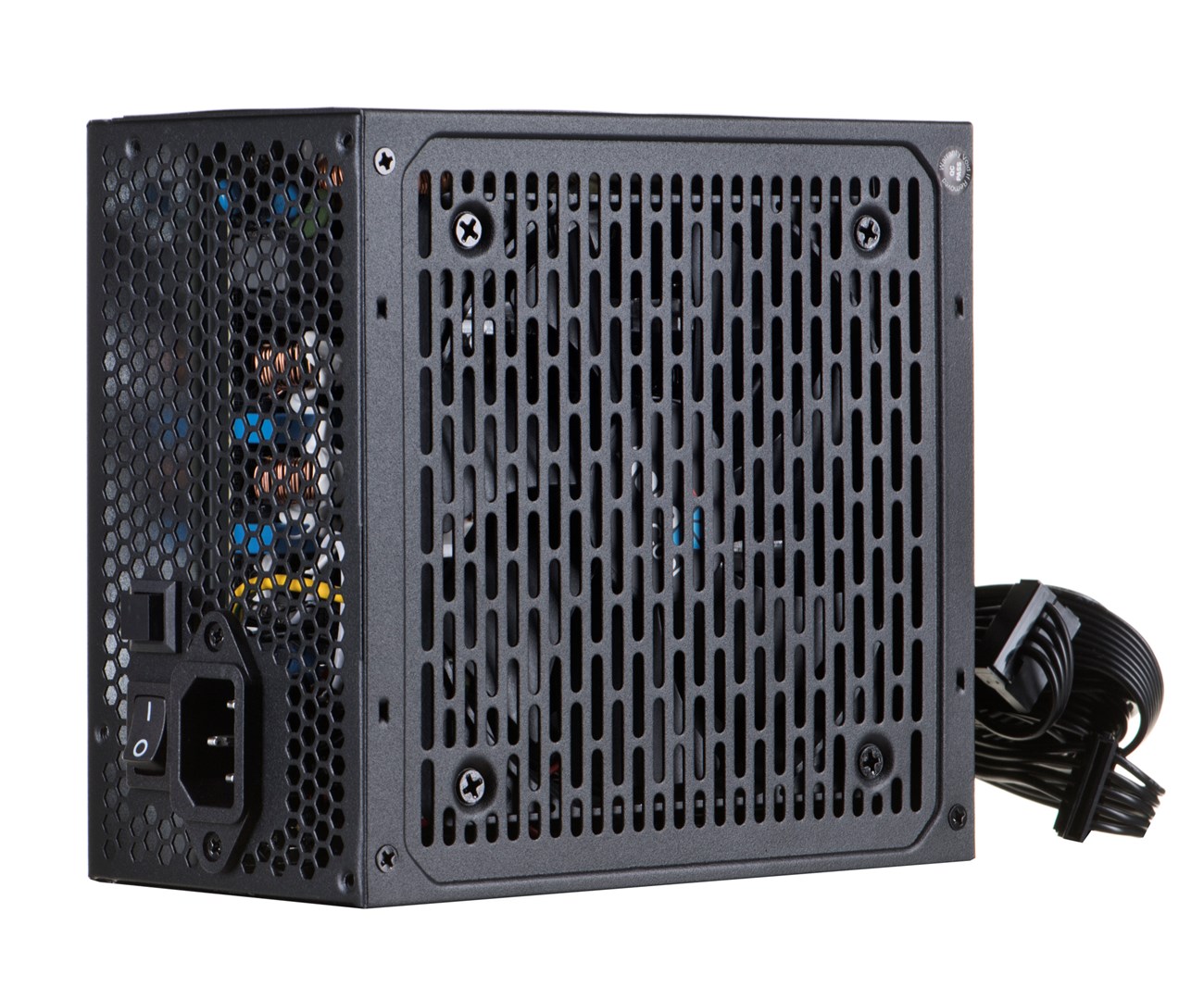

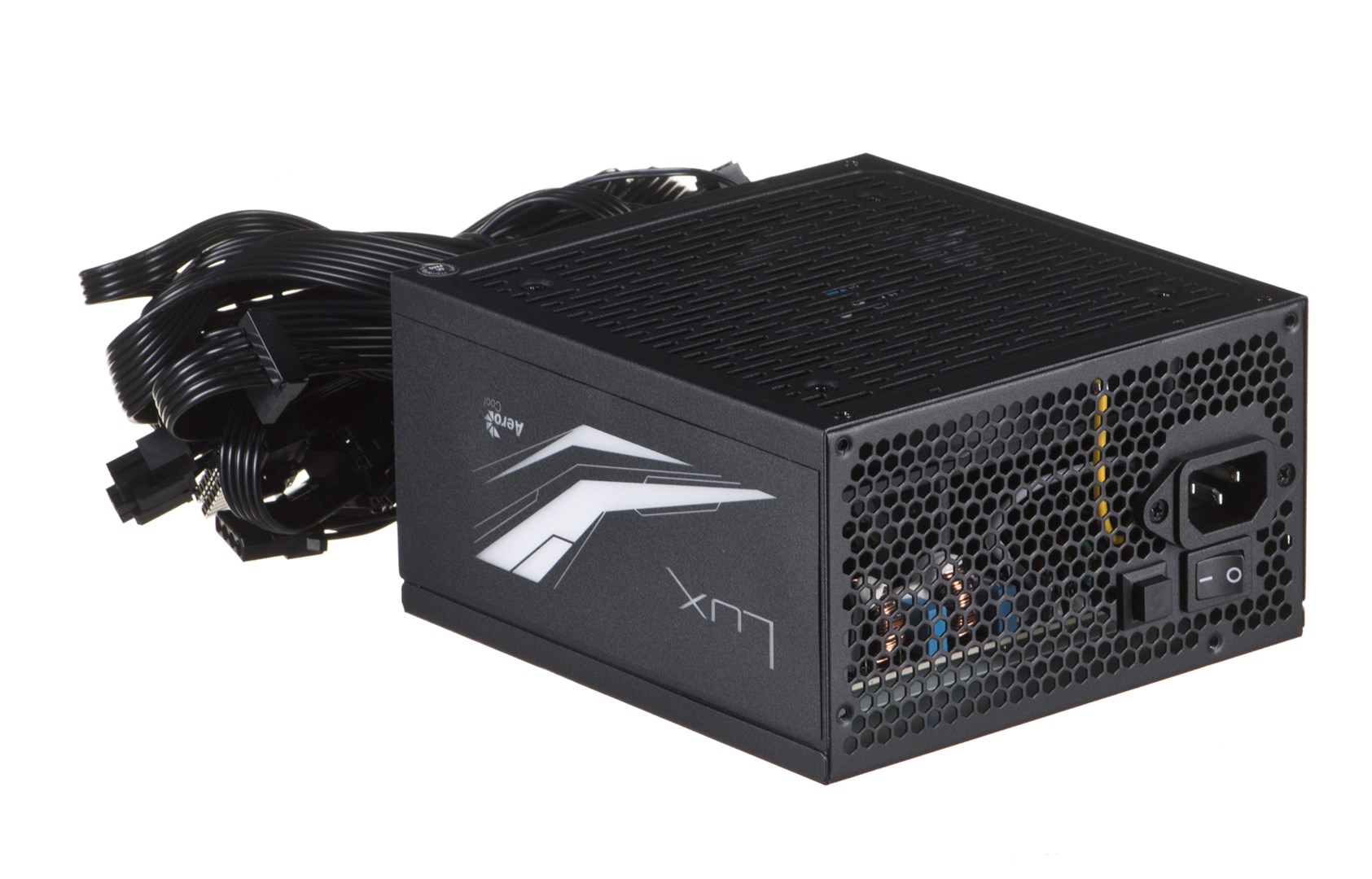

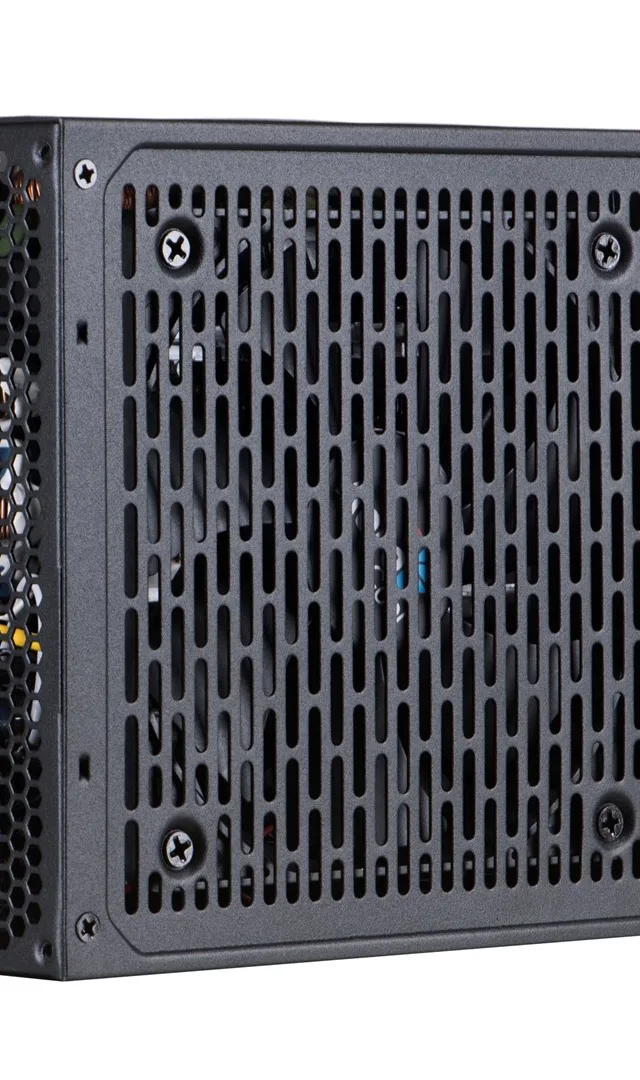

Aerocool LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black

Featuring a Prism RGB LED design, the LUX RGB PSU powers your system while delivering a vivid stream of colors. Bring your case to life with 13 unique lighting effects that can be controlled via LED control switch. Smart semi-modular design increases ease of installation and offers easier cable management. 80Plus 230V EU Bronze Certified for up to 88%+ efficiency.

ON ORDER

SKU: AEROPGSLUXRGB-550

Manufacturer: Aerocool Aerocool

RRP Price €0.00

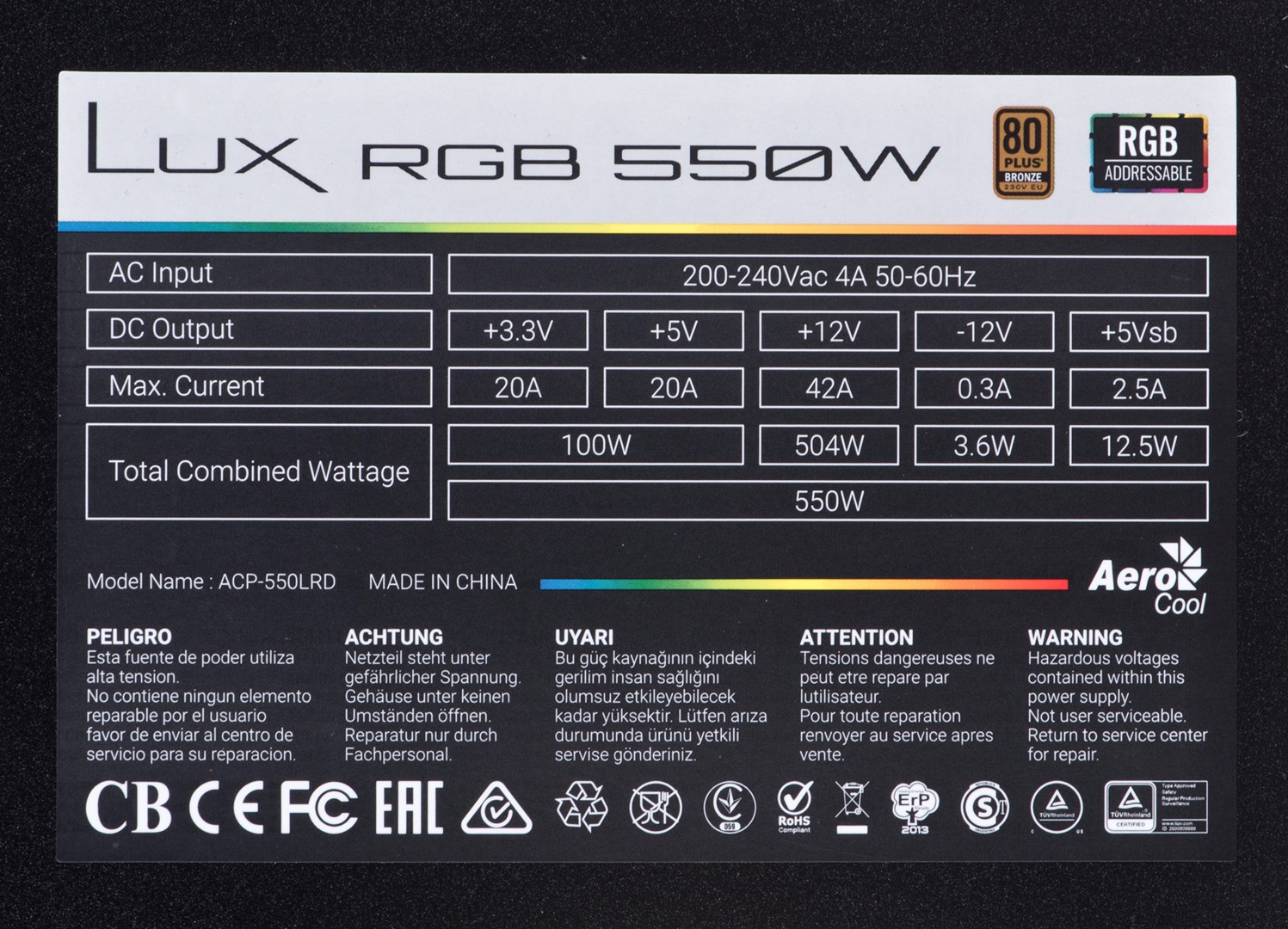

Specifications

Power

Total power
550 W
AC input voltage
200 - 240 V
AC input frequency
50 - 60 Hz
Input current
4 A
Combined power (+3.3V)
100 W
Combined power (+12V)
504 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
42 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Efficiency
88%

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
50 cm
Number of SATA power connectors
4
Number of PATA power connectors
2
SATA power cable length
550 mm
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
45 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
55 cm
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Semi-Modular

Performance

80 PLUS certification
80 PLUS Bronze
Purpose
PC

Design

Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
Yes

Packaging data

Manual
Yes
Package width
230 mm
Package depth
195 mm
Package height
95 mm
Package type
Box

Logistics data

Master (outer) case width
250 mm
Master (outer) case length
495 mm
Master (outer) case height
215 mm
Products per master (outer) case
5 pc(s)

Other features

Illumination colour
Blue, Green, Red
