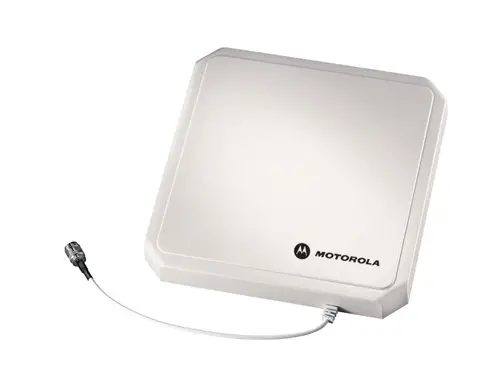

Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi

This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.

The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.

14 IN STOCK

SKU: AN480-CR66100WR

Manufacturer: Zebra Zebra

RRP Price €240.40

Specifications

Performance

Impedance
50 Ω
Horizontal beam width
65°
Vertical beam width
65°
Antenna gain level (max)
6 dBi

Features

Antenna type
Directional antenna
Antenna connector type
N-type
Voltage Standing Wave Ratio (VSWR)
1.22:1
Product colour
White
Power handling
2 W
Purpose
Outdoor

Certificates

Certification
RoHS, UL

Weight & dimensions

Width
259.1 mm
Depth
259.1 mm
Height
50.3 mm
Weight
1.13 kg

Logistics data

Harmonized System (HS) code
85177100

Other features

Frequency range
865 - 868 MHz
