StarTech.com 2.5" SSD/HDD Mounting Bracket for 3.5" Drive Bay - Tool-less Installation

Easily install one 2.5” solid-state drive or hard drive into a 3.5” bay, without requiring any additional hardware or tools

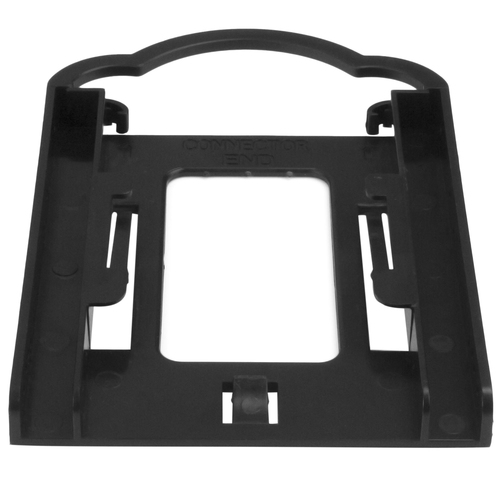

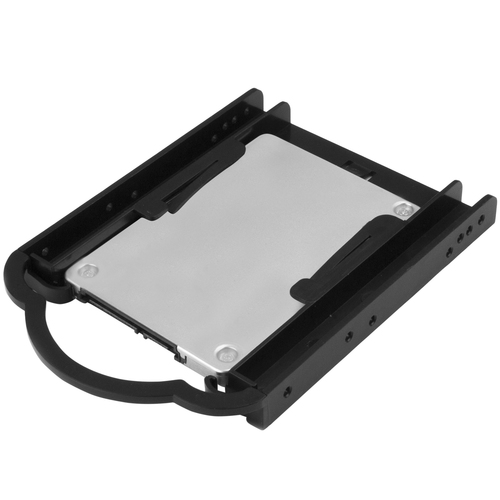

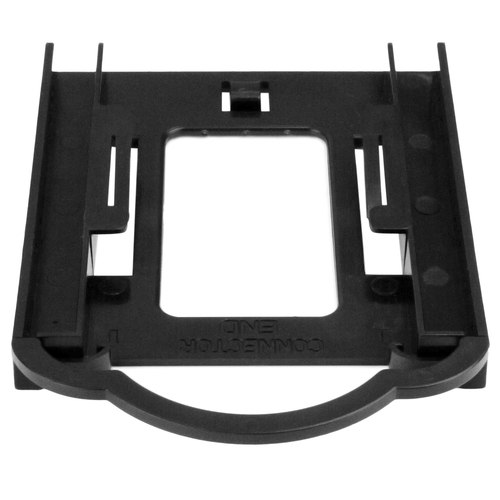

This mounting bracket lets you quickly install a 2.5" SSD or HDD into a single 3.5" bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5" solid-state drive or hard drive from 7 mm to 9.5 mm in height.

Save time with easy, tool-less drive installation

The mounting bracket’s tool-less design makes it fast and easy to install a 2.5" drive in a computer or server, without the need for additional hardware or tools. It’s ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.

Designed for trouble-free use

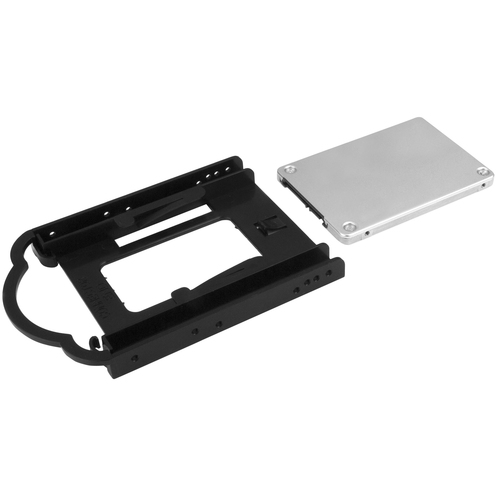

The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5" drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.

The BRACKET125PT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

3 IN STOCK

SKU: BRACKET125PT

Manufacturer: StarTech.com StarTech.com

RRP Price €7.09

Specifications

Features

Size (imperial)
8.89 cm (3.5")
Type
Carrier panel
Product colour
Black
Number of HDDs supported
1
HDD size
2.5"
HDD interface
IDE/ATA, Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Material
Plastic
Supported storage drive heights
7,9.5 mm

Weight & dimensions

Width
102 mm
Depth
150 mm
Height
13 mm
Weight
33 g

Packaging data

Package width
111 mm
Package depth
156 mm
Package height
21 mm
Package weight
60 g

Packaging content

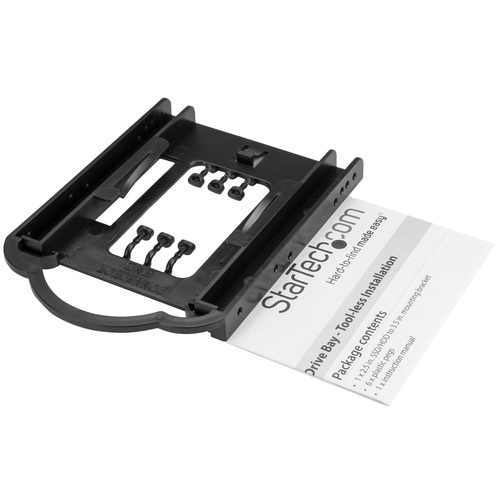

Quick start guide
Yes
Number of pegs
6

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
CE, RoHS

Logistics data

Products per master (outer) case
100 pc(s)
Master (outer) case width
332 mm
Master (outer) case length
538 mm
Master (outer) case height
254 mm
Harmonized System (HS) code
84733080
