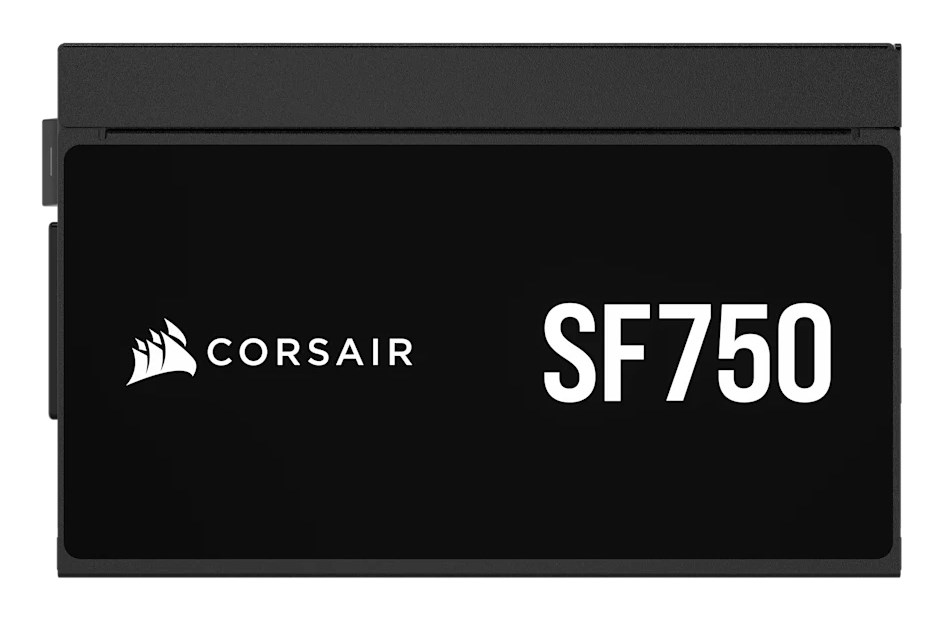

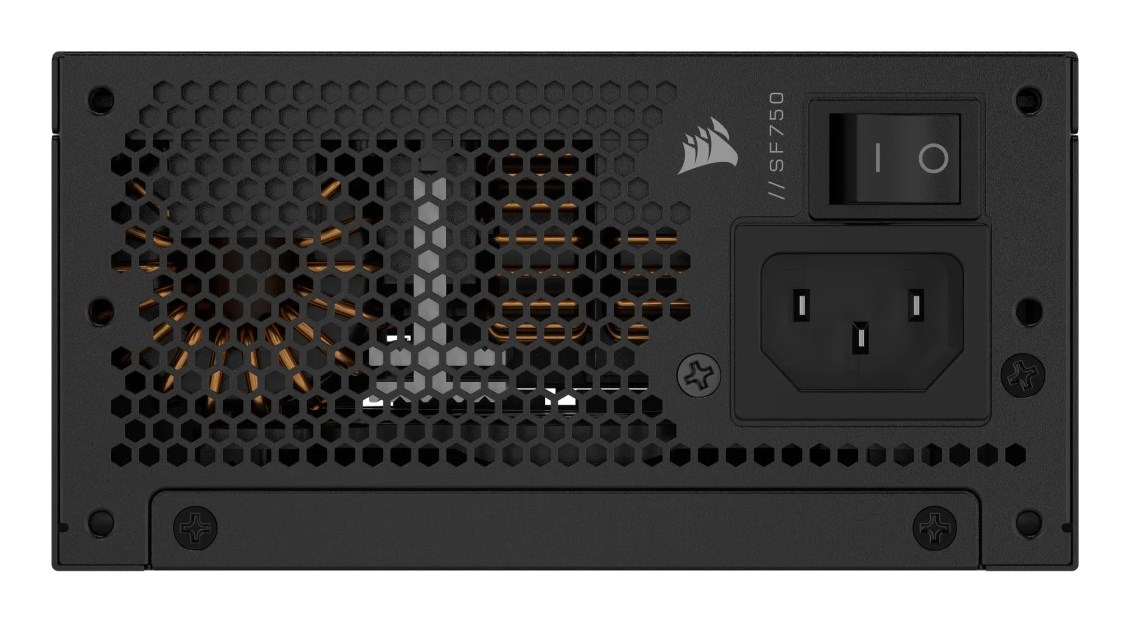

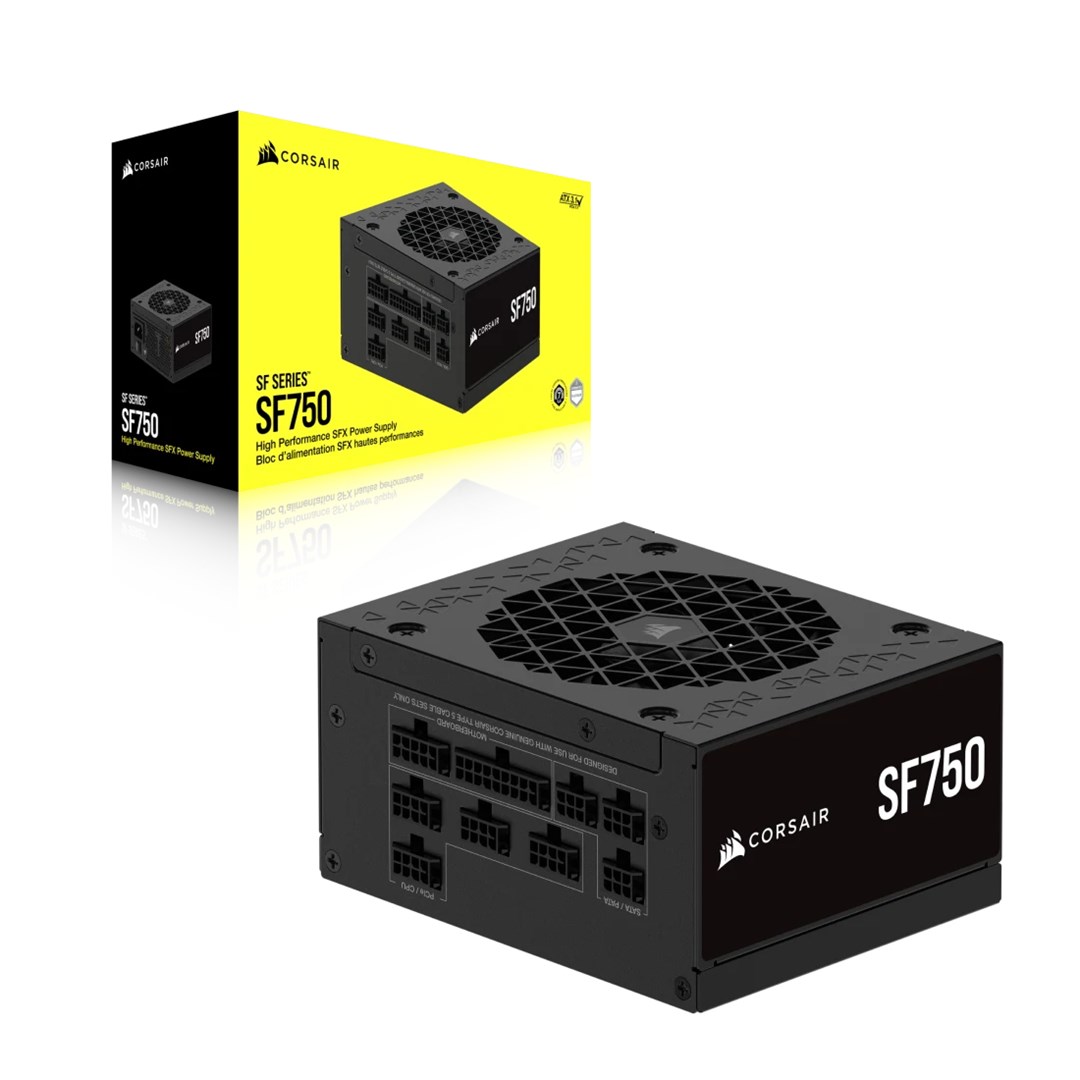

Corsair SF Series CP-9020284-EU power supply unit 750 W 24-pin ATX SFX Black

Corsair SF Series CP-9020284-EU power supply unit 750 W 24-pin ATX SFX Black

Name: Corsair SF Series CP-9020284-EU power supply unit 750 W 24-pin ATX SFX Black
Brand: Corsair
SKU: CP-9020284-EU
Availability: OutOfStock

SMALL AND MIGHTY
Don't let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.

50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

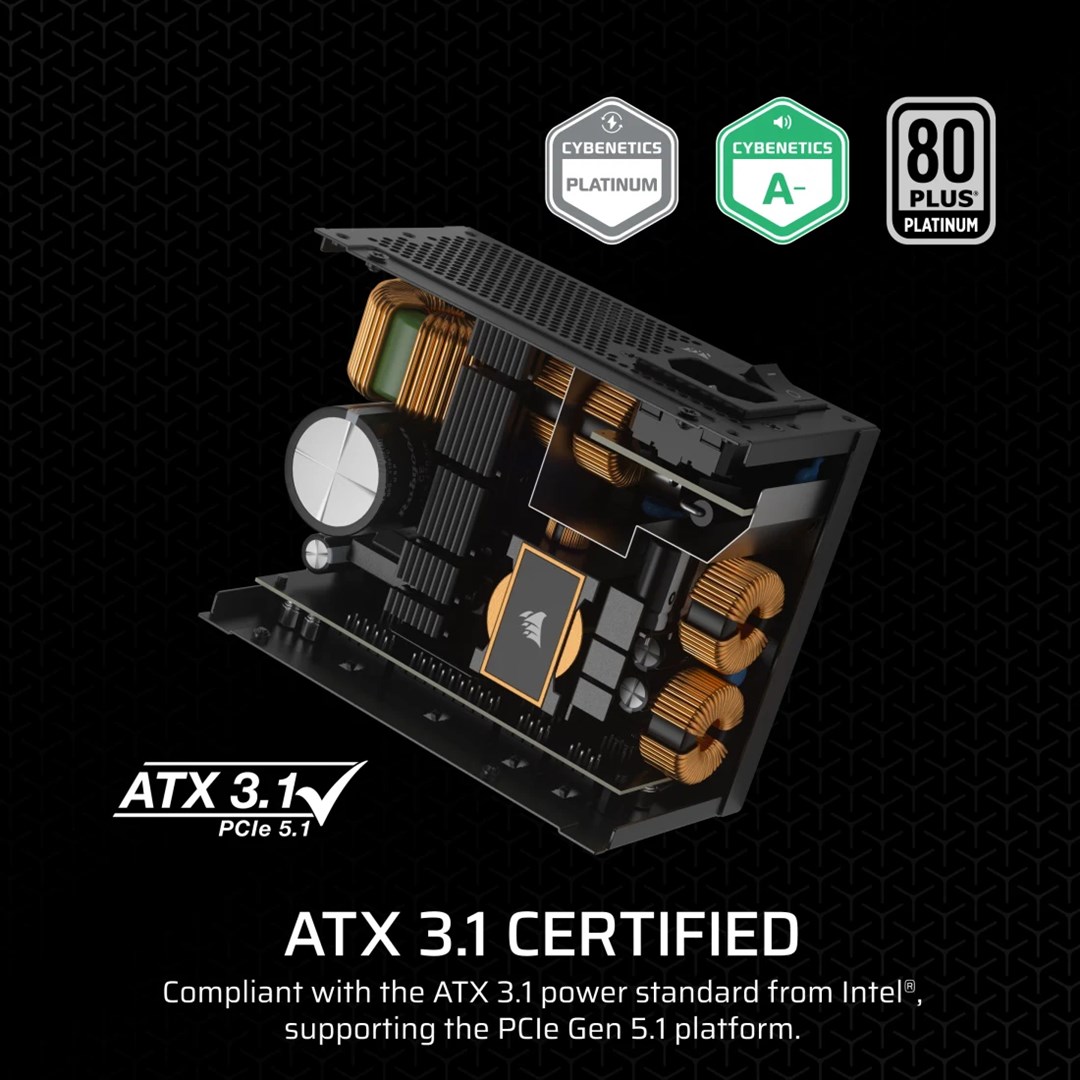

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

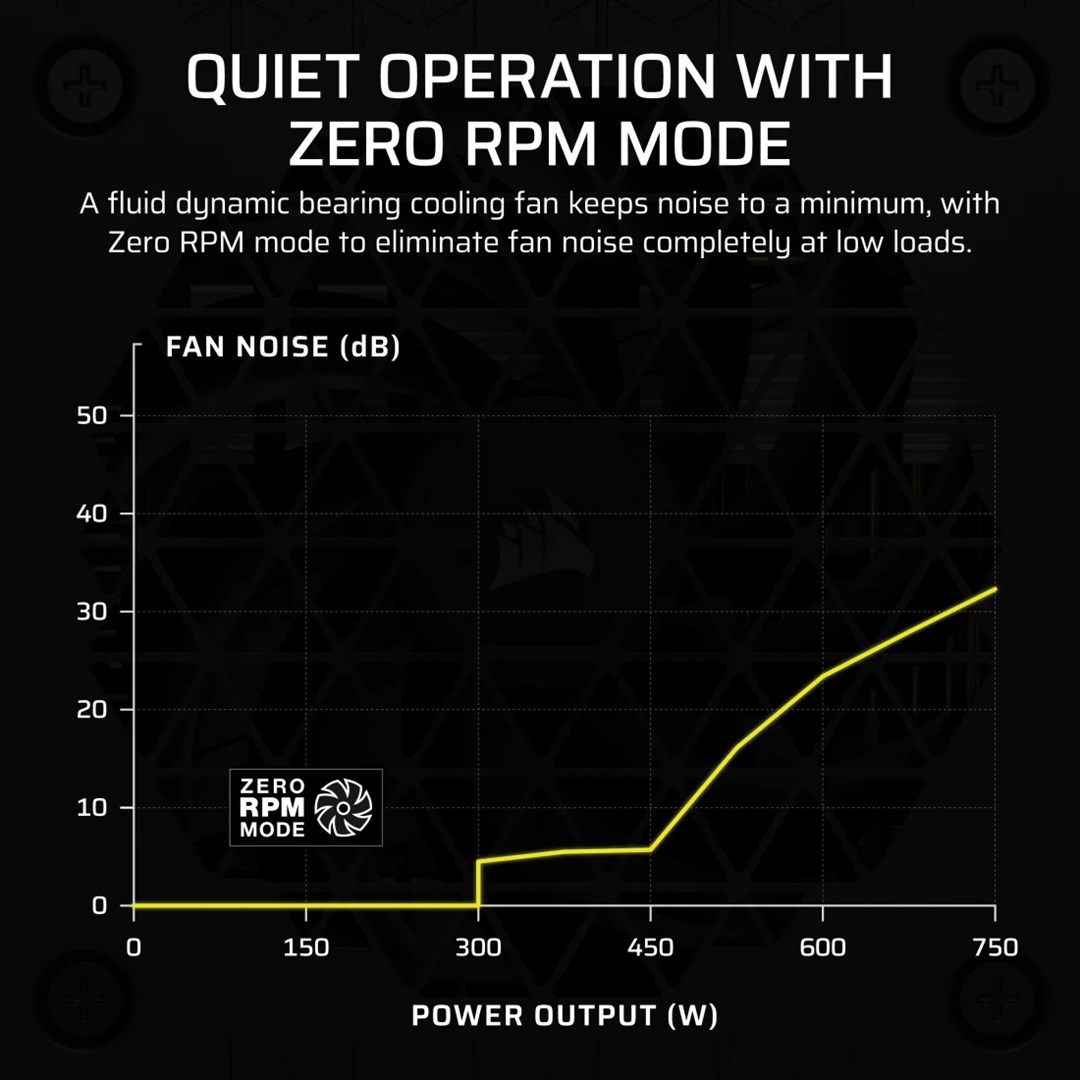

QUIET OPERATION WITH ZERO RPM MODE

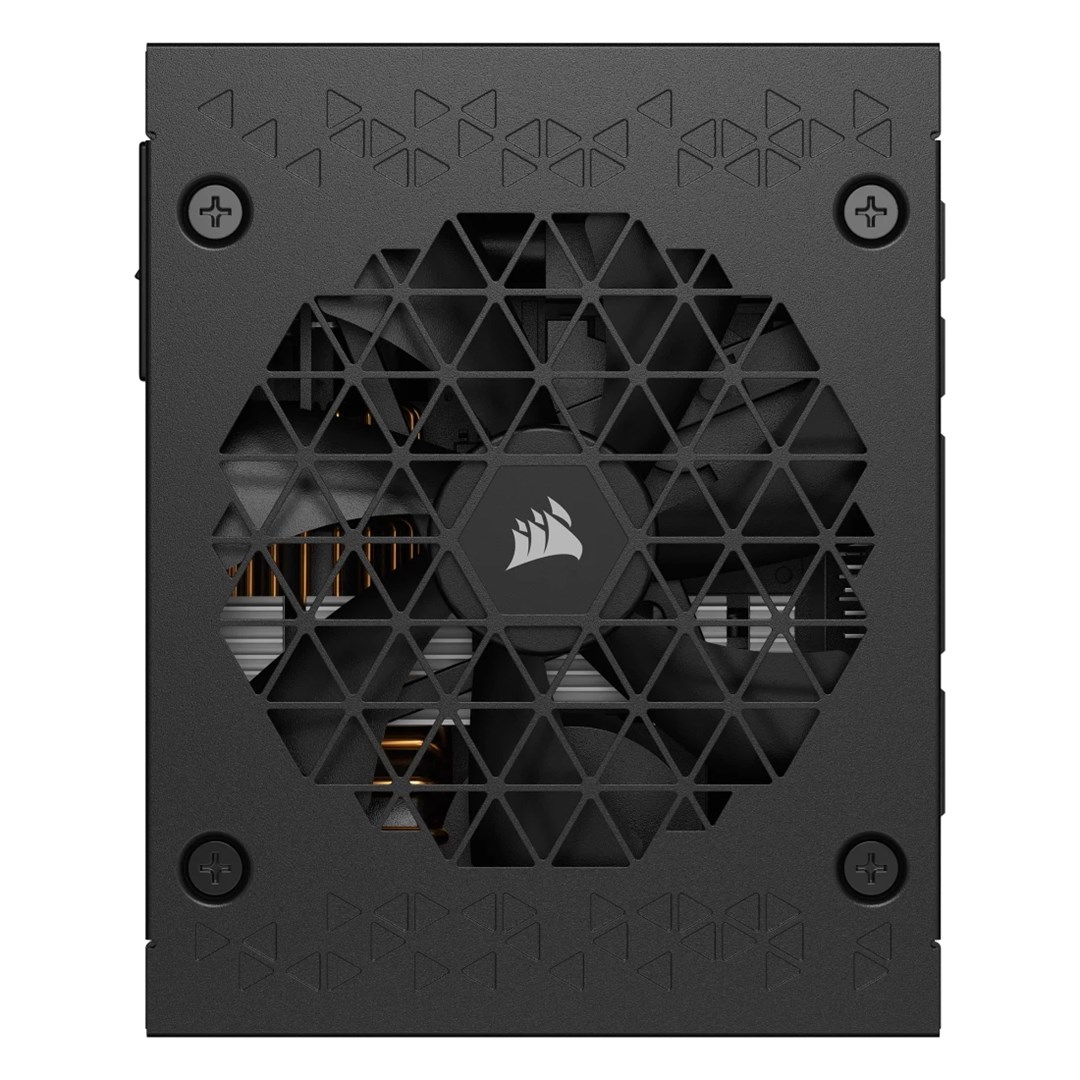

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

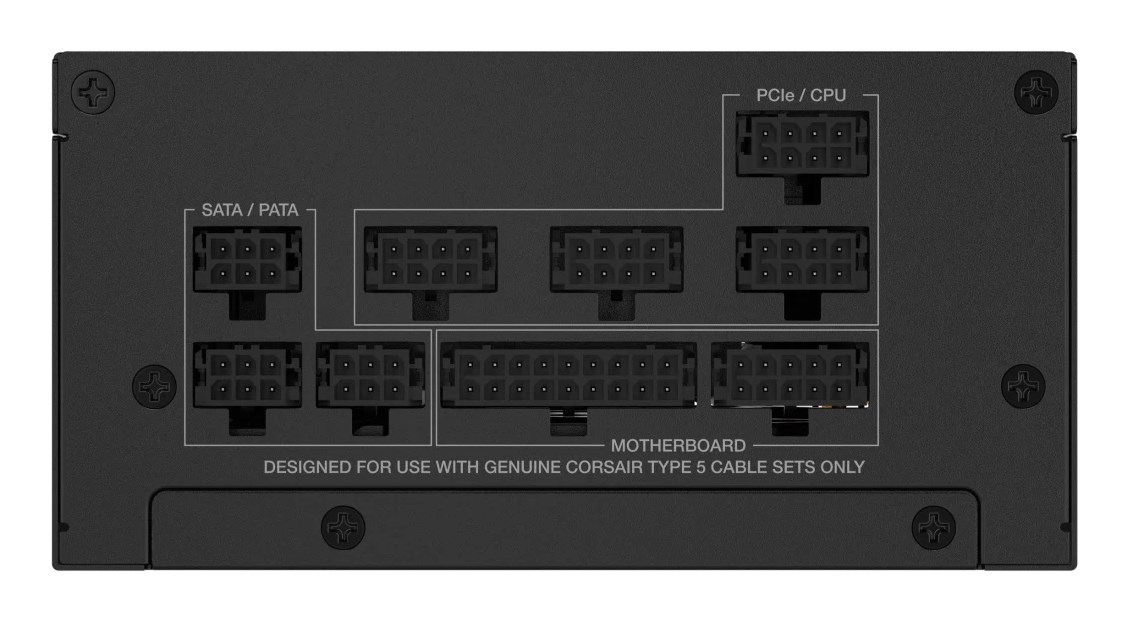

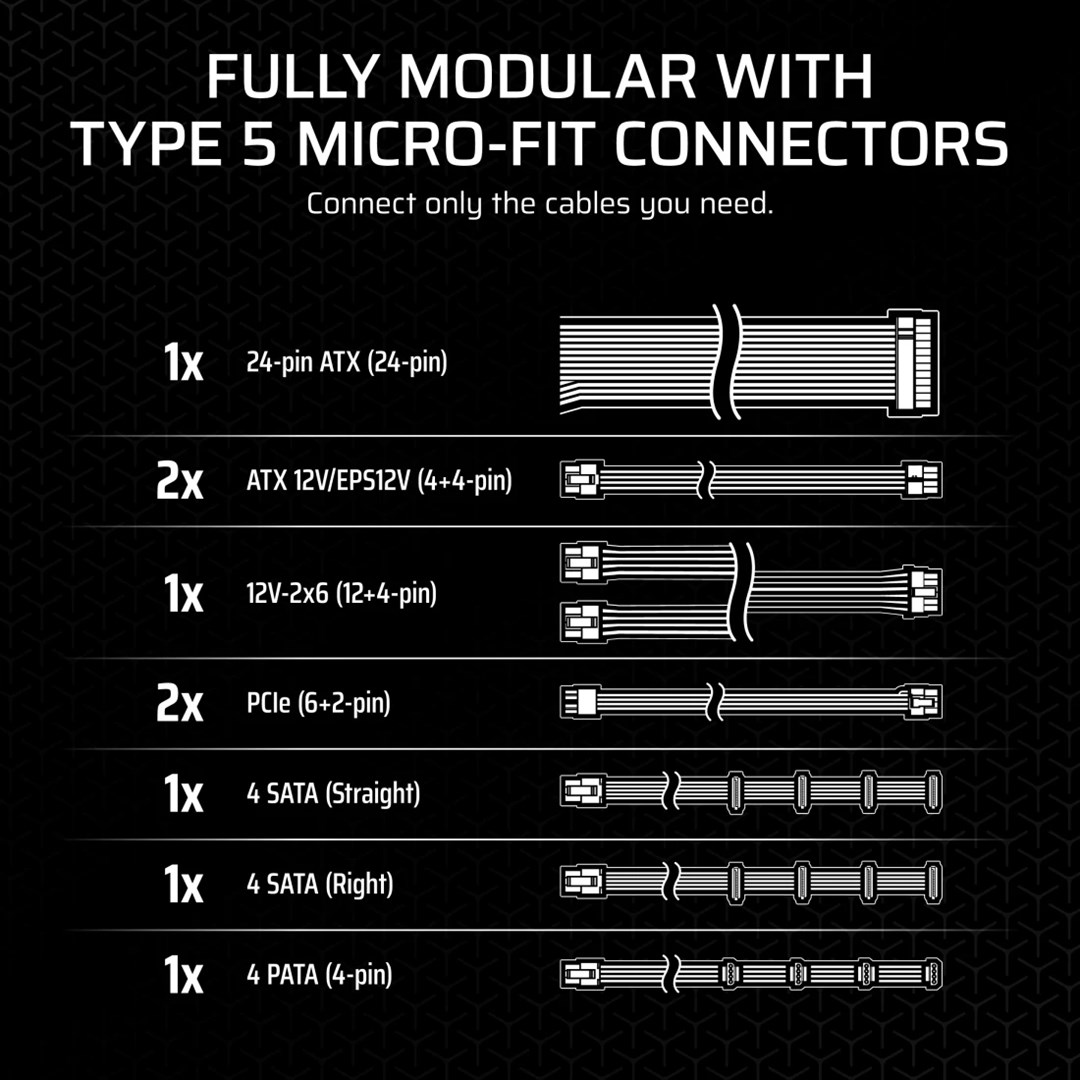

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.

ON ORDER

SKU: CP-9020284-EU

Manufacturer: Corsair Corsair

RRP Price €0.00

Specifications

Power

Total power

750 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

10-5 A

Combined power (+3.3V)

130 W

Combined power (+12V)

750 W

Combined power (+5V)

130 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V)

62.5 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Ports & interfaces

Motherboard power connector

24-pin ATX

Motherboard power cable length

30 cm

Number of SATA power connectors

Number of PATA power connectors

SATA power cable length

445 mm

EPS power connector (4+4 pin)

Yes

PCI Express power connectors (6+2 pin)

PCI Express power cable length

40 cm

Cabling type

Fully-Modular

Performance

80 PLUS certification

80 PLUS Platinum

Purpose

Power supply unit (PSU) form factor

SFX

ATX version

3.1

Silent mode

Yes

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

9.2 cm

Number of fans

1 fan(s)

Fan location

Top

On/off switch

Yes

Packaging content

Cables included

AC, CPU, PATA, PCIe, SATA

Weight & dimensions

Weight

2.15 kg

Packaging data

Package type

Box

Description

Manufacturer

Corsair

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.15 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

CISCO NEXUS 9800 DC POWER SUPPLY Power Supply

CISCO NEXUS 9800 DC POWER SUPPLY

€7,217.28

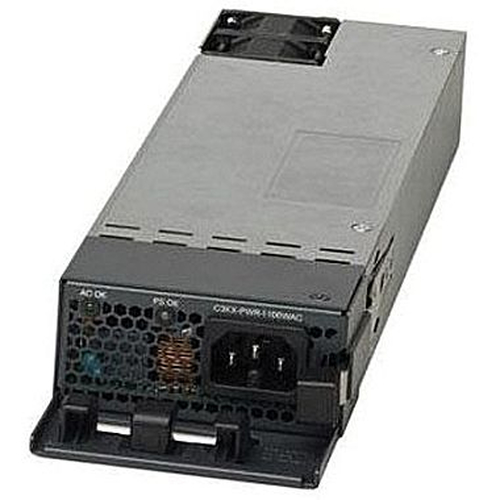

Cisco PWR-C2-1025WAC network switch component Power supply Power Supply
