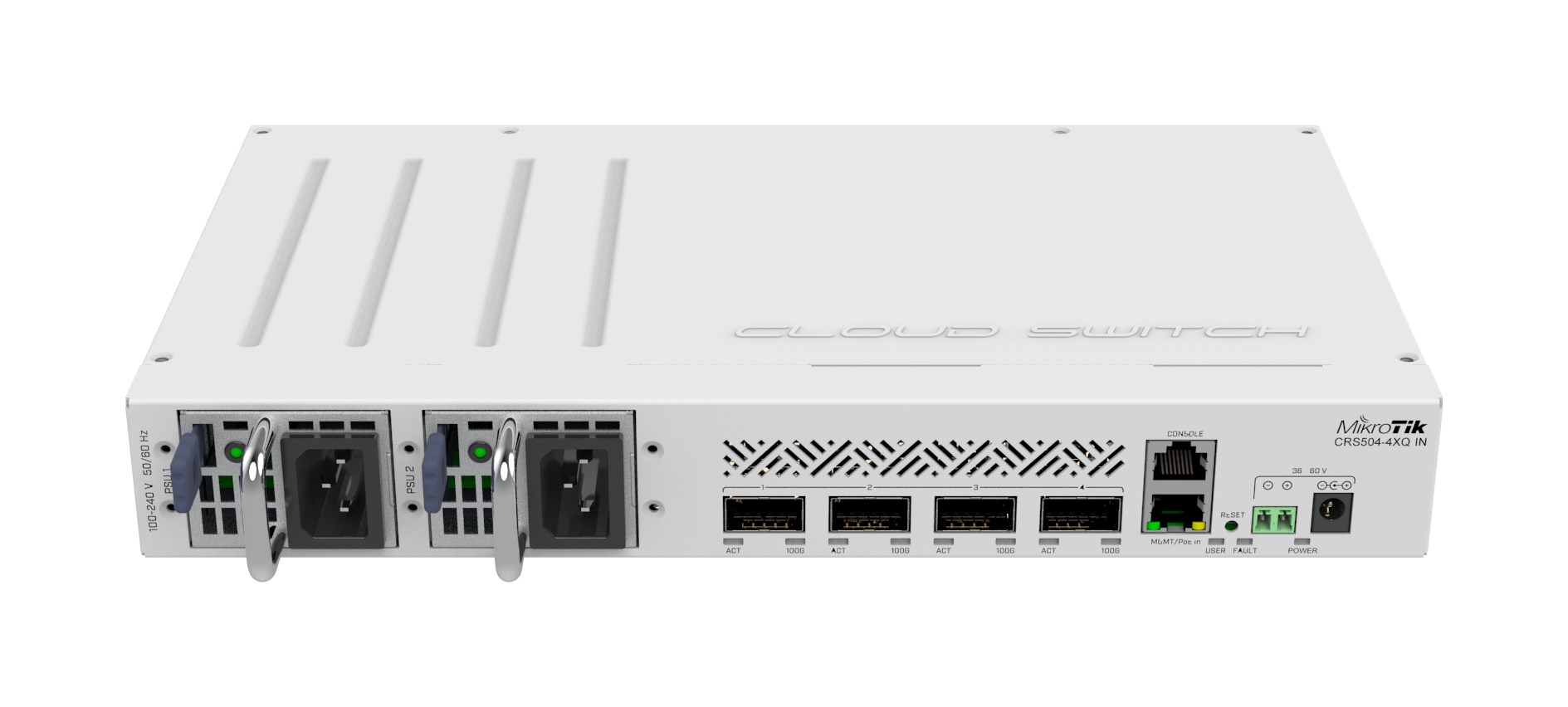

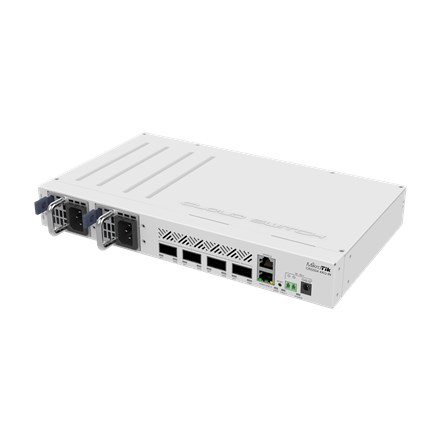

Mikrotik CRS504-4XQ-IN network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) White

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

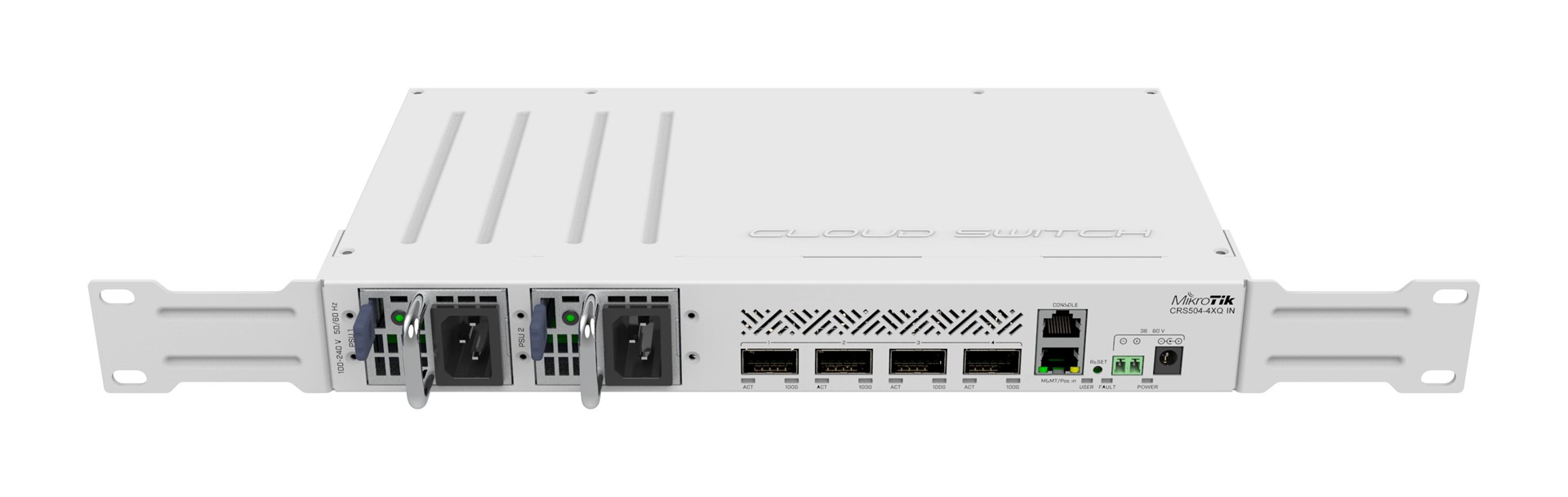

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Obviously, there is an Ethernet port for management purposes as well.
We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

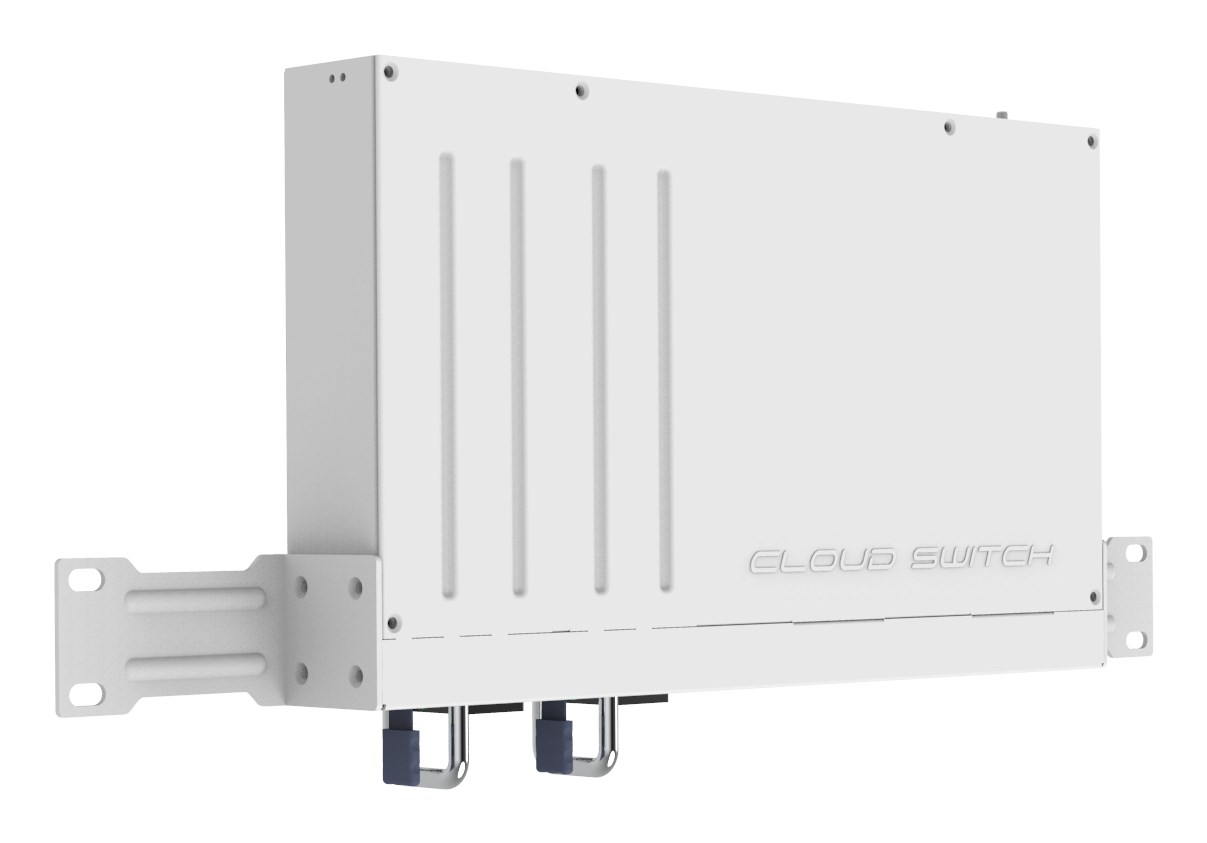

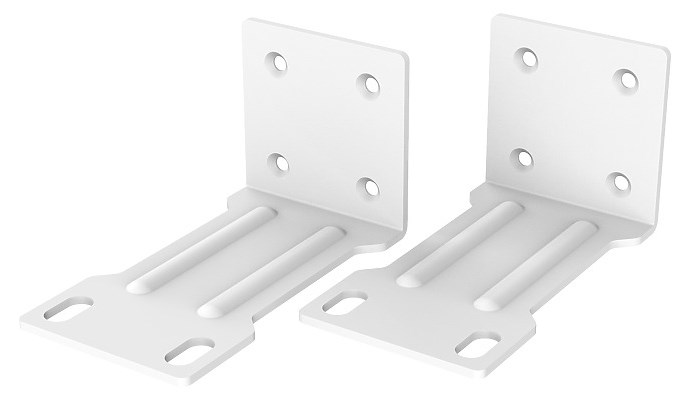

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

2 IN STOCK

SKU: CRS504-4XQ-IN

Manufacturer: Mikrotik Mikrotik

RRP Price €790.35

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
1
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Console port
RJ-45
QSFP28 ports quantity
4

Network

Networking standards
IEEE 802.3bt
10G support
Yes

Design

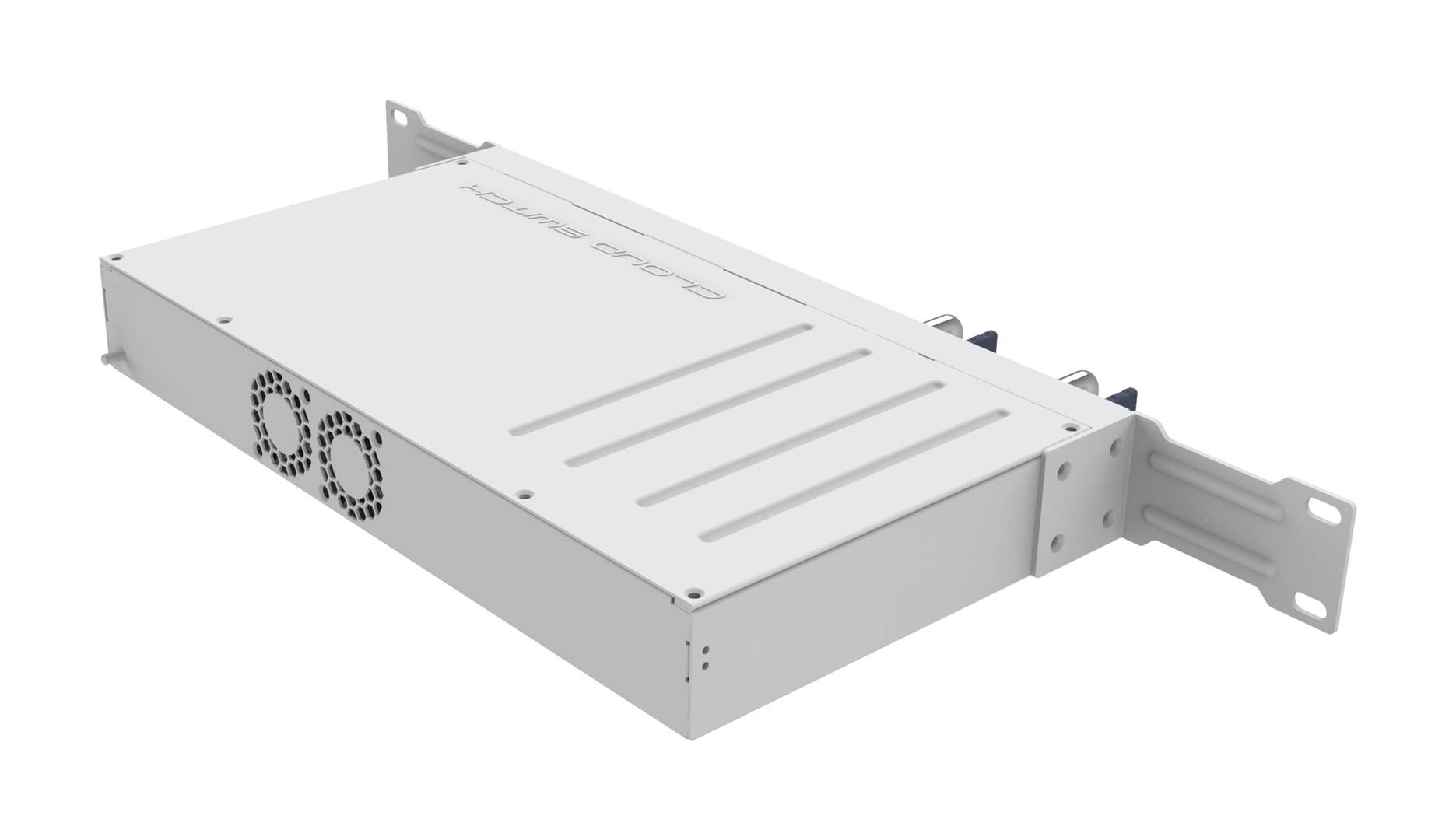

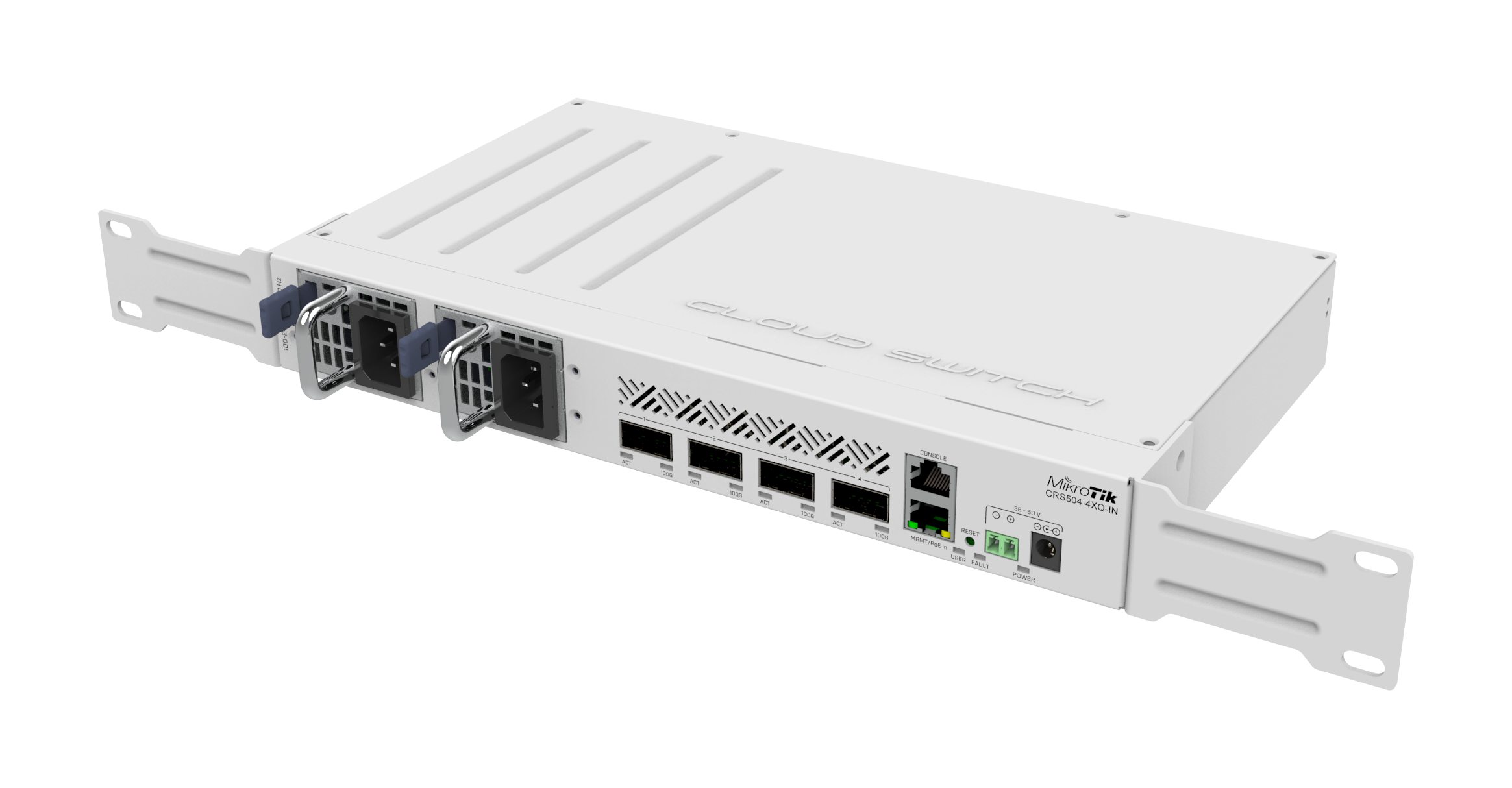

Rack mounting
Yes
Product colour
White
Reset button
Yes
LED indicators
Yes
International Protection (IP) code
IP20
Number of fans
2 fan(s)

Performance

Operating system installed
RouterOS
Built-in processor
Yes
Processor manufacturer
Qualcomm
Processor model
Qualcomm Atheros QCA9531
Internal memory
64 MB
Flash memory
16 MB
Mean time between failures (MTBF)
200000 h

Power

Power source
DC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
DC input voltage
36 - 57 V
Input voltage
36 - 57 V
Power consumption (max)
41 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
1
Power over Ethernet (PoE) voltage
57 V

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Weight & dimensions

Width
320 mm
Depth
185 mm
Height
44 mm

Packaging content

Quick start guide
Yes
Manual
Yes

Certificates

Compliance certificates
CE, EAC, RoHS
Certification
CE, EAC, ROHS
