Digitus USB-C docking station, 7-port

Name: Digitus USB-C docking station, 7-port
Brand: Digitus
SKU: DA-70914
Price: 56.03 EUR
Availability: InStock

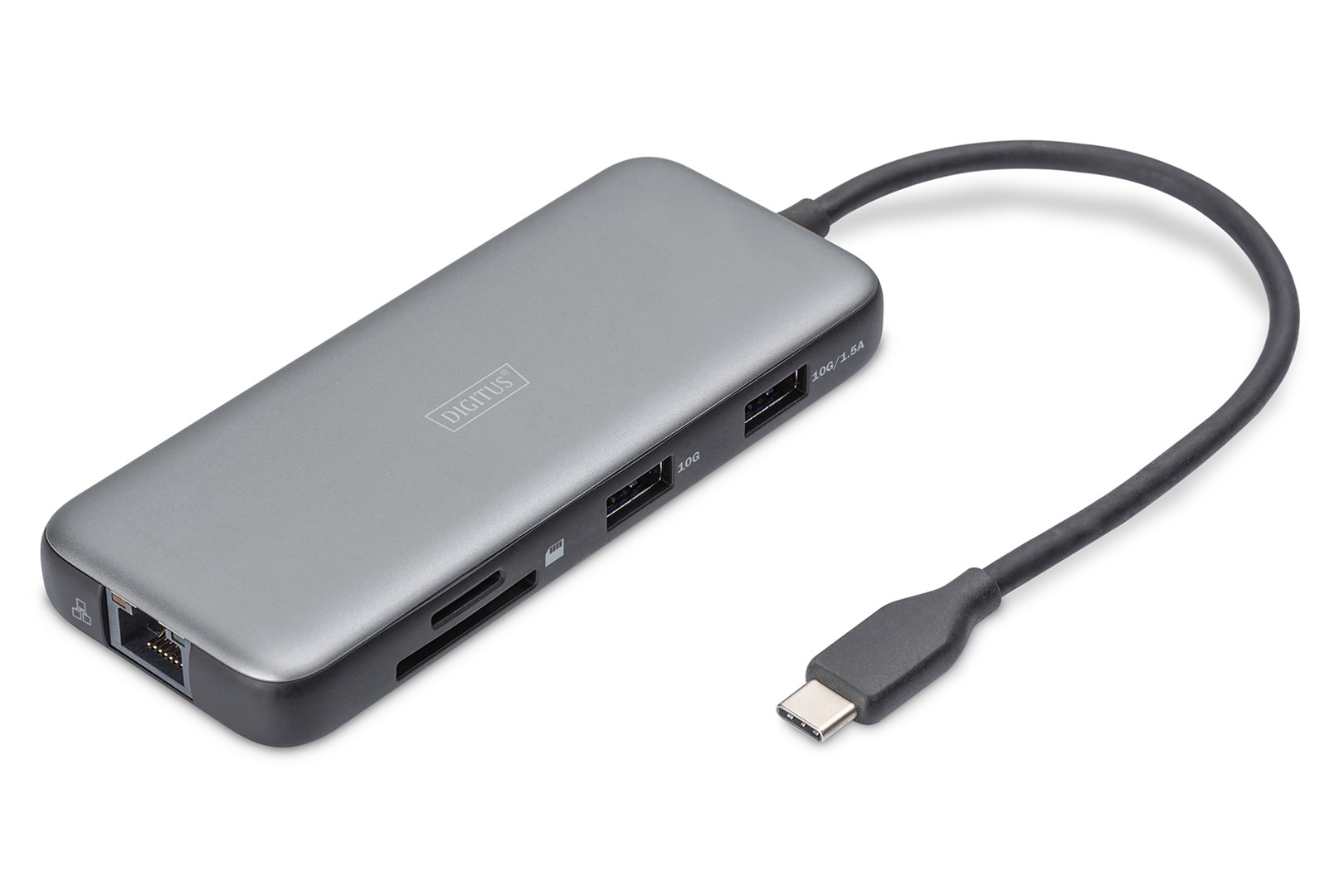

Expand your notebook with 7 additional ports - Take advantage of the versatility of numerous connection options and make your working environment more effective

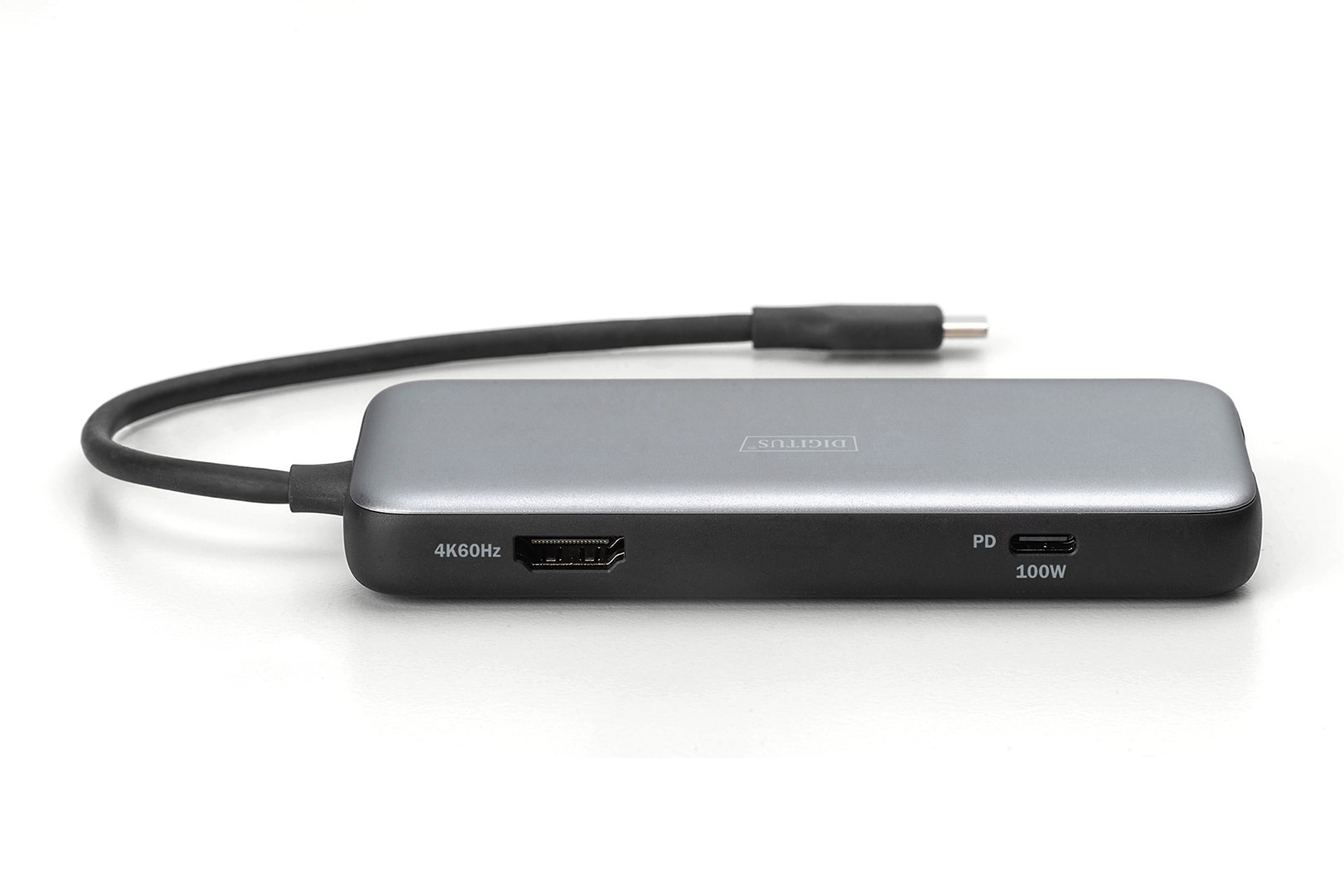

- 1x HDMI port (4K/60Hz) - Expand your workstation with an additional external monitor

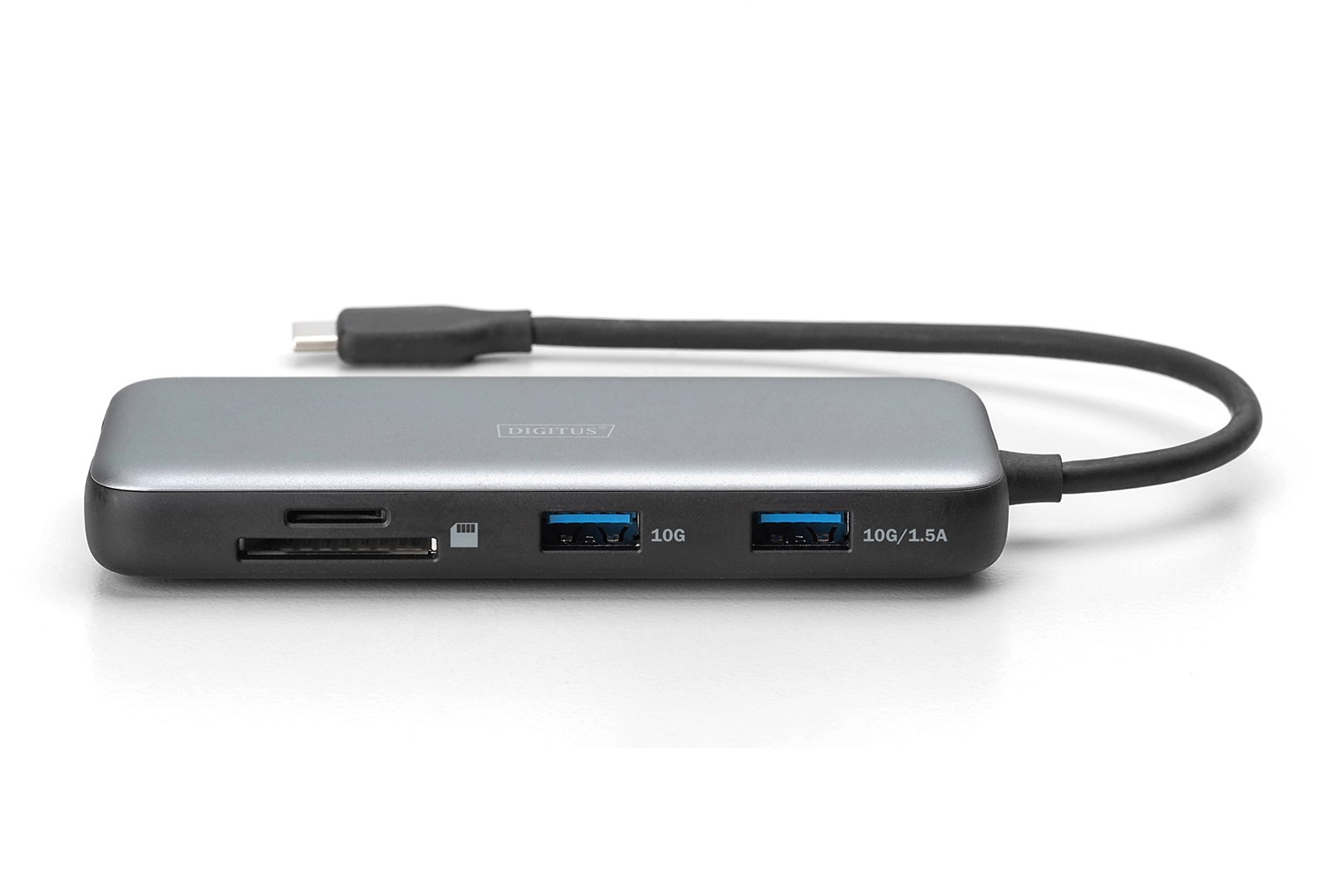

- 2x USB-A 3.2 Gen 2 port (10 Gbit/s) for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices

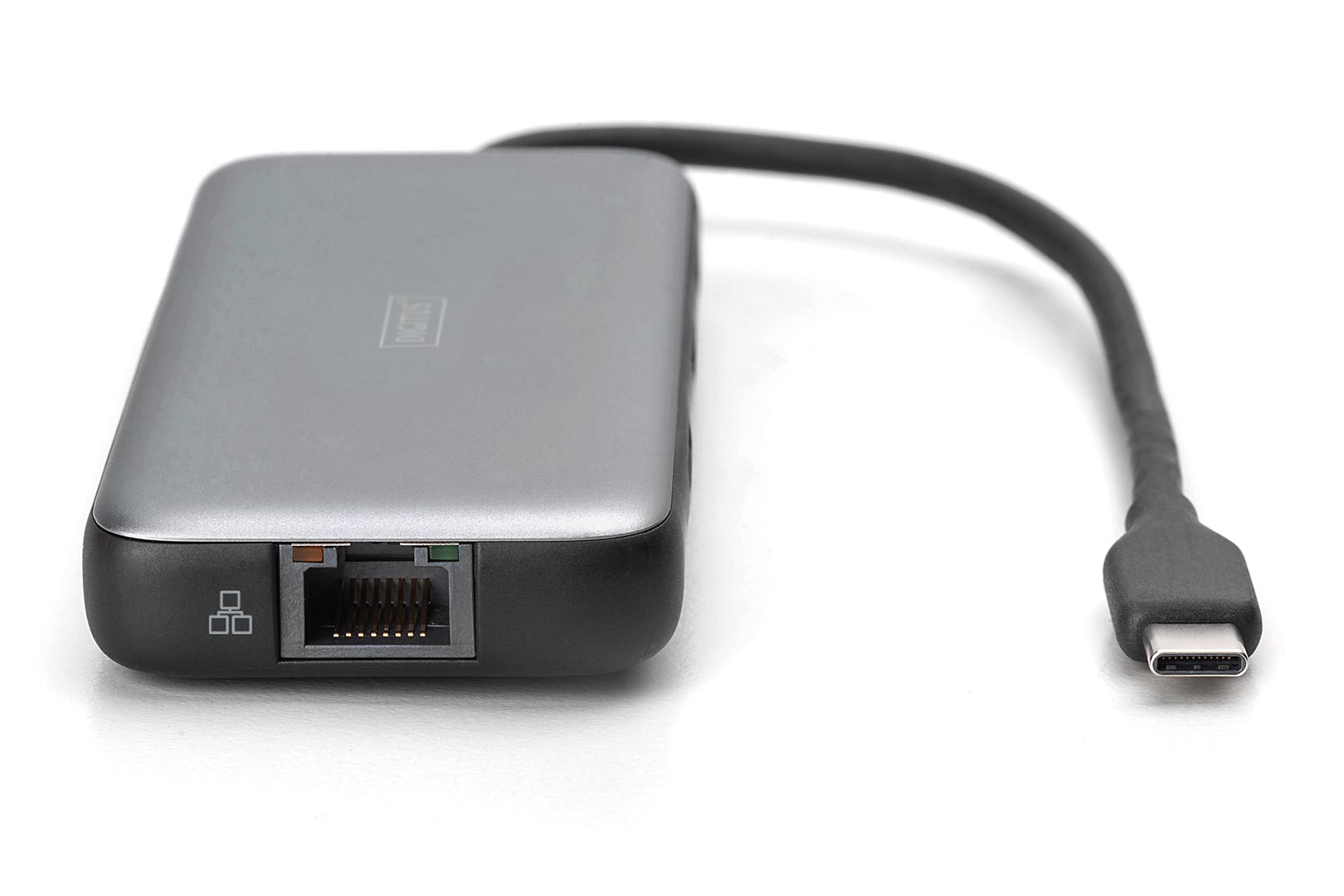

- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging the notebook
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
- Integrated USB-C connection cable (20 cm) - Flexible connection to the host PC
- Aluminum top cover
- Supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Supports HDCP 2.2, HDCP 1.4, HDCP 1.3
- Supports HDR10+

Our 7-port docking station is the ideal solution for expanding and optimizing your workstation. With an HDMI port for an additional external monitor, two fast USB-A 3.2 Gen 2 ports (10 Gbit/s) - one of which has a charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speeds, it offers comprehensive connectivity. It allows you to charge your notebook via the USB-C Power Delivery port and is elegantly and robustly designed with an aluminum top cover. The docking station supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode. HDCP 2.2, 1.4, 1.3 and HDR10+ are also supported for an optimal multimedia experience.

12 IN STOCK

SKU: DA-70914

Manufacturer: Digitus Digitus

RRP Price €56.03

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

HDMI ports quantity

DisplayPorts quantity

Microphone in

HDCP

Yes

HDCP version

1.4/2.2

USB Type-C DisplayPort Alternate Mode

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

Product colour

Black, Grey

High Dynamic Range (HDR) supported

Yes

LED indicators

Yes

Plug and Play

Yes

Housing material

Aluminium, Plastic

Power

Power source type

USB

Power connector

USB Type-C

USB cable length

0.2 m

Software

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Mobile operating systems supported

Android, iOS

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

50 mm

Depth

120 mm

Height

15.5 mm

Weight

109 g

Packaging data

Quantity per pack

1 pc(s)

Packaging content

Quick start guide

Yes

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

0.109 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
