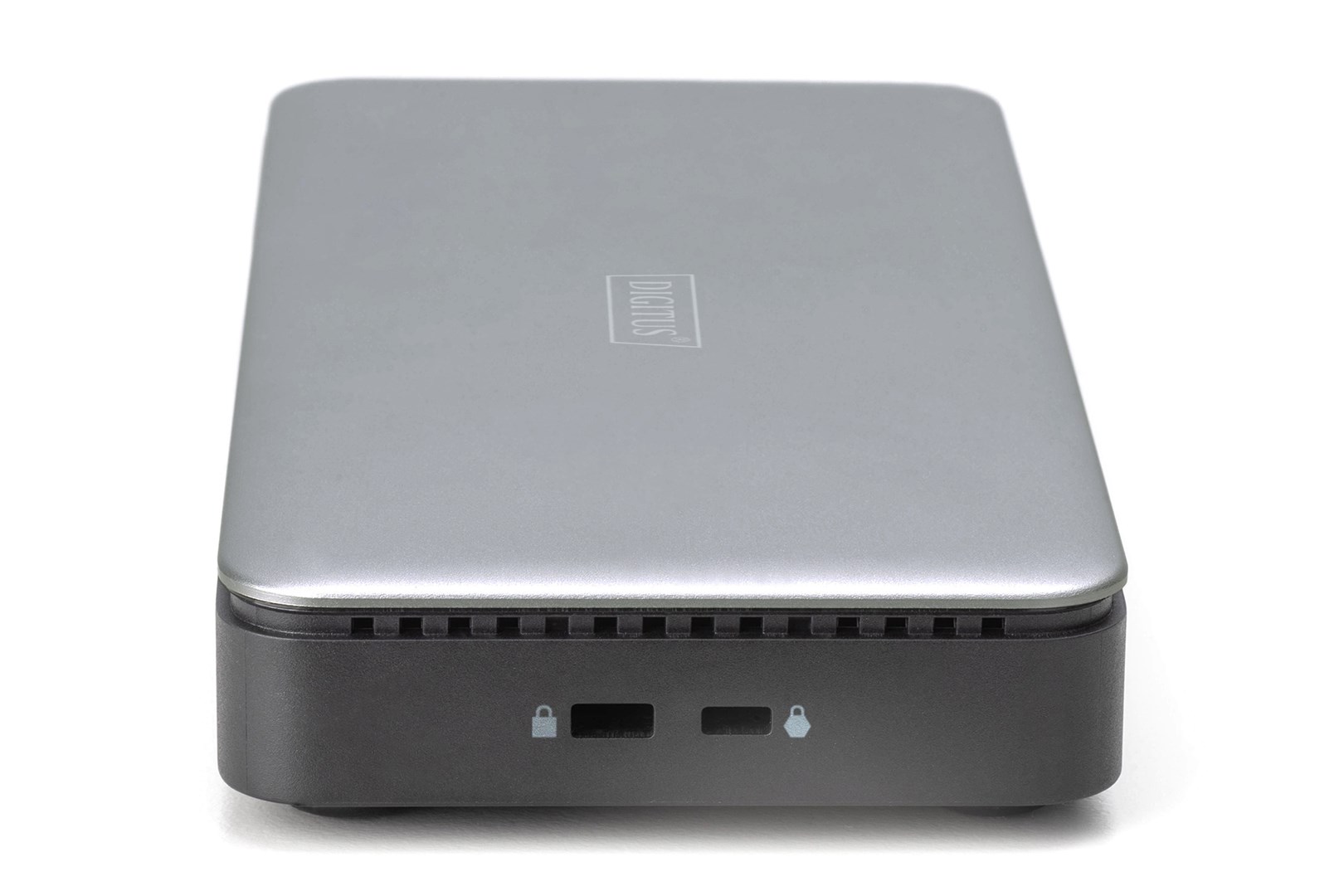

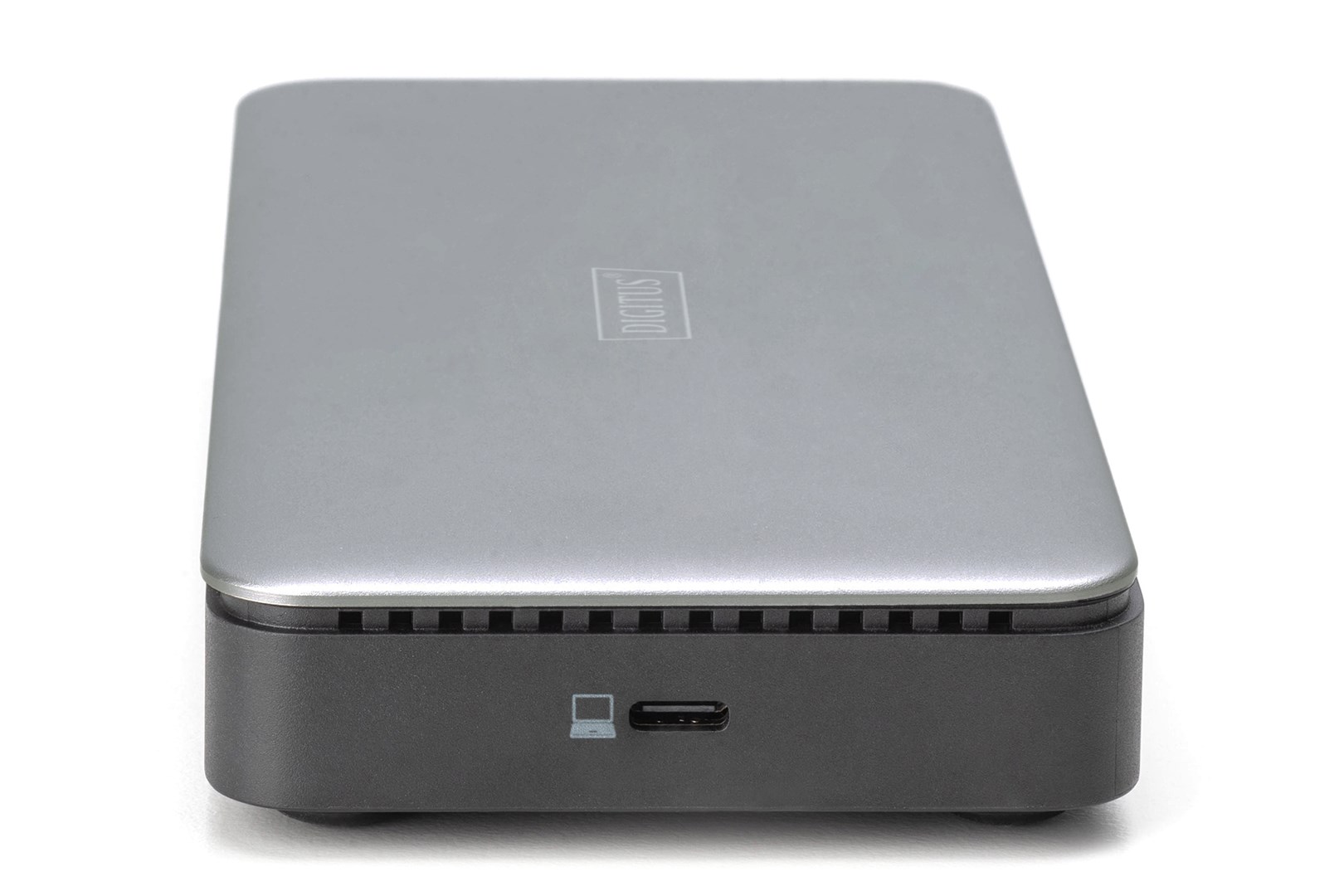

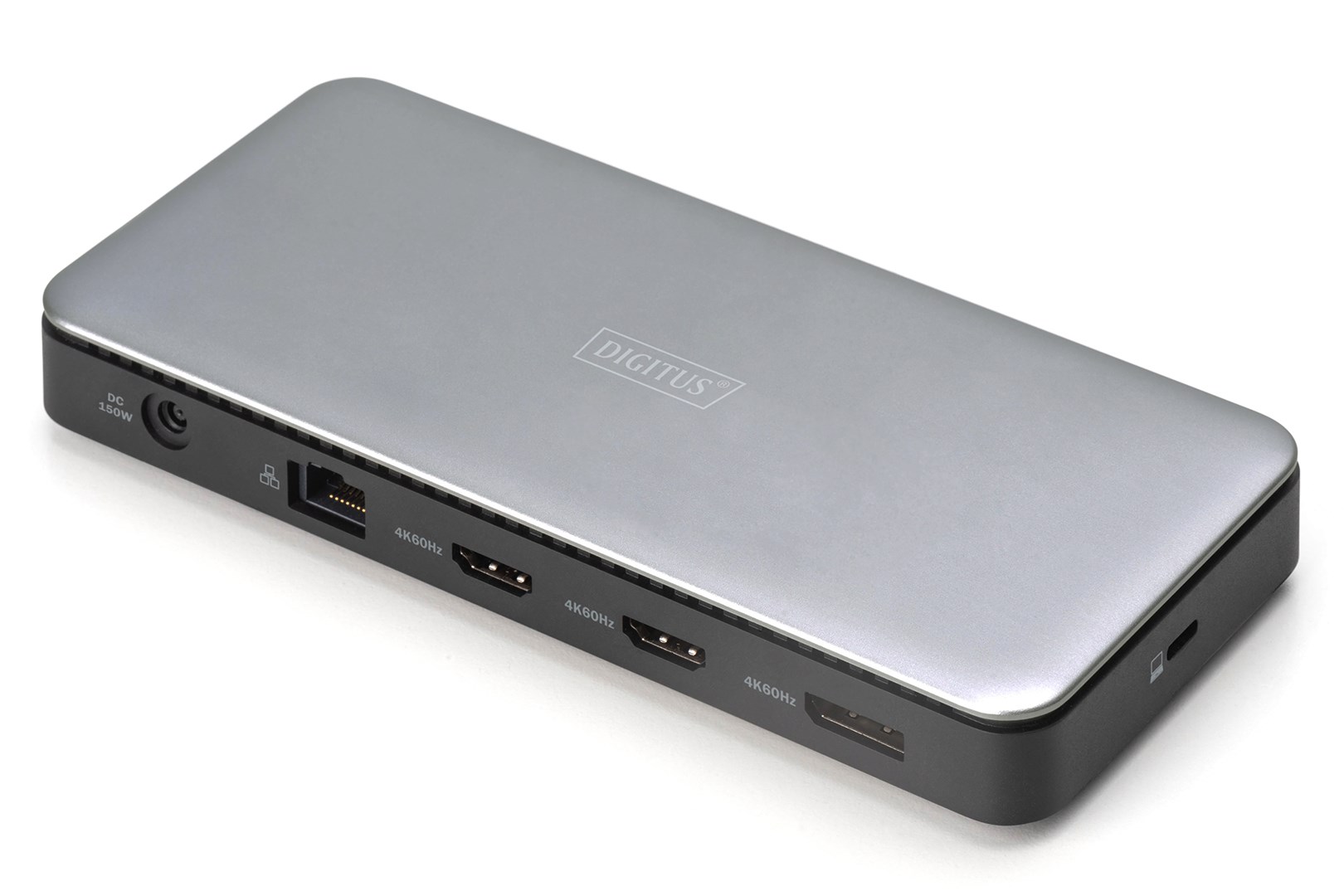

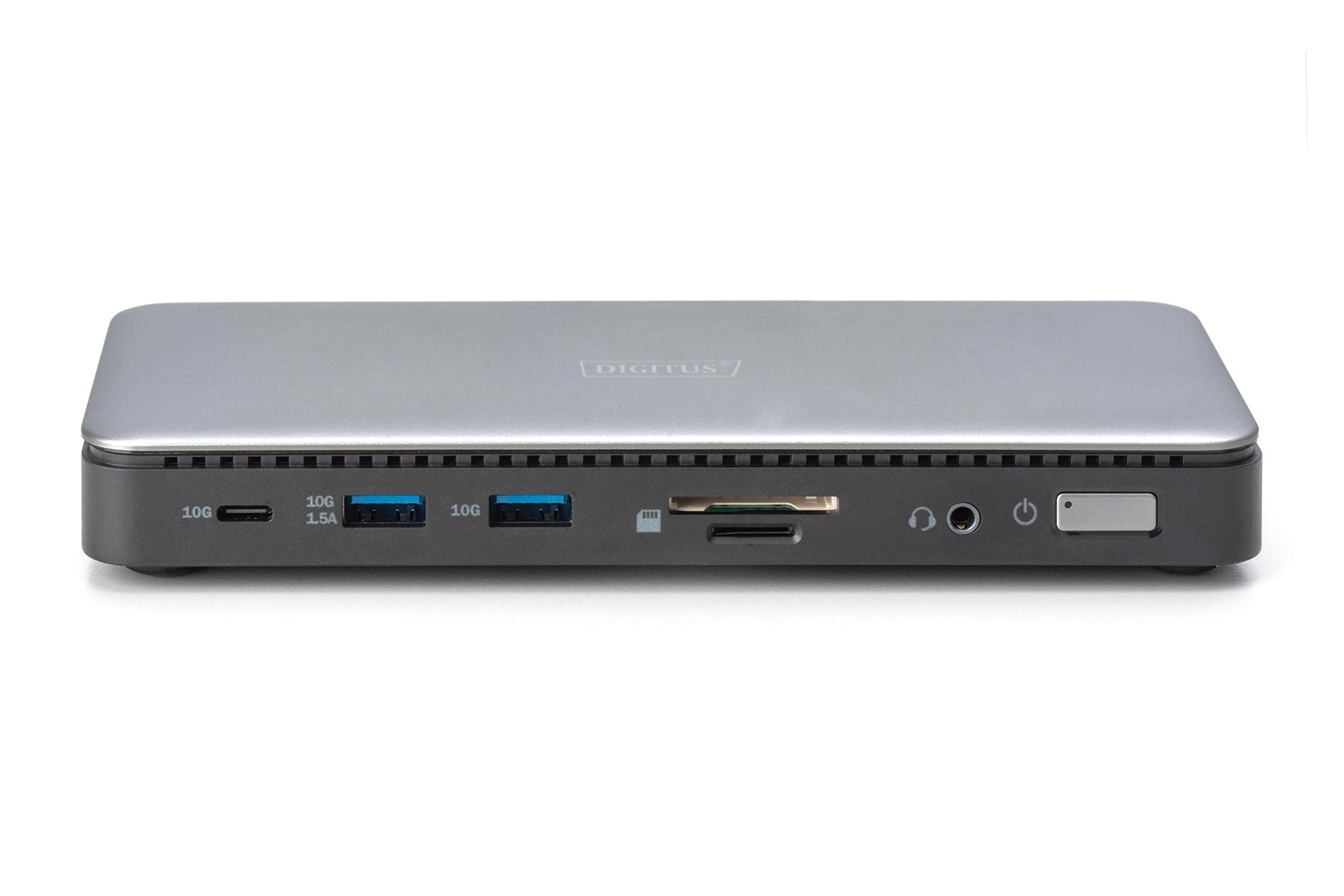

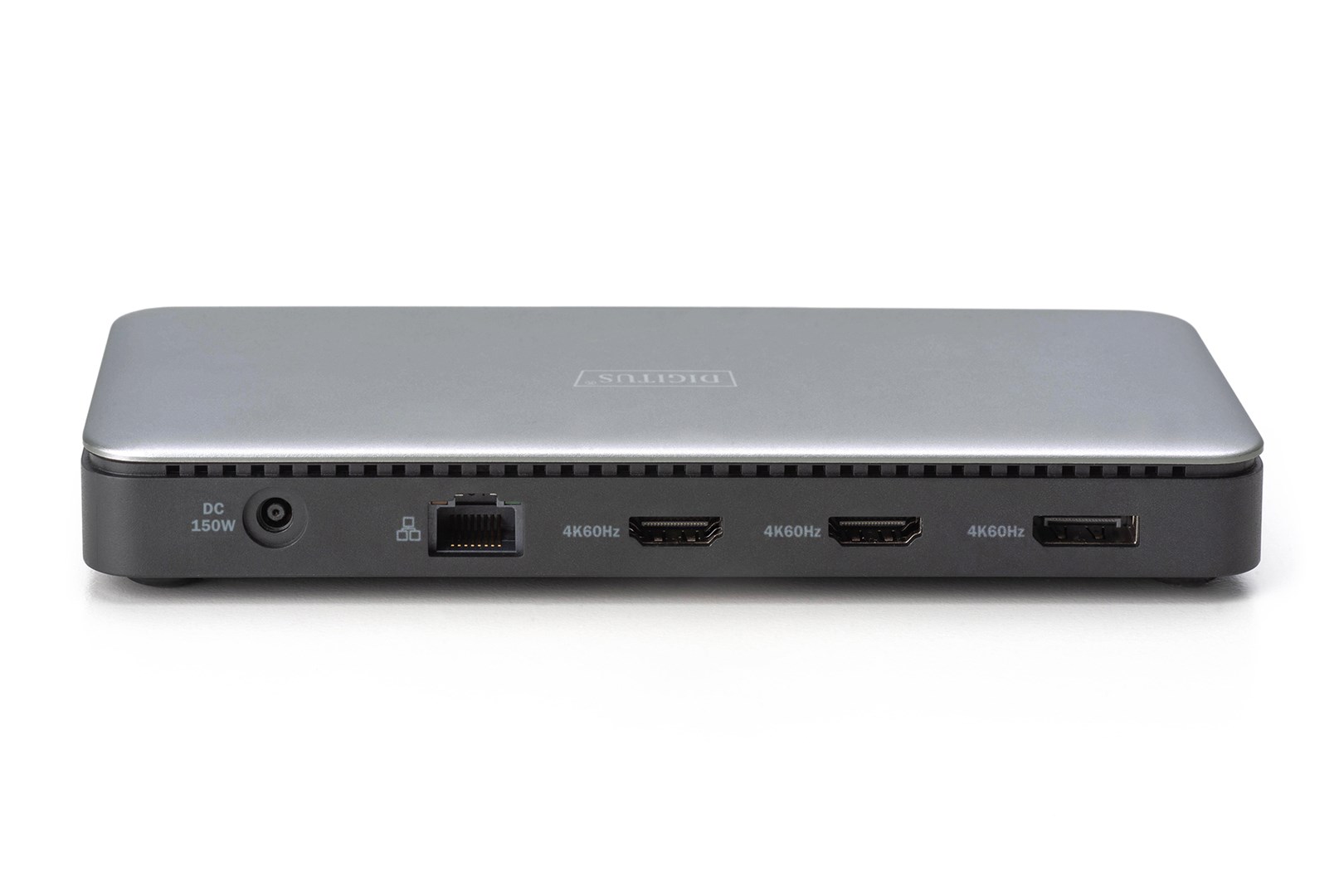

Digitus USB-C docking station, 11-port

Name: Digitus USB-C docking station, 11-port
Brand: Digitus
SKU: DA-70917
Price: 138.32 EUR
Availability: InStock

Our docking station offers an ideal solution for office applications - expand your notebook connections and benefit from the triple monitor function, fast data transfer and a wide range of connection options

- 2x HDMI port + 1x DP port (4K/60Hz) - Extend your workstation to up to 3 external monitors
- Supports dual monitor (2x 4K/60Hz) & triple monitor (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (expand screen) - Windows, ChromeOS, Linux
- Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST mode (screen mirroring) - All common operating systems
- 2x USB-A 3.2 Gen 2 (10 Gbit/s) connection for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x USB-C 3.2 Gen 2 (10 Gbit/s) port for ultra-fast data transfer and with additional charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x DC-Jack - connection for charging the notebook
- 1x 3.5 mm audio jack
- Reversible USB-C 3.2 Gen 2 connection cable (100 cm) - Flexible connection to the host PC

Expand your workplace with our USB-C docking station. Expand your screen with three external monitors thanks to the 2x HDMI ports and 1x DP port. The docking station supports both dual monitor mode (2x 4K/60Hz) and triple monitor mode (3x 4K/60Hz) in SST mode (screen mirroring) and (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (screen extending). Use the 2x USB-A 3.2 Gen 2 ports (10 Gbit/s) for ultra-fast data transfers, with one port also offering a 1.5A charging function for mobile devices. The USB-C 3.2 Gen 2 port (10 Gbit/s) provides extended connectivity, while the Gigabit Ethernet port (RJ45) enables a stable network connection. Two card readers (SD/MicroSD) offer a transfer speed of 104 MBps. The DC jack charges your notebook using a powerful power supply unit, and the 3.5mm audio jack rounds off the features. A reversible 100 cm USB-C connection cable ensures a flexible connection to the host. The docking station also supports DP 1.4 Alt Mode and HDR.

13 IN STOCK

SKU: DA-70917

Manufacturer: Digitus Digitus

RRP Price €138.32

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

HDMI ports quantity

DisplayPorts quantity

Combo headphone/mic port

Yes

DC-in jack

Yes

HDCP

Yes

HDCP version

1.4/2.2

USB Type-C DisplayPort Alternate Mode

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

Cable lock slot

Yes

Product colour

Black, Grey

High Dynamic Range (HDR) supported

Yes

On/off switch

Yes

LED indicators

Yes

Plug and Play

Yes

Housing material

Aluminium, Plastic

Power

Power source type

Power consumption (max)

150 W

Power cable length

1 m

USB cable length

1 m

Software

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Mobile operating systems supported

Android, iOS

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Weight & dimensions

Width

80 mm

Depth

180 mm

Height

23 mm

Weight

282 g

Packaging data

Quantity per pack

1 pc(s)

Packaging content

Cables included

AC, USB Type-C

AC adapter included

Yes

Quick start guide

Yes

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

0.282 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
