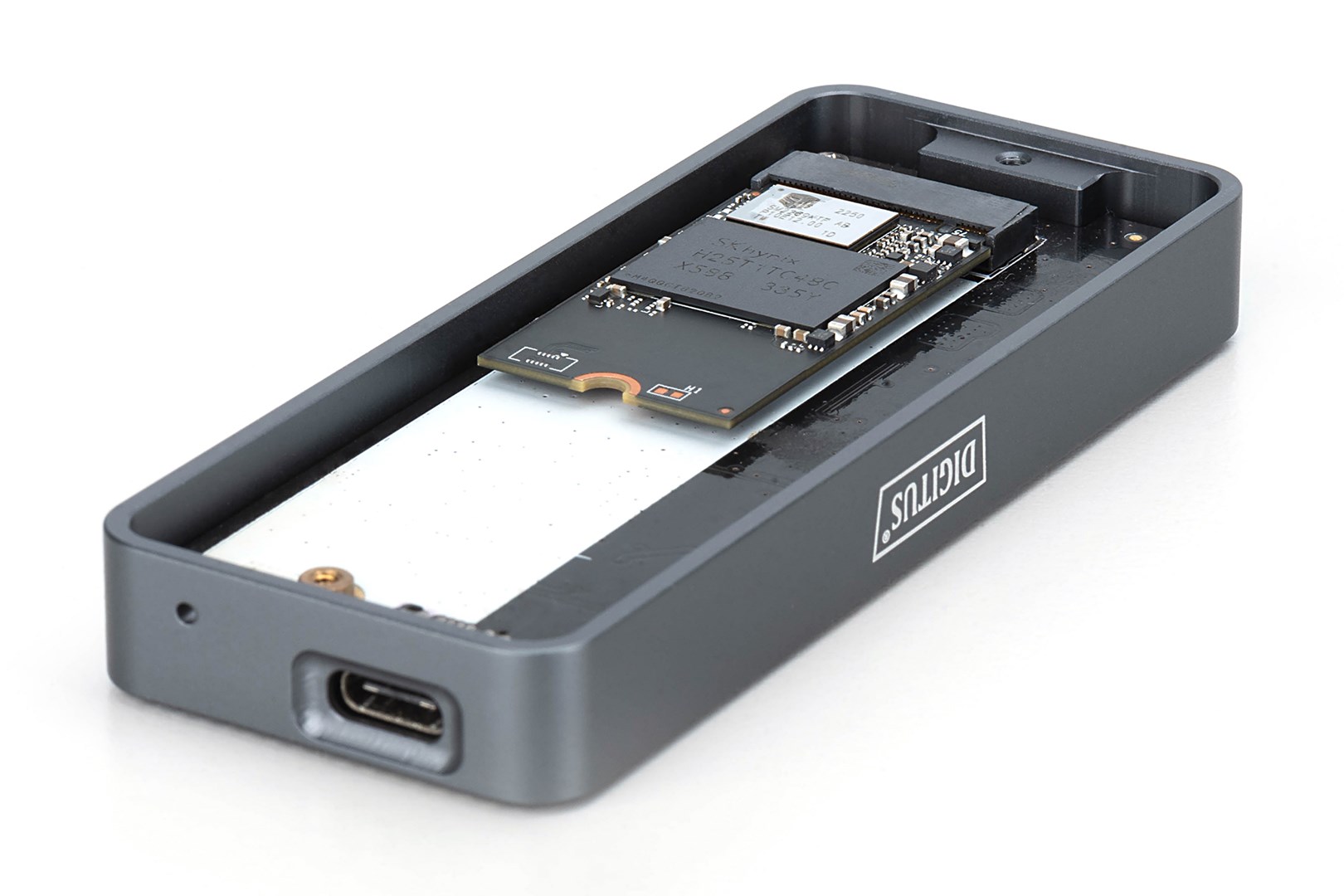

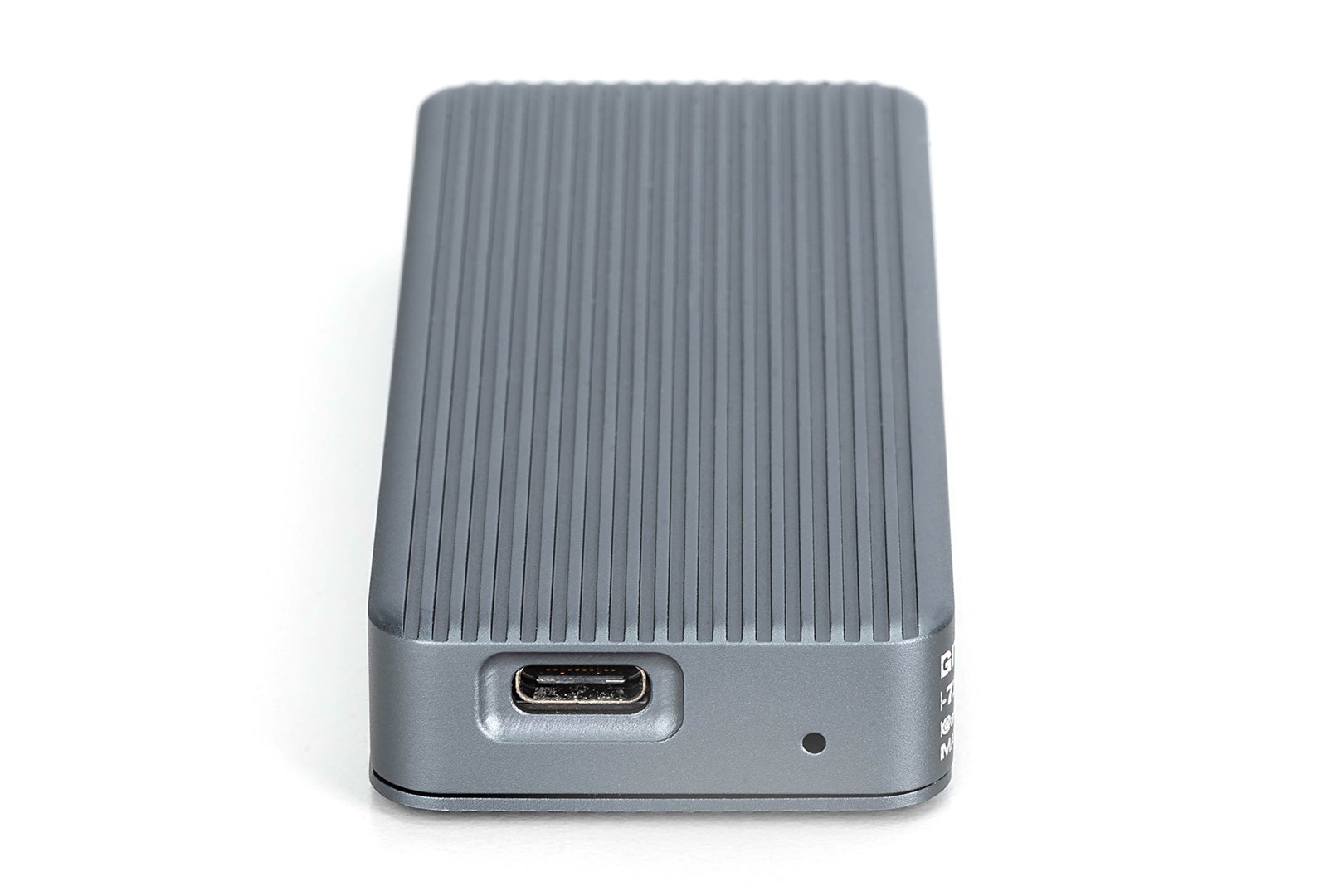

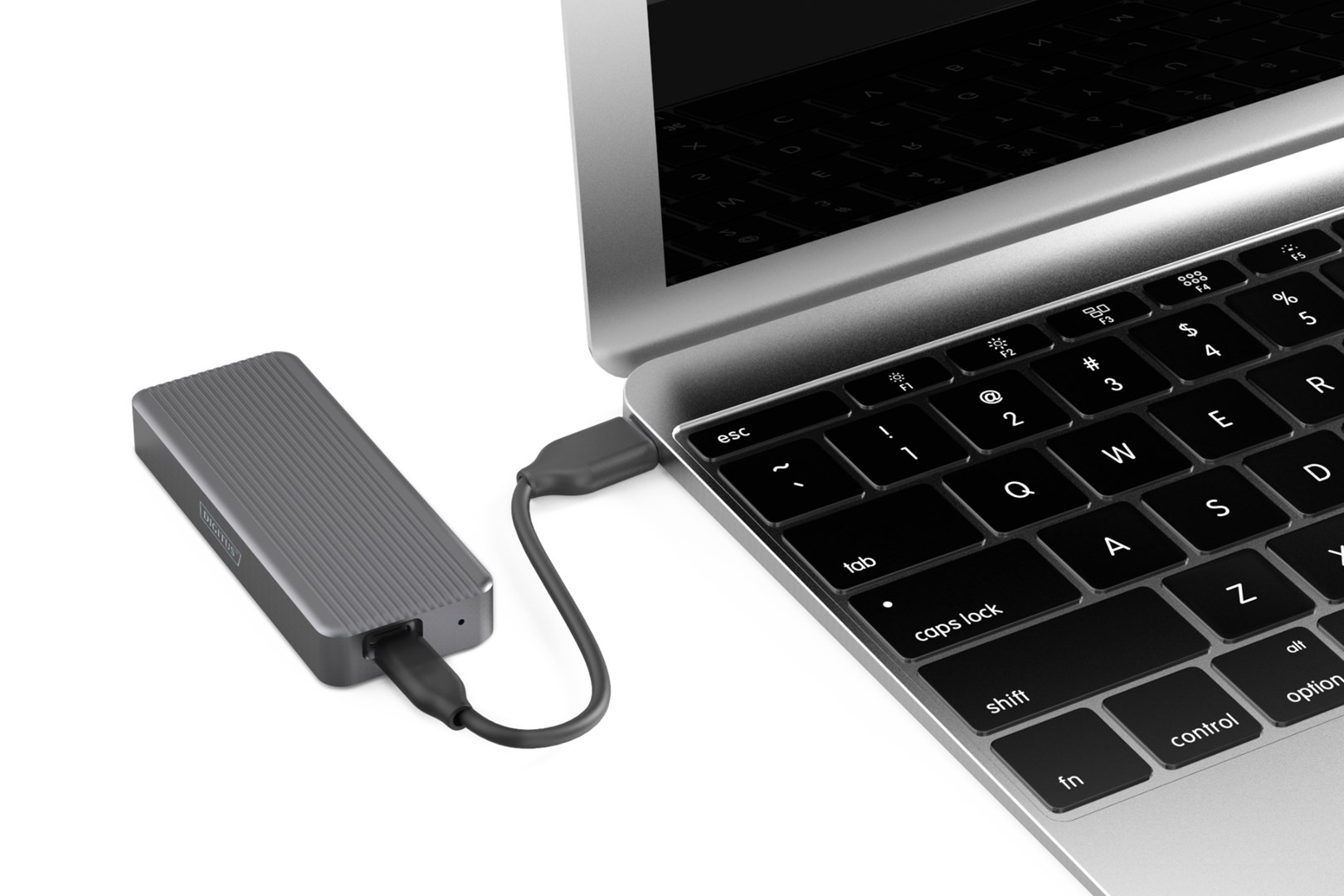

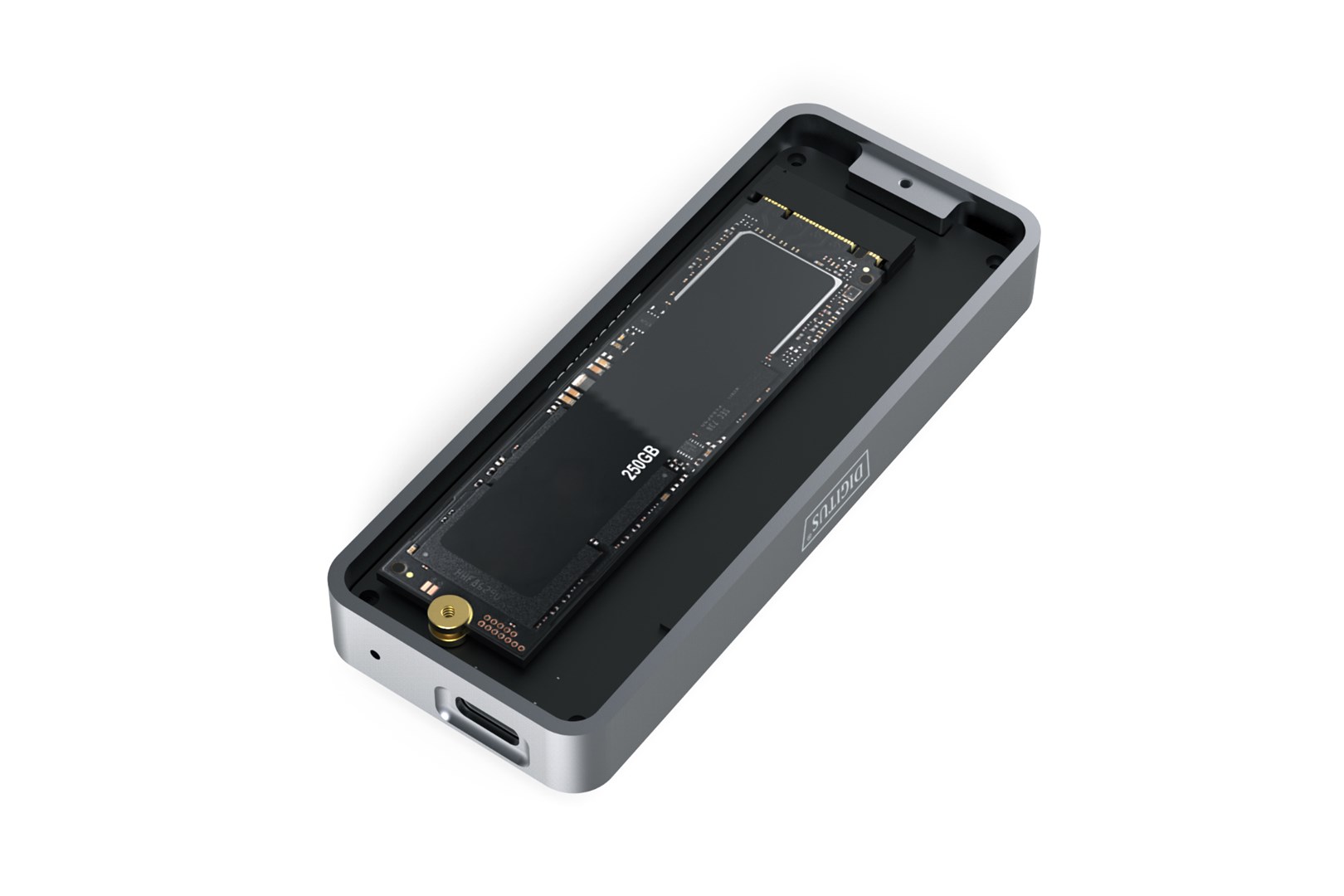

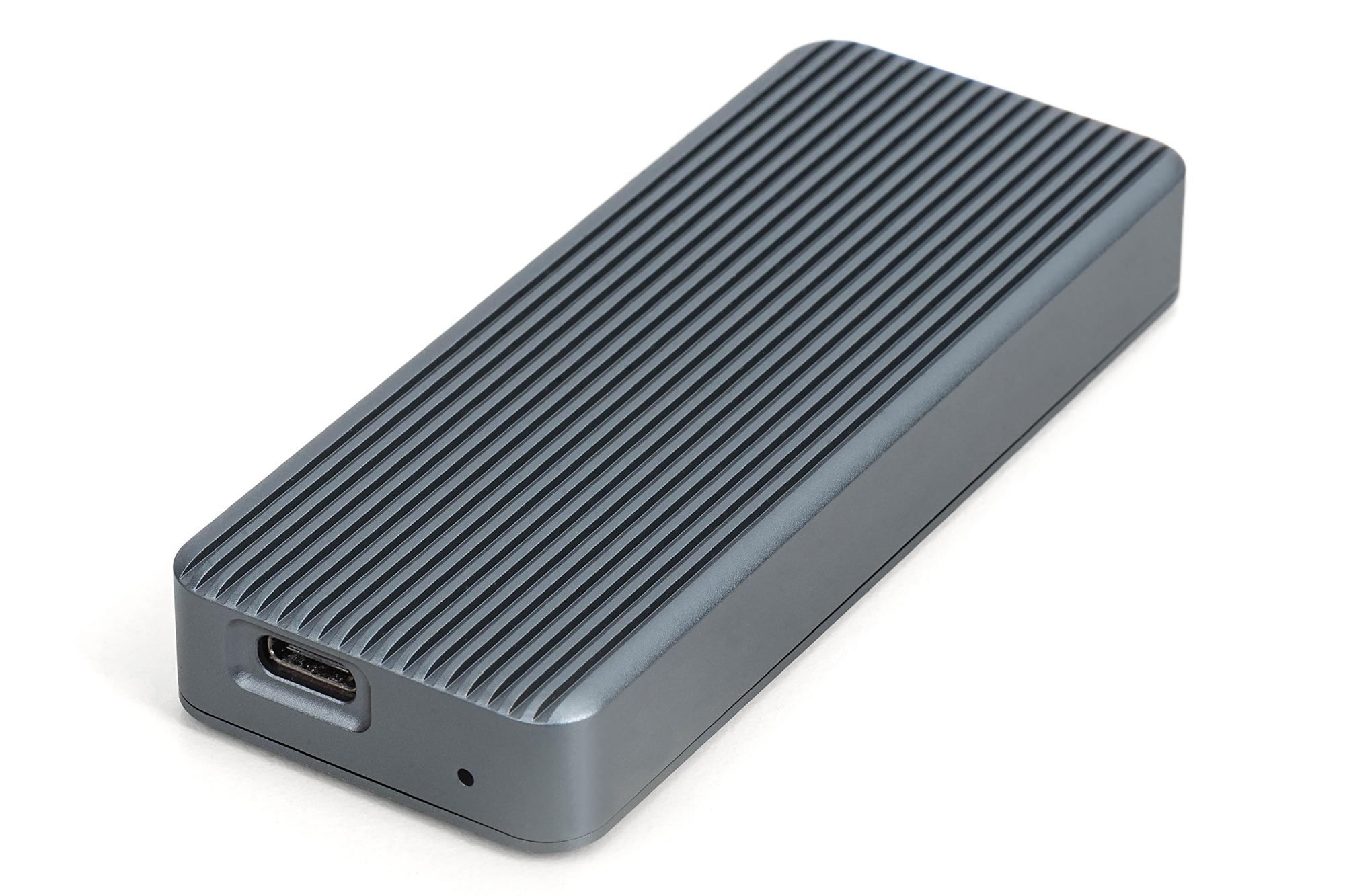

Digitus DA-71157 storage drive enclosure SSD enclosure Black M.2

The DA-71157 M.2 NVMe SSD enclosure will become your preferred solution for high capacity storage up to 20 Gbps. This elegant, tool-less enclosure supports mini SSDs in M.2 B+M key format.

- Wide compatibility: Supports M.2 modules in 2230, 2242, 2260 and 2280 formats, compatible with a wide range of SSDs.
- High capacity: Offers up to 8 TB of storage space for all your files and data.
- Fast data transfer: Data transfer rate of 20 Gbps for fast file transfers and smooth performance.
- USB 3.2 Gen 2x2 interface: Latest USB technology with backwards compatibility to USB 3.1, 3.0, 2.0 and 1.1.
- Plug and play: Simply connect via USB and get started straight away.
- Cross-platform support: Compatible with Windows, macOS, Linux, Google Chrome OS, Android and iOS.
- Robust chipset: ASM2364 chipset for reliable and efficient performance.
- LED activity indicator: Integrated LED indicator for monitoring the status of your SSD.
- Durable and stylish: aluminum housing in Pantone 430C with excellent passive heat dissipation.
- Portable design: Compact and lightweight with dimensions of 100x42x15 mm and a weight of only 100 g.

The DA-71157 USB hard disk enclosure is a high-speed marvel for NVMe SSDs, designed for maximum performance and efficiency. With impressive data transfer rates of 20 Gbps for NVMe, it offers an optimal solution for lightning-fast file transfers and seamless performance. The USB 3.2 Gen2x2 interface allows for maximum flexibility and backwards compatibility with previous USB versions. With support for M.2 modules in the 2230, 2242, 2260 and 2280 formats and a maximum storage capacity of 8 TB, it is the ideal choice for economical and high-performance storage solutions. The tool-free design allows for easy installation, while the robust ASM2364 chipset ensures reliable performance. With its durable aluminum housing and integrated LED indicator, the enclosure provides excellent passive heat dissipation and convenient status monitoring. Compact, lightweight and with plug-and-play support, it is perfect for mobile use. Compatible with a wide range of operating systems and USB-C products, it offers maximum versatility and adaptability for every need.

209 IN STOCK

SKU: DA-71157

Manufacturer: Digitus Digitus

RRP Price €61.24

Specifications

Storage

Number of storage drives supported
1
Storage drive size
M.2
Supported storage drive interfaces
M.2
Supported storage drive lengths
30,42,60,80 mm
NVMe
Yes
Maximum storage capacity
8 TB

Ports & interfaces

USB connectivity
Yes
USB version
USB 3.2 Gen 2x2
USB connector type
USB Type-C
USB connector gender
Female
USB ports quantity
1

Design

Product type
SSD enclosure
Product colour
Black
Material
Aluminium
LED indicators
Activity

Performance

Data transfer rate
20 Gbit/s
Chipset
ASM2364
Plug and Play
Yes
Country of origin
China

Power

Power source type
USB

System requirements

Mobile operating systems supported
Android, iOS
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
100 mm
Depth
42 mm
Height
15 mm
Weight
100 g
Package width
95 mm
Package depth
153 mm
Package height
37 mm
Package volume
557.23 cm³
Package weight
180 g

Packaging content

Cables included
USB Type-C
Quick installation guide
Yes
