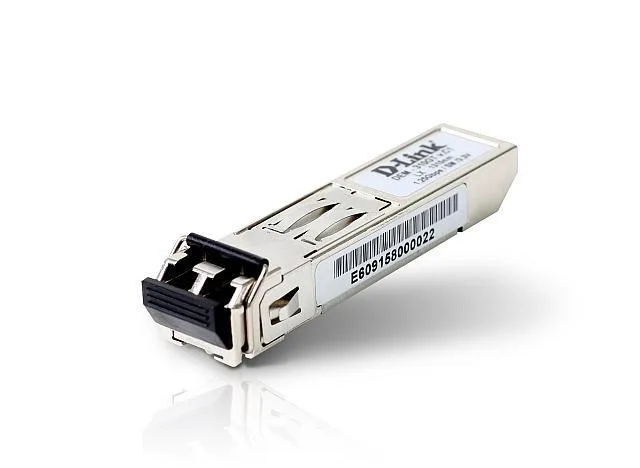

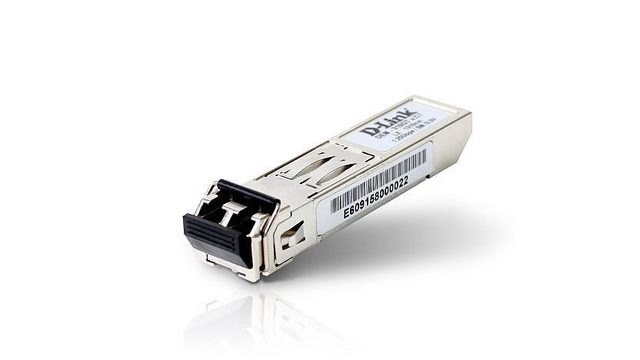

D-Link 1-port Mini-GBIC SFP to 1000BaseLX, 10km for all

The DEM-310GT is a high performance 1310nm single mode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on single mode fiber for distances of up to 10km on 9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

ON ORDER

SKU: DEM-310GT

Manufacturer: D-Link D-Link

RRP Price €46.20

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
SFP transceiver standard
LX
Maximum transfer distance
10000 m
Wavelength
1310 nm
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3z
Cabling technology
1000Base-LX
Duplex system
Full

Features

Product colour
Metallic
Hot-Plug support
Yes
Hot-swap
Yes

Power

Maximum voltage
3.3 V

Certificates

Certification
MSA, RoHS

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C

Packaging data

Package width
74 mm
Package depth
131 mm
Package height
49 mm
Package weight
64 g

Other features

Dimensions (WxDxH)
29.8 x 11.8 x 56.3 mm
I/O ports
mini-GBIC

Logistics data

Shipping (inner) case length
36 cm
Shipping (inner) case width
26 cm
Shipping (inner) case height
31 cm
Shipping (inner) case net weight
3.2 kg
Products per shipping (inner) case
50 pc(s)
Pallet gross weight (air)
246.8 kg
Master (outer) cases per pallet (air)
54 pc(s)
Products per pallet (air)
2700 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
246.8 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
2700 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Harmonized System (HS) code
85177900
