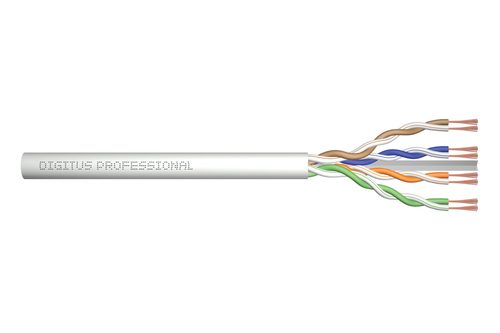

Digitus CAT 6A U/UTP twisted pair patch cord, raw

Name: Digitus CAT 6A U/UTP twisted pair patch cord, raw
Brand: Digitus
SKU: DK-1613-A-P-1
Price: 71.06 EUR
Availability: OutOfStock

Future-oriented standards and high-end quality for your network.

- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class EA cable lines, 500 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-11-1
- Conductor: Copper (Cu)
- PoE+ ready

The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.

ON ORDER

SKU: DK-1613-A-P-1

Manufacturer: Digitus Digitus

RRP Price €71.06

Specifications

Features

Product colour

Grey

Cable length

100 m

Cable standard

Cat6a

Cable shielding

U/UTP (UTP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Conductor material

Copper

Twisted pair coupling type

4x2

Cable class

Cabling technology

10GBase-T

Networking standards

IEEE 802.3, IEEE 802.5

AWG wire size

26/7

Frequency

500 MHz

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

Country of origin

China

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-10 - 75 °C

Sustainability

Doesn't contain

Halogen

Certificates

Compliance certificates

ANSI, Telecommunicatios Industry Association (TIA)

Certification

ISO/IEC 11801 2; IEC 60332-1; IEC 60754-2; IEC 61034

Weight & dimensions

Outer diameter

5.5 mm

Packaging data

Package width

270 mm

Package depth

270 mm

Package weight

3.27 kg

Package volume

6561 cm³

Logistics data

Export Control Classification Number (ECCN)

EAR99

Harmonized System (HS) code

8544.42

UK Trade Tariff code

85444920

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.275 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
