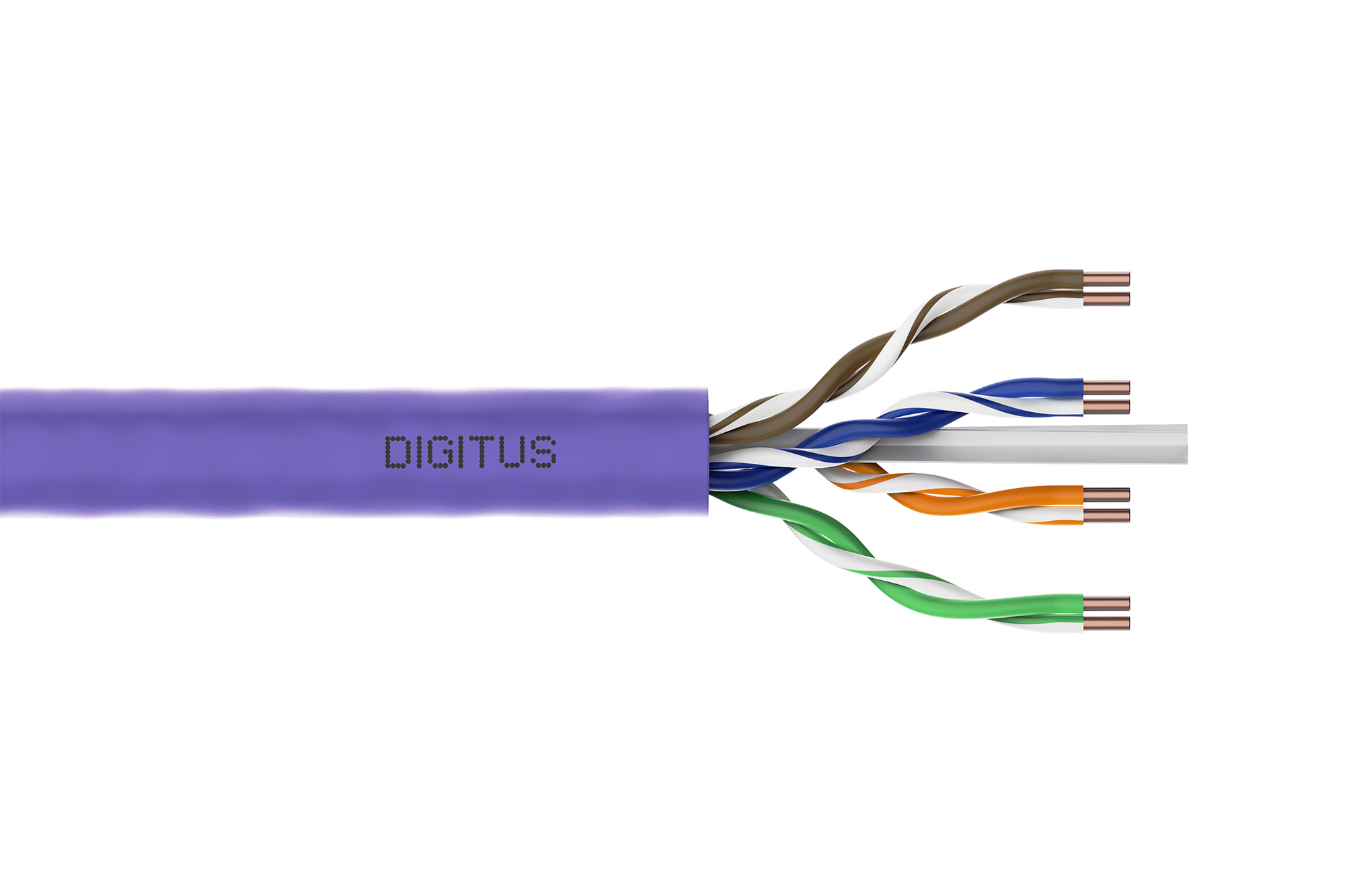

Digitus CAT 6 U/UTP installation cable, 305 m, simplex, Dca-s2,d2,a1

Digitus CAT 6 U/UTP installation cable, 305 m, simplex, Dca-s2,d2,a1

Name: Digitus CAT 6 U/UTP installation cable, 305 m, simplex, Dca-s2,d2,a1
Brand: Digitus
SKU: DK-1614-VH-305
Price: 168.19 EUR
Availability: InStock

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Dca-s2,d2,a1

The Digitus Cat 6 U/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-6-1, DIN EN 50173, IEC 60332-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+.

2 IN STOCK

SKU: DK-1614-VH-305

Manufacturer: Digitus Digitus

RRP Price €168.19

Specifications

Features

Product colour

Violet

Cable length

305 m

Cable standard

Cat6

Cable shielding

U/UTP (UTP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Conductor type

Solid

Conductor material

Copper

AWG wire size

23/1

Data transfer rate

1000 Mbit/s

Frequency

250 MHz

Power over Ethernet (PoE)

Yes

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 75 °C

Storage temperature (T-T)

-20 - 65 °C

Sustainability

Doesn't contain

Halogen

Certificates

Certification

CPR class Dca

Weight & dimensions

Outer diameter

6.2 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

445 mm

Package depth

450 mm

Package weight

12.3 kg

Package volume

50062.5 cm³

Package type

Box

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Master (outer) case width

445 mm

Master (outer) case length

450 mm

Master (outer) case gross weight

12.3 kg

Master (outer) case height

250 mm

Master (outer) case volume

50062.5 cm³

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

12.3 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
