Digitus CAT 7A S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1

Digitus CAT 7A S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1

Name: Digitus CAT 7A S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1
Brand: Digitus
SKU: DK-1743-A-VH-1
Price: 99.97 EUR
Availability: InStock

Future-oriented standards and high-end quality for your network.

- 10 GBit Ethernet
- 1500 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- BauPVO category Dca-s1a d1 a1

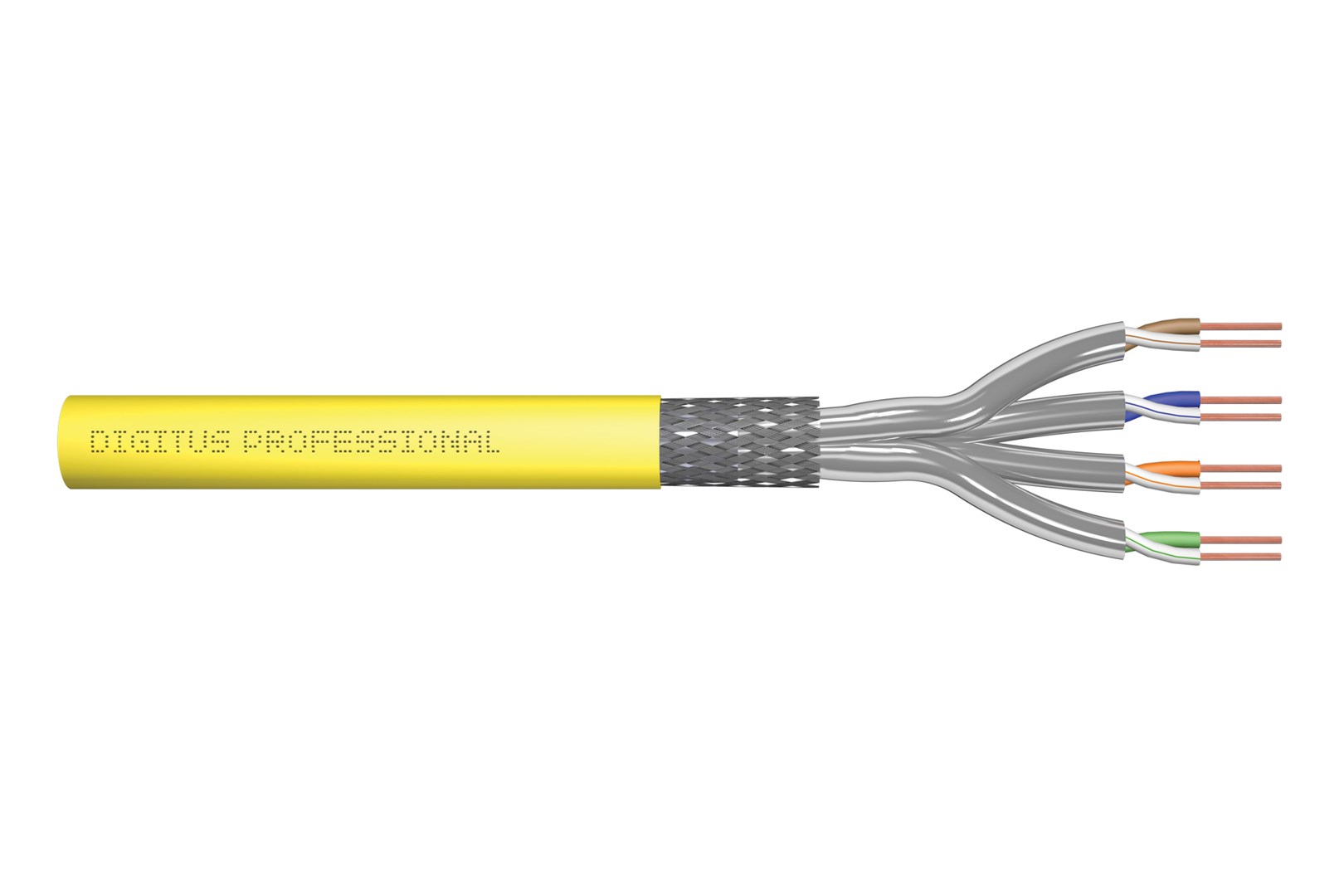

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

16 IN STOCK

SKU: DK-1743-A-VH-1

Manufacturer: Digitus Digitus

RRP Price €99.97

Specifications

Features

Product colour

Yellow

Cable length

100 m

Cable standard

Cat7a

Cable shielding

S/FTP (S-STP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Conductor type

Solid

Conductor material

Copper

AWG wire size

22/1

Data transfer rate

10000 Mbit/s

Frequency

1500 MHz

Power over Ethernet (PoE)

Yes

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 75 °C

Sustainability

Doesn't contain

Halogen

Certificates

Certification

CPR class Dca

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

280 mm

Package depth

280 mm

Package weight

5.68 kg

Package volume

12544 cm³

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Master (outer) case width

280 mm

Master (outer) case length

280 mm

Master (outer) case gross weight

5.68 kg

Master (outer) case height

160 mm

Master (outer) case volume

12544 cm³

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

5.68 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
