Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, Dca-s2,d1,a1

Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, Dca-s2,d1,a1

Name: Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, Dca-s2,d1,a1
Brand: Digitus
SKU: DK-1843-VH-5
Price: 735.54 EUR
Availability: InStock

Future-oriented standards and high-end quality for your network

- 40 GBit Ethernet
- 2000 MHz transmission frequency
- 4PPoE Power over Ethernet support
- BauPVO category Dca-s2,d1,a1

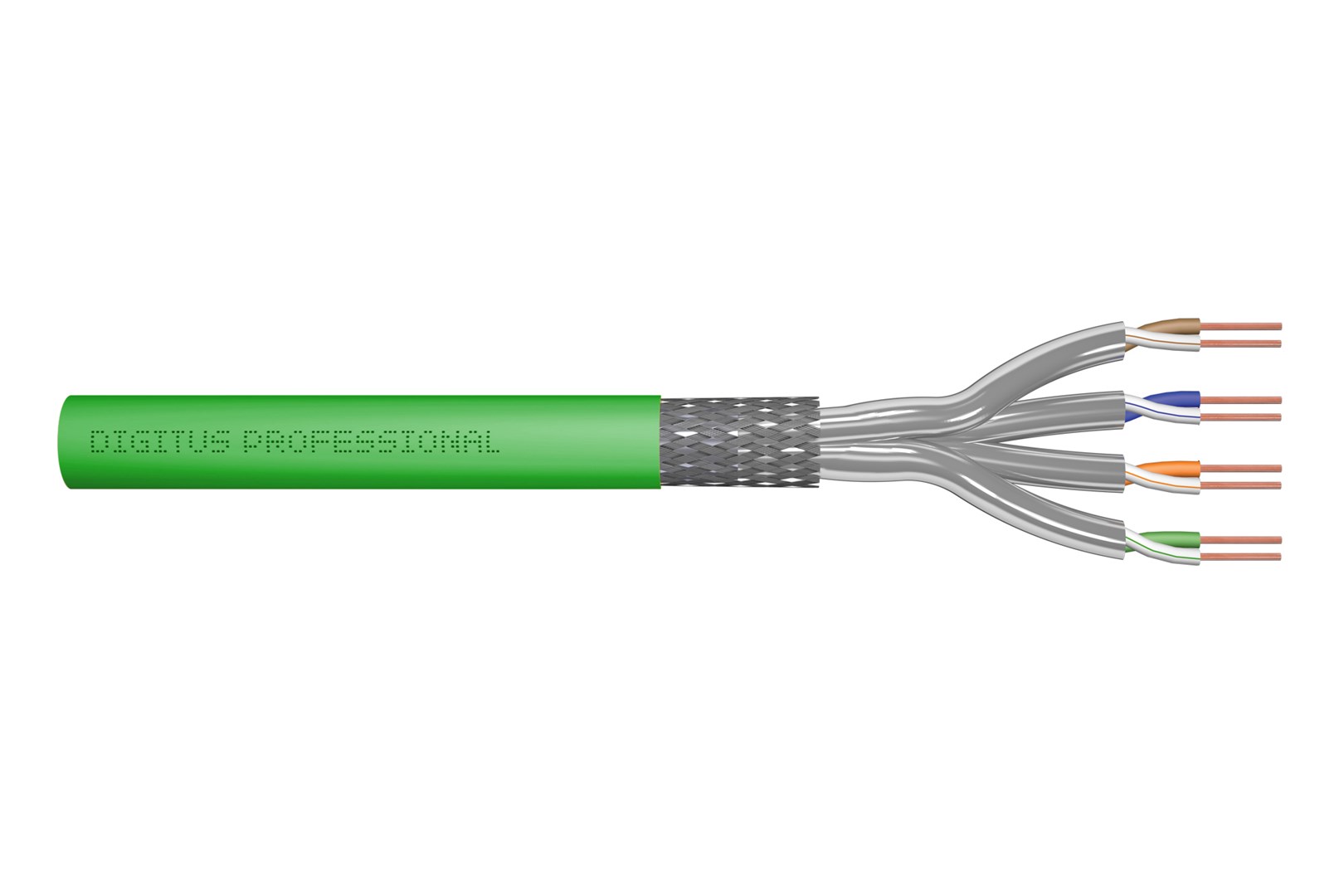

The Digitus Cat 8.2 S/FTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-12-1, DIN EN 50173, IEC 60332-3-24. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

61 IN STOCK

SKU: DK-1843-VH-5

Manufacturer: Digitus Digitus

RRP Price €735.54

Specifications

Features

Product colour

Green

Cable length

500 m

Cable standard

Cat8.2

Cable shielding

S/FTP (S-STP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Connector shielding

Yes

Connector shield material

Aluminium

Jacket material

Low smoke zero halogen (LSZH)

Conductor type

Solid

Conductor material

Copper

Ethernet interface type

40 Gigabit Ethernet

AWG wire size

22/1

Data transfer rate

40000 Mbit/s

Frequency

2000 MHz

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 75 °C

Storage temperature (T-T)

-20 - 60 °C

Sustainability

Doesn't contain

Halogen

Certificates

Certification

CPR class Dca

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

395 mm

Package depth

340 mm

Package weight

30 kg

Package volume

53048.5 cm³

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

30 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
