StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station

Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 device

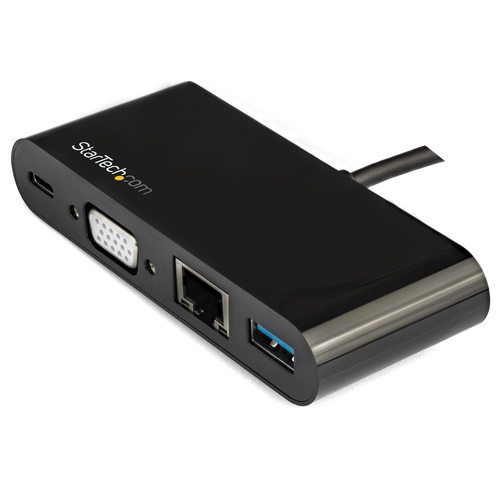

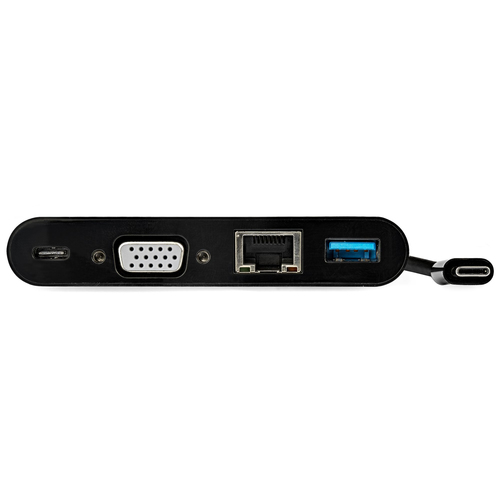

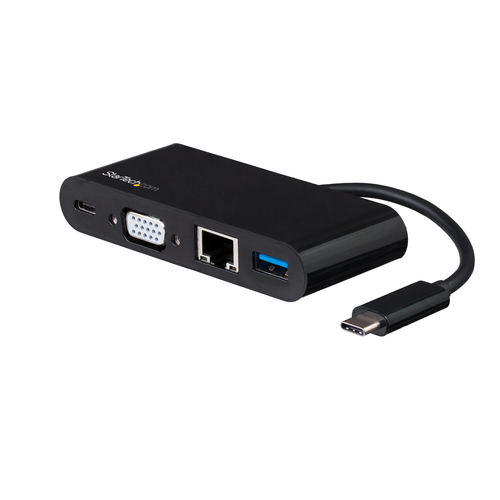

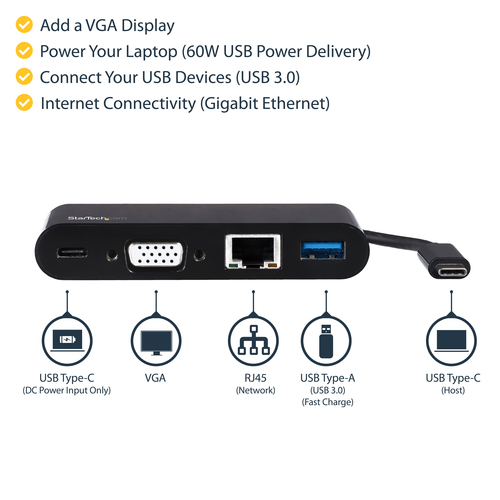

Expand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and Chrome OS™ compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).

Connect to a VGA monitor to give presentations

This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.

Create a portable workstation

Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.

Fast and easy setup

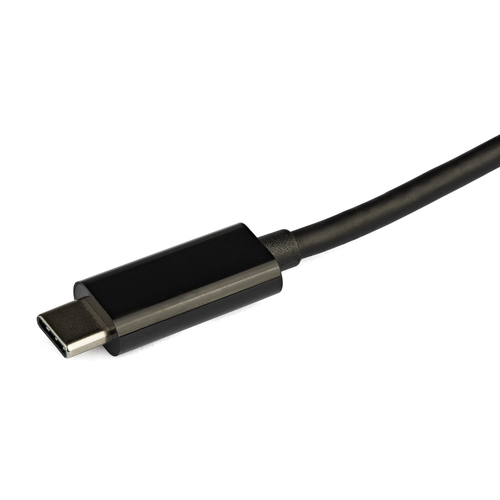

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.

The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

4 IN STOCK

SKU: DKT30CVAGPD

Manufacturer: StarTech.com StarTech.com

RRP Price €61.60

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
60 W
VGA (D-Sub) ports quantity
1
Microphone in
No

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes
10G support
No

Performance

Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
UASP support
Yes
Housing material
Plastic
Certification
CE, FCC, REACH

Power

Power source type
USB

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%

Weight & dimensions

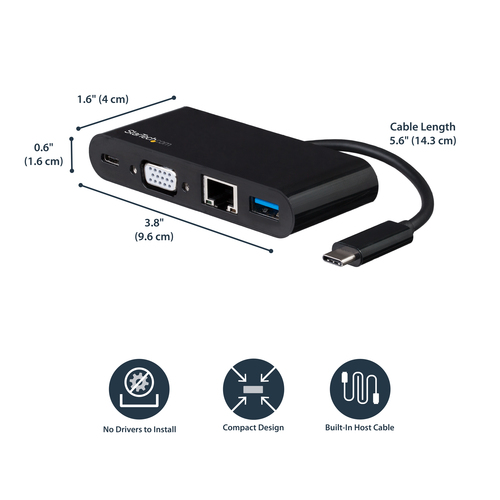

Width
40 mm
Depth
96 mm
Height
16 mm
Weight
49 g

Packaging data

Package width
140 mm
Package depth
172 mm
Package height
30 mm
Package weight
125 g

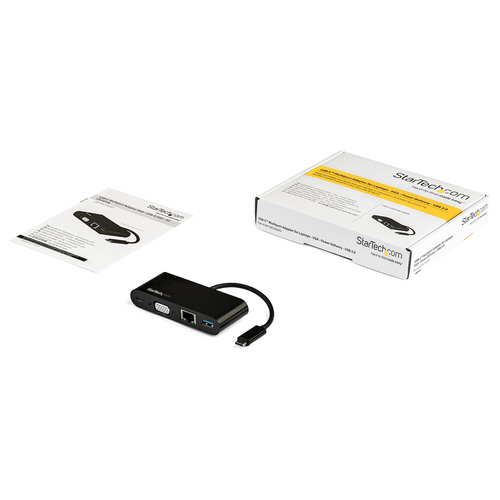

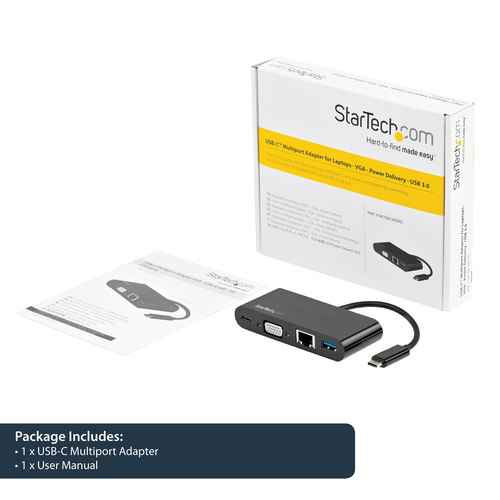

Packaging content

Manual
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
60 pc(s)
Master (outer) case width
330 mm
Master (outer) case length
530 mm
Master (outer) case height
310 mm
Harmonized System (HS) code
84733020

Other features

Cable length
0.143 m
Chipset
VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153
