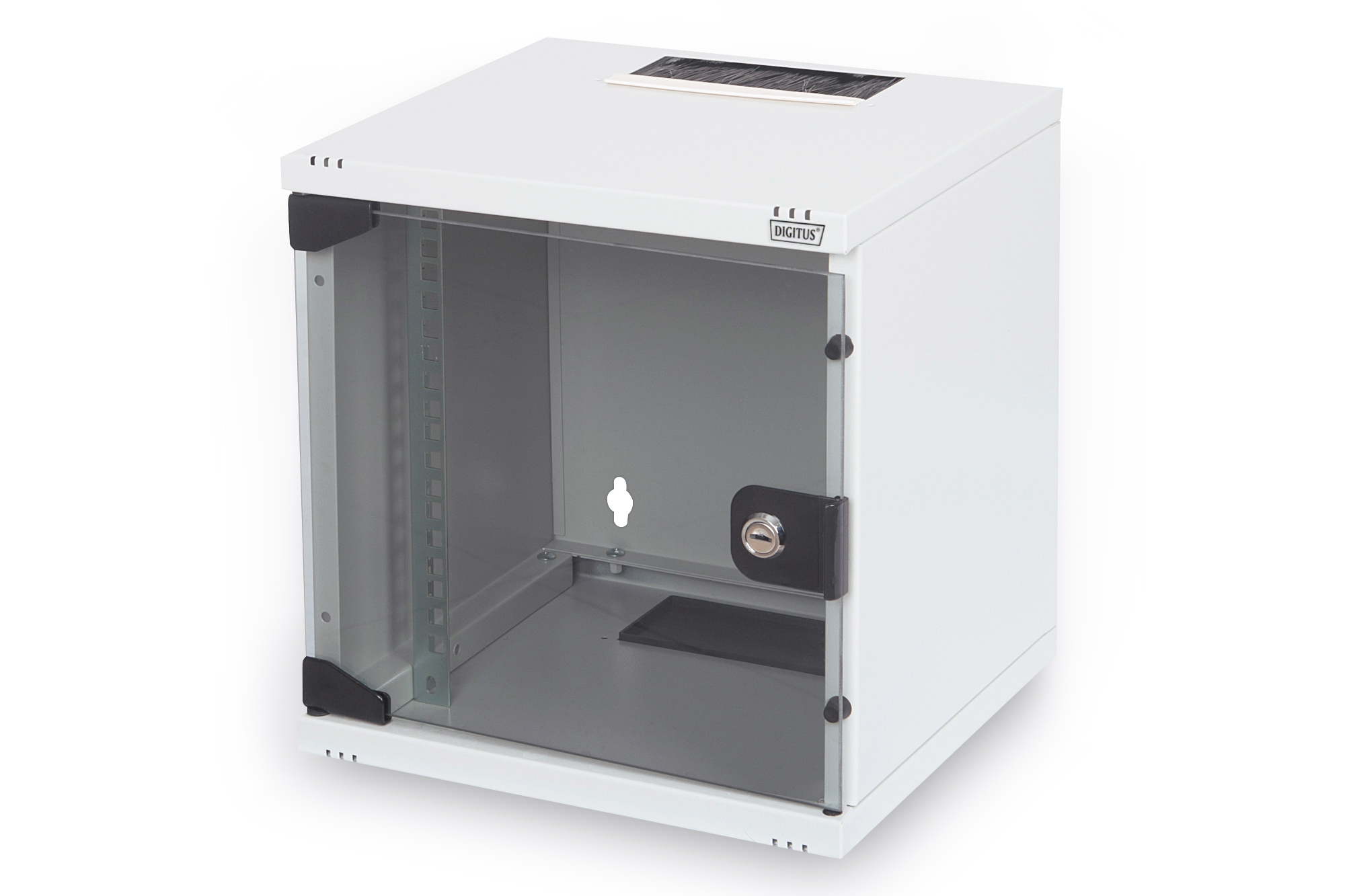

Digitus Wall-mounted housing 254 mm (10") - 312x300 mm (WxD)

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg

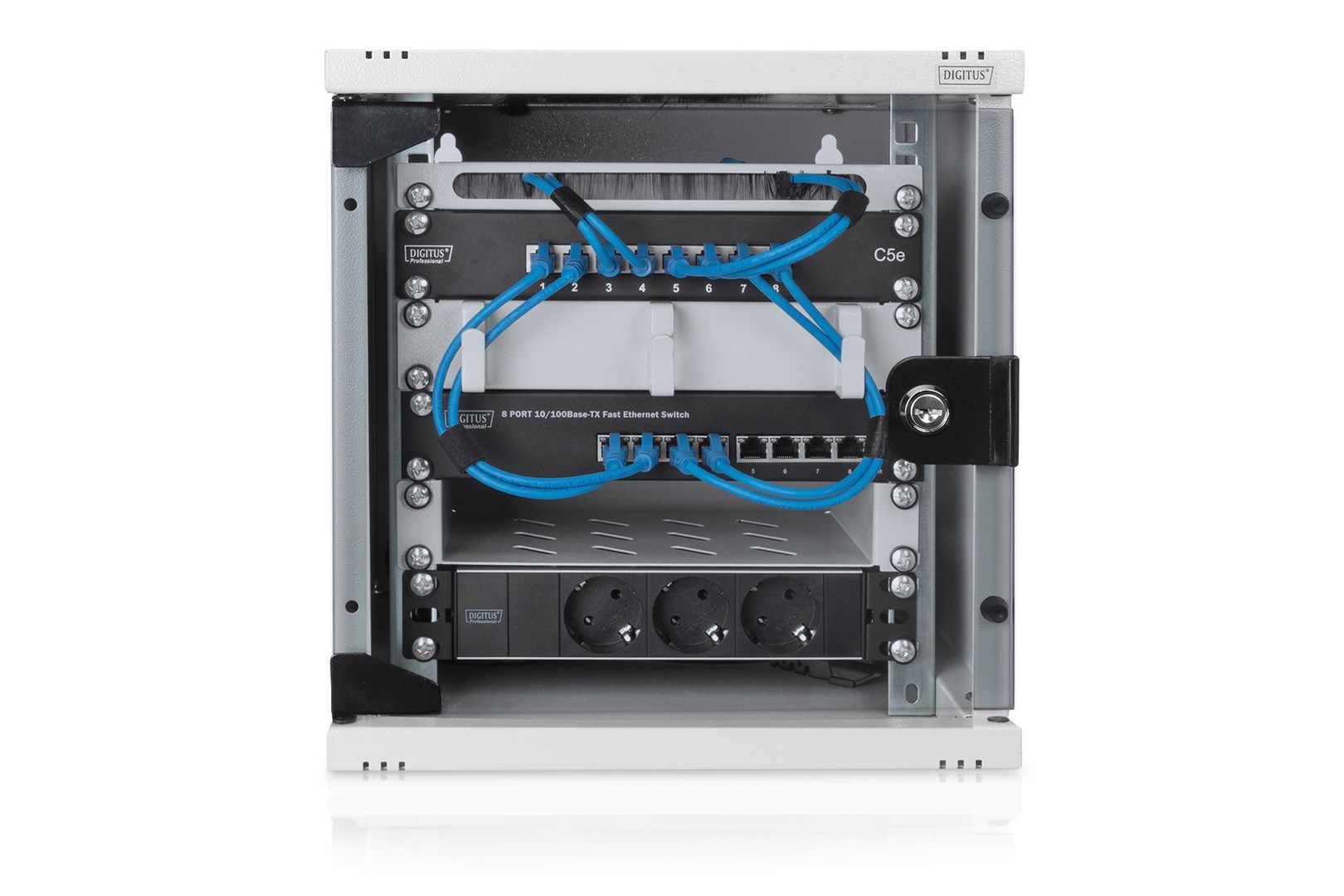

Whether in the home, office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

200 IN STOCK

SKU: DN-10-05U-1

Manufacturer: Digitus Digitus

RRP Price €77.84

Specifications

Features

Rack capacity
6U
Type
Wall mounted rack
Maximum weight capacity
30 kg
Product colour
Grey
Material
Steel
Front door construction
Glass
Side panels included
Yes
International Protection (IP) code
IP20

Weight & dimensions

Size (imperial)
25.4 cm (10")
Width
312 mm
Depth
300 mm
Height
310 mm
Width (imperial)
32 cm (12.6")
Depth (imperial)
34 cm (13.4")
Height (imperial)
31 cm (12.2")

Packaging data

Package width
350 mm
Package depth
360 mm
Package volume
50400 cm³
Package weight
8 kg

Logistics data

UK Trade Tariff code
94032080
Country of origin
China
Harmonized System (HS) code
85381000

Other features

Dimensions (WxDxH)
320 x 340 x 310 mm

Accessories
