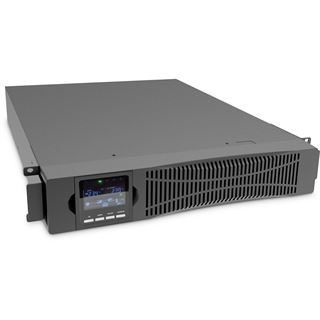

Digitus OnLine UPS system, 3000 VA / 3000 W

The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.

- High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
- High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

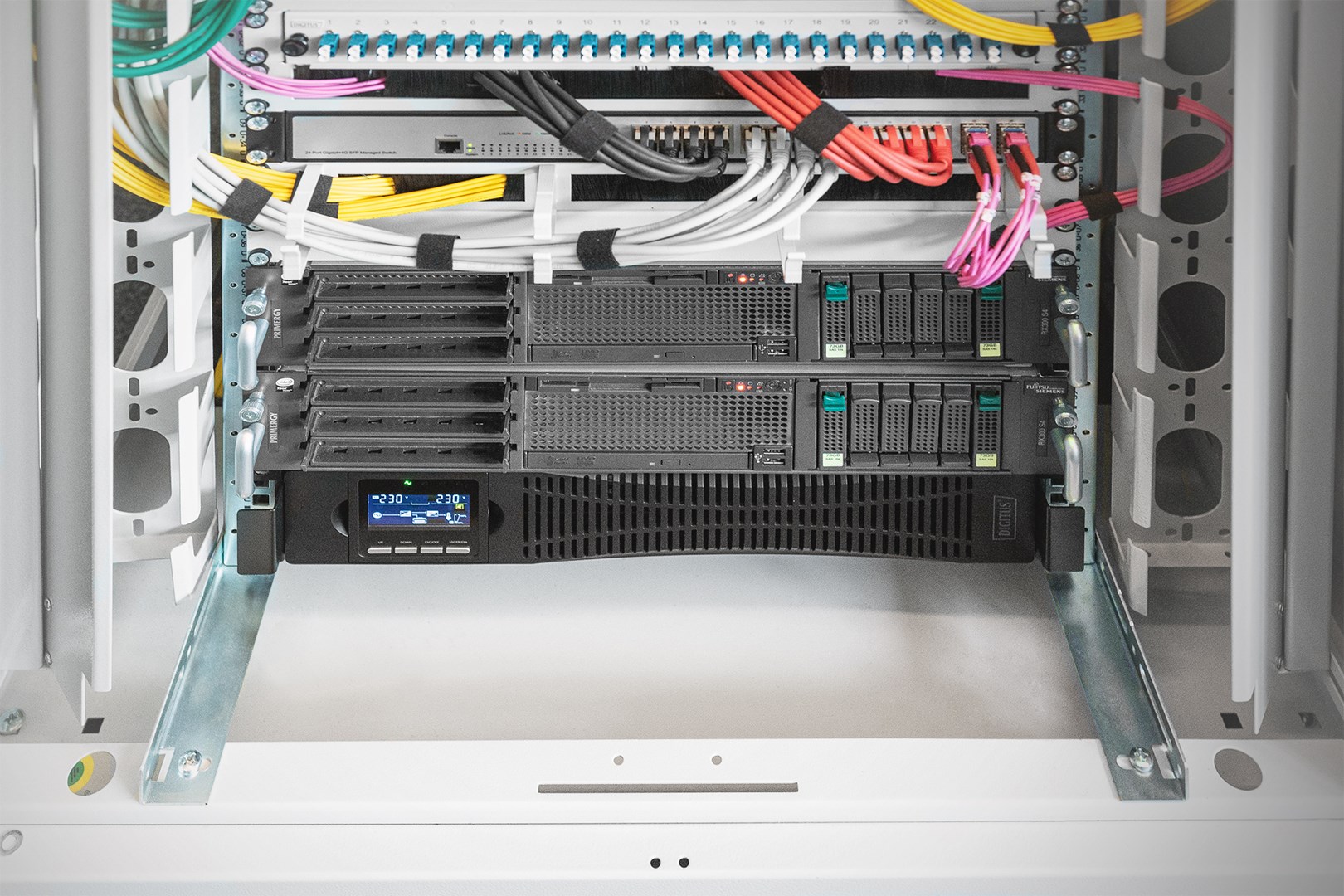

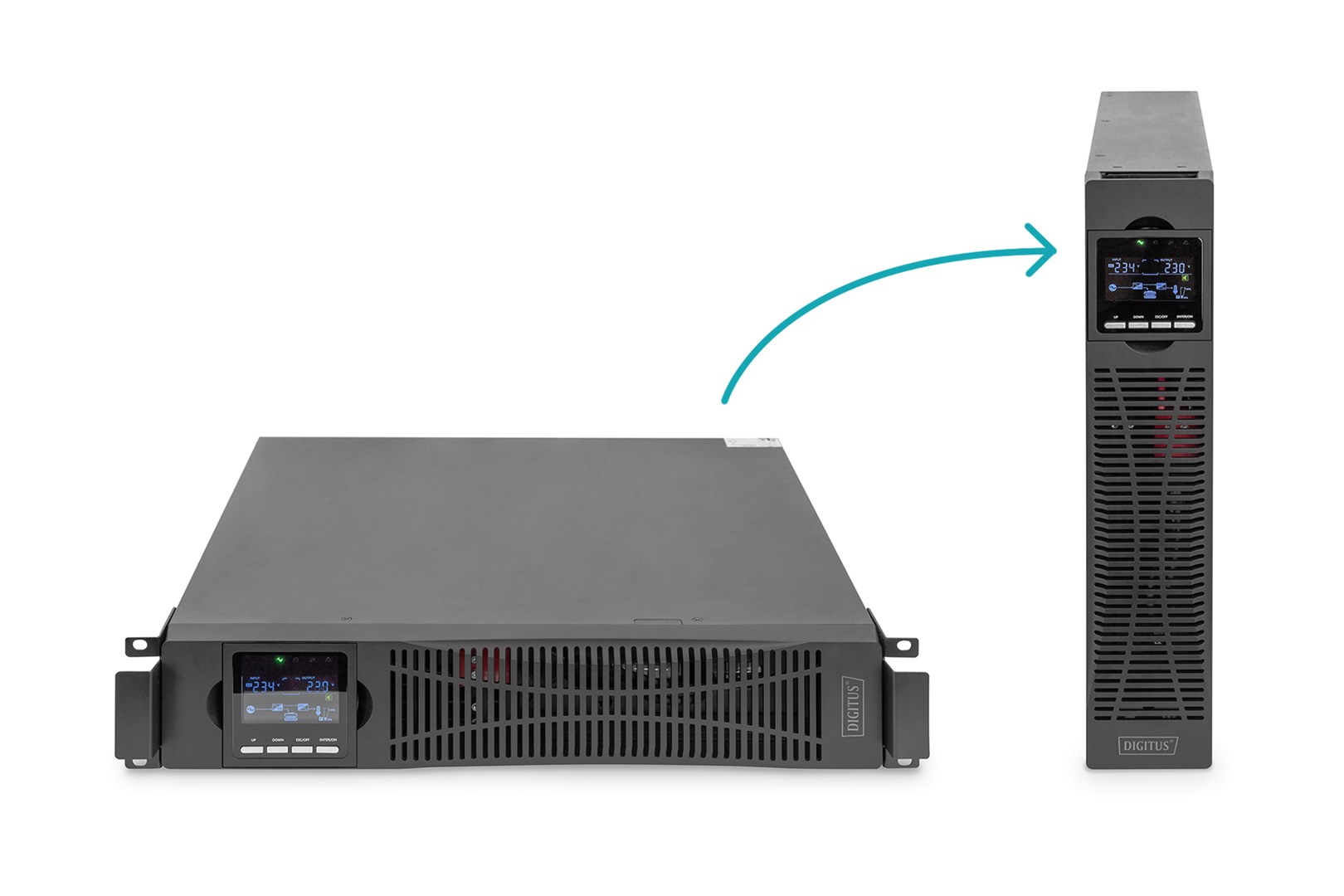

- Compact rack/tower design optimizes rack space and allows for flexible installation.
- Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.
- External battery modules enable extended runtime.

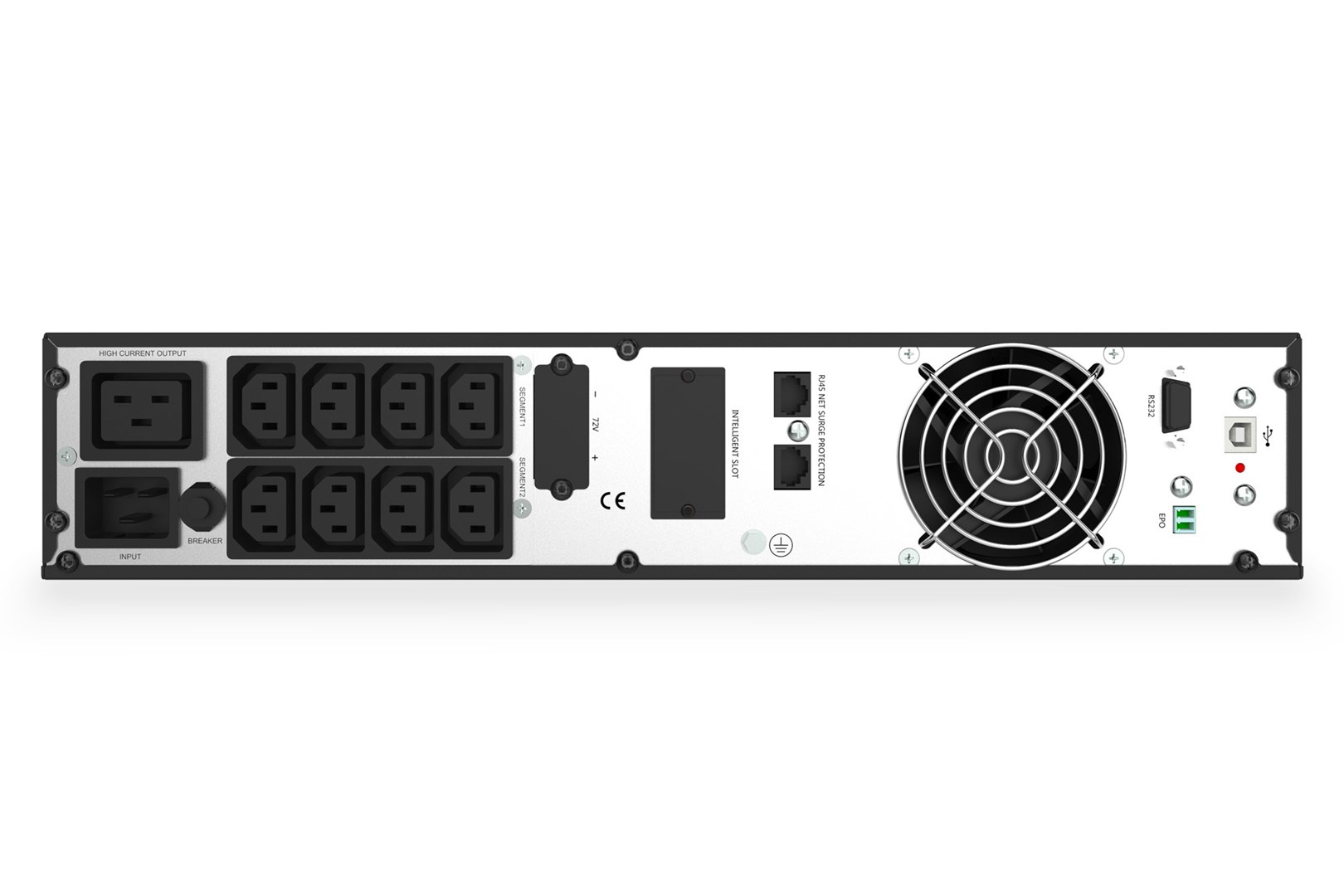

- High number of outlets (8 x C13 & 1 x C19) for optimal power distribution to loads.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
- Automatic battery self-test and fan speed control increase component life.
- Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.

23 IN STOCK

SKU: DN-170096

Manufacturer: Digitus Digitus

RRP Price €738.77

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
3000 W
Input operation voltage (min)
208 V
Input operation voltage (max)
240 V
Automatic Voltage Regulation (AVR)
Yes
Maximum current
16 A
Efficiency (On-line mode)
93%
Efficiency (ECO mode)
98%
Power factor
1

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Emergency Power Off (EPO) connector
Yes

Battery

Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
6
Typical backup time at full load
3 min
Typical backup time at half load
9 min
Battery recharge time
4 h

Design

Form factor
Rackmount
Product colour
Black
Display type
LCD

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Operating relative humidity (H-H)
20 - 90%
Operating altitude
0 - 1500 m

Certificates

Certification
CE

Safety regulation & standards

Safety
IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8

Weight & dimensions

Width
440 mm
Depth
600 mm
Height
86.5 mm
Weight
26 kg

Packaging data

Package width
555 mm
Package depth
732 mm
Package height
200 mm
Package weight
30.1 kg
Package volume
82064.5 cm³

Logistics data

UK Trade Tariff code
85044085
Country of origin
China

Other features

Size (imperial)
48.3 cm (19")

Accessories

License
