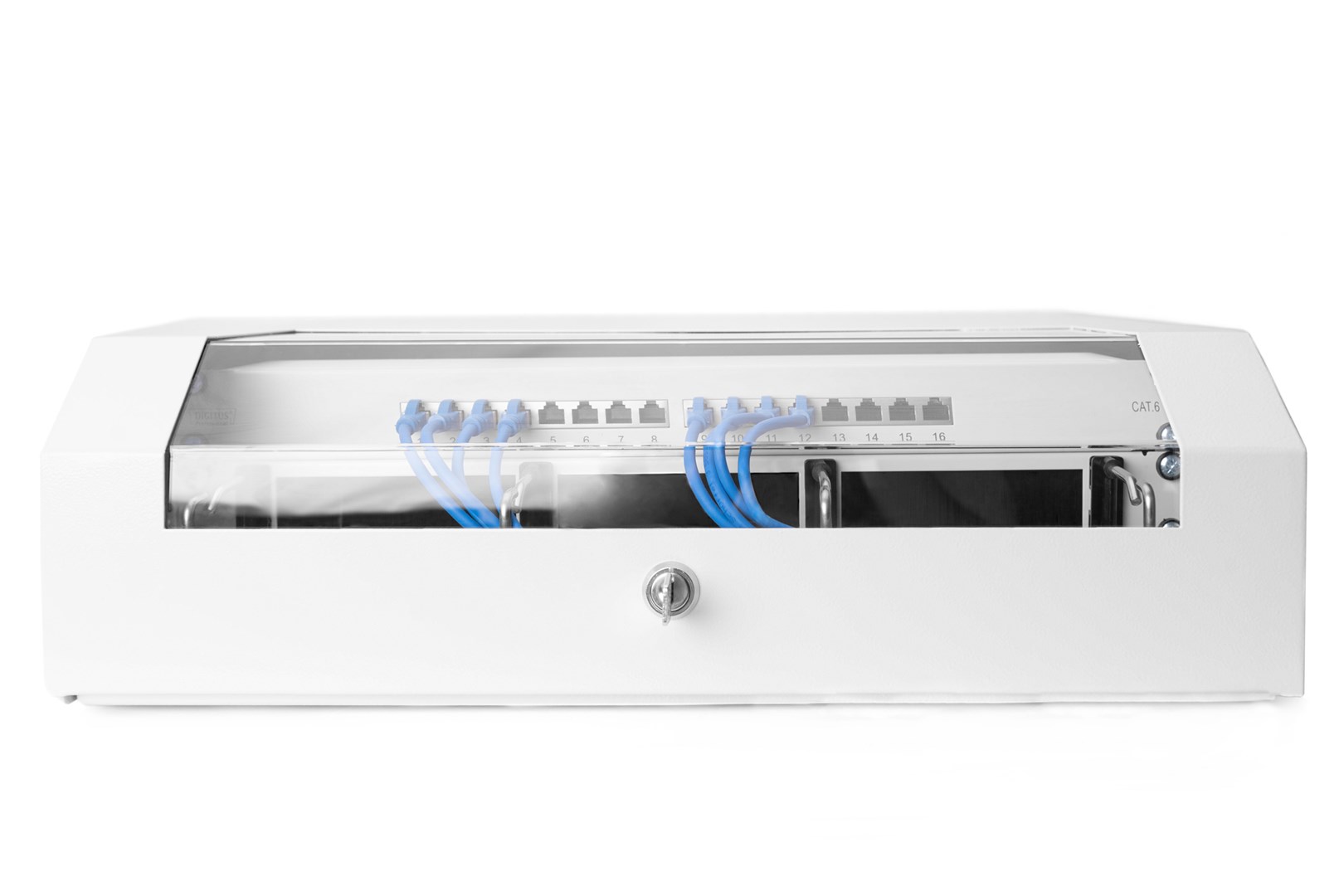

Digitus Wall-mounted enclosure - SOHO, Slim

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Slim housing for installations where space is limited
- Door stopper mechanism allows installation in any direction on the wall, ceiling or raised floor

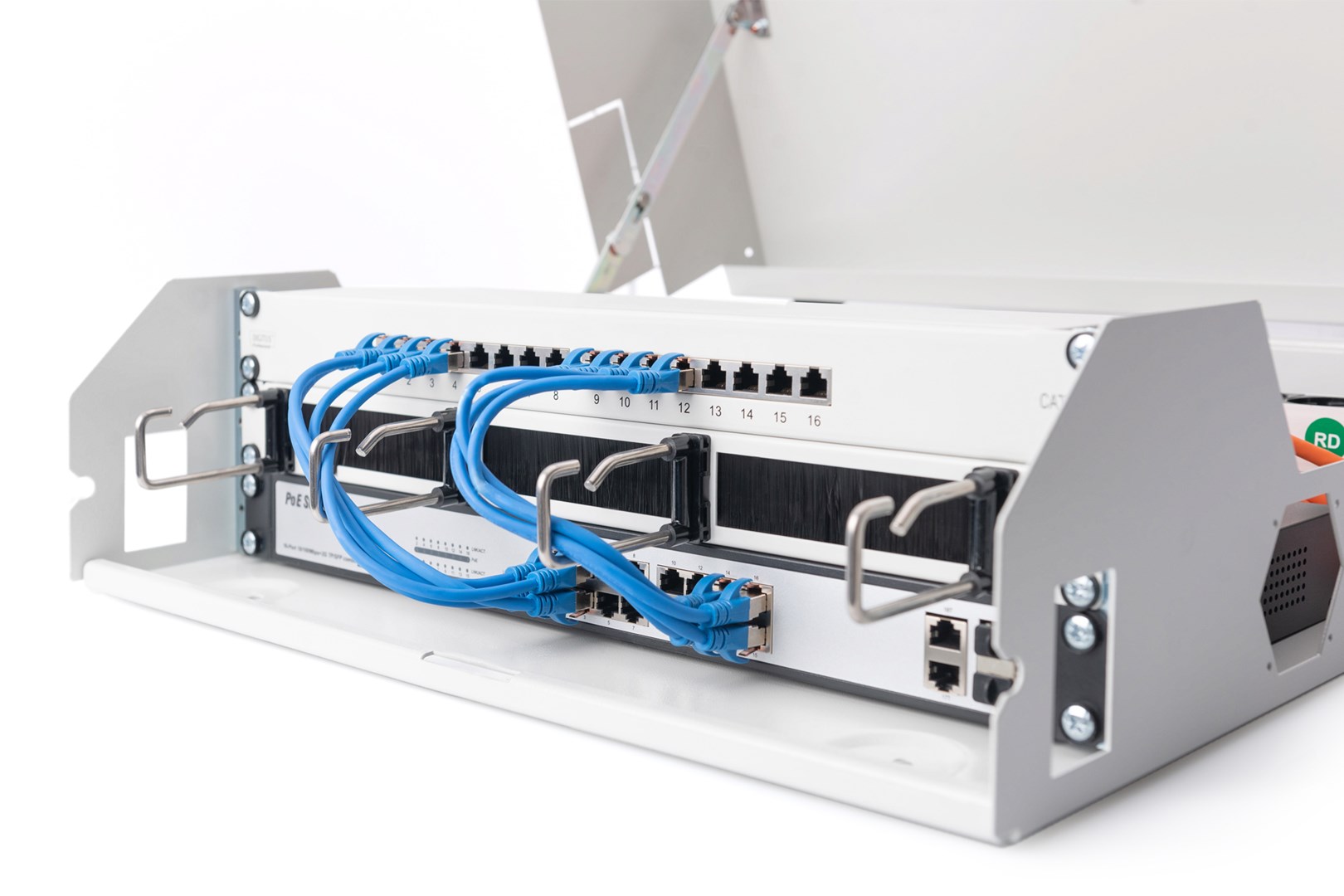

- 3U rotatable profile rail at the front, 2U fixed profile rail at the rear
- Pre-punched cut-outs for cable routing and fastening cable ties

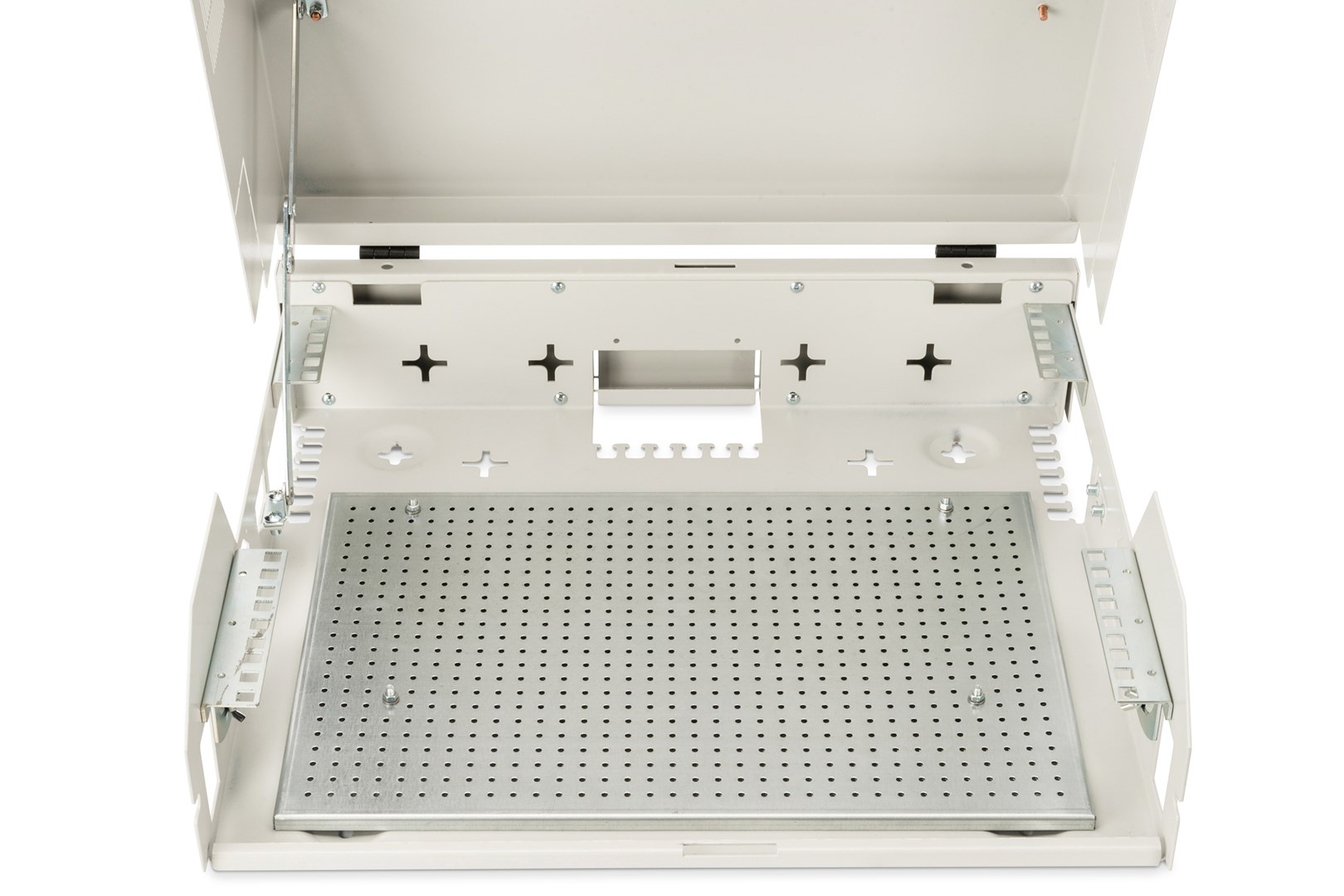

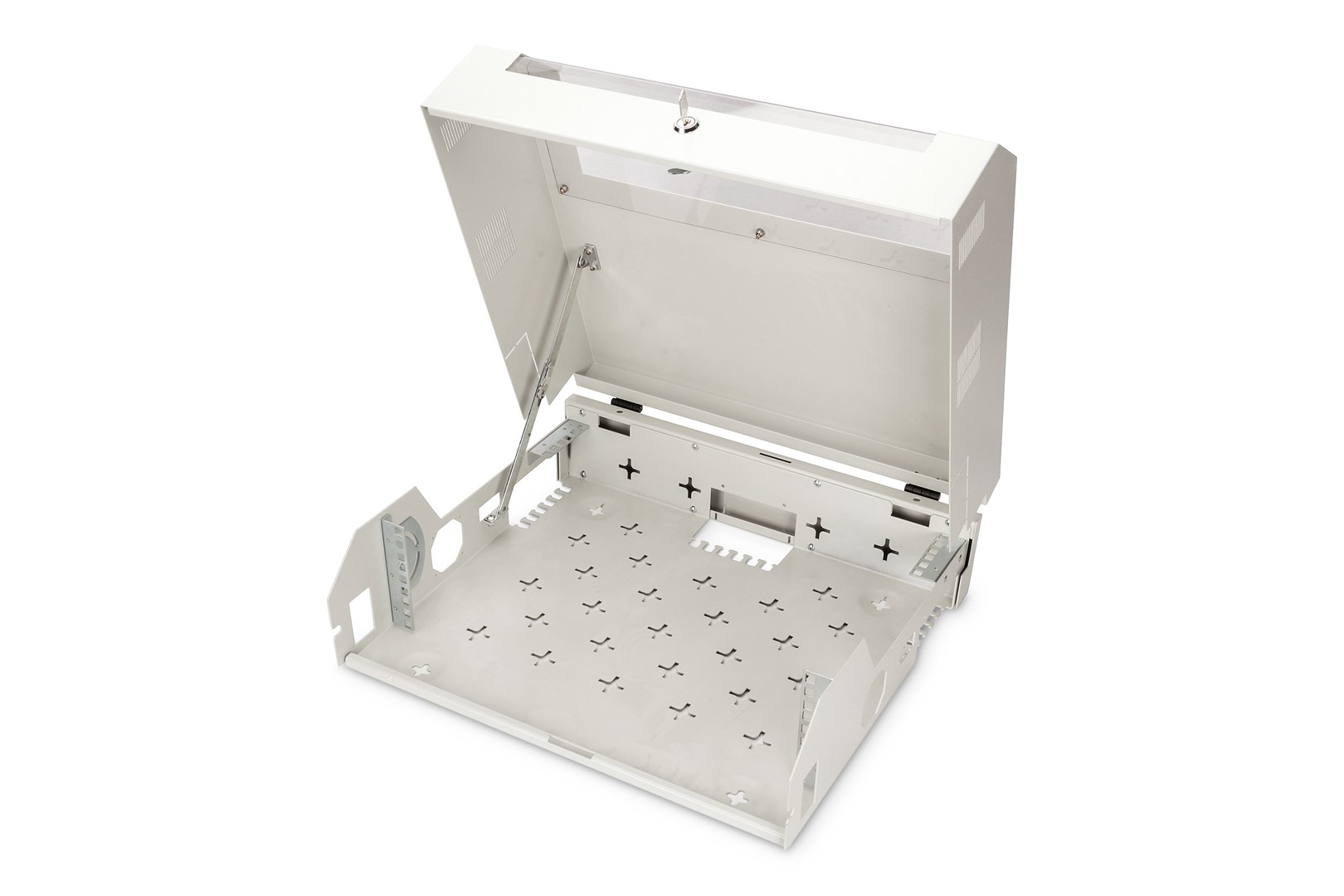

- Punched-out mounting holes throughout the lower housing area for fixing a wide variety of components
- Load capacity for the installation of components: 30 kg

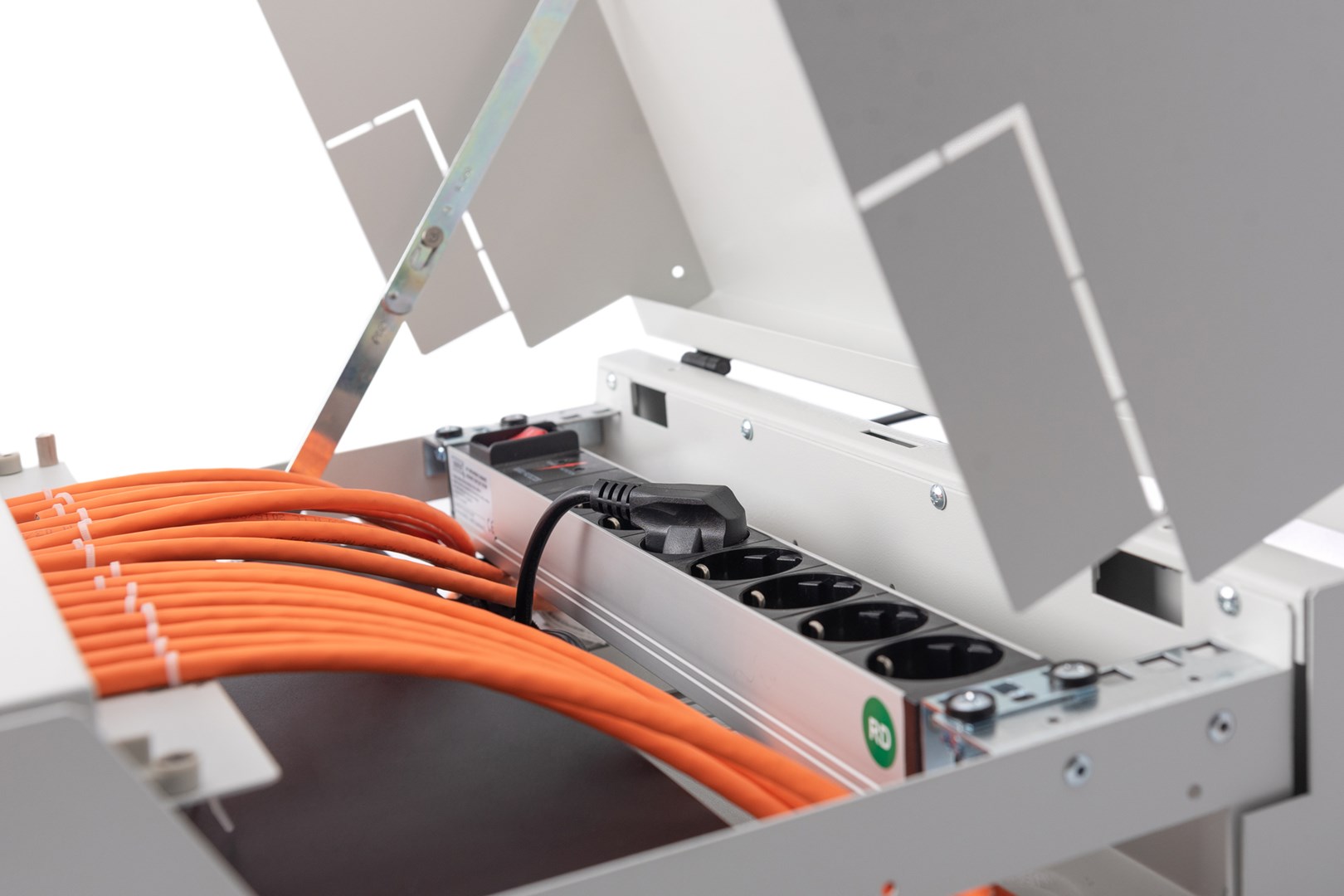

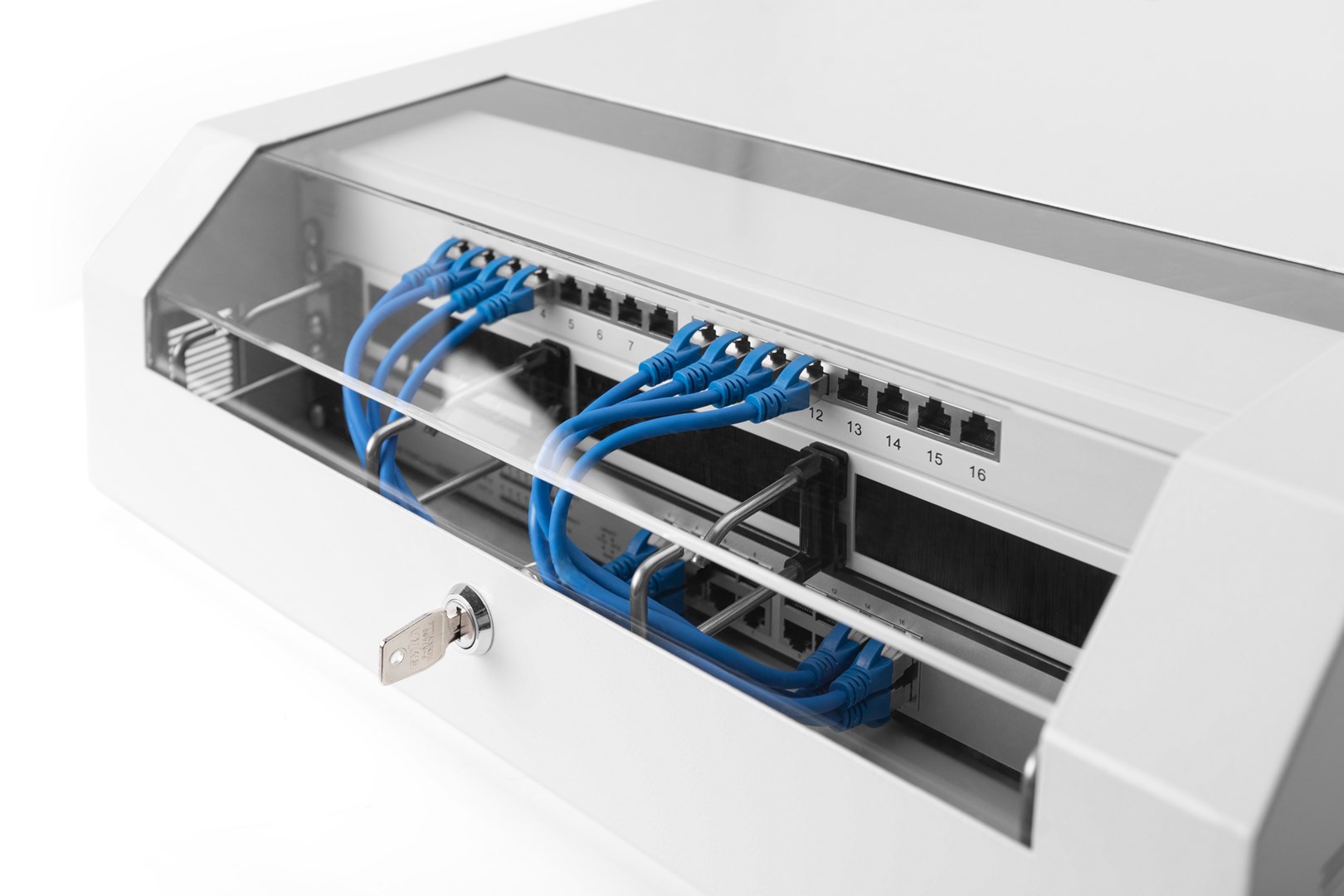

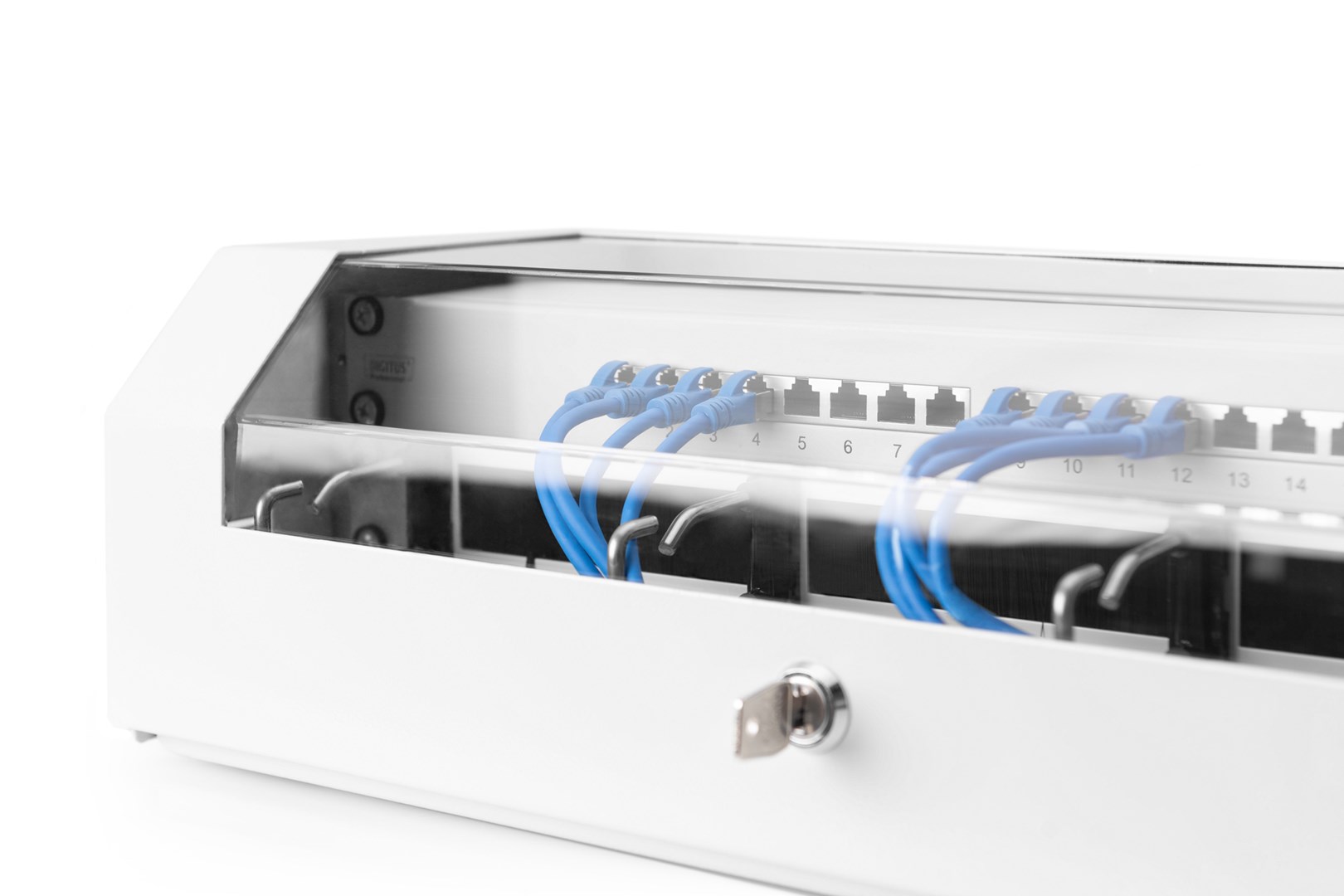

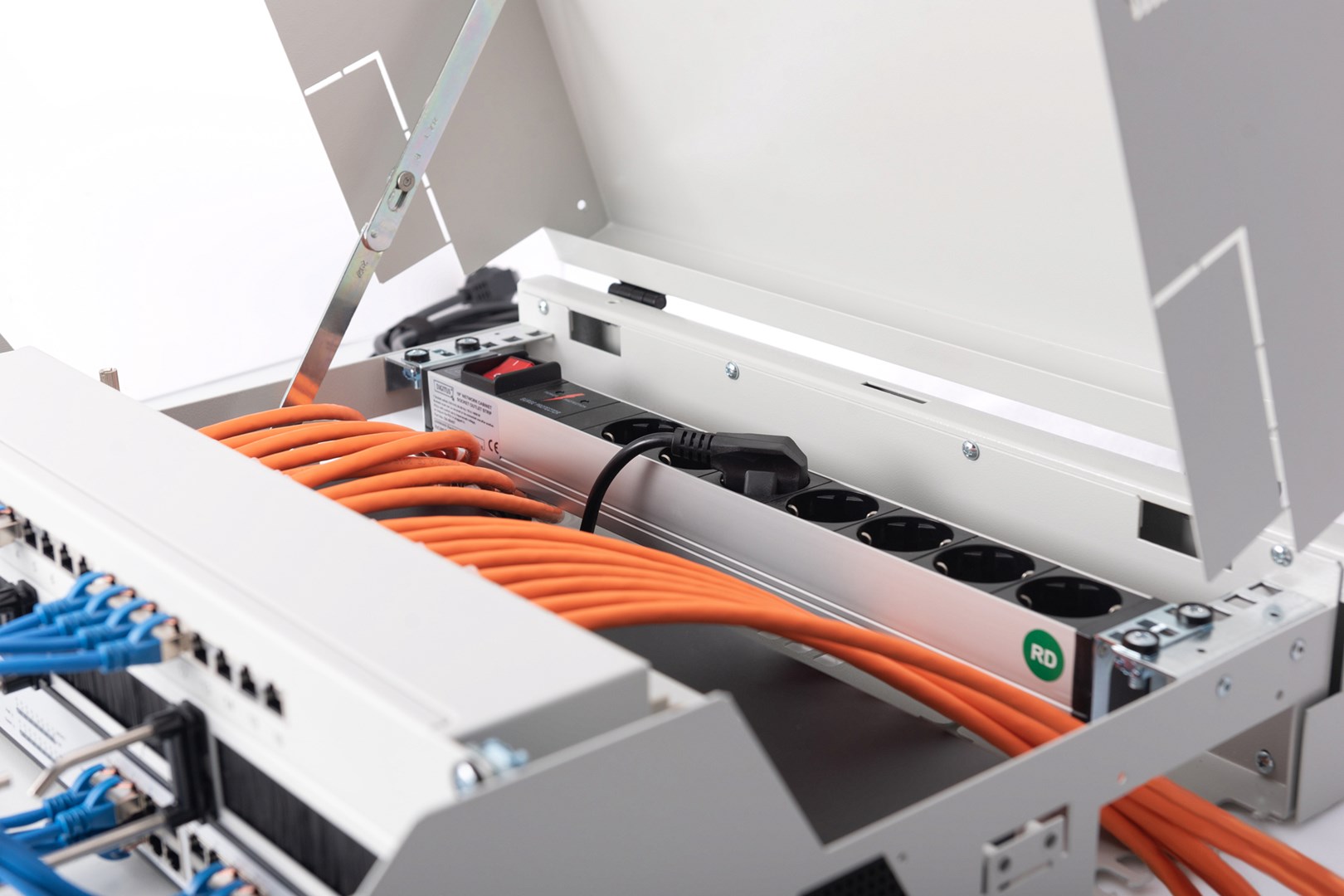

The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19") compatible to be installed (e.g. DSL routers, etc.).

7 IN STOCK

SKU: DN-19 04U-PB

Manufacturer: Digitus Digitus

RRP Price €166.20

Specifications

Features

Rack capacity
3U
Type
Wall mounted rack
Maximum weight capacity
30 kg
Product colour
Grey
Front door construction
Glass
Side panels included
Yes
International Protection (IP) code
IP20

Weight & dimensions

Size (imperial)
48.3 cm (19")
Width
525 mm
Depth
475 mm
Height
145 mm

Packaging data

Package width
530 mm
Package depth
500 mm
Package volume
42400 cm³
Package weight
9.5 kg

Logistics data

UK Trade Tariff code
94032080
Country of origin
Turkey
Harmonized System (HS) code
85381000
