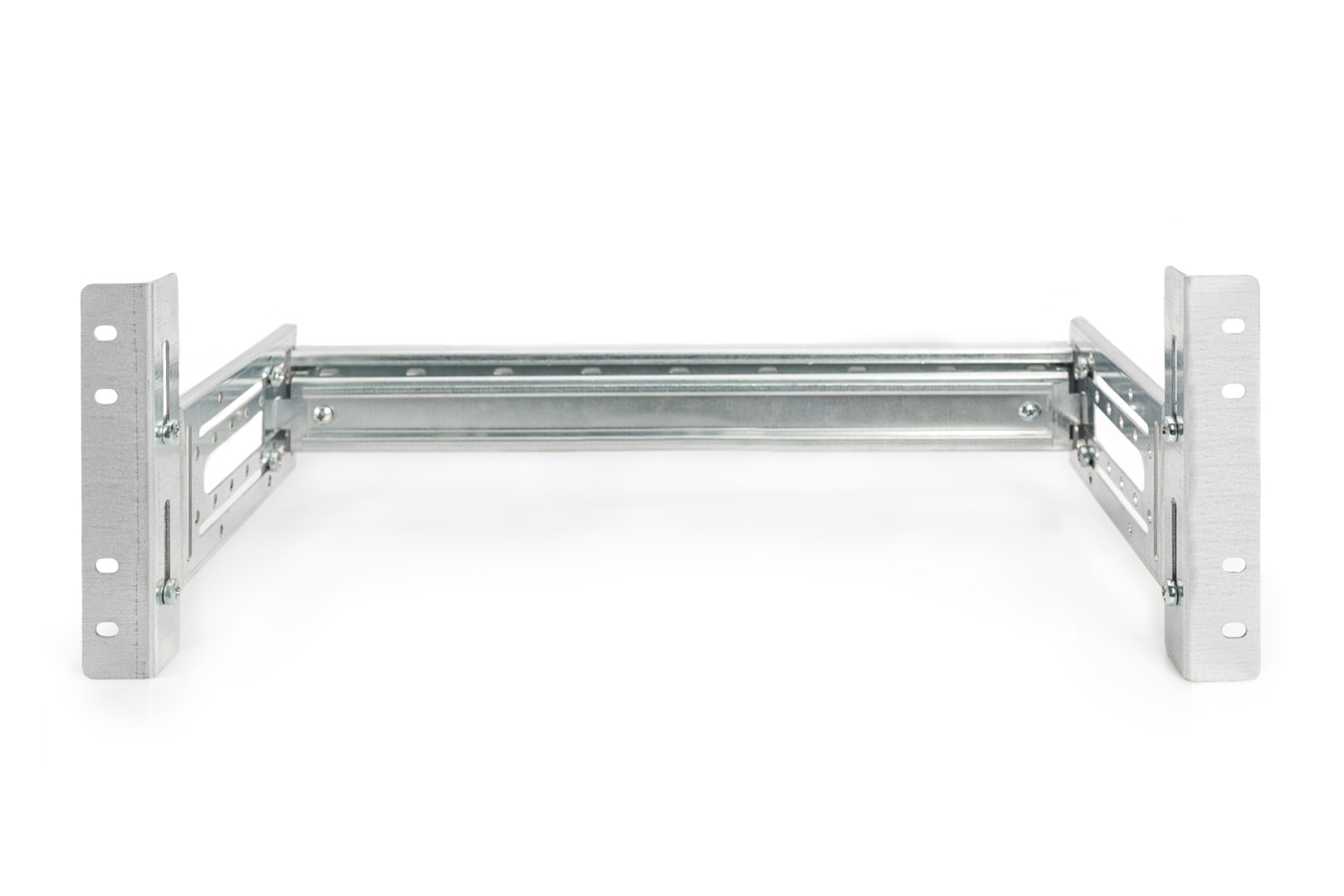

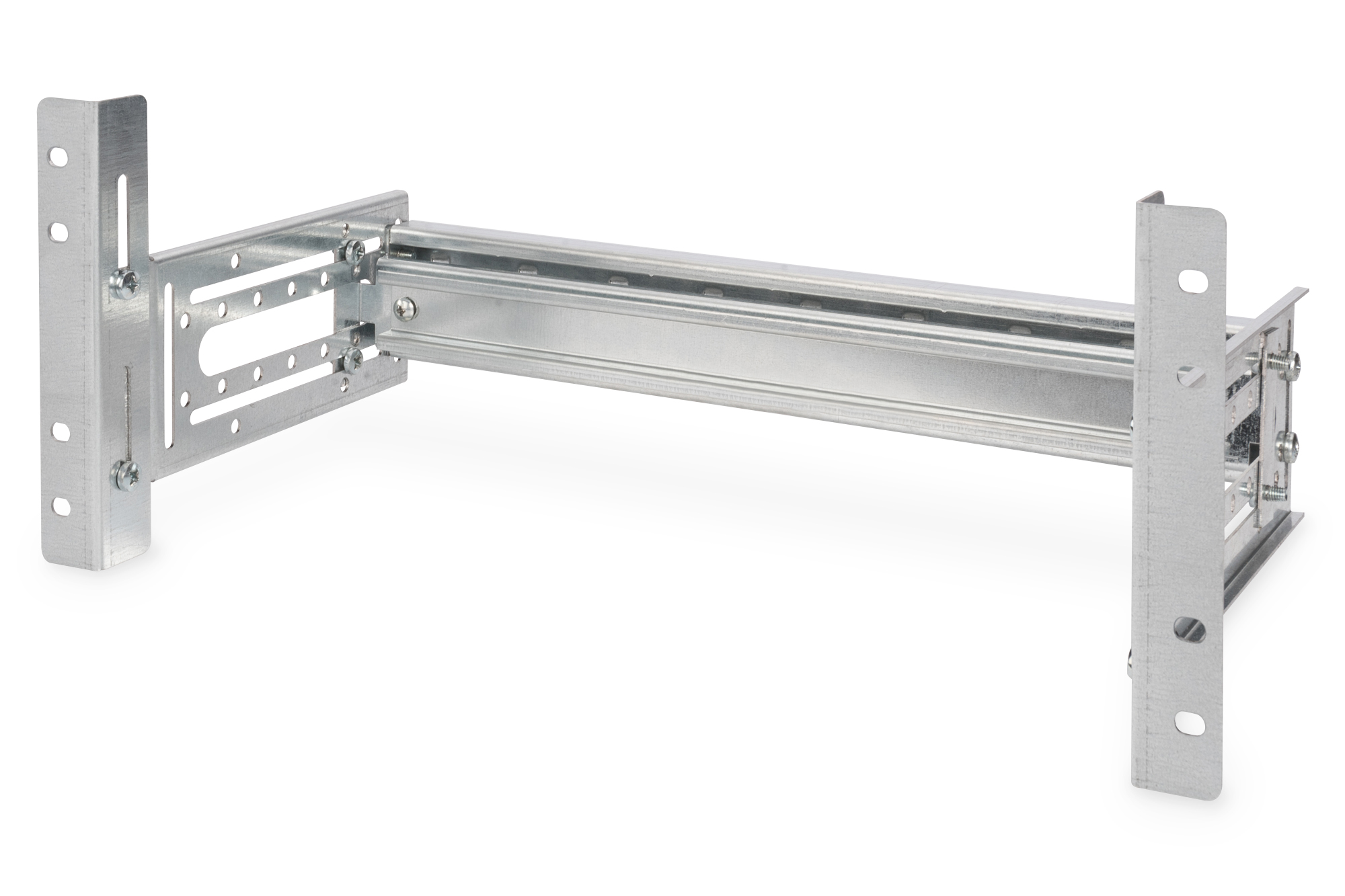

Digitus 483 mm (19“) DIN Rail Holder, 4U

- For quick and screwless mounting of 35 mm DIN rail equipment

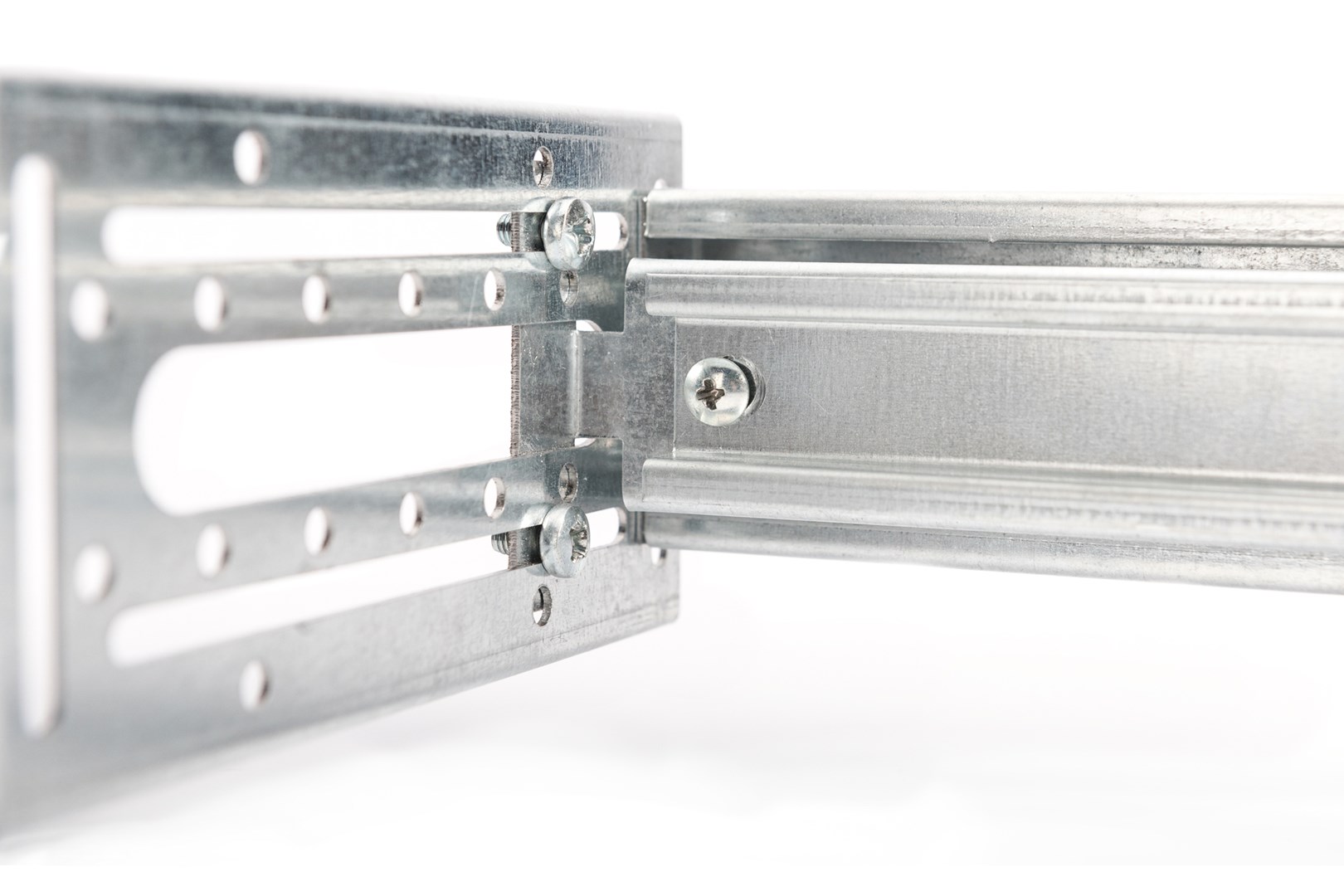

- Incl. mounted DIN rail acc. to DIN EN 60715 (HxW= 35x390 mm), variable in depth

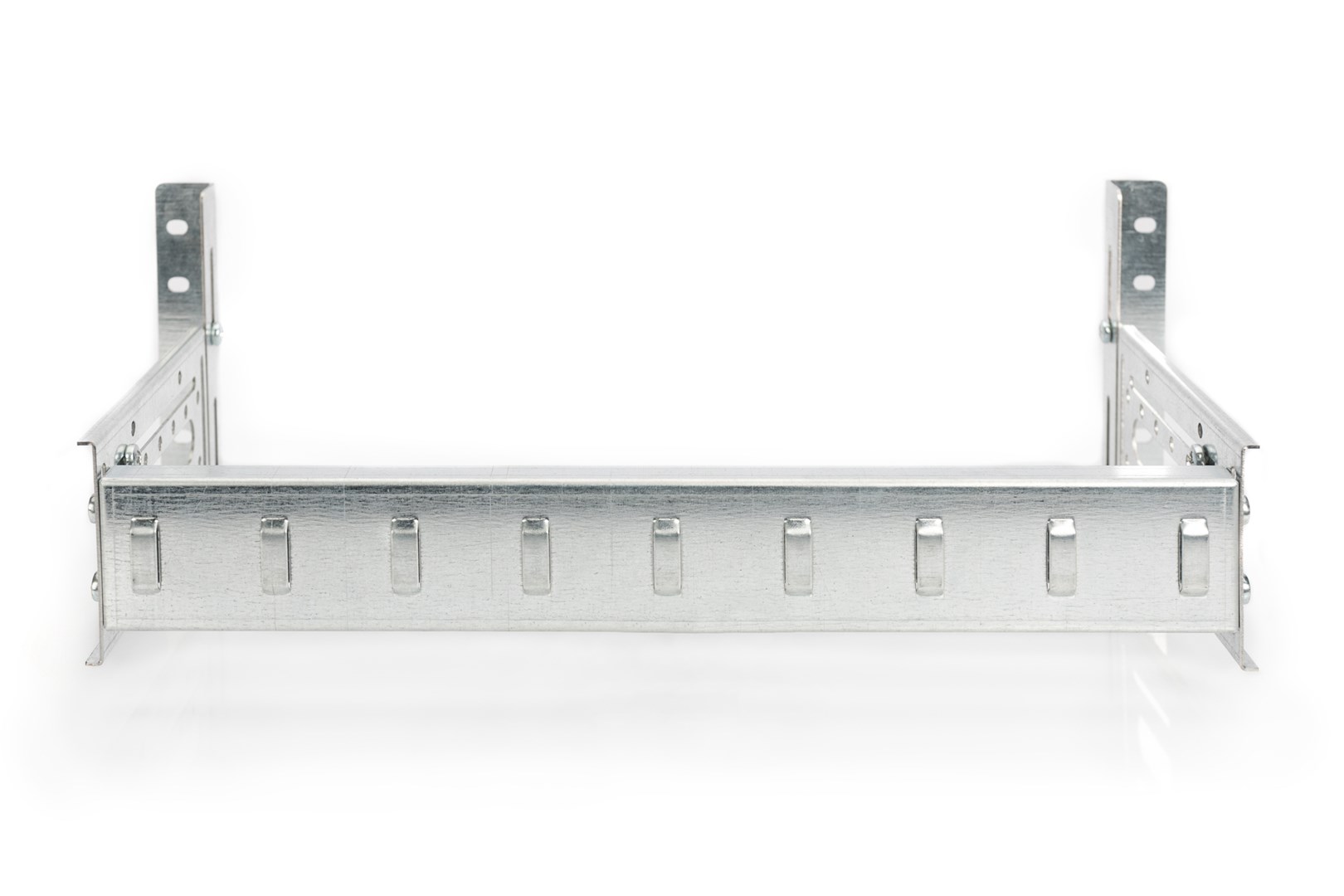

- Rear side with c shaped cable tray for optimized cabling, variable in height

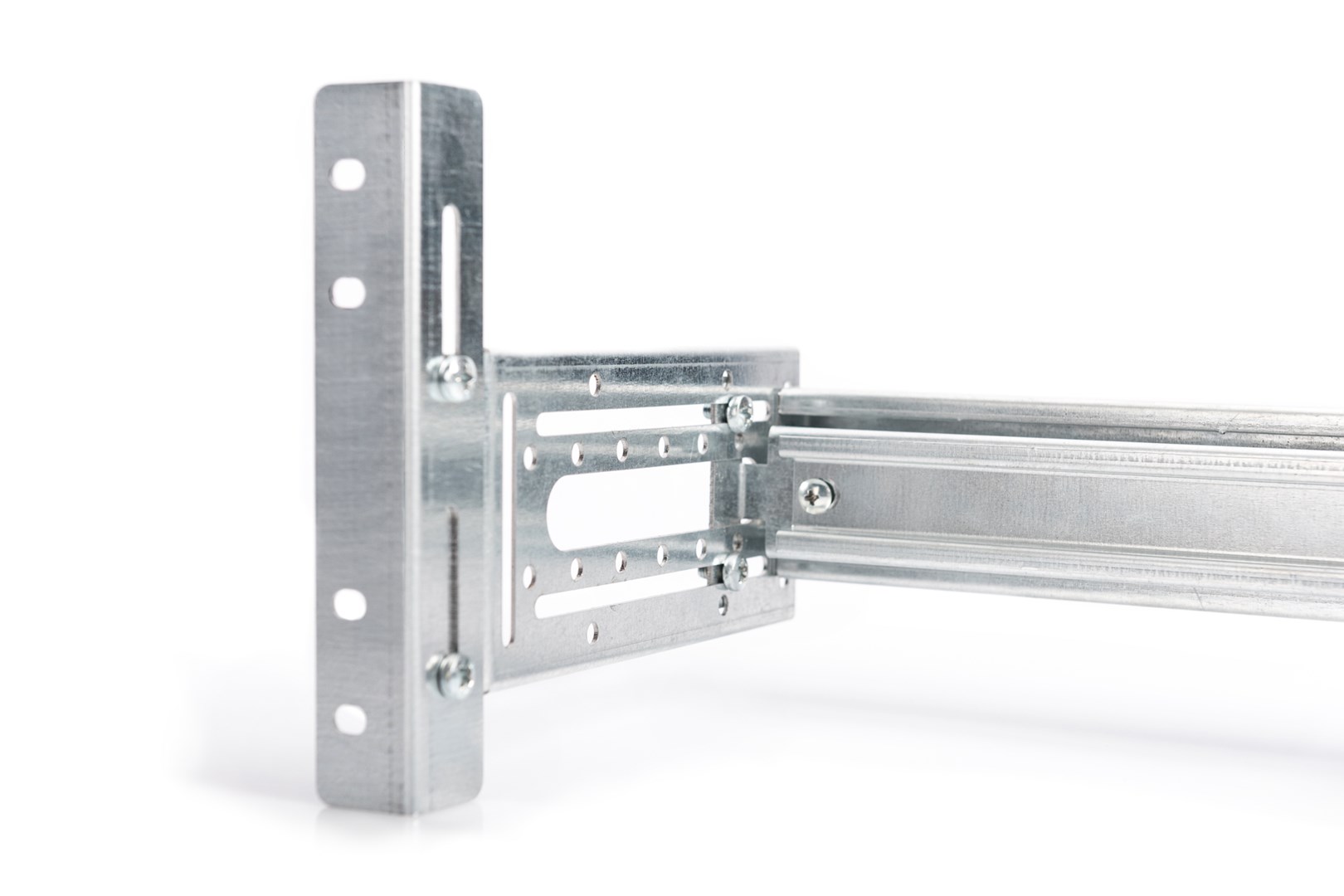

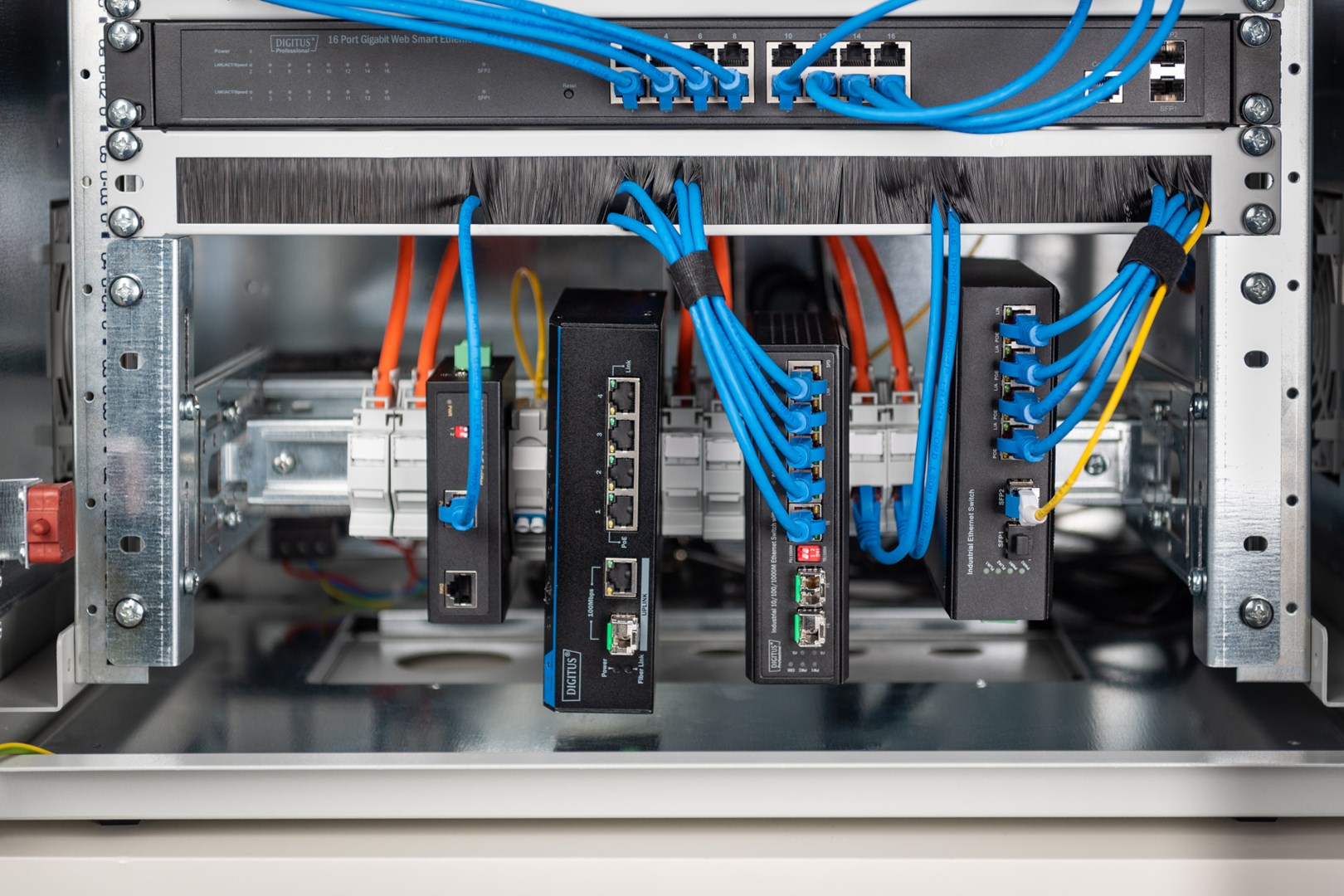

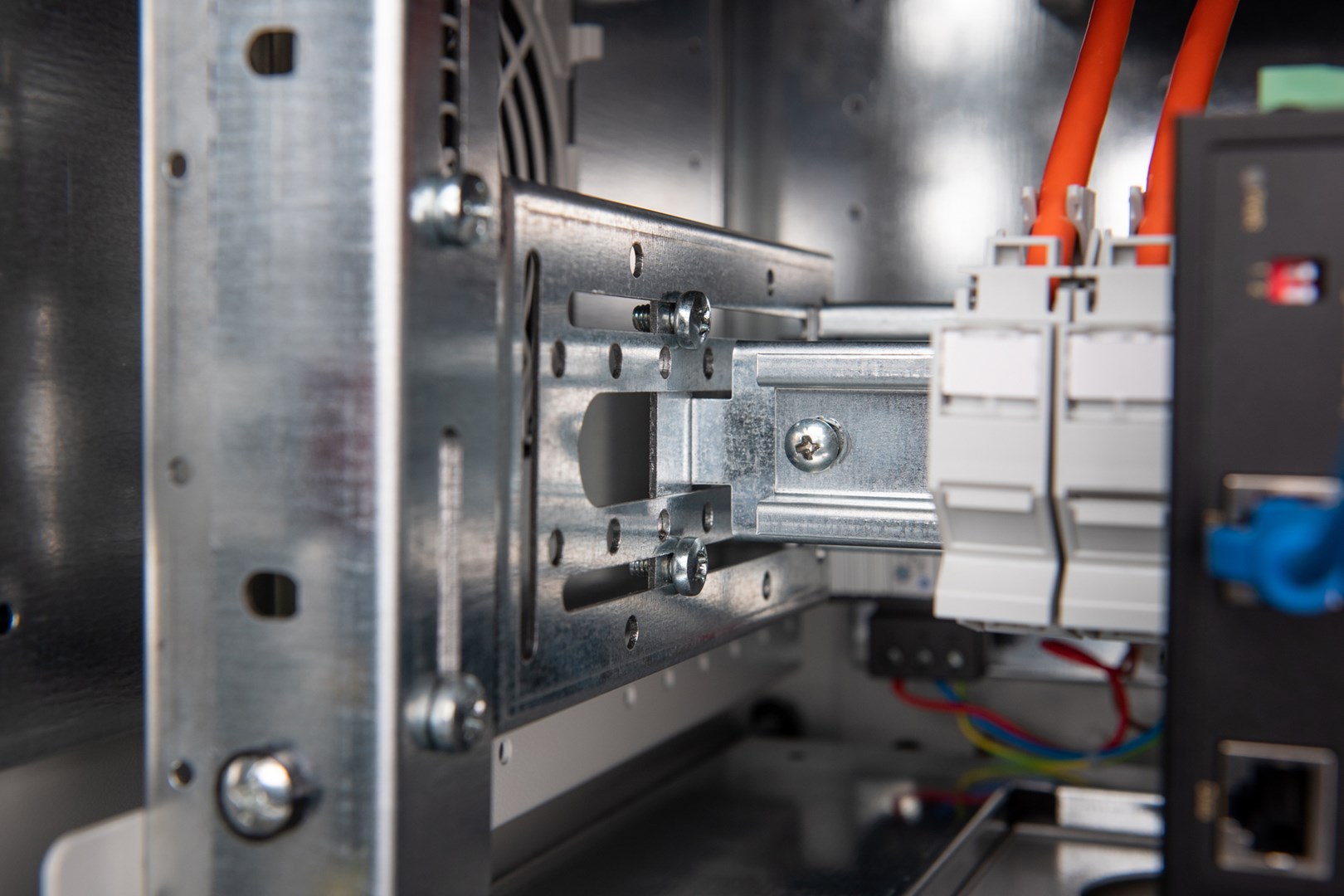

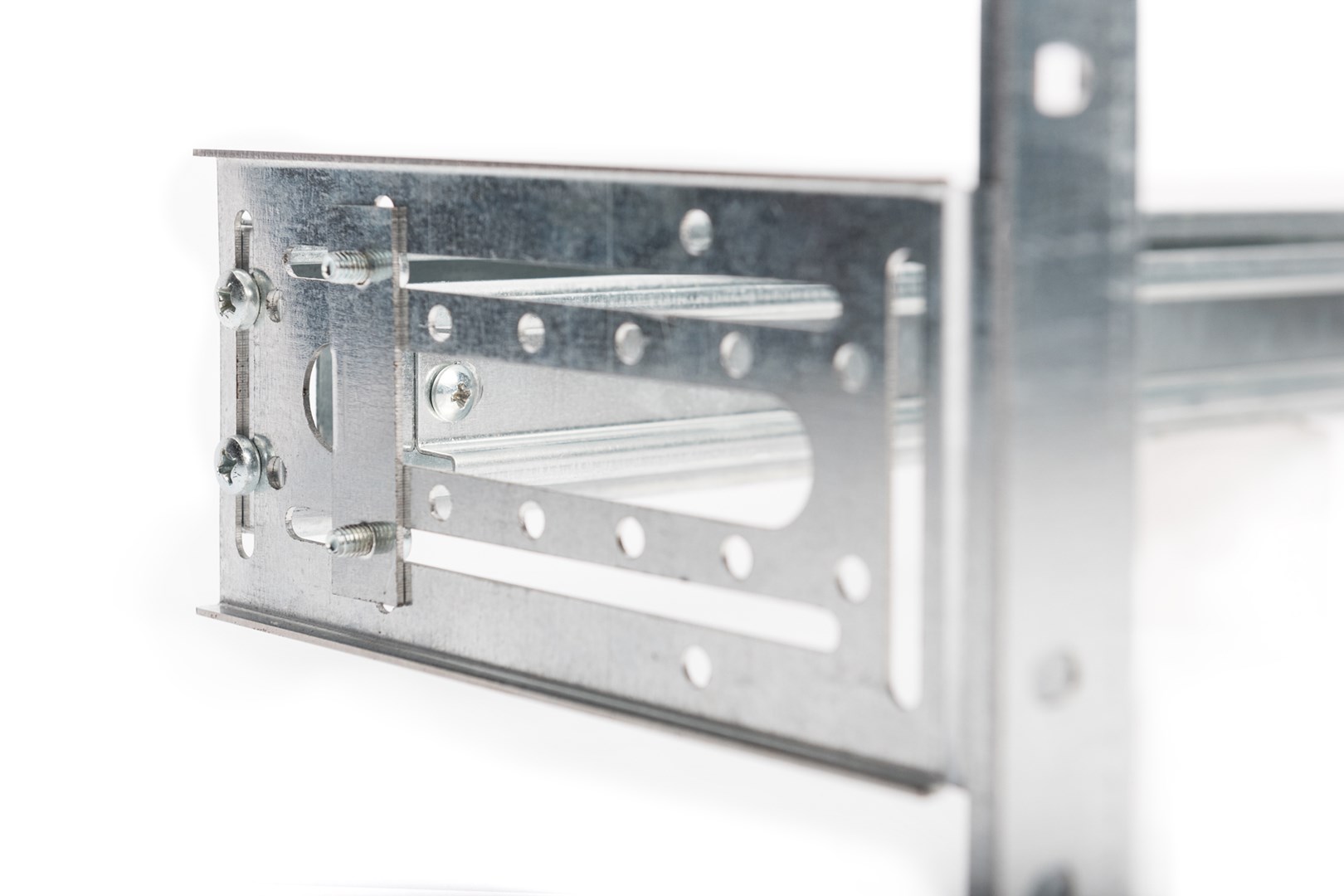

The 483 mm (19“) DIN Rail Holder makes the installation of suitable equipment on the already mounted 390 mm width DIN rail possible. It is variable in depth and can be turned 90° up or down to install the components horizontally if necessary. The rear side is equipped with a height variable C shaped cable tray with fixing points for tape or cable ties. The complete frame can also be adjusted in height (4U brackets are fixed in the rack) to suit individual needs of space.

10 IN STOCK

SKU: DN-19-DIN-4U

Manufacturer: Digitus Digitus

RRP Price €71.96

Specifications

Technical details

Product colour
Silver
Material
Galvanized steel
Rack capacity
4U
Country of origin
Turkey

Weight & dimensions

Weight
1.6 kg
Width
483 mm
Depth
223 mm
Height
178 mm

Packaging data

Package width
500 mm
Package depth
240 mm
Package height
200 mm
Package weight
3.5 kg
Package volume
24000 cm³
