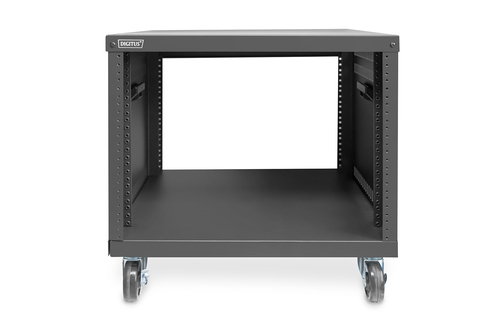

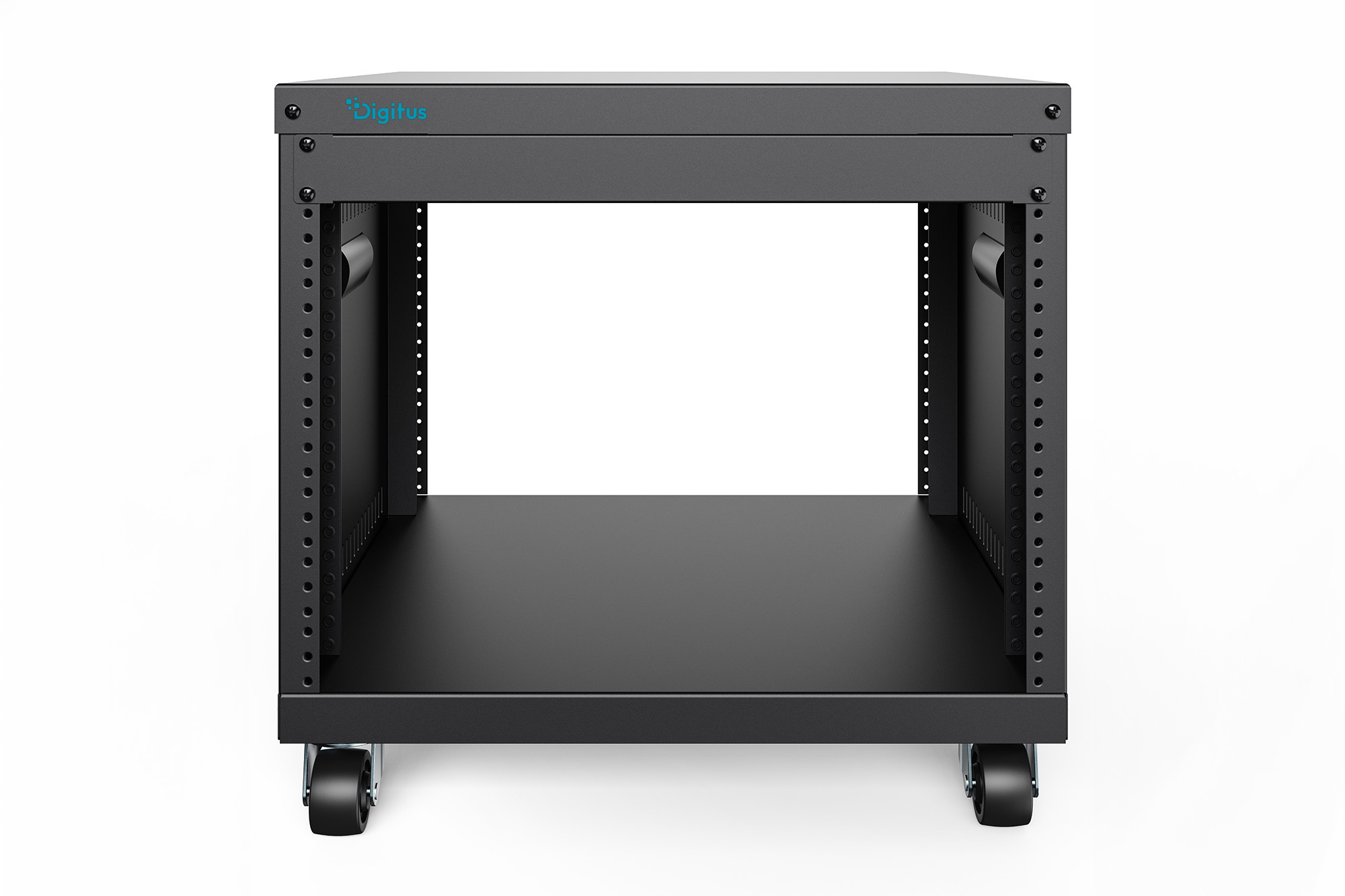

Digitus Universal 19-Inch Equipment Rack with Castors, 8U

Digitus Universal 19-Inch Equipment Rack with Castors, 8U

Name: Digitus Universal 19-Inch Equipment Rack with Castors, 8U
Brand: Digitus
SKU: DN-48000
Price: 102.04 EUR
Availability: InStock

The 19-inch racks from DIGITUS® can be used universally thanks to their 19-inch thread perforation. Audiovisual accessories (AVS) or active and passive network components can be installed in the blink of an eye. Compatible with US or EU screw sizes

- 19-inch thread perforation for simplified installation work without captive nuts
- Compatible with US or EU screw sizes
- Robust design made of sheet steel with load capacity up to 136 kg

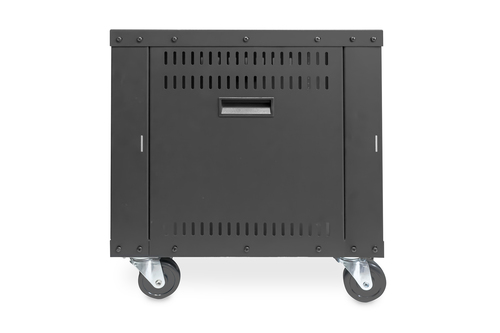

- Side walls with ventilation slits for passive cooling
- Including rollers and carrying handles
- Including screwdriver and 483 mm (19”) dummy cover
- Unassembled delivery as flat pack

The 19-inch racks from DIGITUS® can be used universally thanks to their 19-inch thread perforation. Audiovisual accessories (AVS) or active and passive network components can be installed in the blink of an eye without needing captive nuts. The thread perforation of the profiles enables compatibility with US or EU screw sizes. Both screw types are included in delivery. Durable sheet steel design ensures the necessary robustness and allows maximum loads of up to 136 kg. Ventilation slits on both side walls ensure passive cooling of installation components. Equipped with rollers and carrying handles, the 19-inch racks are portable as needed for optimal positioning. Delivery is carried out as an unassembled flat pack to optimize logistics effort. The rack is easy and quick to assemble thanks to the included screwdriver and simple design. The portfolio includes various sizes to meet any requirements.

1 IN STOCK

SKU: DN-48000

Manufacturer: Digitus Digitus

RRP Price €102.04

Specifications

Features

Rack capacity

Type

Freestanding rack

Maximum weight capacity

136 kg

Maximum weight capacity (rolling)

136 kg

Product colour

Black

Material

Steel

Frame type

Closed

Side panel construction

Steel

Side panels included

Yes

Cooling type

Passive

Castor wheels

Yes

Weight & dimensions

Size (imperial)

48.3 cm (19")

Width

507 mm

Depth

460 mm

Height

420 mm

Weight

13.2 kg

Packaging data

Screws included

Yes

Quick installation guide

Yes

Package width

495 mm

Package depth

540 mm

Package height

175 mm

Package volume

36085.5 cm³

Package weight

13.9 kg

Logistics data

UK Trade Tariff code

94032080

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

13.2 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
