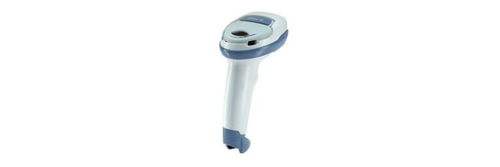

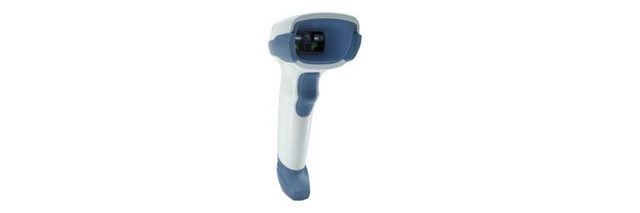

Zebra DS2208-HC Handheld bar code reader 1D/2D LED White

IMPROVE PATIENT SAFETY AND CLINICIAN PRODUCTIVITY
Purpose-built for healthcare, you get an affordable imager that doesn’t compromise performance or features for price. Capture the many kinds of barcodes commonly used in hospitals—from barcodes on patient wristbands and medication vials to IV bags and specimen trays. Pre-configured and ready to use right out of the box, the scanner is configured for the healthcare applications you use every day, while auto-host detect cables automatically select the right host interface—just plug in the scanner and you’re ready to go.

ON ORDER

SKU: DS2208-HC0000BZZRW

Manufacturer: Zebra Zebra

RRP Price €166.98

Specifications

Scanning

Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, MSI, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)
640 x 480 pixels
Light levels (direct sunlight)
0 - 107600 lx
Wavelength
624 nm
Tilt reading angle
0 - 360°
Pitch reading angle
0 - 65°
Yaw reading angle
0 - 65°

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code
IP52
LED indicators
Yes
Buzzer
Yes
Product colour
White
Certification
RoHS EN 50581, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B

Power

Power source type
RS-232, USB
Input voltage
4.5 - 5.5 V

Weight & dimensions

Width
66 mm
Depth
99 mm
Height
165 mm
Weight
161.6 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Logistics data

Harmonized System (HS) code
84716070
