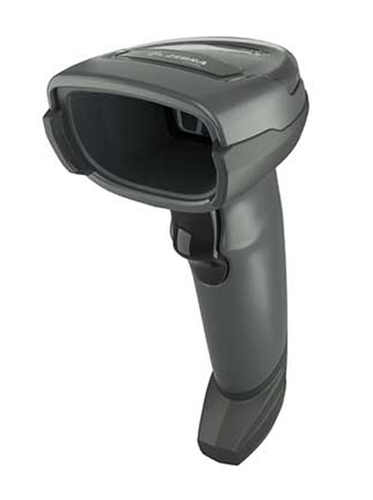

Zebra DS4608-HD Handheld bar code reader 1D/2D LED Black

Versatility That Does More for Your Whole Store

Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department, data from a travel document, the DS4600 Series does more for your whole store.

Capture Barcodes Up to 28 Inches Away

Bulky and heavy items won’t slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart without leaving the cashwrap.

One Scanner for Your Whole Store

No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewelry tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver’s license information. And much more.

Fastest Scanning Performance in Its Class

Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.

Do More Throughout Your Whole Store

With the DS4600 Series for Retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Intelligent Document Capture not only captures images of documents, but automatically orients, de-skews and brightens the image for optimum clarity. Scan multiple barcodes with a single trigger pull, or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.

3 IN STOCK

SKU: DS4608-HD00007ZCWW

Manufacturer: Zebra Zebra

RRP Price €286.67

Specifications

Scanning

Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Industrial 2 of 5, MSI, Plessey
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
1280 x 800 pixels
Wavelength
660 nm
Pitch reading angle
-60 - 60°

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
RS-232, USB

Performance

International Protection (IP) code
IP52
LED indicators
Yes
Product colour
Black
Certification
2011/65/EU, EN 50581:2012, EN IEC 63000:2018 UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 IEC 62471:2006 (Ed.1.0); EN 62471:2008 FCC: 47 CFR 15, B, B ICES-003 6, B, EN 55032, B, EN 55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014

Power

Power source type
DC
Input voltage
4.5-5.5 V
Power consumption
340 mA

Weight & dimensions

Width
67 mm
Depth
98 mm
Height
165 mm
Weight
161.9 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Logistics data

Harmonized System (HS) code
84716070
