StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km

Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable
The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

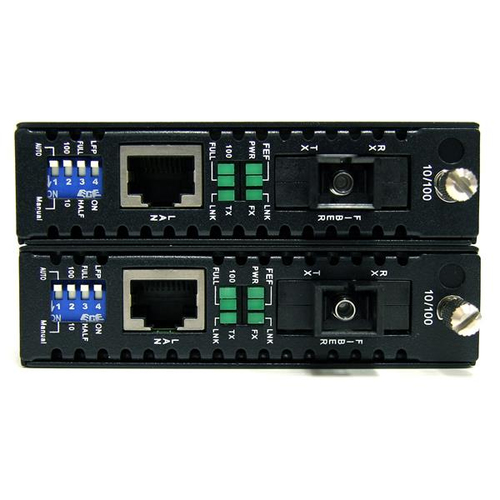

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

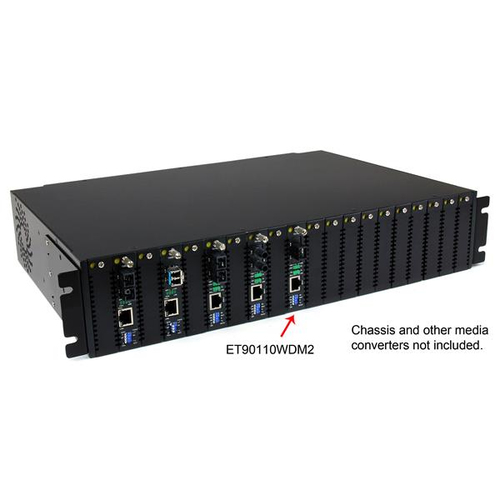

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

ON ORDER

SKU: ET90110WDM2

Manufacturer: StarTech.com StarTech.com

RRP Price €467.51

Specifications

Network

Maximum data transfer rate
200 Mbit/s
Converter input interface
100Base-TX, 10Base-T
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
20000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode

Features

Internal
No
Plug and Play
Yes
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC

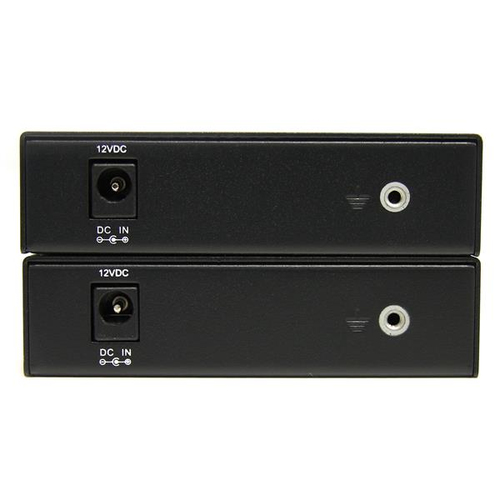

DC-in jack
Yes

Power

Output voltage
12 V
Output current
1 A
External power adapter
Yes

Weight & dimensions

Weight
1.2 kg

Operational conditions

Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

Packaging content

Manual
Yes

Packaging data

Package width
211 mm
Package depth
279 mm
Package height
101 mm
Package weight
1.36 kg

Certificates

Compliance certificates
RoHS
Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Other features

Dimensions (WxDxH)
95 x 160 x 20 mm
Full duplex
Yes

Accessories
