StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays

Dual Display Mount | Full Motion | For 32" to 75" Displays

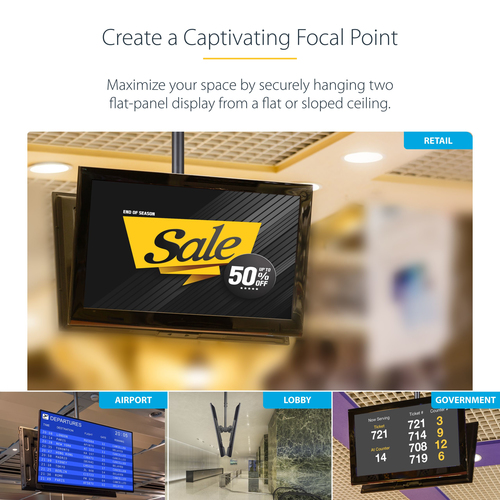

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

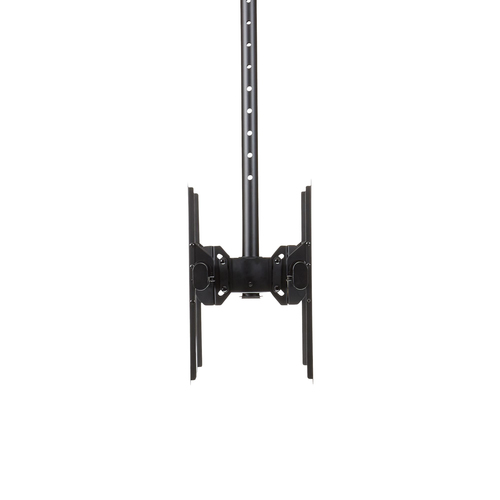

Back-to-Back TV Mount

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

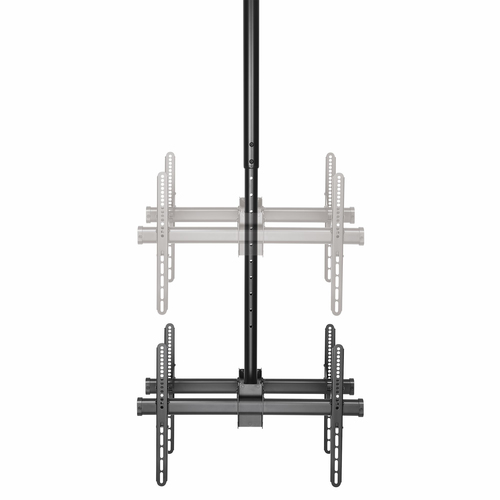

Adjustable Height

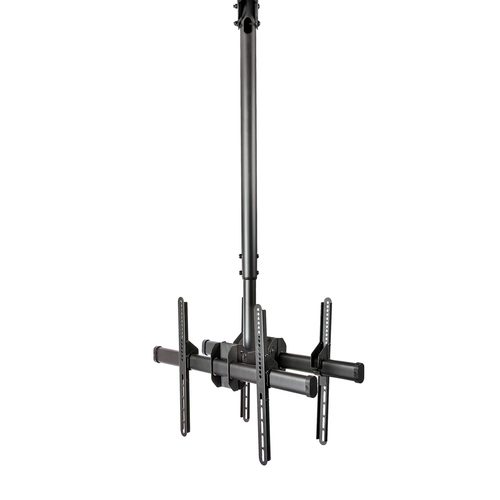

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

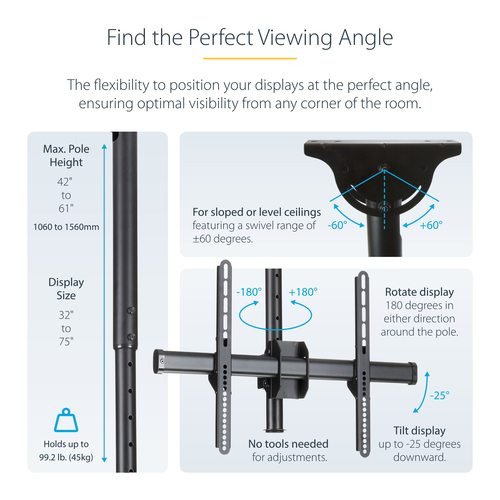

Easy Screen Adjustment

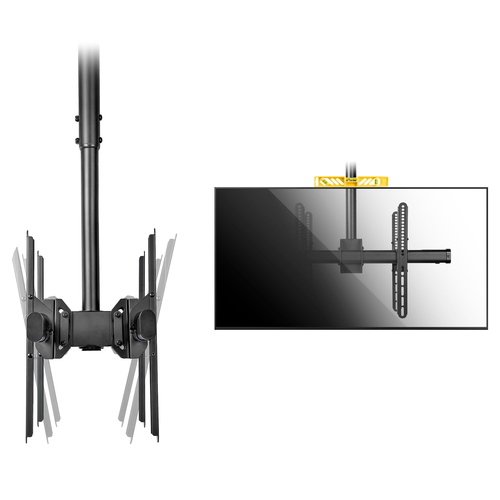

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

Swivels to Suit Your Ceiling

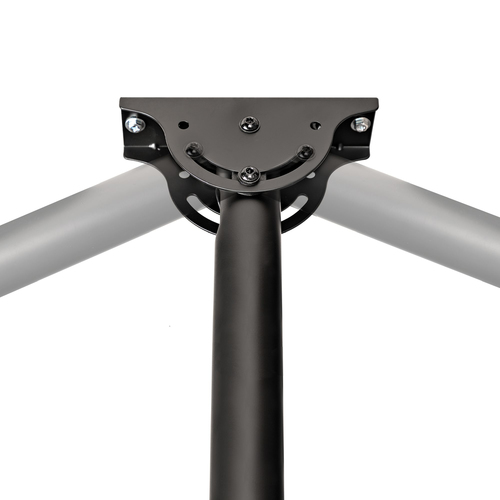

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

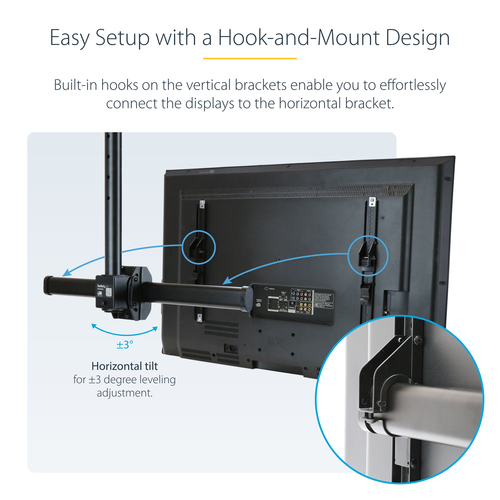

Simple Setup and Cable Management

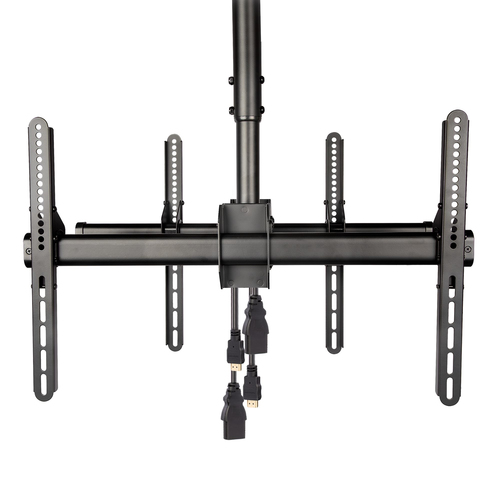

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

SKU: FPCEILBTB

Manufacturer: StarTech.com StarTech.com

RRP Price €413.51

Specifications

Mounting

Maximum weight capacity
90 kg
Minimum screen size
81.3 cm (32")
Number of displays supported
2
Maximum weight capacity (per display)
45 kg
Maximum screen size
190.5 cm (75")
Mounting type
Ceiling
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface

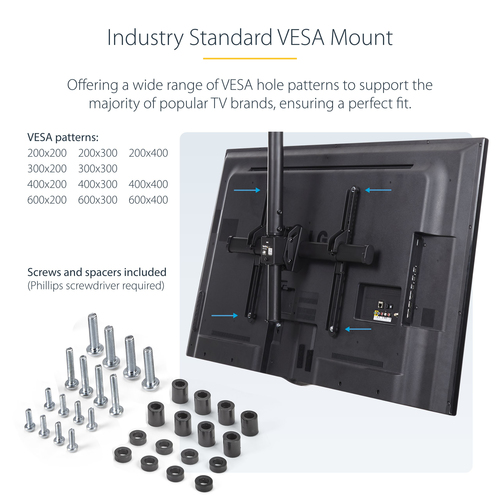

200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Ergonomics

Height adjustment
Yes
Height adjustment range
1060 - 1560 mm
Tilt angle range
-20 - 5°
Swivel angle range
-180 - 180°
Angle of rotation
360°
Adjustable
Yes

Design

Product colour
Black
Housing material
Steel
Anti-theft function
No

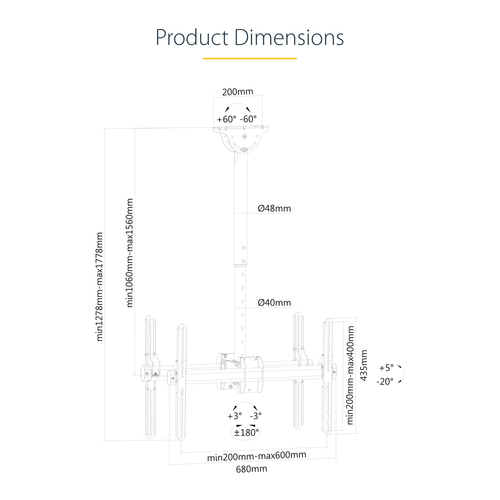

Weight & dimensions

Width
165 mm
Depth
680 mm
Depth (max)
68 cm
Height
835 mm
Weight
9.8 kg

Packaging data

Package width
310 mm
Package depth
935 mm
Package height
145 mm
Package weight
10.8 kg

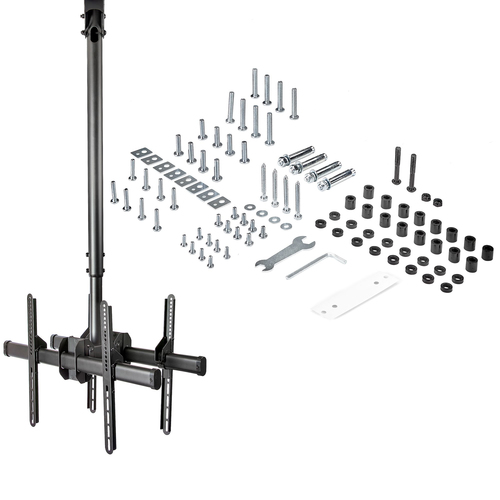

Packaging content

Manual
Yes
Screws included
Yes
Number of screws
46
Wrench included
Yes
Nuts included
Yes
Number of nuts
2
Washers included
Yes
Number of washers included
12
Spacer included
Yes
Number of spacers included
32

Technical details

Sustainability compliance
Yes
Compliance certificates
CE, RoHS

Logistics data

Harmonized System (HS) code
85299097
Master (outer) case width
340 mm
Master (outer) case length
965 mm
Master (outer) case height
310 mm
Products per master (outer) case
2 pc(s)
