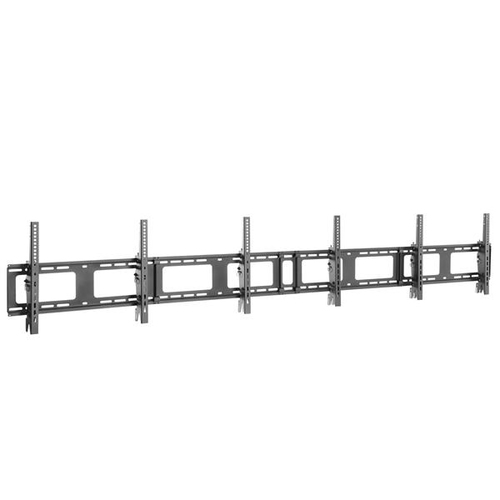

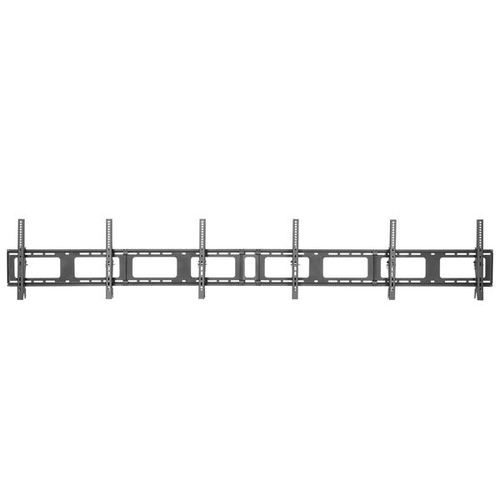

StarTech.com Triple-Display TV Wall Mount - Menu Board Mount - Landscape

Digital Signage Mount | For 40" to 50" Displays | Steel | 5x Tilt Settings

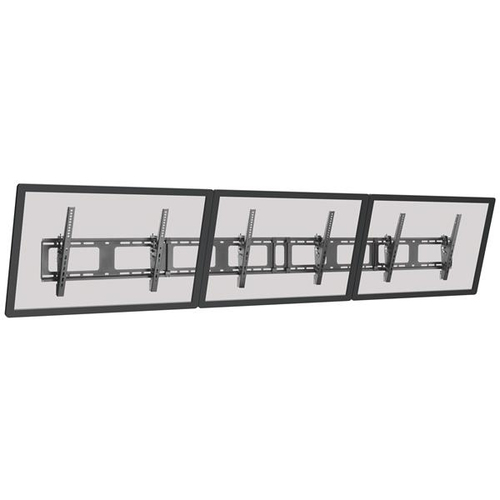

Create a perfectly aligned menu board with this triple-display TV wall mount for 40” to 50” displays. The modular wall-mounting system is easy to set up.  Adjust the tilt for all three displays at the same time, and fine-tune the screen level with ease.

Enhance Customer Sales

Digital menu boards are a great way to increase customer sales, promote new offerings, and inform customers at the point of sale. Ideal for restaurants, retail stores and many other businesses, this professional-grade menu board mount supports three 40” to 50” VESA mount TVs in landscape position. It supports a weight capacity of 110 lb. (50 kg) per display, and is compatible with VESA 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400.

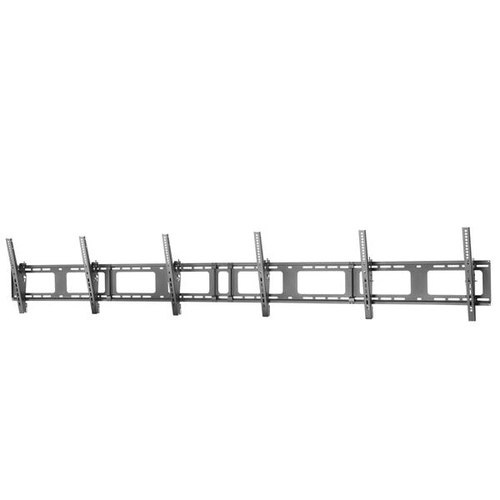

Adjust Your Display with Ease

For optimum viewing, you can adjust the tilt of all three displays to the same angle simultaneously, without using tools. The multi-screen mount has five fixed tilt settings: 0/-5/-10°/-15°/-20°.

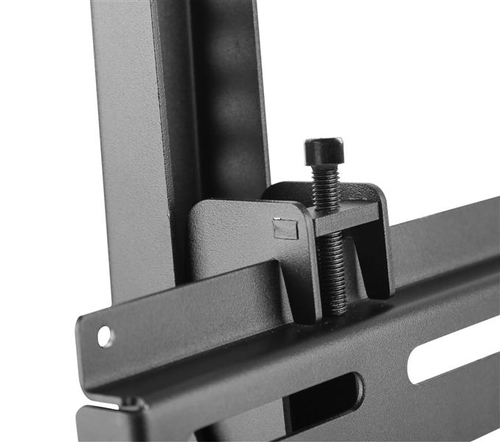

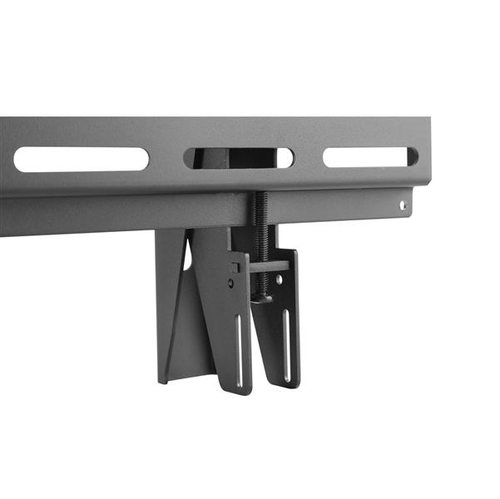

Align the Screen Level of All Monitors

To ensure precise alignment of all three TVs, you can fine-tune the level of the displays +3° to -3° using the micro height adjustment feature.

Durable Steel Construction

With its heavy-duty steel construction, the triple-monitor wall bracket provides durable performance.

Fast and Easy Installation

Save time on setup. The hook-and-mount design of the triple-display wall mount makes installation fast and easy.

FPWMNB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Create a digital menu board, mounting three 40" to 50" TVs in landscape position; Supports up to 110 lb. (50 kg) in weight per display
- Tilt all displays to the same angle easily, with five fixed-tilt settings: 0/-5/-10°/-15°/-20°
- Align your displays with micro height adjustment, fine-tuning the screen level +3° to -3°

ON ORDER

SKU: FPWMNB

Manufacturer: StarTech.com StarTech.com

RRP Price €1,111.22

Specifications

Mounting

Maximum weight capacity
150 kg
Minimum screen size
101.6 cm (40")
Number of displays supported
3
Maximum weight capacity (per display)
50 kg
Maximum screen size
127 cm (50")
Mounting type
Wall
Minimum VESA mount
200 x 100 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400

Ergonomics

Tilt angle range
-20 - 0°
Cable management
No

Design

Product colour
Black
Housing material
Steel
Anti-theft function
No
Certification
REACH

Weight & dimensions

Width
78 mm
Depth
2900 mm
Height
225 mm
Weight
14.2 kg

Packaging data

Package width
250 mm
Package depth
740 mm
Package height
230 mm
Package weight
16 kg

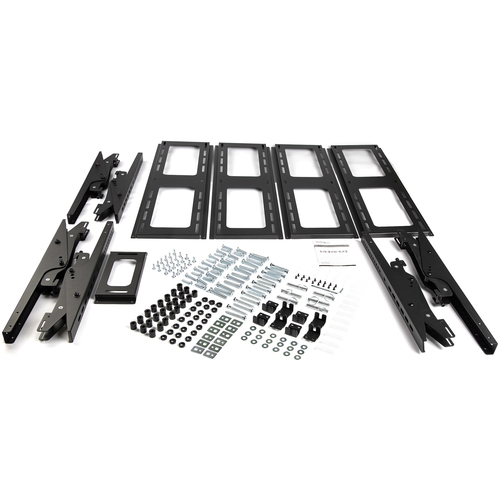

Packaging content

Screws included
Yes
Number of screws
94
Washers included
Yes
Number of washers included
30
Spacer included
Yes
Number of spacers included
48

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85299097
Master (outer) case width
250 mm
Master (outer) case length
740 mm
Master (outer) case height
230 mm
Products per master (outer) case
1 pc(s)
