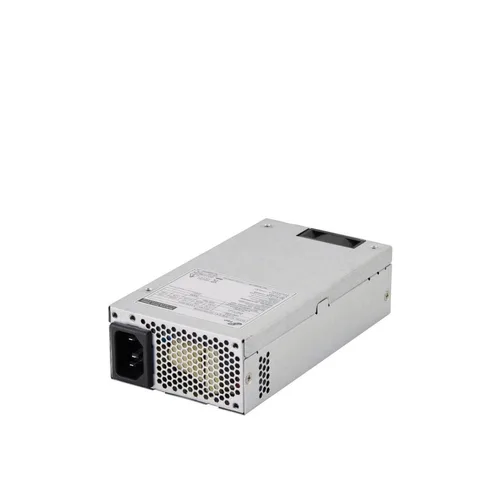

Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes

Efficient 500W Power Supply for Shuttle XPCs
The Shuttle XPC Accessory FSP500 is a high-end power supply with a maximum output wattage of 500W suitable for certain Shuttle XPCs. Thanks to its 80 PLUS Gold certification for power-efficient devices, this power supply is also suitable for ENERGY STARĀ® compliant systems.

ON ORDER

SKU: FSP500

Manufacturer: Shuttle Shuttle

RRP Price €113.68

Specifications

Power

Total power
500 W
AC input voltage
90 - 264 V
AC input frequency
47 - 63 Hz
Power Factor Correction (PFC) type
Active
Combined power (+5Vsb)
3 W
Max output current (+3.3V)
14 A
Max output current (+12V)
41 A
Max output current (+5V)
16 A
Max output current (-12V)
0.5 A
Power protection features
Over voltage, Short circuit

Ports & interfaces

Motherboard power connector
20-pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2

Performance

80 PLUS certification
80 PLUS Bronze
Purpose
PC
Bearing technology
Ball bearing
Mean time between failures (MTBF)
100000 h
Compatible products
Shuttle XPC SH610R4, SH510R4, SH570R6

Design

Product colour
Grey
Cooling type
Active
Fan diameter
4 cm
Number of fans
1 fan(s)
Fan location
Rear

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%

Certificates

Compliance certificates
CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL

Weight & dimensions

Width
150 mm
Depth
81.5 mm
Height
40.5 mm
Weight
700 g

Packaging data

Package weight
900 g

Technical details

Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR

Logistics data

Harmonized System (HS) code
85044083

Accessories
