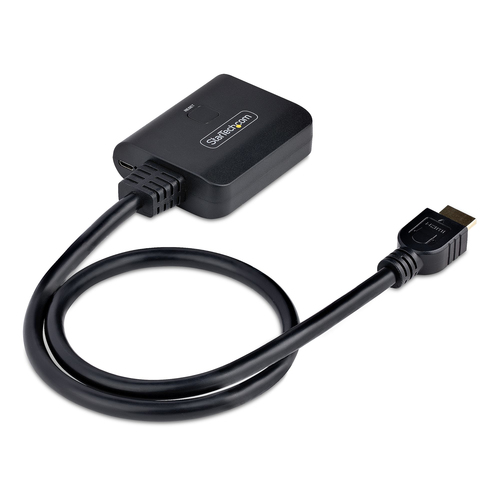

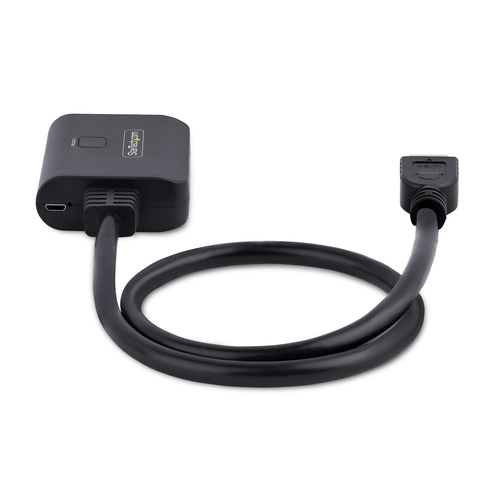

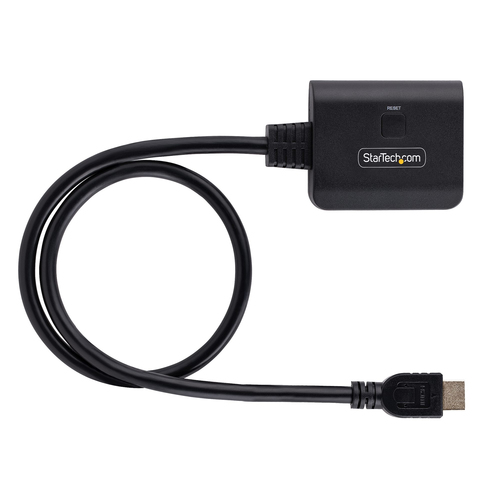

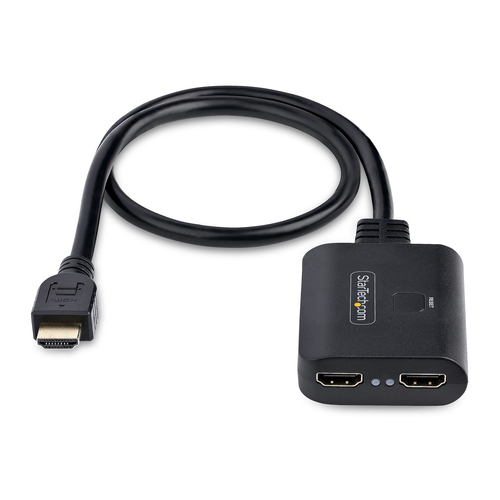

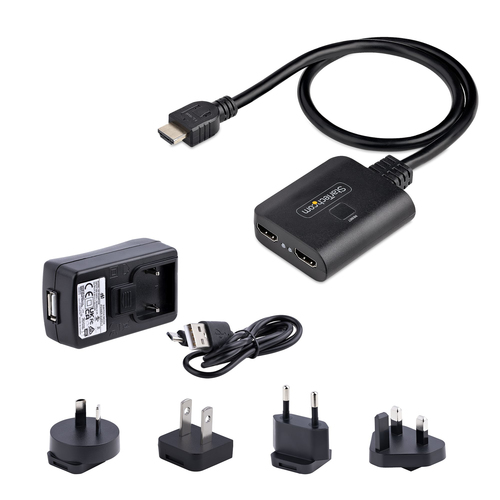

StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable

Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port

This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.

4K 60Hz Resolution

This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.

USB Powered

The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.

Robust Installation Options

This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.

This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

4 IN STOCK

SKU: HDMI-SPLITTER-4K60UP

Manufacturer: StarTech.com StarTech.com

RRP Price €83.62

Specifications

Ports & interfaces

Video port type
HDMI
Video out
2x HDMI
HDMI version
2.0
Video ports quantity
2

Features

Product colour
Black
Housing material
Acrylonitrile butadiene styrene (ABS)
Maximum resolution
4096 x 2160 pixels
HD type
4K Ultra HD
Maximum operating distance
5 m
Maximum refresh rate
60 Hz
High Dynamic Range (HDR) supported
Yes
Cable length
0.5 m
Data transfer rate
18 Gbit/s
HDCP
Yes
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
LED indicators
Power

Power

AC input voltage
100 - 240 V
Input current
0.3 A
Output voltage
5 V
Output current
1 A
USB powered
Yes

Weight & dimensions

Width
55 mm
Depth
65 mm
Height
19 mm
Weight
92 g

Packaging data

Package width
190 mm
Package depth
145 mm
Package height
30 mm
Package weight
168 g

Packaging content

Manual
Yes
Cables included
USB Type-A to Micro-USB Type-B

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%

Sustainability

Sustainability compliance
Yes

Technical details

Supported audio channels
7.1
Compliance certificates
CE, RoHS

Logistics data

Master (outer) case width
630 mm
Master (outer) case length
470 mm
Master (outer) case height
220 mm
Products per master (outer) case
60 pc(s)
