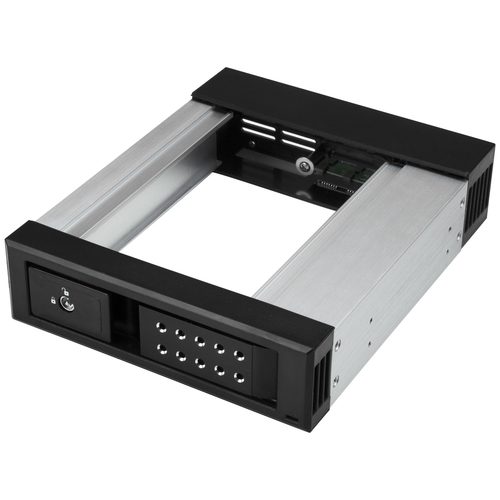

StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum

StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum

Name: StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum
Brand: StarTech.com
SKU: HSB1SATSASBA
Price: 48.15 EUR
Availability: InStock

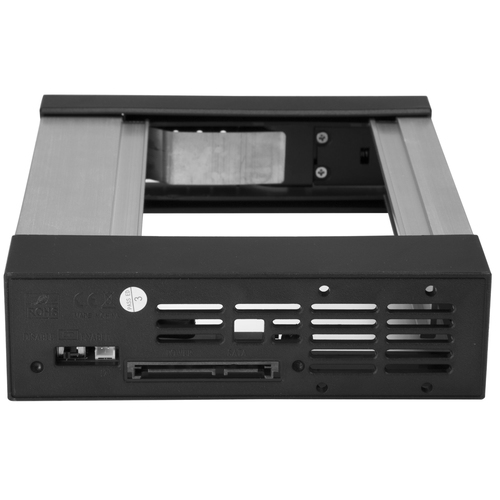

Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers

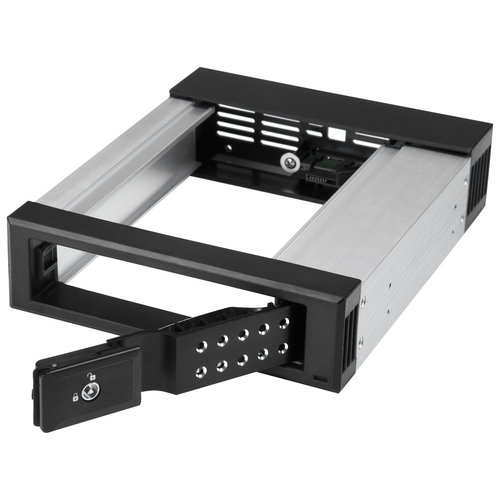

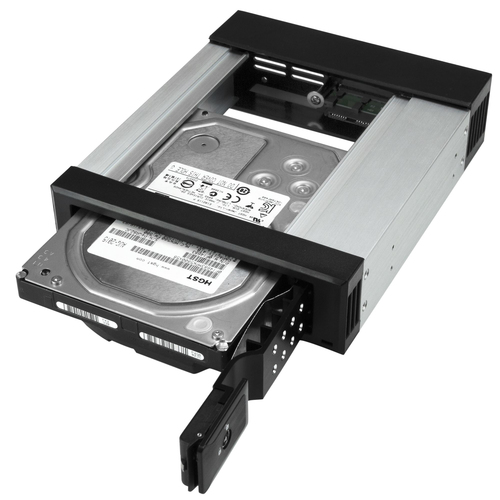

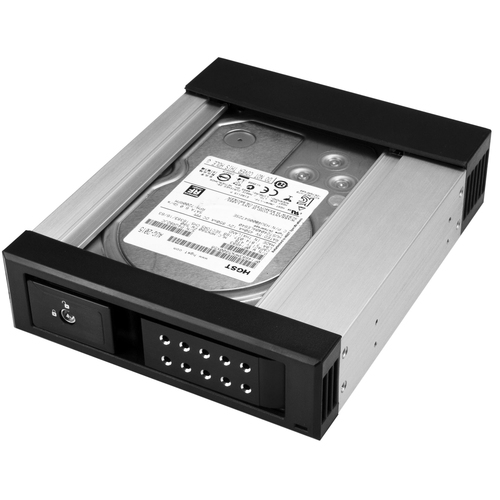

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Hot-swap drives easily

This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

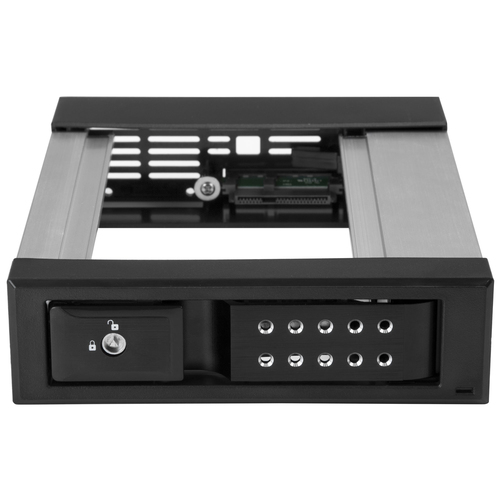

The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers

To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

7 IN STOCK

SKU: HSB1SATSASBA

Manufacturer: StarTech.com

RRP Price €48.15

Specifications

Features

Size (imperial)

13.3 cm (5.25")

Type

Carrier panel

Product colour

Black

Number of HDDs supported

Maximum HDD capacity

10 TB

HDD size

3.5"

HDD interface

Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)

Material

Aluminium

Supported storage drive heights

26.1 mm

Hot-swap

Yes

Number of fans

0 fan(s)

Data transfer rate

6 Gbit/s

LED indicators

Activity, Power

Key lock

Yes

Weight & dimensions

Width

146 mm

Depth

179 mm

Height

39 mm

Weight

336 g

Packaging data

Package width

150 mm

Package depth

197 mm

Package height

45 mm

Package weight

412 g

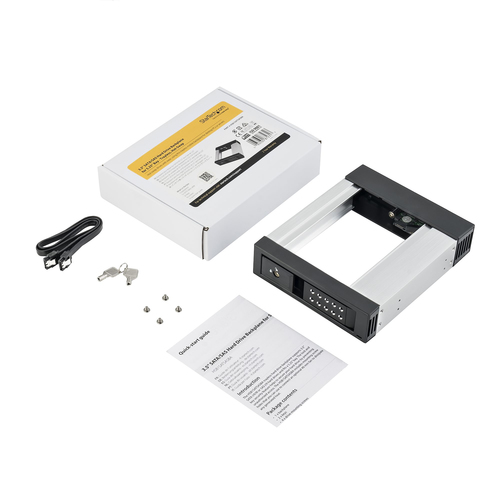

Packaging content

Quick start guide

Yes

Cables included

SATA

Screws included

Yes

Number of lock keys included

2 pc(s)

Number of screws

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 85%

Storage relative humidity (H-H)

5 - 95%

Sustainability

Sustainability compliance

Yes

Technical details

Compliance certificates

CE, RoHS

Logistics data

Products per master (outer) case

20 pc(s)

Master (outer) case width

330 mm

Master (outer) case length

420 mm

Master (outer) case height

275 mm

Harmonized System (HS) code

84733080

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.336 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

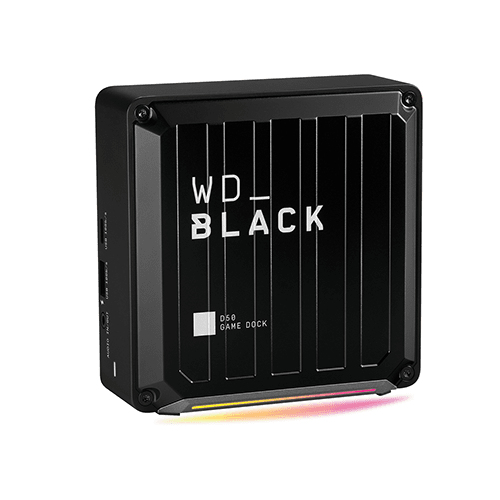

Western Digital D50 SSD enclosure Black Hard Disks & SSDs

Transform your laptop into a fully integrated gaming station, clearing the clutter through a single Thunderbolt 3 cord with multiple ports to seamlessly connect your peripherals. Complete with RGB lighting to personalize your station (Windows only).CONNECT, COMMAND, AND CONTROLDock once, clear the clutter, and cut down on setup times with streamlined connectivity in a single Thunderbolt 3 cord, linking your laptop to an additional screen in up to 5K 60Hz and peripherals such as a mouse, keyboard, headset, and ethernet for a fully immersive gaming experience. Never miss a moment of the action with up to 87W of pass-through charging so your laptop stays at full power while you game.LIGHT UP YOUR STATION WITH RGBEnhance your gaming station with fully customizable RGB lighting controlled through the WD_BLACK Dashboard (Windows only), designed to match your style with various colors and thirteen different LED pattern effects to choose from. Or, seamlessly integrate with your existing ASUS Aura Sync on Armoury Crate, GIGABYTE RGB Fusion 2.0, MSI Mystic Light, or Razer Chroma RGB ecosystem.OPTIMIZED WITH THE WD_BLACK DASHBOARDTake total control with the downloadable WD_BLACK Dashboard, allowing you to monitor the health of your drive and optimize performance using low-power gaming mode to ensure you’re firing on all cylinders during intense gaming sessions.

€313.51

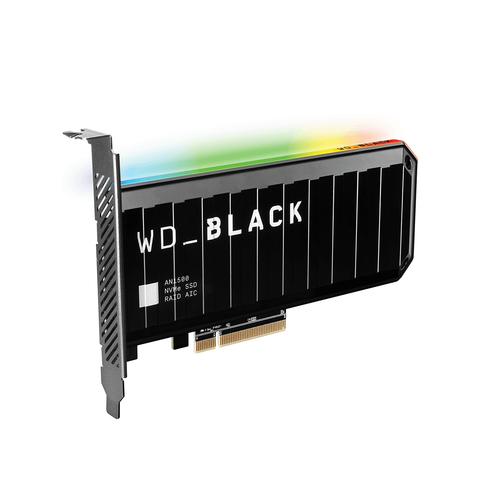

Western Digital WD_BLACK AN1500 1 TB PCI Express 3.0 NVMe Hard Disks & SSDs

PLUG. PLAY. DESTROY.Experience lightning fast gameplay with this bootable, plug and play add-in-card that reaches extreme velocity with minimum effort. Includes customizable RGB lighting and heatsink.REACH EXTREME VELOCITYGet in the game faster with the WD_BLACK™ AN1500 NVMe™ SSD Add-in-Card. Internally powered by two SSDs using PCIe® Gen3 technology, reach up to 6500MB/s read speed and up to 4100MB/s write speed to minimize load times.MORE CAPACITY FOR YOUR GAMESKeep numerous games and your rig running smooth with the WD_BLACK™ AN1500 NVMe™ SSD Add-in-Card, allowing you to save up to 4TB of data.PLUG AND OUTPLAYReaching extreme velocity has never been easier. The bootable WD_BLACK™ AN1500 NVMe™ SSD Add-In-Card simply connects into your PCIe® expansion slot, requiring no external power or cables. Primed with an enterprise grade RAID controller, this plug and play add-in-card can run your entire operating system while you game, giving you solid reliability and effortless performance that holds nothing back.LIGHT UP YOUR STATION WITH RGBEnhance your gaming station with fully customizable RGB lighting controlled through the downloadable WD_BLACK™ Dashboard (Windows® only), designed to match your style with various colors and 13 different LED pattern effects to choose from.THROTTLE THE ENEMY. NOT YOUR RIG.Help keep your rig running at top speeds with the WD_BLACK™ AN1500 NVMe™ SSD Add-In-Card, featuring a fanless and silent heatsink to sustain performance and help keep you from throttling down.OPTIMIZED WITH THE WD_BLACK™ DASHBOARD Take total control with the downloadable WD_BLACK™ Dashboard, allowing you to monitor the health of your drive and optimize performance using gaming mode to ensure you’re firing on all cylinders during intense gaming sessions.

€310.90

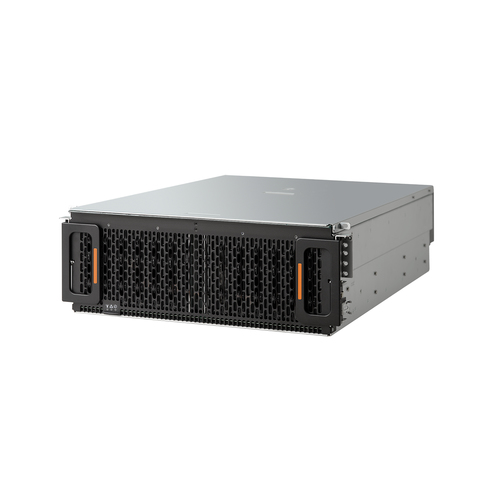

Western Digital Data60 disk array 168 TB Rack (4U) Black Hard Disks & SSDs

The Ultrastar Data60 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data60 provides up to 1.2PB1 of raw storage using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.IsoVibe™ Vibration Isolation TechnologyPrecise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.ArcticFlow™ Thermal Zone Cooling TechnologyBy introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.Western Digital Resource ManagerA GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

€5,819.49

Western Digital Data60 disk array 144 TB Rack (4U) Black Hard Disks & SSDs

€5,288.56

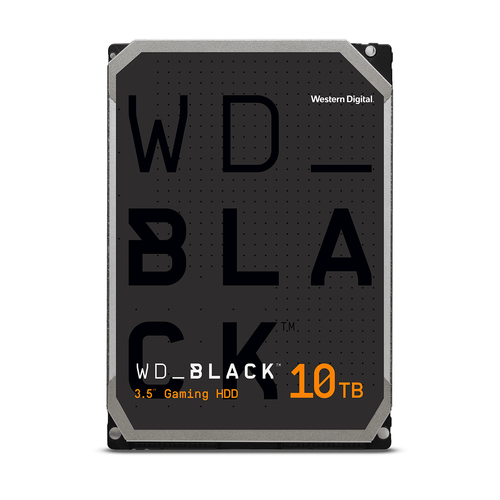

Western Digital WD_Black internal hard drive 10 TB 7200 RPM 256 MB 3.5" Serial ATA III Hard Disks & SSDs

Work Hard. Play Hard. Store Harder.WD_BLACK™ hard drives are designed for desktop PC and power users who demand performance, with a variety of upgrade options available.For Creatives & EnthusiastsWD_BLACK™ drives deliver inspiring performance for storing large multimedia files of photos, videos and applications.For GamersTuned for performance and perfect for gaming. WD_BLACK™ drives offer large capacities to store your expanding gaming library.For Loading Games Or Large FilesThe WD_BLACK™ drive features a dual-core processor that offers twice the processing capability as a standard single-core processor to maximize drive performance.High-Speed Data TransferWith 256MB of cache on 4TB - 10TB models, WD's Dynamic Cache Technology improves performance in real time to allocate and optimize cache between reads and writes.Increased ReliabilityHelps reduce system-induced vibrations from other components, optimizing performance and reliability.Capacity for Basic StorageWith up to 1TB, this storage size is intended for basic users who don’t plan to expand their digital library or digital archive. Get basic storage for photos, videos, games, music, files, etc.Capacity for Average StorageWith 2TB to 4TB, this storage size is best for users who take lots of photos and videos with their smartphone and want to confidently back up or have a copy of their data. Get reliability and capacity for your current and near-future needs.Capacity for Enthusiasts and ProsumersWith 5TB and up, this storage size is best for anyone considering the future of their system. Whether you’re a gamer, shoot professionally, or have a growing amount of files and projects, get the highest capacity plus a long 5-year limited warranty.Highest Capacity for GamersAs game sizes grow, so does the need for capacity. WD_BLACK™ hard drives deliver the best performance and reliability for gaming as well as a longer 5-year limited warranty to match your other performance PC components.Easy Backup And UpgradeAcronis True Image WD Edition software, available as a free download, can clone drives and backup your operating system, applications, settings and all of your data.

€423.24

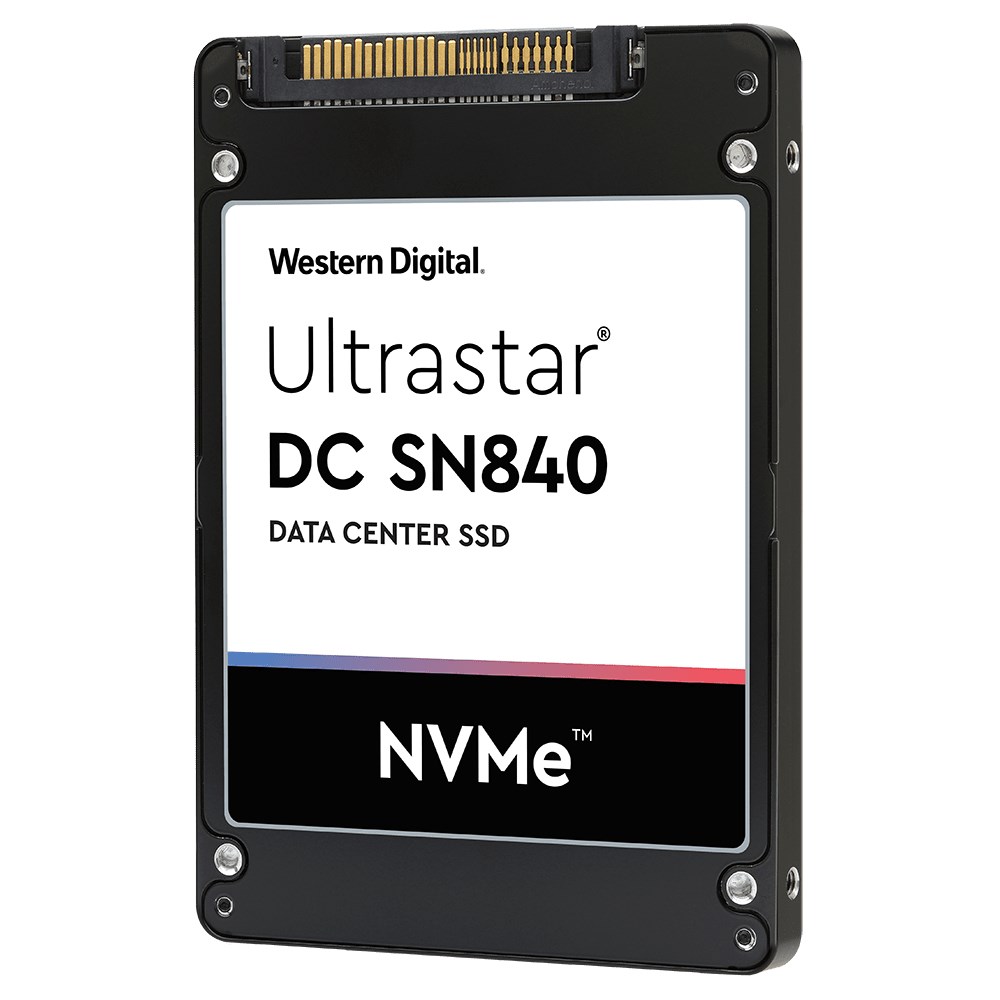

Western Digital Ultrastar DC SN840 6.4 TB 2.5" PCI Express 3.1 NVMe 3D TLC Hard Disks & SSDs

Accelerate Access to Critical Data for Data-Intensive Workloads and ApplicationsUltrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence & access to critical data, these SSDs meet the growing digital demands of your business applications.Performance NVMe Ultrastar DC SN840 SSDs deliver extreme performance & ultra-low latency to the top tier of enterprise storage. With proven dual-port NVMe architecture, these drives are best suited for performance demanding platforms including HPC servers, mission-critical applications and workloads that require superior read/write performance and low latency.Mainstream NVMe Ultrastar DC SN640 SSDs are optimized for consistent quality of service and low latency for mixed random read/write workloads commonly generated by top enterprise applications such as virtualization, OLTP, NoSQL, web servers, file servers and mail servers. Ultrastar DC SN640 enables a seamless transition from SATA SSDs, delivering high performance for deeper insights & faster results for today’s data intensive applications.Enterprise Solutions Made Better by NVMeEverywhere data lives, from sensors to mobile devices to the cloud, we’re driving the innovation necessary to stay ahead of new demands. Our breadth of expertise and level of integration gives us an unmatched ability to deliver carefully calibrated solutions for every type and use of data.Application PerformanceUp to 503K Mixed RR/RW IOPS (70% Read, 30% Write, 4KiB)Dual-port Leadership2nd generation Western Digital designed dual-port high availability NVMe architectureEndurance and Security1 DW/D & 3 DW/D endurance options with TCG encryption and FIPS 140-2 validation (forthcoming)

€1,221.49

Western Digital Ultrastar DC SN840 3.2 TB 2.5" PCI Express 3.1 NVMe 3D TLC Hard Disks & SSDs

€870.77

Western Digital Ultrastar DC SN840 15.4 TB 2.5" PCI Express 3.1 NVMe 3D TLC Hard Disks & SSDs

€2,442.96

Western Digital Ultrastar DC SN840 7.68 TB 2.5" PCI Express 3.1 NVMe 3D TLC Hard Disks & SSDs

€1,221.55

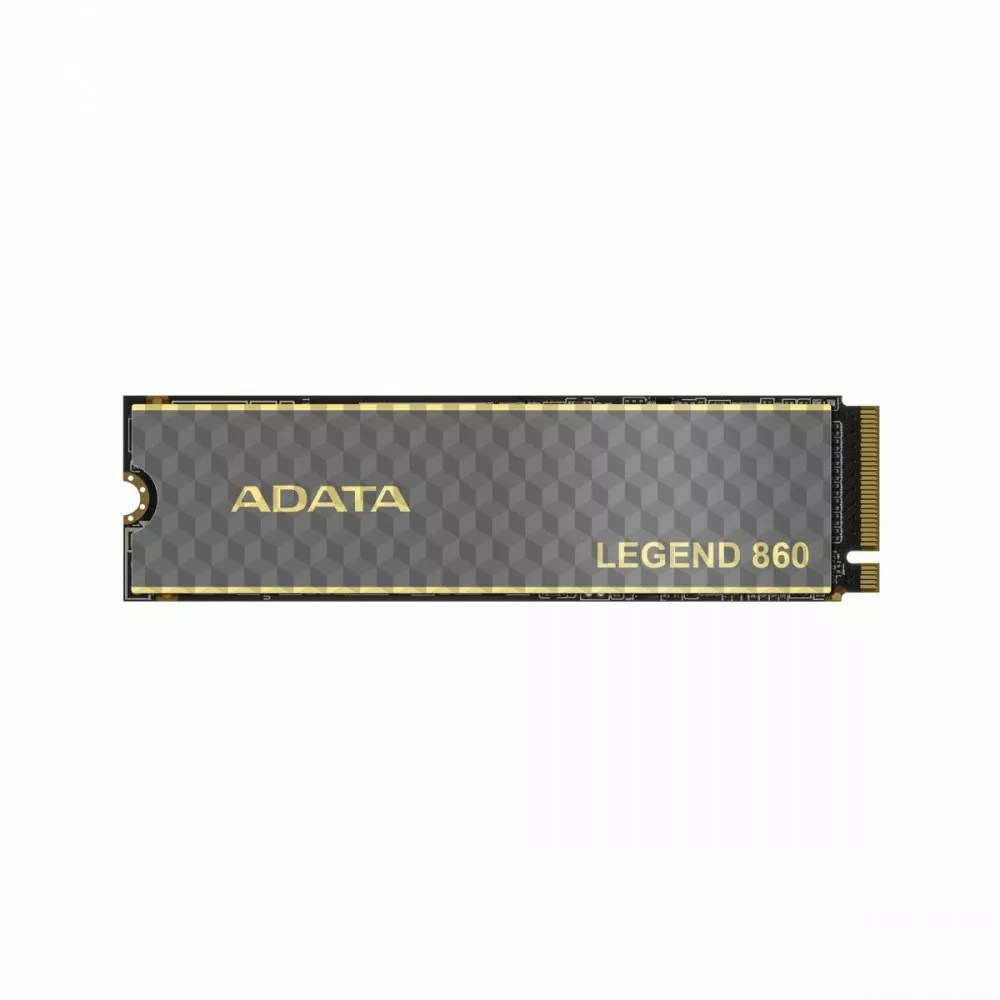

ADATA LEGEND 860 SLEG-860-1000GCS internal solid state drive 1 TB M.2 PCI Express 4.0 NVMe 3D NAND Hard Disks & SSDs
