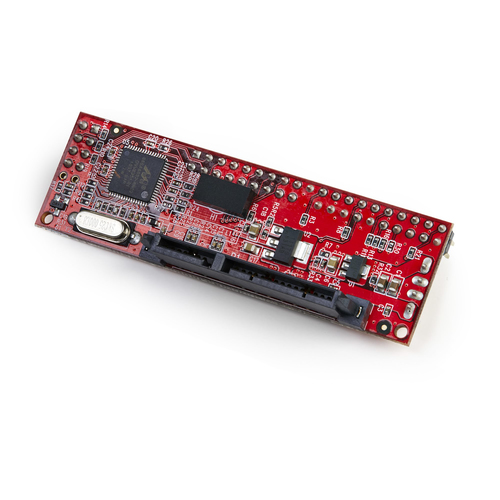

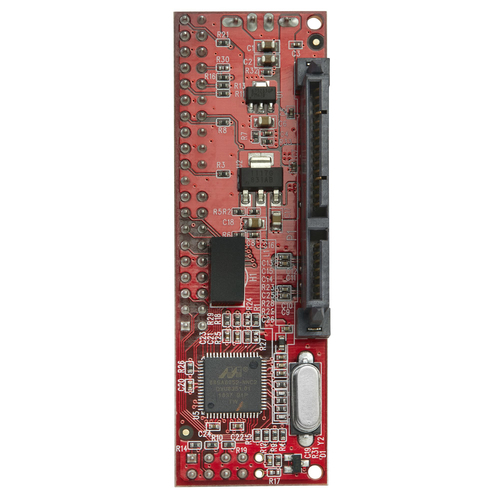

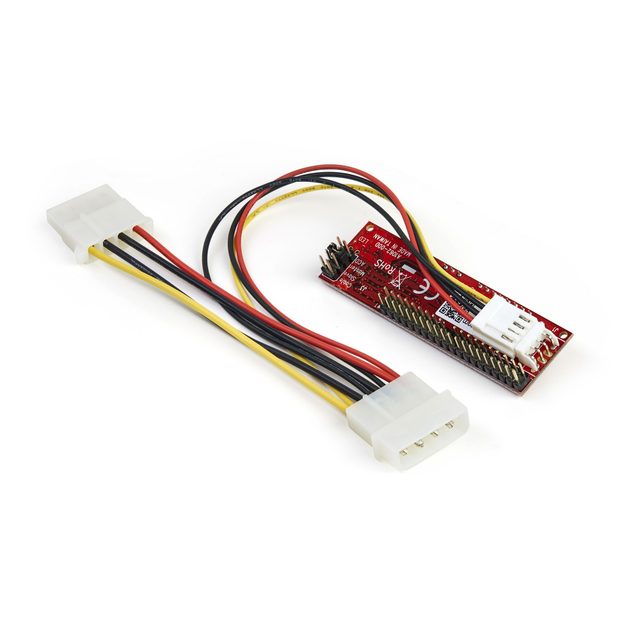

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.

The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

The StarTech.com Advantage

12 IN STOCK

SKU: IDE2SAT2

Manufacturer: StarTech.com StarTech.com

RRP Price €22.33

Specifications

Ports & interfaces

Host interface
IDE
Output interface
SATA
Connector(s)
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)

Design

Internal
Yes
Product colour
Red
Certification
FCC, CE, TAA, REACH

Features

Chipset
Marvell - 88SA8052
Data transfer rate (max)
0.133 Gbit/s
Logical block addressing (LBA) support
48 bit

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 80 °C
Operating relative humidity (H-H)
15 - 90%

Technical details

Compliance certificates
RoHS

Weight & dimensions

Width
20 mm
Depth
75.5 mm
Height
23 mm
Weight
29 g

Packaging data

Manual
Yes
Package width
175 mm
Package depth
145 mm
Package height
33 mm
Package weight
89 g

Logistics data

Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
496 mm
Master (outer) case height
321 mm

Other features

Material
Plastic, Steel

Accessories
