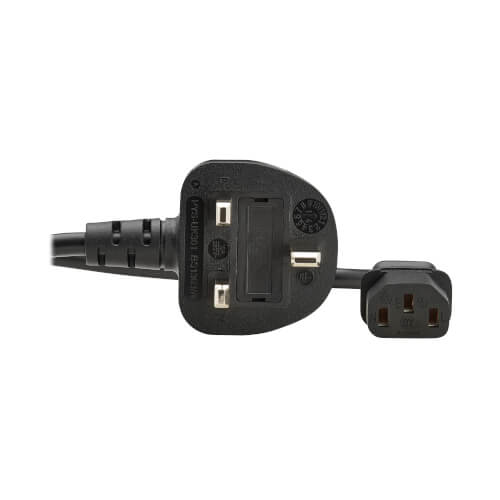

Eaton P056-02M-UK power cable Black 2 m BS 1363 IEC C13

Eaton P056-02M-UK power cable Black 2 m BS 1363 IEC C13

Name: Eaton P056-02M-UK power cable Black 2 m BS 1363 IEC C13
Brand: Eaton
SKU: P056-02M-UK
Price: 6.61 EUR
Availability: OutOfStock

Connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet.

Power Cord Connects Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet. It can also connect a computer, server, monitor or other device to a PDU, UPS or surge protector with BS 1363 outlets. Or you can extend an existing power connection up to two meters (6.6 feet). The P056-02M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

ON ORDER

SKU: P056-02M-UK

Manufacturer: Eaton Eaton

RRP Price €6.61

Specifications

Features

Product colour

Black

Connector 1 gender

Male

Connector 2 gender

Female

Cable length

2 m

Connector 1

BS 1363

Connector 2

IEC C13

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

Cable type

H05VV-F

Number of conductors

Power

Input voltage

250 V

Input current

10 A

Operational conditions

Operating temperature (T-T)

-15 - 70 °C

Storage temperature (T-T)

-15 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Certificates

Certification

CE (Europe); REACH; RoHS; UKCA

Weight & dimensions

Diameter

6.7 mm

Packaging data

Quantity per pack

1 pc(s)

Package width

178.1 mm

Package depth

12.7 mm

Package height

229.1 mm

Package weight

330 g

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.33 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
